WR-320-DX DAS Audio

RM15,740.00

Passive, 500 W, 2x 10″, 2 way full-range installation Line Array, DX, black

  • SPL Max: 132 dB
  • Dispersion: 90º
  • Weight: 32,5 kg ( 71,6 lb )
SKU: WR-320-DX Categories: , , Tag: Brand:

Description

Product description

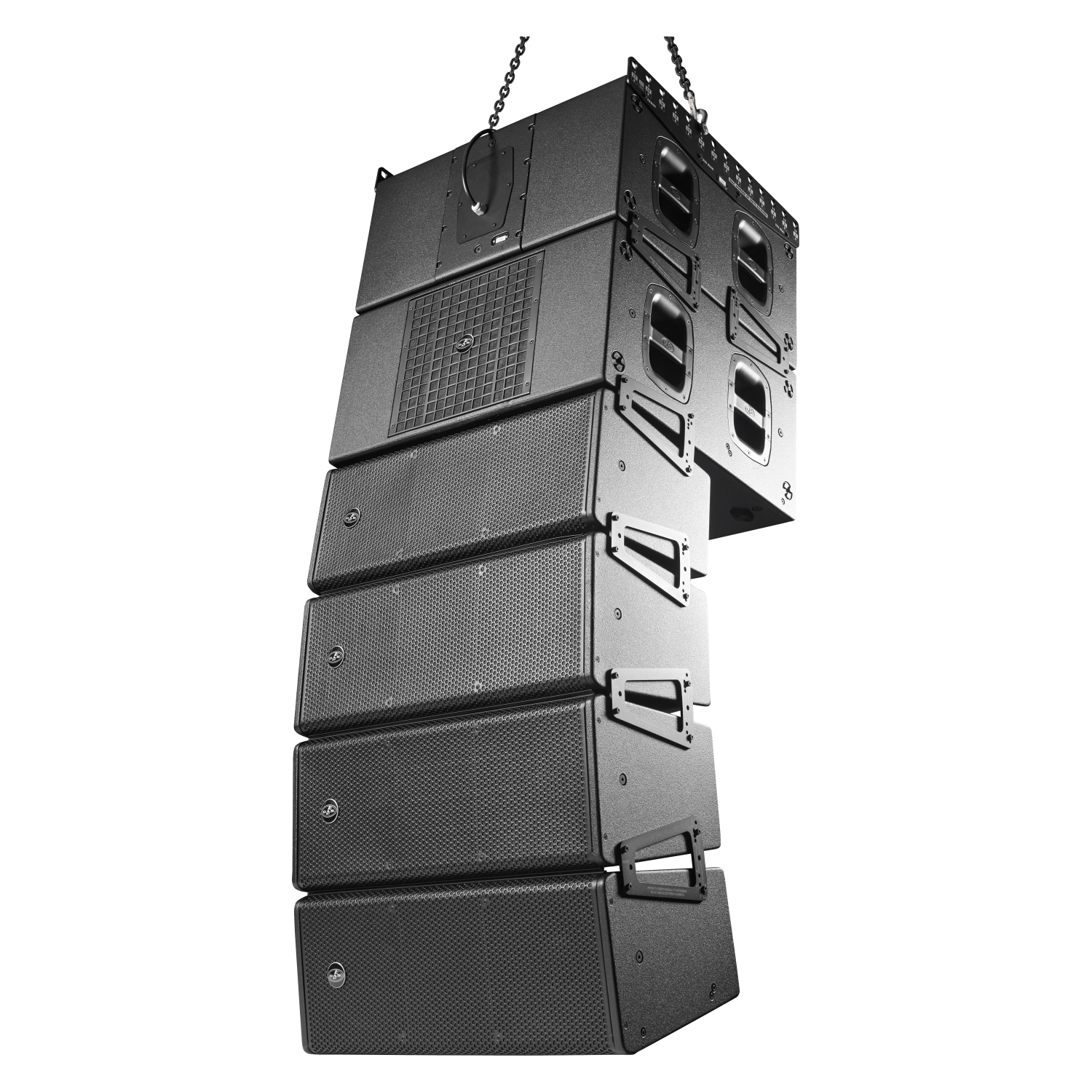

The WR-320-DX is a passive two-way line array system with an IP55 rating, designed for permanent professional outdoor installations. It incorporates two 10″ loudspeakers for low and mid-frequency reproduction and a 3″ compression driver that delivers clear and defined high-frequency reproduction. Its nominal 90º horizontal coverage allows for uniform sound distribution in outdoor environments. Its ultra-compact enclosure, made of birch plywood, minimizes unwanted vibrations and helps reduce distortion while maintaining stable acoustic performance under demanding conditions. This model is available in black or white finishes to facilitate integration into different environments.

The WR Series is designed to offer high resistance and durability in permanent outdoor installations. All metal components of the system are made of stainless steel to ensure high corrosion resistance. The connectors feature protection against liquids and dust through hermetic sealing and include a drainage system that prevents water accumulation. The grilles incorporate a three-layer textile barrier composed of acoustic fabric, filtering foam and a hydrophobic mesh that blocks dust, dirt and moisture without affecting sonic performance. All systems in the WR series share these protection specifications.

The WR-320-DX is manufactured exclusively in the DX (Direct Exposure) version, designed for installations fully exposed to the elements and equipped with a reinforced fiberglass exterior.

WR-320-DXW

Passive, 500 W, 2x 10″, 2 way full-range installation Line Array, DX, white

The WR-320-DX is a passive two-way line array system with an IP55 rating, designed for permanent professional outdoor installations. It incorporates two 10″ loudspeakers for low and mid-frequency reproduction and a 3″ compression driver that delivers clear and defined high-frequency reproduction. Its nominal 90º horizontal coverage allows for uniform sound distribution in outdoor environments. Its ultra-compact enclosure, made of birch plywood, minimizes unwanted vibrations and helps reduce distortion while maintaining stable acoustic performance under demanding conditions. This model is available in black or white finishes to facilitate integration into different environments.

The WR Series is designed to offer high resistance and durability in permanent outdoor installations. All metal components of the system are made of stainless steel to ensure high corrosion resistance. The connectors feature protection against liquids and dust through hermetic sealing and include a drainage system that prevents water accumulation. The grilles incorporate a three-layer textile barrier composed of acoustic fabric, filtering foam and a hydrophobic mesh that blocks dust, dirt and moisture without affecting sonic performance. All systems in the WR series share these protection specifications.

The WR-320-DX is manufactured exclusively in the DX (Direct Exposure) version, designed for installations fully exposed to the elements and equipped with a reinforced fiberglass exterior.

Performance

Frequency Range (-10 dB)
60 Hz – 18 kHz
Horizontal Coverage (-6 dB)
90º
Vertical Coverage
Splay Dependent
Nominal Impedance
16 ohms
RMS Power Handling
500 W
Peak Power Handling
2000 W
On-axis Sensitivity 1W/1 m
99 dB SPL
Maximum Peak SPL at 1 m
132 dB
Recommended Amplifier
INTEGRAL-A402INTEGRAL-A404INTEGRAL-A1002INTEGRAL-A1004INTEGRAL-A1602INTEGRAL-A1604INTEGRAL-MA1004INTEGRAL-MA1604
Recommended Processor
INTEGRAL-M88INTEGRAL-MA1604INTEGRAL-MA1004

Connectors

Audio Input Connector
Covered Barrier Strip Terminals
Audio Output Connector
Covered Barrier Strip Terminals

Enclosure

Enclosure Construction
Birch Plywood
Enclosure Geometry
Trapezoidal
Rigging
Attachable Rigging System
Finish
Fiberglass
Color
White
IP Rating
IP55
Dimensions ( H x W x D )
270 x 700 x 365 mm10,6 x 27,6 x 14,4 in
Net Weight
32,5 kg ( 71,6 lb )

Components

LF Driver
10MI
HF Driver
M-75N
Horn/Waveguide
BPS-90AR

Shipping

Shipping Weight
35,5 kg ( 78,2 lb )
