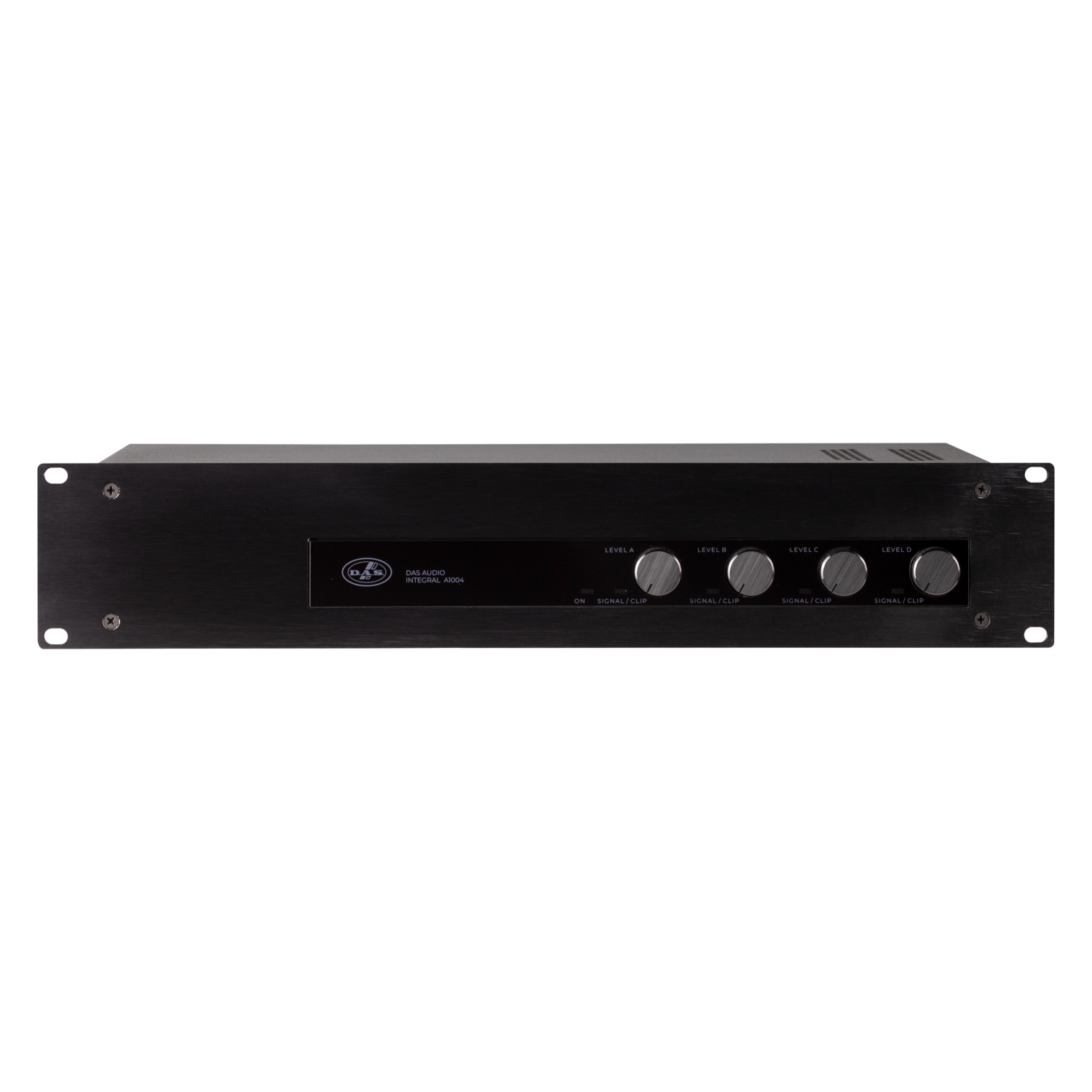

INTEGRAL-A1004 DAS Audio

RM11,330.00

4-channel 250 W @ 4 ohm or 2-channel 500 W @ 100 V amplifier, 2U DIN

Power per channel at 4 ohms: 250 W
Number of channels: 4
Topology: Class D

SKU: INTEGRAL-A1004 Categories: Amplifiers, Power Amplifiers, Professional Sound Tag: DAS Audio Brand: DAS Audio

Description

Product description

INTEGRAL-A1004 is a quad channel, 2U, high efficiency class D amplifier intended for permanent installation use. It is equipped with switching universal mains power supply and auto-standby functionality when no signal presence is detected providing energy savings.

The amplifier delivers 4x250W at 4ohm and can be used in bridge mode for high impedance 100V/70V lines (providing 2x500W of total power). Front LEDs provide information about signal presence, limiters and protection status. At the rear panel the user can configure the stereo / bridge mode and engage an 80Hz 12dB/oct order High Pass filter.

The sober and elegant design together with the euro-block type connectors and energy savings makes it perfect for permanent installations.

Output Power Ratings

Power 8 Ohms

4 x 125 W

Power 8 Ohms Bridged

2 x 500 W

Power 4 Ohms

4 x 250 W

Power 100 V

2 x 500 W

Power 70 V

2 x 500 W

Electronics and Connectors

Amplifier Channels

Output Circuitry

Class D

Frequency Response

20 Hz-30 kHz (+0 – 0.5 dB)

Sensitivity

1.38 V (+5 dBu)

Voltage gain

30.4 dB

Damping Factor

> 1000 (8 Ω load, 1 kHz and below)

Controls

Power On/Off, Gain Pots

Cooling

Side-Right-to-Left

Amplifier Protections

Short Circuit, DC Output, Temperature, Over/Under Voltage

LED Indicators

On-Protect-Standby, Signal-Clip

Audio Signal Input Connector

Terminal Block

Speaker Output Connector

Terminal Block

AC Input Connector

IEC

Current Draw 230 V / 115 V

1.75 A / 3.5 A

Dimensions-Weight

Dimensions ( H x W x D )

88 x 483 x 208 mm3,5 x 19,0 x 8,2 in

Net Weight

3,7 kg ( 8,2 lb )

Shipping

Carton Dimensions ( H x W x D )

170 x 525 x 315 mm6,7 x 20,7 x 12,4 in

Shipping Weight

4,5 kg ( 9,9 lb )
