RACK-ARA-230-MK2 DAS Audio

Touring rack for power and audio + control (ALMA) distribution for ARA Series. 230 V version. 32A, 3 phase power distro

SKU: RACK-ARA-230-MK2 Categories: Audio Accessories, Racks & Cases Tag: DAS Audio Brand: DAS Audio

Description

Product description

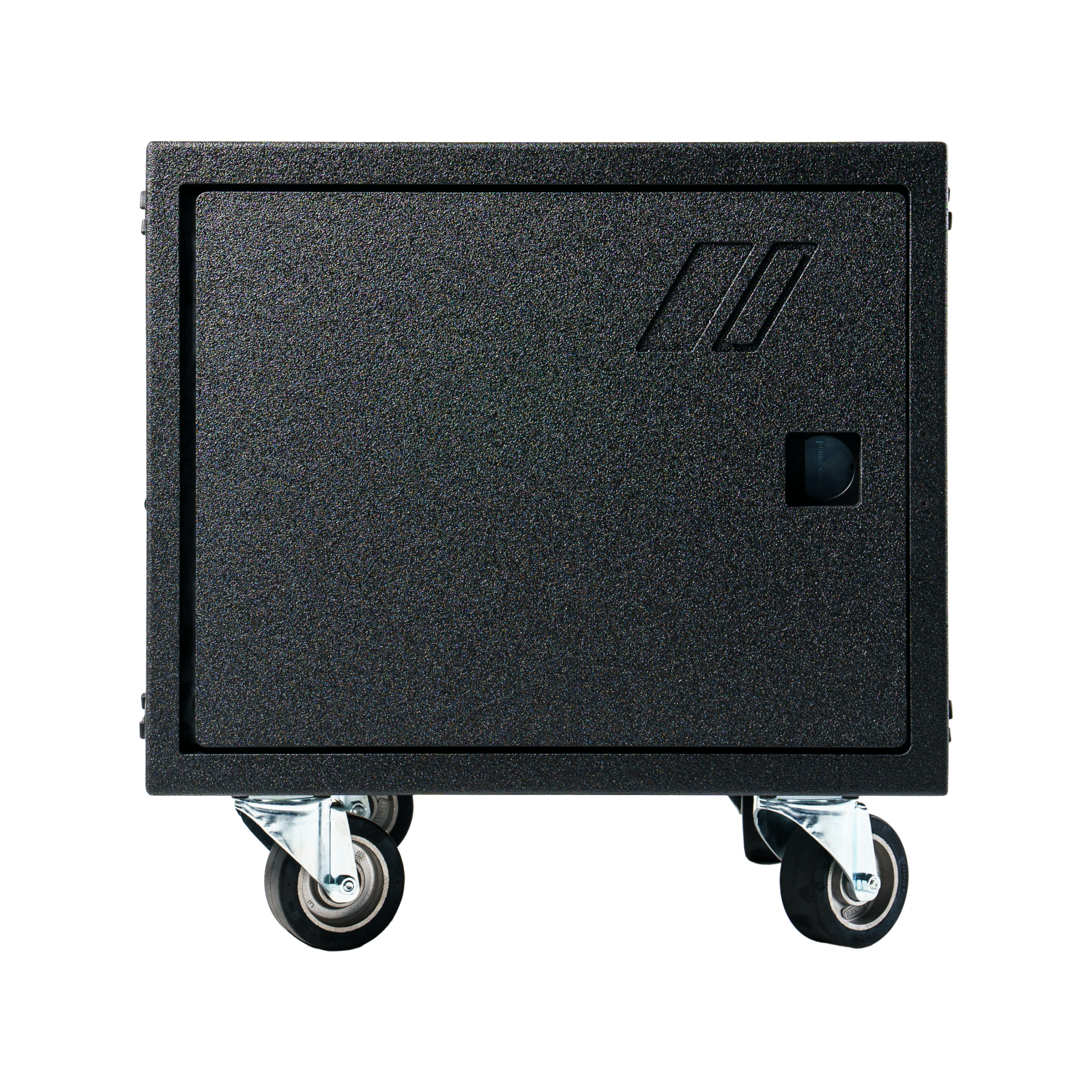

The RACK-ARA-230-MK2 is a robust 8U touring rack specifically designed by DAS Audio for ARA systems. It is made of polyethylene and features a steel structure to ensure durability even in the most demanding conditions.

The RACK-ARA-230-MK2 houses a Matrix-66 input/output signal+Alma panel, efficiently managing power and signal distribution. To optimize connectivity, it features a PP-6S power distribution panel with six Powercon True1 outlets and a Socapex connector with six circuits.

In addition to versatility, the rack is equipped with a PD-6-230V 3-phase 32A power distributor for efficient power management. Integrated M10 nuts in its structure provide suspension points when required, enhancing the rack’s adaptability. The RACK-ARA offers a blend of resilience, functionality, and flexible operation, designed for efficient setup across varied conditions.

Electronics and Connectors

Power Distro Type

Distro Racknet 32A/400 V

Dimensions-Weight

Rack size

8 Units

Dimensions ( H x W x D )

0,0 x 0,0 x 16,7 in

Content

Signal Distribution

MATRIX-66

Power Distribution

PD-6-230V + PP-6S

Audio Distribution

Analog audio inputs

6 x Female Neutrik XLR

Analog audio outputs

6 x Male Neutrik XLR

ALMA control connector

2 x Ethercon (Switched)

Power Distribution

AC input (400V)

32 A — IEC 60309 (3P+N+E) male outlet, 3-phase 400V AC, 50/60 Hz

AC output connectors (230V)

6 × Neutrik Powercon True1 Female (NAC3FPX) — 2 per phase + 2 X AUX Shockets

AC loop output (400V)

32 A — IEC 60309 (3P+N+E) female outlet (loop-thru for daisy-chaining two racks)

Protections

6 × 16 A RCBO (one per phase, overcurrent + earth leakage)

Max current per phase pair

32 A (shared across both outputs on that phase)

Max current capacity (single rack)

96 A total

Max current capacity (two looped racks)

96 A total

AC presence indicators

3 × LEDs (one per phase)

Cables

Audio cables

Included in Matrix-66

Network cable

Included in Matrix-66

AUX Power cable

1 × 0.8 m Powercon True1 Link

Physical Data

Weight

55,8 kg (123 lbs)

Rack Units

Enclosure

Professional flight case

Operating temperature

0 °C to 50 °C (32 °F to 113 °F)

Storage temperature

0 °C to 60 °C (32 °F to 140 °F)

Relative humidity

Up to 85 % non-condensing

Protection rating

IP20

Dimensions (H x W x D)

60 x 59.5 x 57 cm │ 23.6 x 23.4 x 22.5 in

Compatibility

Compatible loudspeaker systems

ARA Series
