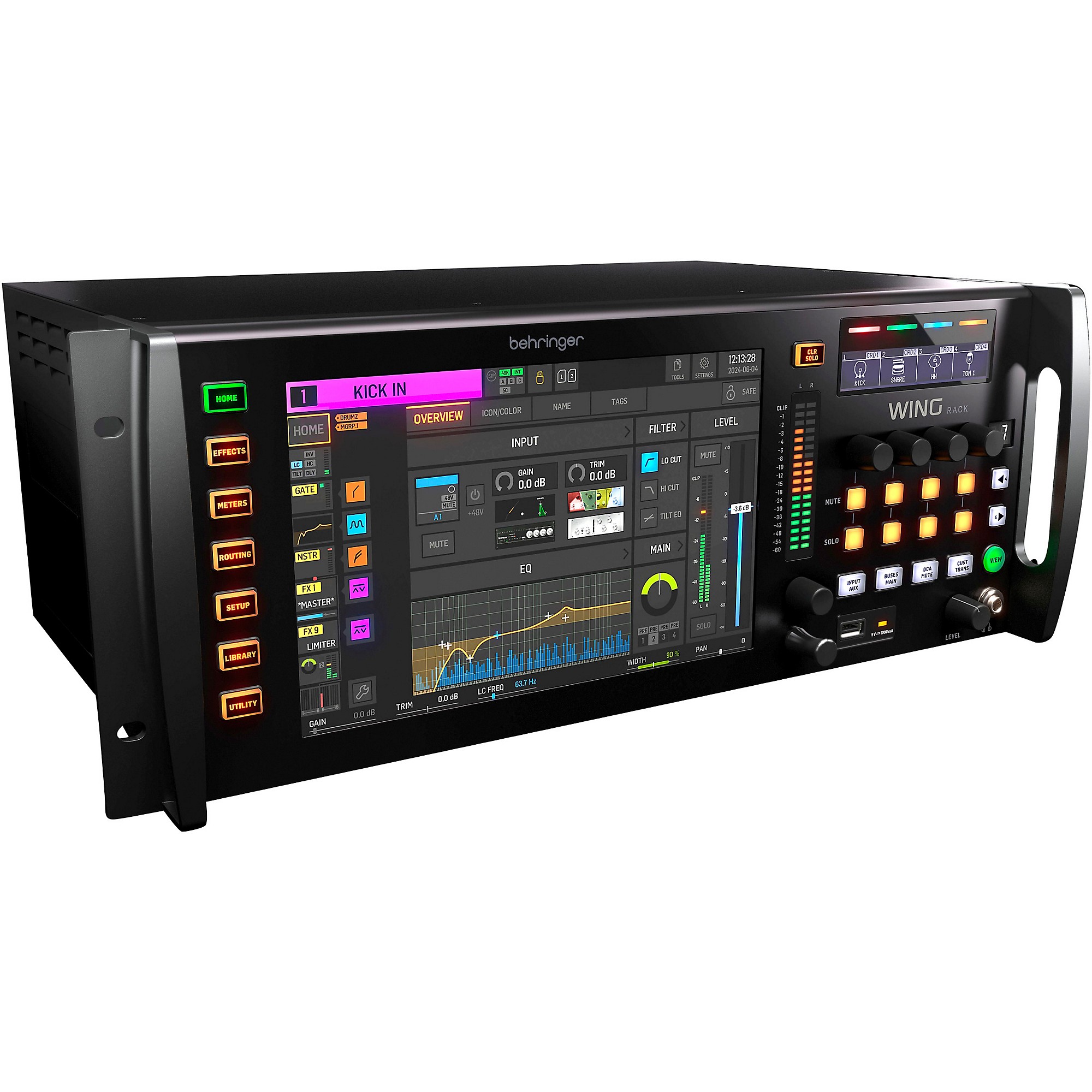

WING RACK Behringer

RM7,890.00

Rackmount 48 Channel, 28 Bus Full Stereo Digital Mixing Engine with 24-Midas PRO Preamps, 8 Midas PRO Outputs and 10″ Touch Screen

  • 24 award-winning Midas PRO mic preamps and 8 Midas PRO outputs onboard
  • Large main display on an adjustable front panel, featuring the innovative touch optimized WING user interface and custom controls
  • “Plug and play” remote I/O connectivity for up to 144 input and output signals over 3 AES50 ports featuring Klark Teknik’s SuperMAC technology for ultra-low jitter and latency
  • 4 additional stereo outputs with hi-performance headphone amplifiers for IEM applications
  • Optional module for 64 x 64 channels of audio over Ethernet, supporting WAVES SoundGrid Technology or Dante/AES67 Technology
  • 48 x 48 channel USB 2.0 audio interface onboard with DAW remote control emulating HUI and Mackie Control
  • Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
  • Premium FX rack with 8 true-stereo processors and world-class TC M3000 algorithms, Lexicon, Quantec and EMT emulations
  • Standard FX rack with 8 truestereo processors for a wide array of modulation, EQ, dynamics etc., also allows blending outboard effects to the mix
  • 5 variable plug-in processing slots for all 40 stereo input channels, featuring the most iconic vintage analog equalizers and compressors, plus insert FX slot and 4-band parametric EQ for all 8 stereo aux channels
  • 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ’s, stereo imager and full dynamics processing
  • 2 Ethernet ports with integrated switch for networked remote control and optional AoIP
  • Built-in expansion port for optional audio interface cards or digital networking bridges, MADI and ADAT/WC
  • StageCONNECT 32-channel low-latency interface for personal monitoring or analog I/O boxes, AES/EBU stereo digital in- and outputs on balanced XLR, 1 TRS phones connectors, MIDI I/O and 2 GPIO ports
SKU: WING RACK Categories: , Tag: Brand:

Description

Product description

Need WING’s legendary 48-channel processing power without the surface? The Behringer WING RACK packs the entire WING engine into a 6U rackmount form factor — ideal for monitor-mix rigs controlled by tablets, broadcast applications, install systems and tour-truck configurations.

Specifications

Max I/O Capacity
48x Input / 28x Output
Number of Analog Input Channels
24 (24 Mono / 0 Stereo)
Number of Mic Preamps
24
Number of Analog Output Channels
8
Faders & Level Adjustment
No

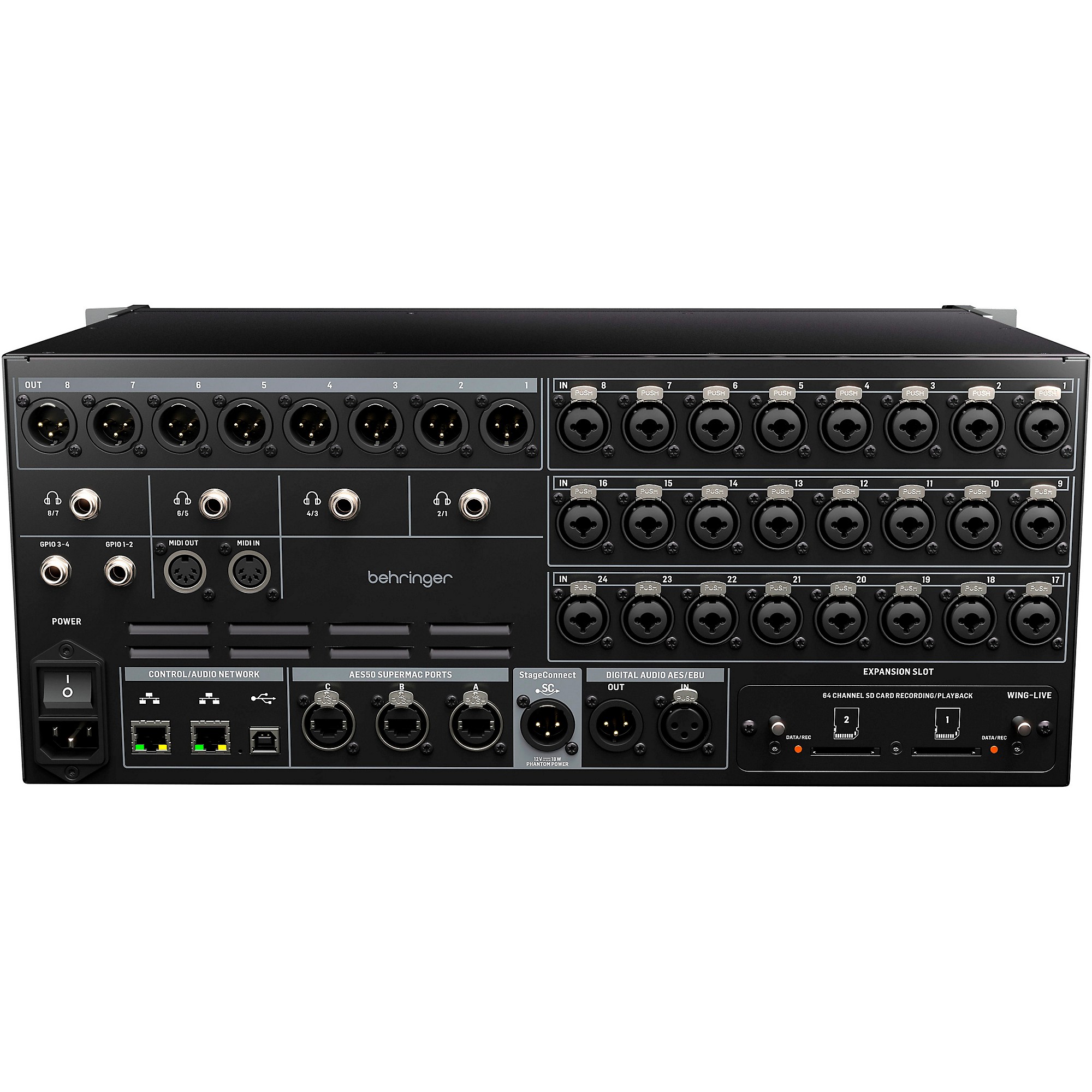

Analog Inputs
8x XLR 3-Pin Balanced Mic/Line Input8x 1/4" TRS Aux Input
Analog Outputs
8x XLR Main/Bus Output8x 1/4" Aux/Headphone Output2x 1/4" Headphone Output5x 1/4" Headphone Output
Digital I/O
2x RJ45 Ethernet (Control, 1 Gb/s)3x RJ45 AES50 (I/O)1x XLR AES3 Input (I/O)1x XLR AES3 Output1x XLR Input/Output (I/O)
USB I/O
USB-B
Wireless
No
Rack Mountable
Yes

Mixer

Max I/O Capacity
48x Input / 28x Output
Number of Analog Input Channels
24 (24 Mono / 0 Stereo)
Number of Mic Preamps
24
Number of Analog Output Channels
8
Mix Routing
28x Stereo Bus
Groups
No
Presets
No
Display
Main Display:10.1" LCD Touchscreen (Daylight-Viewable)Channel Display:2.4" LCD
Faders & Level Adjustment
No
Meters
2x 18-Segment LED

Signal Processing

Gain/Trim Range
Mic:0 dB to +72 dB
Input Polarity
Normal/Reverse
Dynamic Processing
Input Channels:Compressor, Limiter, Soft Limiter, Gate
EQ
4-Band EQ
Graphic EQ
Yes
Solo/Mute
Solo, Mute per Input ChannelMute per Master
Audio Delay
Yes
Automatic Mic Mixing
No
Sample Rates
Up to 192 kHz
Bit Depth
AD/DA Conversion:24-Bit

Performance

Frequency Response
10 Hz to 20 kHz +0/-1 dB (at 48 kHz)
Max Input Level
XLR Mic Input:+21 dBu
Analog Dynamic Range
111 dB
Headphone Output Power
500 mW per Channel into 75 Ohms
I/O Impedance
XLR Mic Input:1 Kilohms (Unbalanced)2 Kilohms (Balanced)XLR Output:75 Ohms (Balanced/Unbalanced)Line Output:150 Ohms (Unbalanced)300 Ohms (Balanced)
Noise Floor
-95 dBu A-Weighted
THD+N
Mic Input to Analog Output:0.006% at +40 dB Gain (+20 dBu, Output)0.004% at Unity Gain (0 dBu, Output)
Signal Generator
No
Analog Inputs
8x XLR 3-Pin Balanced Mic/Line Input8x 1/4" TRS Aux Input
Analog Outputs
8x XLR 3-Pin Main/Bus Output8x 1/4" TRS Stereo Aux/Headphone Output2x 1/4" TRS Unbalanced Stereo Headphone Output5x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power
+48 V (Selectable on Individual Inputs)
Digital I/O
2x RJ45 Ethernet (Control, 1 Gb/s)3x RJ45 AES50 (I/O)1x XLR AES3 Input (I/O)1x XLR AES3 Output1x XLR Input/Output (I/O)
MIDI I/O
1x MIDI 5-Pin In1x MIDI 5-Pin Out
USB I/O
1x USB-B 2.0 (Audio Playback, Control, Multitrack Record)
USB I/O Capacity
48x Input / 48x Output
Other I/O
2x 1/4" TRS GPIO In/Out
Expansion Ports
No
Wireless
No
External Display I/O
No
Max Multitrack Recording
64 Tracks
Media Support
SD, SDHC
Mobile Device Compatibility
iPadAndroid Tablet

Power

Input Power
100 to 240 VAC, 50 / 60 Hz

Physical

Rack Mountable
Yes
Rackmount Size
4 U (with Included Hardware)
Dimensions
19.1 x 12.8 x 7.2" / 48.5 x 32.5 x 18.3 cm
Weight
20.9 lb / 9.5 kg
Package Weight
27.5 lb
Box Dimensions (LxWxH)
25 x 19.5 x 16"

Specification Notes

Line 01
Key Specs
Line 02
Mixer
Line 03
Signal Processing
Line 04
Digital Audio
Line 05
Performance
Line 06
Connectivity
Line 07
Recording
Line 08
Compatibility
Line 09
Power
Line 10
Physical
Line 11
Packaging Info
