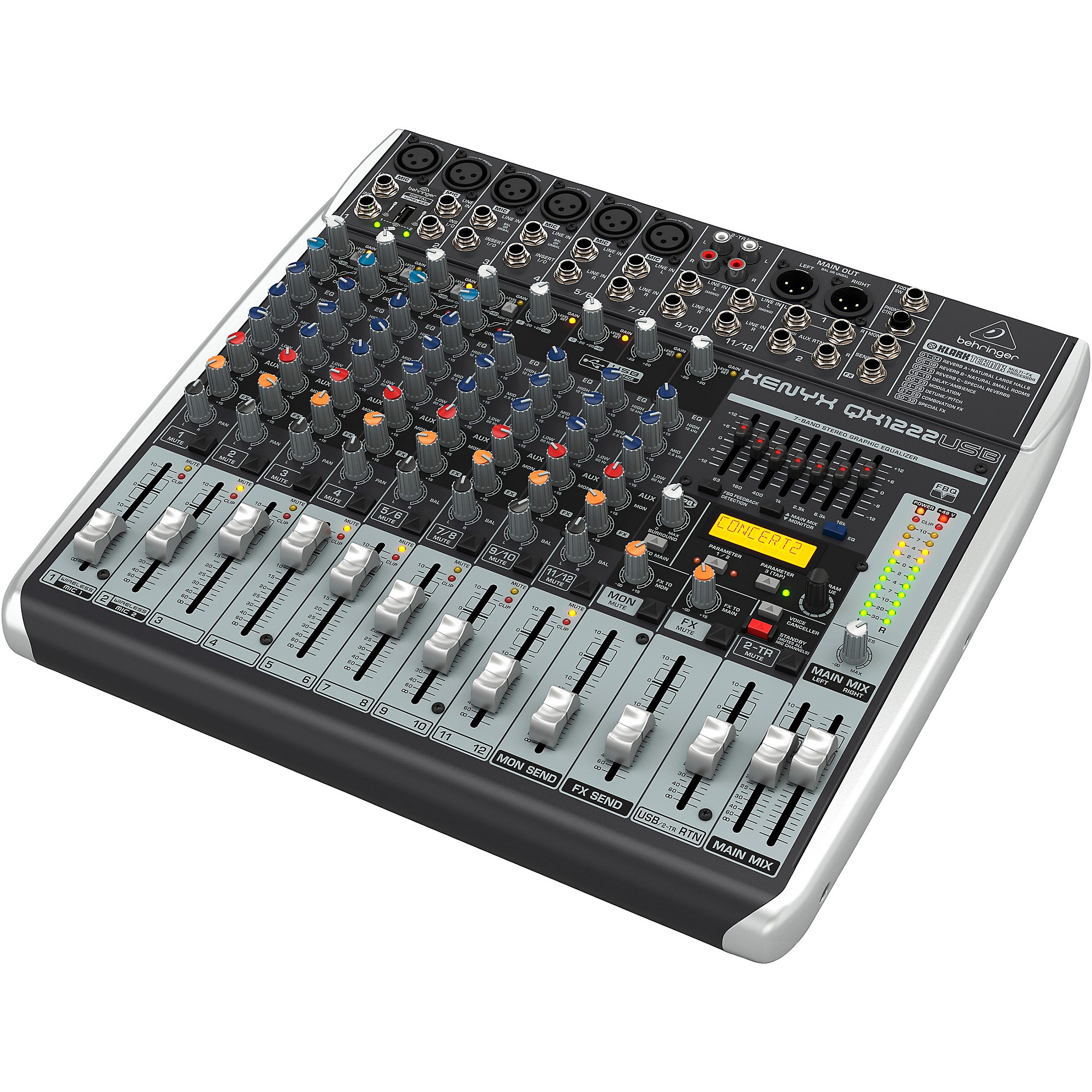

XENYX QX1222USB Behringer

RM1,265.00

Premium 16-Input 2/2-Bus Mixer with XENYX Mic Preamps and Compressors, Klark Teknik Multi-FX Processor, Wireless Option and USB/Audio Interface

  • Premium ultra-low noise, high headroom mixer
  • 4 state-of-the-art, phantom-powered XENYX Mic Preamps comparable to stand-alone boutique preamps
  • 4 studio-grade compressors with super-easy “one-knob” functionality and control LED for professional vocal and instrumental sound
  • Ultra-high quality Klark Teknik FX processor with LCD display, dual-parameters, Tap function and storable user parameter settings
  • Wireless-ready for high-quality Behringer digital wireless system (not included)
  • Built-in stereo USB/Audio Interface to connect directly to your computer. Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins downloadable at behringer.com
  • Neo-classic “British” 3-band EQs for warm and musical sound
  • 7-band stereo graphic EQ allows precise frequency correction of monitor or main mixes
  • Revolutionary FBQ Feedback Detection System instantly reveals critical frequencies
  • Breathtaking XPQ 3D stereo surround effect for more vitality and enhanced stereo image
  • Voice Canceller function for easy-to-use sing-along applications
  • 4 fully equipped stereo input channels featuring 2 additional mic inputs on channels 5/6 and 7/8, 3-band EQ and input trim control
  • Channel inserts on each mono channel for flexible connection of outboard equipment
  • 2 aux sends per channel: 1 pre fader for monitoring, 1 post fader (for internal FX and/or as external send); 2 multi-functional stereo aux returns
  • Balanced main mix outputs with gold-plated XLR connectors, headphone/control room output and stereo rec outputs
  • Long-wearing 60-mm logarithmic-taper faders and sealed rotary controls
  • Planet Earth switching power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
  • Designed and engineered in Germany
SKU: XENYX QX1222USB Categories: , Tag: Brand:

Description

Product description

The compact XENYX QX1222USB mixer allows you to effortlessly achieve premium-quality sound. Channels 1 – 4 feature our XENYX Mic Preamps, renowned for their pristine performance, plus 2 of the 4 stereo channels accept XLR inputs, as well as Line-Level sources. All mono channels get our ultra-musical “British” 3-band EQs and easy-to-use “one-knob” compressors for the ultimate in punch and clarity. Add to this our KLARK TEKNIK FX processor with 32 studio-grade presets with dual addressable parameters, Tap function and storable user parameter settings – and the QX1222USB becomes an incredibly versatile mixer for your live performances. But the XENYX QX1222USB isn’t just designed to handle your live gigs; they also provide the state-of-the-art tools you need to make stunning, professional-quality recordings. Along with their built-in USB/audio interfaces, the XENYX QX1222USB comes with all the recording and editing software needed to turn your computer system into a complete, high-performance home recording studio.

Specifications

Number of Analog Input Channels
8 (6 Mono / 4 Stereo)
Number of Mic Preamps
6
Analog Output Channels
1x Stereo Master Output1x Stereo Tape/Record Output1x Stereo Headphone Output1x Mono Aux Send Output1x Mono FX Send Output
EQ
3-Band EQ
Built-In Effects
32x Stereo Effect (Type Unspecified)
USB I/O
USB-BUSB-A
Wireless
No
Rack Mountable
No

Mixer

Max I/O Capacity
16x Input / 4x Output
Number of Analog Input Channels
8 (6 Mono / 4 Stereo)
Number of Mic Preamps
6
Analog Output Channels
1x Stereo Master Output1x Stereo Tape/Record Output1x Stereo Headphone Output1x Mono Aux Send Output1x Mono FX Send Output
Mix Routing
Stereo Main Mix
Faders & Level Adjustment
9x 2.4" / 60 mm Channel Fader2x 2.4" / 60 mm FX Fader2x 2.4" / 60 mm Master Fader
Meters
2x 12-Segment LED

Signal Processing

Gain/Trim Range
XLR Mic Input:+10 dB to +60 dB0 dB +40 dB1/4" Line Input:-10 dB to +40 dB (Mono Channels)-20 dB to +20 dB (Stereo Channels)
Dynamic Processing
Mono Channels:Compressor
EQ
3-Band EQ
EQ Parameters
Low: ±15 dB at 80 HzMid: ±15 dB at 2.5 kHzHigh: ±15 dB at 12 kHz
Graphic EQ
7-Band 1/3 Octave, ±12 dB 63 Hz to 16 kHz
Solo/Mute
Mute per Input Channel, Bus, FX Bus
Built-In Effects
32x Stereo Effect (Type Unspecified)
Sample Rates
48 kHz
Bit Depth
16-Bit

Performance

Frequency Response
Mic Input to Main Output:10 Hz to 160 kHzMic Input:10 Hz to 200 kHz +0/-3 dB10 Hz to 150 kHz +0/-1 dBMic Input to Main Output:10 Hz to 160 kHz ±3 dB
Max Input Level
XLR Mic Input:+12 dBu at +10 dB Gain1/4" TRS Line Input:+30 dBu1/4" Line/Stereo:+22 dBu1/4" / RCA Line/Aux/Tape/Channel Insert Input:+22 dBu
I/O Impedance
XLR Mic Input:2 Kilohms (Balanced)1/4" TRS Line Input:20 Kilohms (Balanced)10 Kilohms (Unbalanced)1/4" TRS Aux Return:20 Kilohms10 KilohmsStereo RCA Input:10 Kilohms (Unbalanced)XLR Main Output:240 Ohms (Balanced)120 Ohms (Unbalanced)1/4" TRS Aux/Control Room/FX Output:120 Ohms (Balanced)1/4" TRS Headphone Output:25 OhmsStereo RCA Line Output:1 Kilohm (Unbalanced)
Noise Floor
-100 dB Unweighted (Master Level at -∞, Channel Levels at -∞)-102 dB A-Weighted (Master Level at -∞, Channel Levels at -∞)-86 dB Unweighted (Master Level at Unity, Channel Levels at -∞)-88 dB A-Weighted (Master Level at Unity, Channel Levels at -∞)-81 dB Unweighted (Master Level at Unity, Channel Levels at Unity)-83 dB A-Weighted (Master Level at Unity, Channel Levels at Unity)
SNR
107 dB (0 dBu In at +22 dB Gain)110 dBA (0 dBu In at +22 dB Gain)
THD+N
Mic Input to Analog Output:0.005%0.004% (A-Weighted)
Analog Inputs
6x XLR TRS Balanced Mic Input4x 1/4" TRS Balanced/Unbalanced Line Input4x 1/4" TRS Insert Insert8x 1/4" TRS Balanced/Unbalanced Stereo Line Input (4 Stereo Pair)1x Stereo RCA Coaxial Unbalanced Line Input (1 Stereo Pair)4x 1/4" TRS Balanced/Unbalanced Stereo Aux/FX Return (2 Stereo Pairs)
Analog Outputs
2x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)1x 1/4" TRS Unbalanced Control Room/Headphone Output2x 1/4" TRS Balanced/Unbalanced Aux/FX Send1x Stereo RCA Coaxial Unbalanced Stereo Line Output (1 Stereo Pair)
Phantom Power
+48 V
Digital I/O
No
MIDI I/O
No
USB I/O
1x USB-B1x USB-A (Wireless Audio)
USB I/O Capacity
2x Input / 2x Output
Wireless
No
OS Compatibility
WindowsmacOS

Power

Input Power
100 to 240 VAC, 50 / 60 Hz

Physical

Rack Mountable
No
Dimensions
14.6 x 3.5 x 13.3" / 370.8 x 88.9 x 337.8 mm
Weight
8.4 lb / 3.8 kg
Package Weight
11.16 lb
Box Dimensions (LxWxH)
18.5 x 16.5 x 5.9"

Specification Notes

Line 01
Key Specs
Line 02
Mixer
Line 03
Signal Processing
Line 04
Digital Audio
Line 05
Performance
Line 06
Connectivity
Line 07
Compatibility
Line 08
Power
Line 09
Physical
Line 10
Packaging Info
