PP-4 DAS Audio
PP-4 DAS Audio - Image 2

PP-4 DAS Audio

1U rack power distributor, 1 input and 4 PowerCon TRUE1 outputs, for ARA-P/ARA-M systems. Compatible with ECPK-XX hybrid cables and Matrix-22.

SKU: PP-4 Categories: , Tag: Brand:

Description

Product description

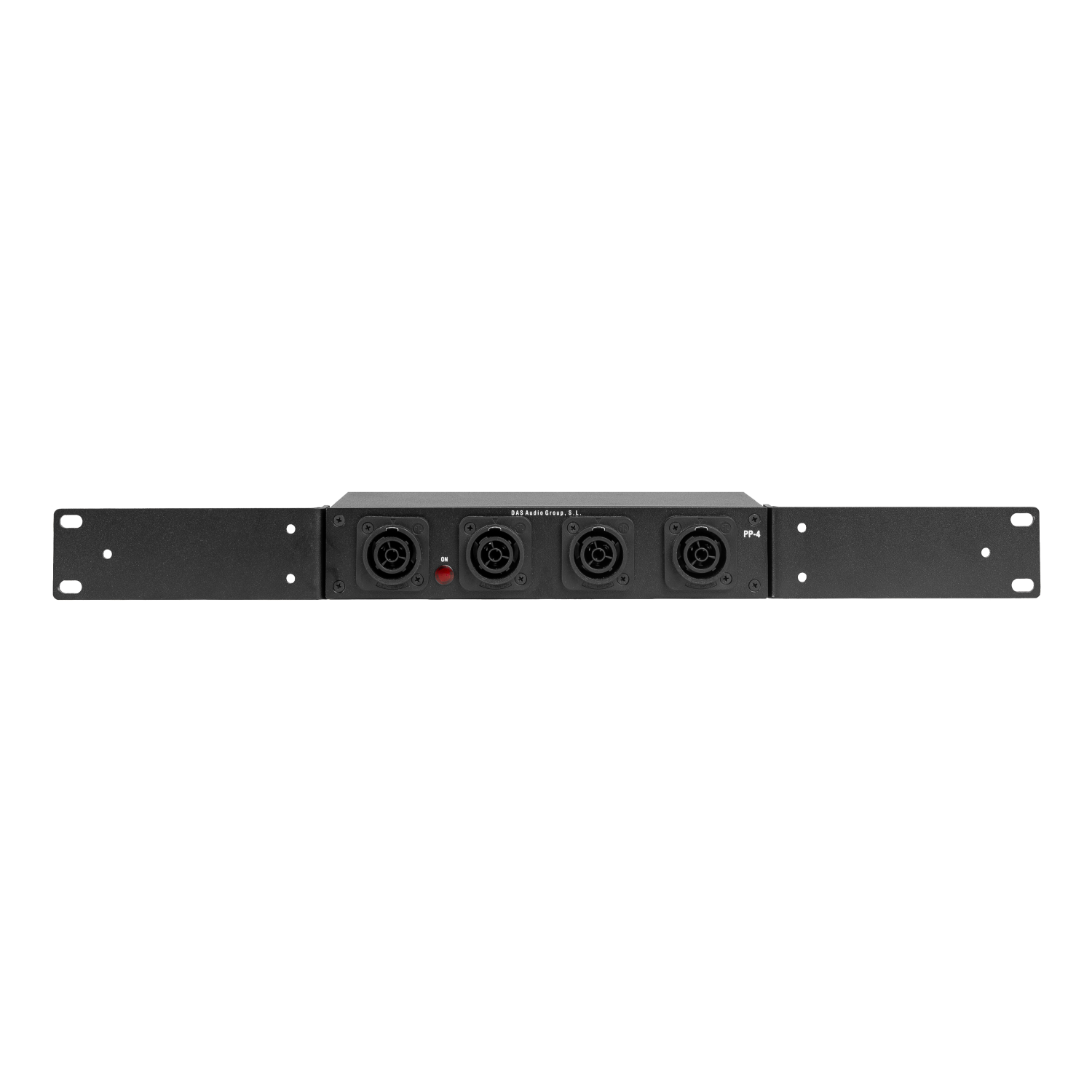

The PP-4 is a versatile 1U 19″ half rack-mount power distributor, perfectly suited for the ARA-P and ARA-M sound systems. Featuring one PowerCon TRUE1 input and four PowerCon TRUE1 outputs, the PP-4 ensures efficient power distribution. Designed with compatibility in mind, it supports DAS Audio Hybrid cables (model ECPK-XX) and seamlessly integrates with the Matrix-22 audio and monitoring data distributor, making it an essential component for professional audio setups.

Electronics and Audio

Max Input Current
16A
Max Output Current
16A
LED Indicators
Power

Power Connectors

Power Input
1 x PowerCon TRUE1 (male), rear panel
Power Output
4 x PowerCon TRUE1 (female), front panel
Loop
1 x PowerCon TRUE1 (female), rear panel

Dimensions-Weight

Dimensions ( H x W x D )
44 x 216 x 311 mm1,7 x 8,5 x 12,2 in
Net Weight
1,8 kg ( 3,9 lb )

Shipping

Carton Dimensions ( H x W x D )
110 x 330 x 360 mm4,3 x 13,0 x 14,2 in
Shipping Weight
3,0 kg ( 6,6 lb )
