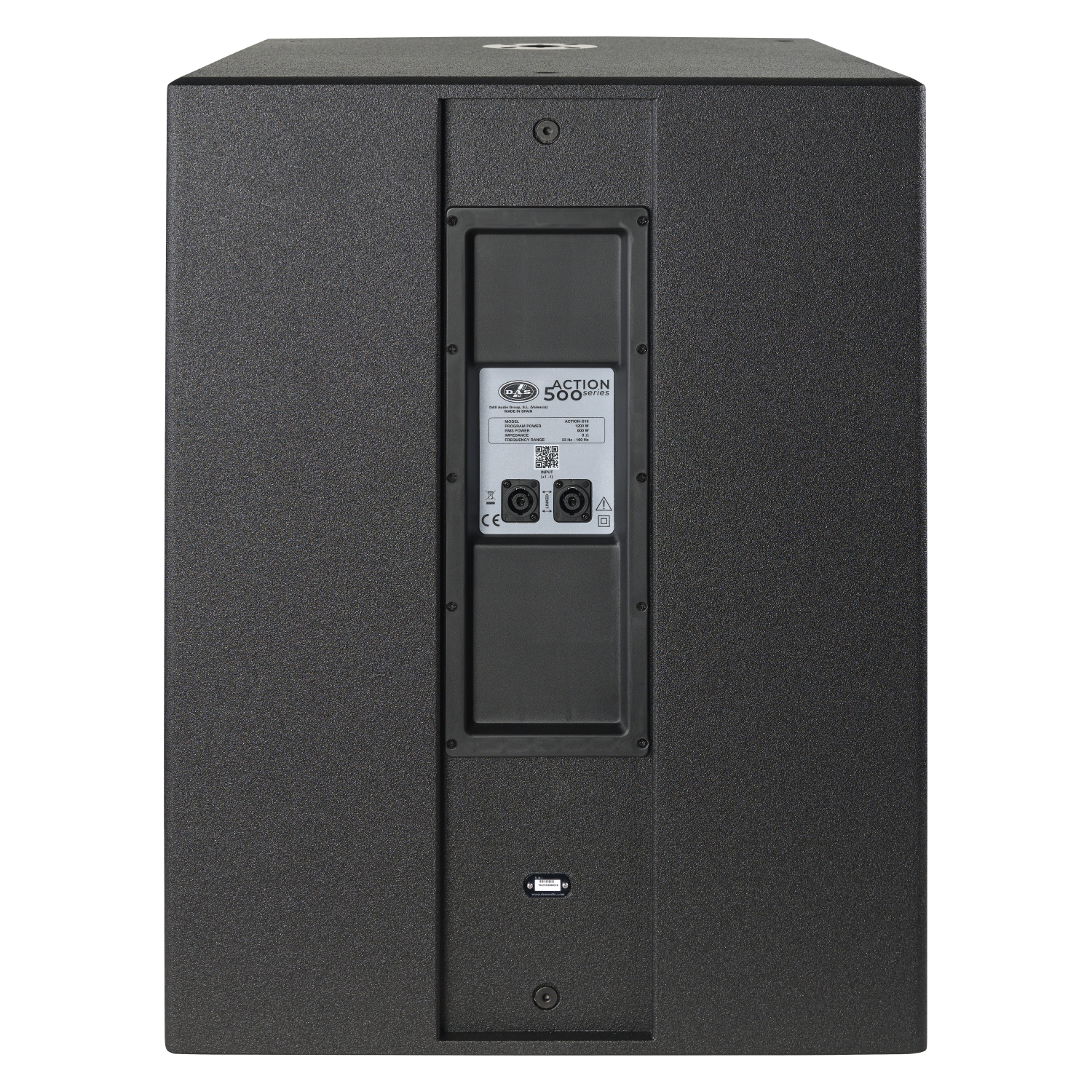

ACTION-S18 DAS Audio

RM6,290.00

Passive, 600 W, 18″, bass-reflex subwoofer, black

  • SPL Max: 133 dB
  • Dispersion: Omnidirectional
  • Weight: 40,5 kg ( 89,1 lb )
SKU: ACTION-S18 Categories: , , Tag: Brand:

Description

Product description

ACTION-S18 is a passive direct radiation subwoofer system composed of a single 18FW speaker with a 3″ coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that works to reduce the effects of coil heating, improving the system’s overall performance as a result.

As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.

For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.

Performance

Frequency Range (-10 dB)
33 Hz – 160 Hz
Nominal Impedance
8 ohms
RMS Power Handling
600 W
Peak Power Handling
2400 W
On-axis Sensitivity 1W/1 m
96 dB SPL
Maximum Peak SPL at 1 m
133 dB

Connectors

Audio Input Connector
1 x speakON NL4
Audio Output Connector
1 x speakON NL4

Enclosure

Enclosure Construction
Birch Plywood
Enclosure Geometry
Rectangular
Finish
ISO-flex Paint
Color
Black
Dimensions ( H x W x D )
720 x 545 x 660 mm28,3 x 21,5 x 26,0 in
Net Weight
40,5 kg ( 89,1 lb )

Components

LF Driver
18FW

Shipping

Carton Dimensions ( H x W x D)
795 x 595 x 690 mm31,3 x 23,4 x 27,2 in
Shipping Weight
42,7 kg ( 93,9 lb )
