HE01SE SC&T

RM552.00

HDMI® CAT5e Extender-Single CAT5e cable 1080p 40m

Resolution up to 1080p@60Hz.
Transmission distance up to 40M at 1080p over CAT5e; 45M over CAT6.
No power is required for the receiver unit (HE01SER).
Built-in HDMI male connector to directly plug in an HDMI device.
Supports EDID Management to adjust and restore resolutions.
Supports LPCM 5.1.
When the distance exceeds 30M, using CAT6 cable is recommended.

Category: Uncategorized Tag: SC&T Brand: SC&T

Description

Product description

HE01SE is an HDMI® extender that uses an Ethernet cable to extend HDMI® signal with transmission distance up to 70 meters and resolution up to 1080p. The Tx unit supports the EDID auto backup function that can save desired resolution and restore it whenever you need it. The RX is a dongle-designed receiver that has a built-in HDMI® connector that allows you to directly connect to an HDMI® device without HDMI® cables and it’s required no external power to enable.

Support

Compliance

HDMI 1.3, HDCP, 3D - HE01ST

Max. HDMI Resolution

1080p@60Hz - HE01ST

Max. Transmission Distance

60M at 1080i, 40M at 1080p - HE01ST

Video Bandwidth

2.25 Gbps - HE01ST

Ports & Interfaces

Input Connector

1 x HDMI Type A Female - HE01ST

1 x RJ45 - HE01SER

Output Connector

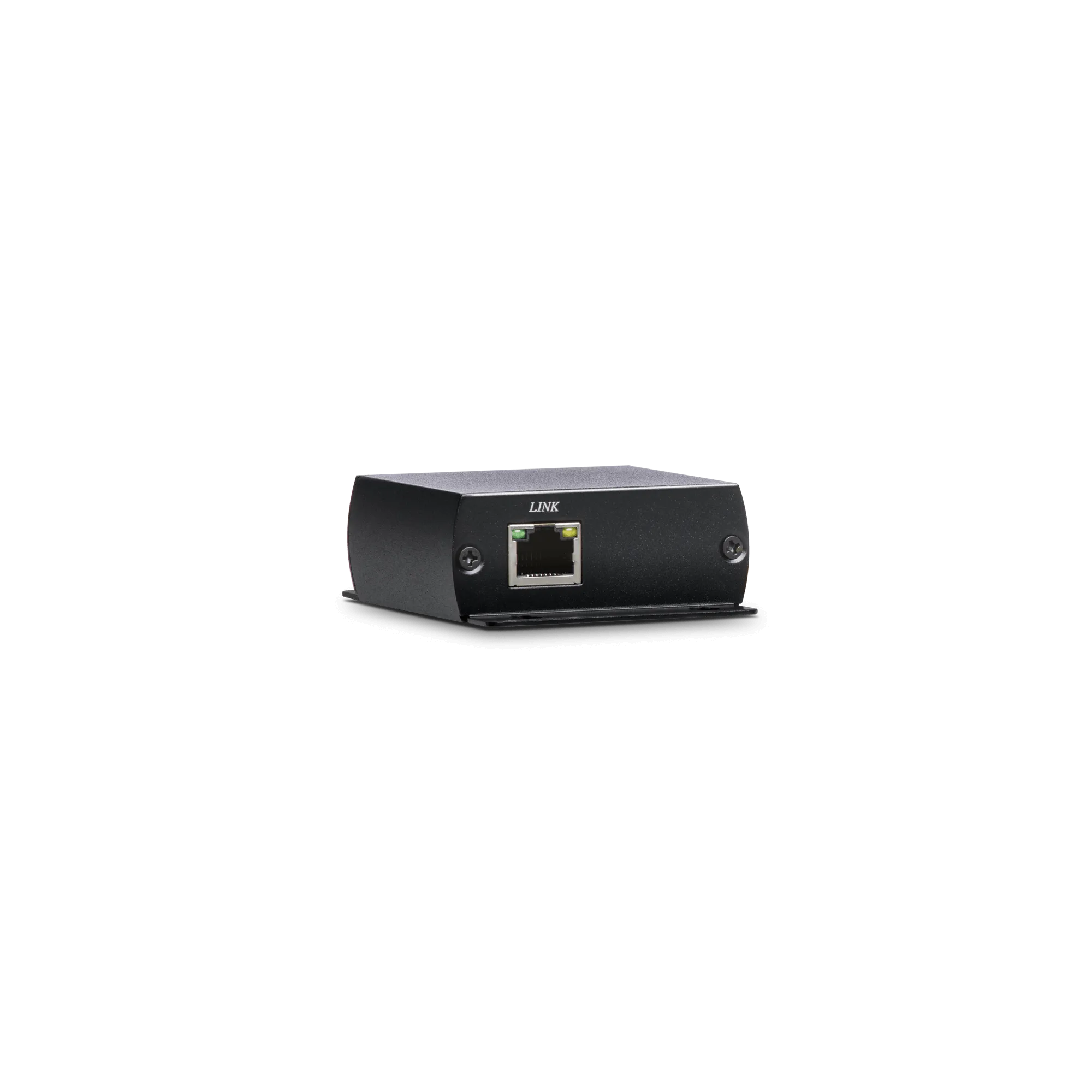

1 x RJ45 - HE01ST

1 x HDMI Type A Female - HE01SER

Link Cable

CAT5 or greater - HE01ST

Power

Power Supply

DC 5V 1A - HE01ST

Power Consumption

600mA - HE01ST

Ambient Temperature

Operation

0 to 55℃ - HE01ST

Storage

-20 to 85℃ - HE01ST

Humidity

up to 95% - HE01ST

Physical Characteristic

Dimension

67 x 91 x 27mm - HE01ST

57.5 × 24 × 20.2mm - HE01SER

Weight

140g - HE01ST

20g - HE01SER
