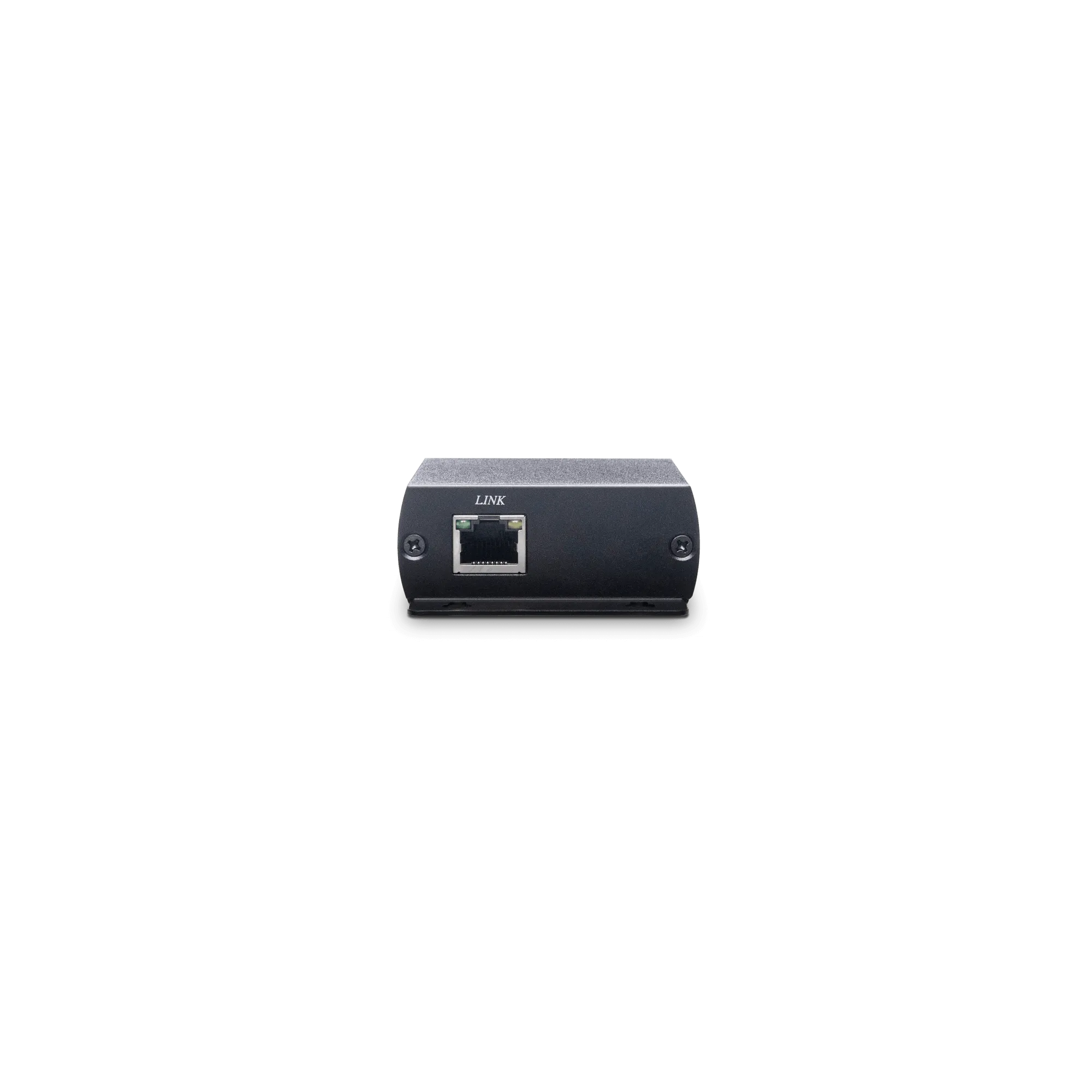

HE01S SC&T - Image 2

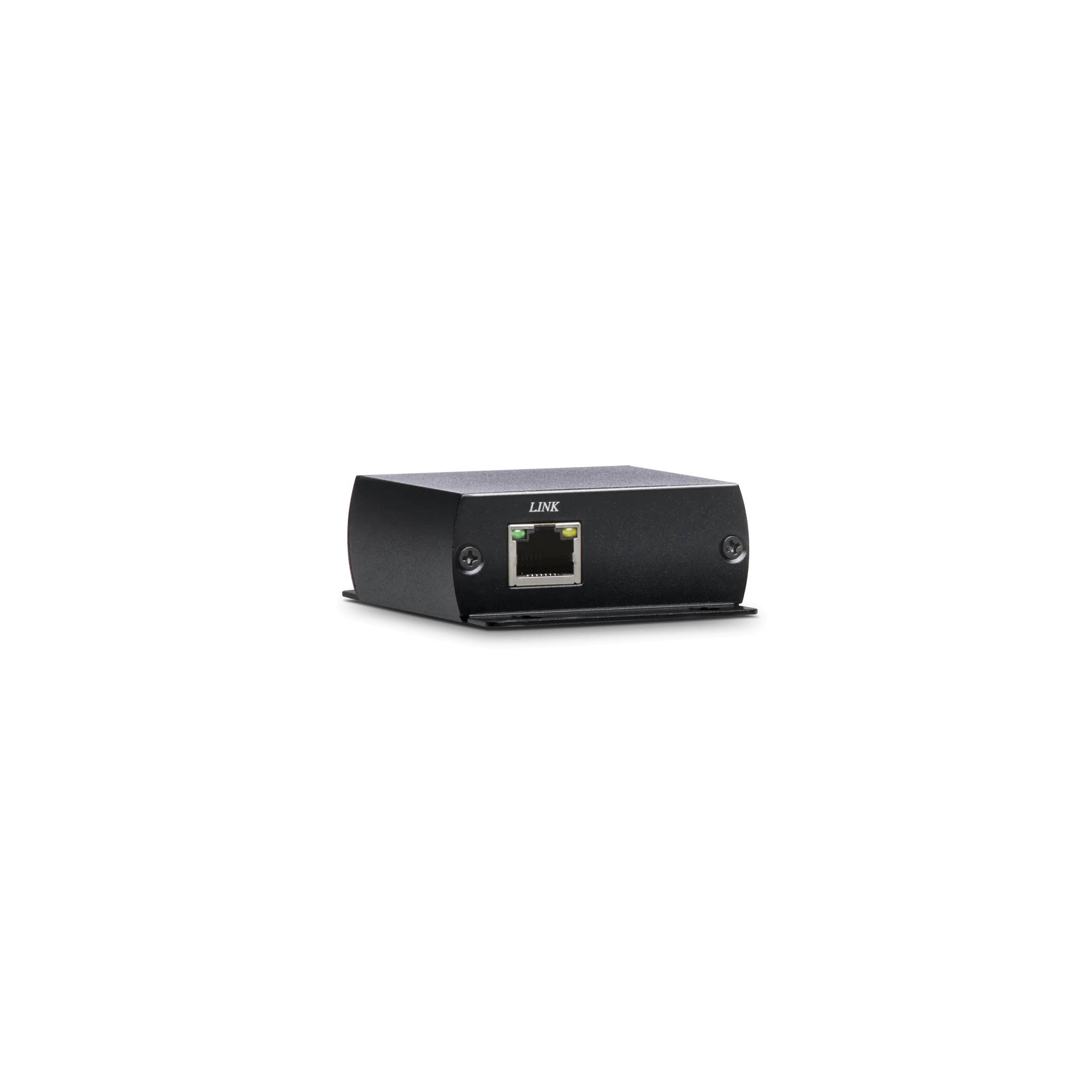

HE01S SC&T - Image 3

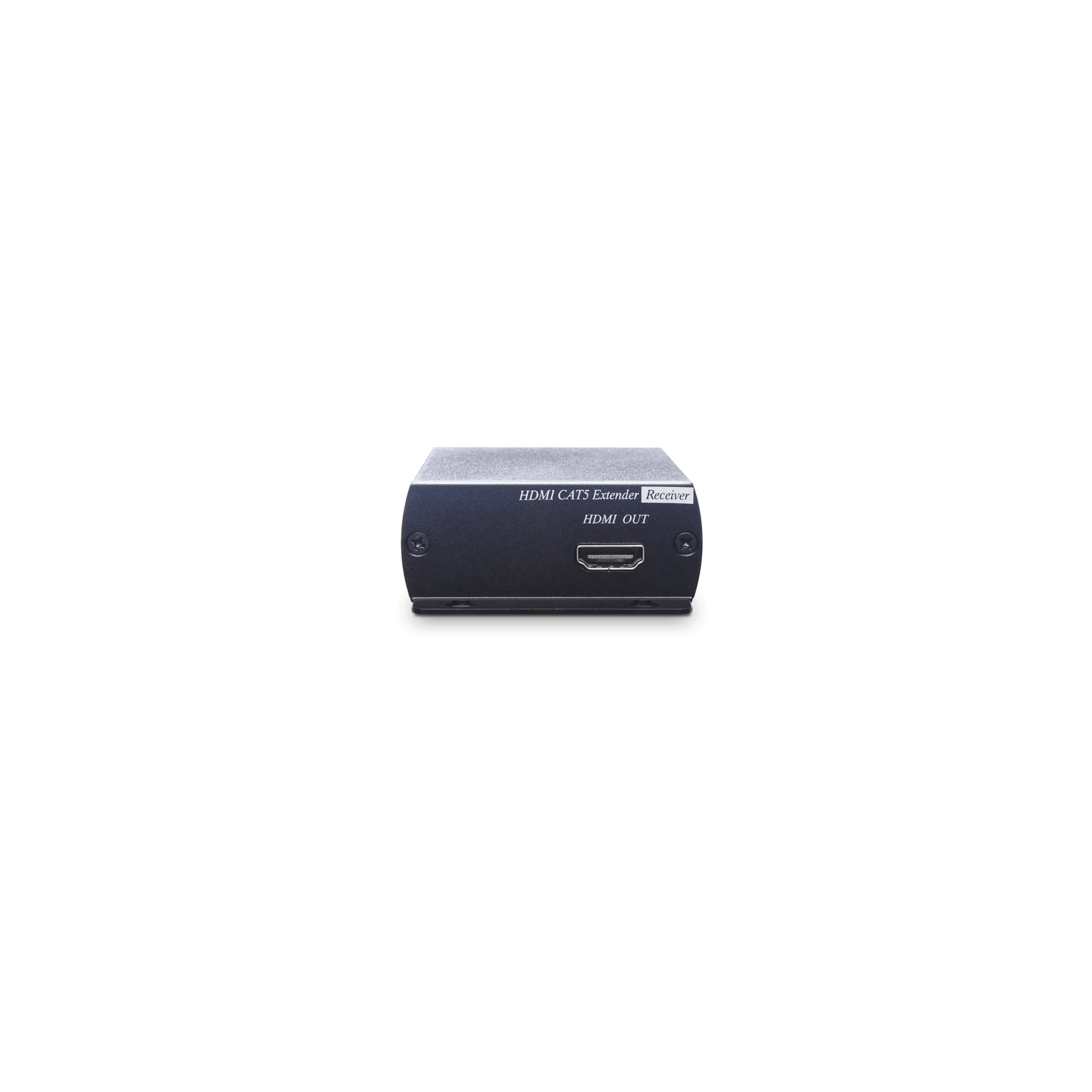

HE01S SC&T - Image 4

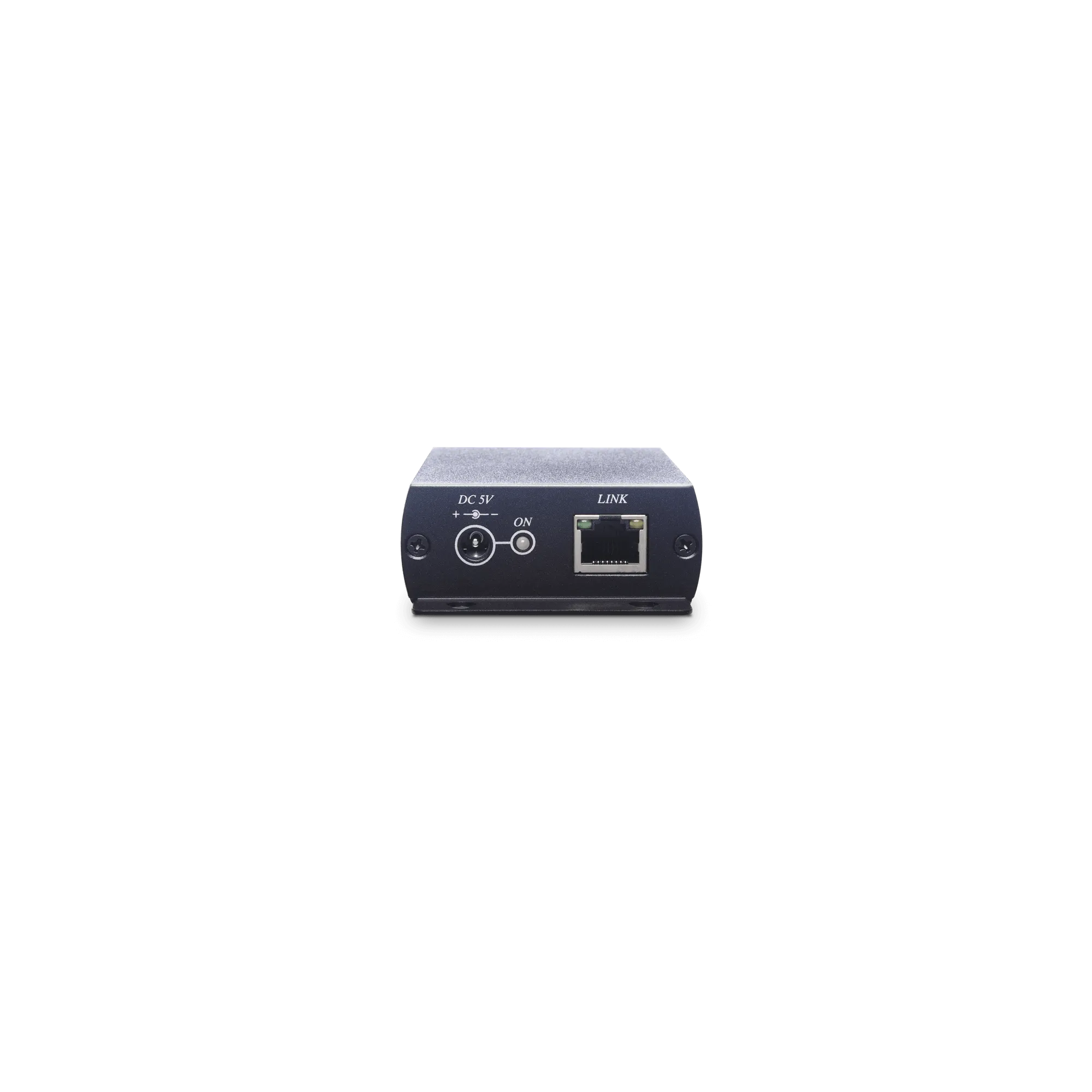

HE01S SC&T - Image 5
HE01S SC&T - Image 6

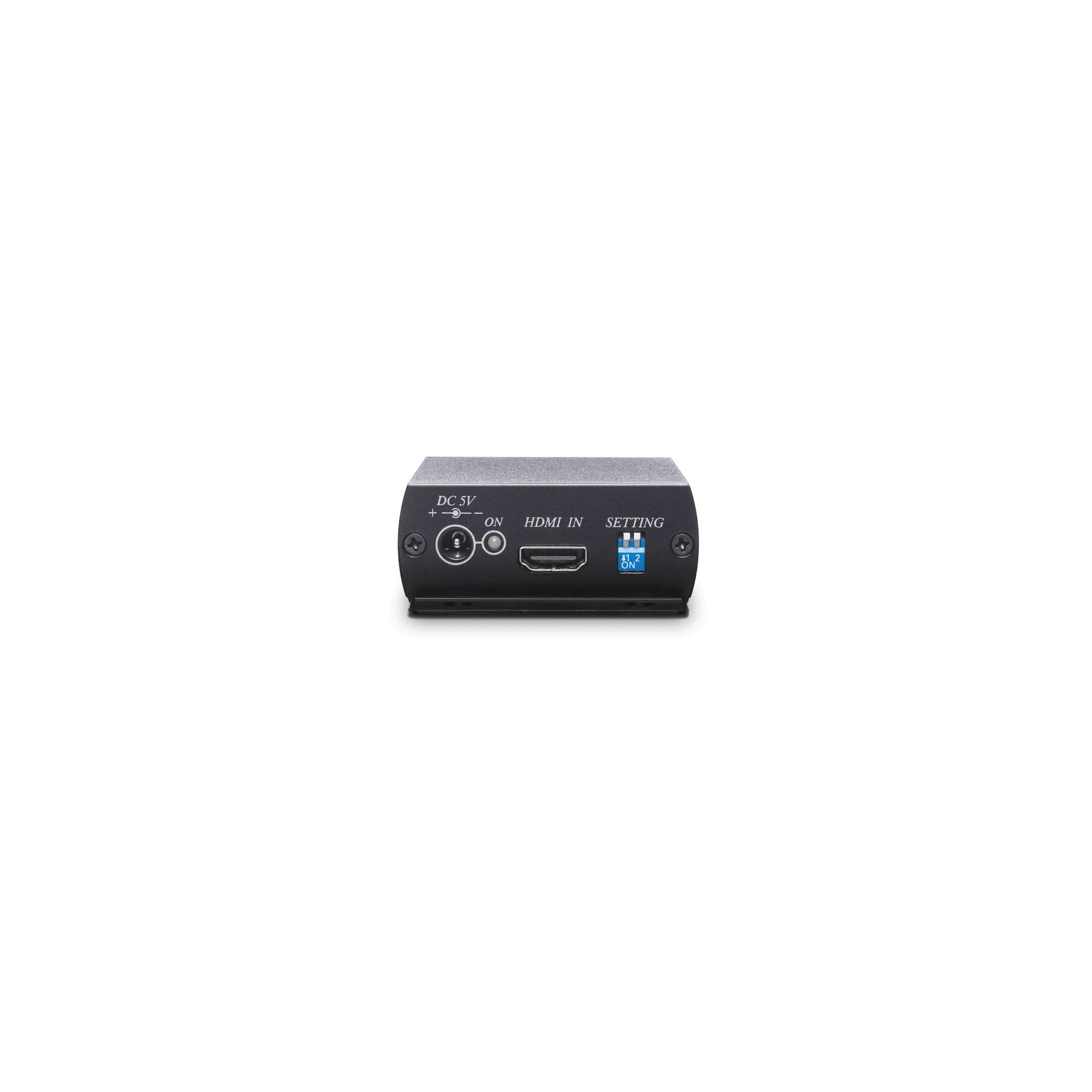

HE01S SC&T

RM637.00

HDMI® CAT5e Extender-Single CAT5e cable 1080p 50m

  • Resolution up to 1080p@60Hz.
  • Signal extension up to 50m over CAT5e cable.
  • No external power required at RX unit under a distance of 30m.
Category: Tag: Brand:

Description

Product description

HE01S is an HDMI® extender that can use Ethernet cable to send an HDMI® signal for up to 50 meters. Its RX unit requires no power when the transmission distance under 30M. its transmitter unit has EDID auto backup function that can save desired resolution and restore it whenever.

Support

Compliance
HDMI 1.3, HDCP, 3D - HE01ST
Max. HDMI Resolution
1080p@60Hz - HE01ST
Max. Transmission Distance
60M at 1080i, 40M at 1080p - HE01ST
Video Bandwidth
2.25 Gbps - HE01ST

Ports & Interfaces

Input Connector
1 x HDMI Type A - HE01ST

1 x RJ45 - HE01SR
Output Connector
1 x RJ45 - HE01ST

1 x HDMI Type A - HE01SR
Link Cable
CAT5 or greater - HE01ST

Power

Power Supply
DC 5V 1A - HE01ST

DC 5V 1A - HE01SR
Power Consumption
600mA - HE01ST

400mA - HE01SR

Ambient Temperature

Operation
0 to 55℃ - HE01ST
Storage
-20 to 85℃ - HE01ST
Humidity
up to 95% - HE01ST

Physical Characteristic

Dimension
67 x 91 x 27mm - HE01ST

67 x 120 x 27mm - HE01SR
Weight
140g - HE01ST

175g - HE01SR
