HS10M-4K6G SC&T

RM11,026.00

4K 60Hz 10 in 10 out HDMI® Matrix Switcher with Audio Extractor

Resolution up to 4K@60Hz 4:4:4.
Supports ARC (Audio Return Channel).
Supports HDMI audio extraction via S/PDIF coaxial output.
Supports cable locks on each HDMI input & output port.
Built-in LCM panel and LED indications for the status of all connected devices.
Rack-mountable (1U standard).
Managed via RS232, front panel buttons, IR remote, WebGUI, iOS/Android APP.

Category: Uncategorized Tag: SC&T Brand: SC&T

Description

Product description

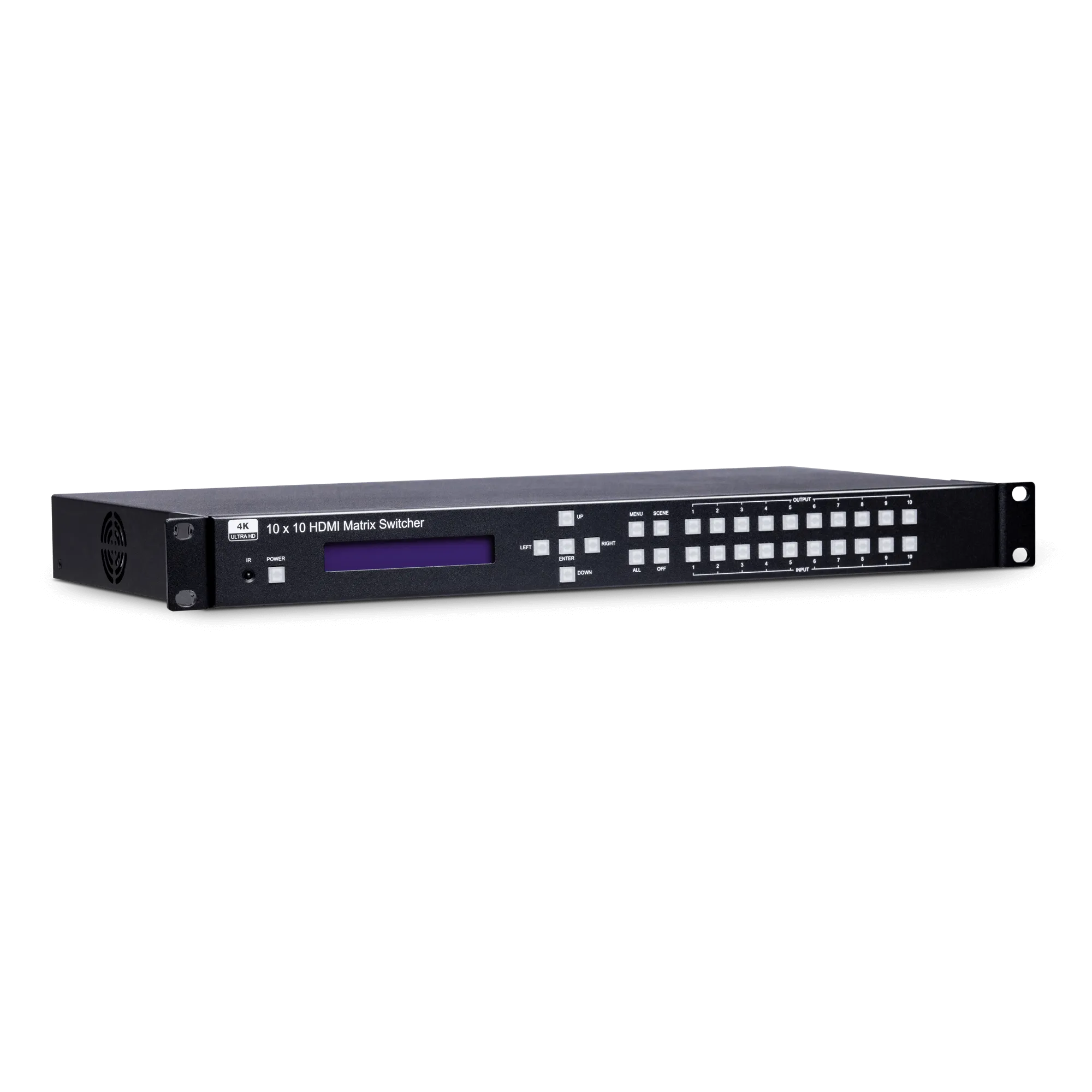

HS10M-4K6G is a 10-in-10-out HDMI® matrix switch that can route 10 Hi-res HDMI® videos to 10 HDMI® displays. Moreover, the built-in audio extraction function allows you to integrate with your premium audio equipment for a superior audiovisual experience. With all the powerful features, you have multiple ways to control and manage the matrix depending on your needs. Such as an IR remote, RS232 commands, front panel buttons, Web GUI, Telnet, and Android/iOS mobile APP.

Support

Compliance

HDMI 2.0, HDCP 2.2, DVI 1.1, 3D, HDR 10, Dolby Vision, HLG

Max. HDMI Resolution

4K@60Hz 4:4:4

Video Bandwidth

18 Gbps

Audio Format

LPCM 7.1@192KHz, Dolby TrueHD, DTS-HD MA

RS232 Baud Rate

9600 bps

IR Support

45°, 5M

Power

Power Supply

DC 12V 6.67A

Power Consumption

2.8A

Ambient Temperature

Operation

0 to 55℃

Storage

-20 to 85℃

Humidity

up to 95%

Physical Characteristic

Dimension

483 x 232 x 44mm

Weight

2920g
