XENYX QX1832USB Behringer

RM1,670.00

Premium 18-Input 3/2-Bus Mixer with XENYX Mic Preamps and Compressors, Klark Teknik Multi-FX Processor, Wireless Option and USB/Audio Interface

  • Premium ultra-low noise, high headroom mixer
  • 6 state-of-the-art, phantom-powered XENYX Mic Preamps comparable to stand-alone boutique preamps
  • 6 studio-grade compressors with super-easy “one-knob” functionality and control LED for professional vocal and instrumental sound
  • Ultra-high quality Klark Teknik FX processor with LCD display, dual-parameters, Tap function and storable user parameter settings
  • Wireless-ready for high-quality Behringer digital wireless system (not included)
  • Built-in stereo USB/Audio Interface to connect directly to your computer. Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins downloadable at behringer.com
  • Neo-classic “British” 3-band EQs with semi-parametric mid band for warm and musical sound
  • 9-band stereo graphic EQ allows precise frequency correction of monitor or main mixes
  • Revolutionary FBQ Feedback Detection System instantly reveals critical frequencies
  • Breathtaking XPQ 3D stereo surround effect for more vitality and enhanced stereo image
  • Voice Canceller function for easy-to-use sing-along applications
  • Channel inserts on each mono channel for flexible connection of outboard equipment
  • 3 aux sends per channel: 1 pre fader for monitoring, 1 pre/post fader switchable for monitoring/FX applications, 1 post fader (for internal FX or as external send)
  • Clip LEDs, mute, main mix and subgroup routing switches, solo and PFL functions on all channels
  • 2 subgroups with separate outputs for added routing flexibility and 2 multi-functional stereo aux returns with flexible routing
  • Balanced main mix outputs with gold-plated XLR connectors, headphone/control room output and stereo rec outputs
  • Long-wearing 60-mm logarithmic-taper faders and sealed rotary controls
  • Planet Earth switching power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
  • Designed and engineered in Germany
SKU: XENYX QX1832USB Categories: , Tag: Brand:

Description

Product description

The feature-packed XENYX QX1832USB mixer allows you to effortlessly achieve premium-quality sound thanks to its 6 onboard studio-grade XENYX Mic Preamps and ultra-musical “British” channel EQs – with a semi-parametric mid band for warm and musical sound. And our easy-to-use “one-knob” compressors provide total dynamic control for the ultimate in punch and clarity, while respecting all the power and emotion you pack into every note. Add to this our Klark Teknik FX processor with 32 studio-grade presets with dual addressable parameters, Tap function and storable user parameter settings – and the QX1832USB becomes an incredibly versatile mixer for your live performances. But the XENYX QX1832USB isn’t just designed to handle your live gigs; it also provides the state-of-the-art tools you need to make stunning, professional-quality recordings. Along with the built-in USB/ audio interface, the XENYX QX1832USB comes with all the recording and editing software needed to turn your computer system into your own personal, high-performance home recording studio.

Specifications

Number of Analog Input Channels
10 (6 Mono / 4 Stereo)
Number of Mic Preamps
6
Analog Output Channels
1x Stereo Master Output1x Stereo Bus/Subgroup Output1x Stereo Control Room/Monitor Output1x Stereo Tape/Record Output1x Stereo Headphone Output3x Mono Aux Send OutputShow More
EQ
3-Band EQ
Built-In Effects
32x Stereo Effect (Type Unspecified)
USB I/O
USB-BUSB-A
Wireless
No
Rack Mountable
No

Mixer

Max I/O Capacity
10x Input / 4x Output
Number of Analog Input Channels
10 (6 Mono / 4 Stereo)
Number of Mic Preamps
6
Analog Output Channels
1x Stereo Master Output1x Stereo Bus/Subgroup Output1x Stereo Control Room/Monitor Output1x Stereo Tape/Record Output1x Stereo Headphone Output3x Mono Aux Send Output
Mix Routing
Stereo Main Mix / Mono Bus/Subgroup
Faders & Level Adjustment
10x 2.4" / 60 mm Channel Fader2x 2.4" / 60 mm Bus/Subgroup Fader2x 2.4" / 60 mm FX Fader2x 2.4" / 60 mm Master Fader
Meters
2x 12-Segment LED

Signal Processing

Gain/Trim Range
XLR Mic Input:+10 dB to +60 dB1/4" Line Input:-10 dB to +40 dB (Mono Channels)-10 dB to +4 dB (Stereo Channels)
Dynamic Processing
Mono Channels:Compressor
EQ
3-Band EQ
EQ Parameters
Mono Channels:Low: ±15 dB at 80 Hz (Shelving)Mid: ±15 dB at 100 Hz to 8 kHz (Semi-Parametric)High: ±15 dB at 12 kHz (Shelving)Stereo Channels:Low: ±15 dB at 80 HzLo-Mid: ±15 dB at 500 HzHi-Mid: ±15 dB at 3 kHzHigh: ±15 dB at 12 kHz
Graphic EQ
9-Band 1/3 Octave, ±12 dB 63 Hz to 16 kHz
Solo/Mute
Solo, Mute, PFL per Input Channel, Bus, FX Bus
Built-In Effects
32x Stereo Effect (Type Unspecified)
Sample Rates
48 kHz
Bit Depth
16-Bit

Performance

Frequency Response
Mic Input to Main Output:10 Hz to 160 kHzMic Input:10 Hz to 200 kHz +0/-3 dB10 Hz to 150 kHz +0/-1 dBMic Input to Main Output:10 Hz to 160 kHz ±3 dB
Max Input Level
XLR Mic Input:+12 dBu at +10 dB Gain1/4" TRS Line Input:+30 dBu1/4" Line/Stereo:+22 dBu1/4" / RCA Line/Aux/Tape/Channel Insert Input:+22 dBu
I/O Impedance
XLR Mic Input:2 Kilohms (Balanced)1/4" TRS Line Input:20 Kilohms (Balanced)10 Kilohms (Unbalanced)1/4" TRS Aux Return:20 Kilohms10 KilohmsStereo RCA Input:10 Kilohms (Unbalanced)XLR Main Output:240 Ohms (Balanced)120 Ohms (Unbalanced)1/4" TRS Aux/Control Room/FX Output:120 Ohms (Balanced)1/4" TRS Headphone Output:25 OhmsStereo RCA Line Output:1 Kilohm (Unbalanced)
Noise Floor
-100 dB Unweighted (Master Level at -∞, Channel Levels at -∞)-103 dB A-Weighted (Master Level at -∞, Channel Levels at -∞)-88 dB Unweighted (Master Level at Unity, Channel Levels at -∞)-91 dB A-Weighted (Master Level at Unity, Channel Levels at -∞)-80 dB Unweighted (Master Level at Unity, Channel Levels at Unity)-82 dB A-Weighted (Master Level at Unity, Channel Levels at Unity)
SNR
109 dB (0 dBu In at +22 dB Gain)112 dBA (0 dBu In at +22 dB Gain)
THD+N
Mic Input to Analog Output:0.005%0.004% (A-Weighted)
Analog Inputs

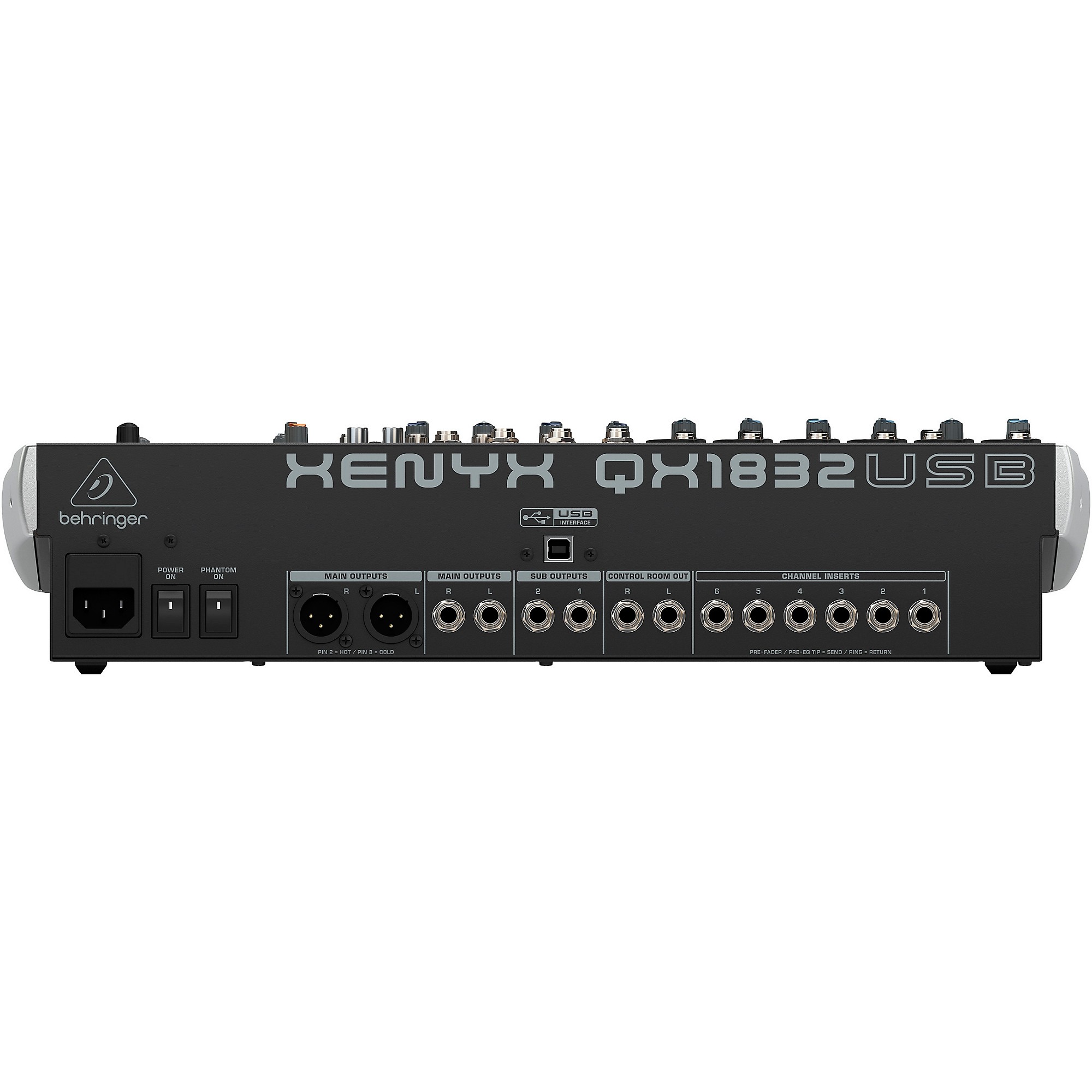

6x XLR 3-Pin Balanced Mic Input6x 1/4" TRS Balanced/Unbalanced Line Input6x 1/4" TRS Insert Insert8x 1/4" TRS Balanced/Unbalanced Stereo Line Input (4 Stereo Pair)1x Stereo RCA Coaxial Unbalanced Line Input (1 Stereo Pair)4x 1/4" TRS Balanced/Unbalanced Stereo Aux/FX Return (2 Stereo Pairs)
Analog Outputs
2x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)2x 1/4" TRS Balanced Stereo Main Output (1 Stereo Pair)2x 1/4" TRS Balanced/Unbalanced Subgroup Output2x 1/4" TRS Balanced Stereo Control Room Output (1 Stereo Pair)3x 1/4" TRS Balanced/Unbalanced Aux/FX/Monitor Send1x Stereo RCA Coaxial Unbalanced Stereo Line Output (1 Stereo Pair)1x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power
+48 V
Digital I/O
No
MIDI I/O
No
USB I/O
1x USB-B1x USB-A (Wireless Audio)
USB I/O Capacity
2x Input / 2x Output
Other I/O
1x 1/4" Footswitch Input
Wireless
No
OS Compatibility
WindowsmacOS

Power

Input Power
100 to 240 VAC, 50 / 60 Hz

Physical

Rack Mountable
No
Dimensions
16.9 x 3.5 x 14.6" / 429.3 x 88.9 x 370.8 mm
Weight
10.4 lb / 4.7 kg
Package Weight
13.21 lb
Box Dimensions (LxWxH)
20.9 x 17.7 x 5.8"

Specification Notes

Line 01
Key Specs
Line 02
Mixer
Line 03
Signal Processing
Line 04
Digital Audio
Line 05
Performance
Line 06
Connectivity
Line 07
Compatibility
Line 08
Power
Line 09
Physical
Line 10
Packaging Info
