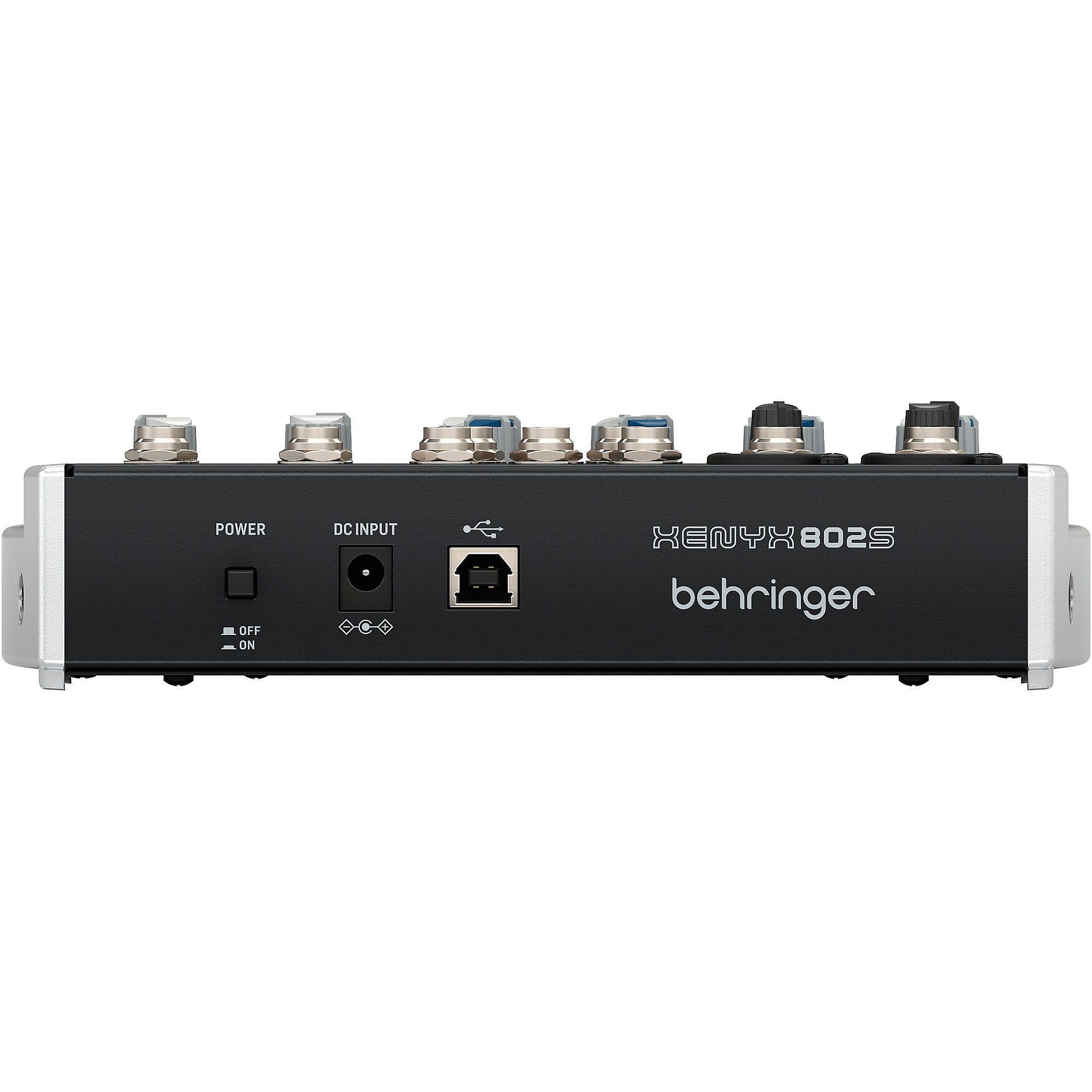

XENYX 802S Behringer
XENYX 802S Behringer - Image 2
XENYX 802S Behringer - Image 3
XENYX 802S Behringer - Image 4

XENYX 802S Behringer

RM411.00

Premium Analog 8-Input Mixer with USB Streaming Interface

  • Ultra-low noise analog mixer for streaming, podcasting and recording
  • 2 Award winning XENYX microphone preamps for warm and musical sound
  • Stereo USB audio interface to connect to your computer or mobile device
  • Direct mixing of PC/gaming sounds into the streaming output
  • Analog mixing and equalization for pure sound
  • Versatile sub mixer for network enabled audio devices
  • Stereo channel 7/8 automatically switches between TRS input and USB playback
  • 3-band EQs for warm and musical sound
  • FX send control per channel for external FX processor or monitoring mix
  • High-quality monitoring, phones and streaming outputs
  • Stereo RCA inputs assignable to main mix or monitor/phones outputs
SKU: XENYX 802S Categories: , , Tag: Brand:

Description

Product description

The compact XENYX 802S mixer’s 8 inputs allow you to effortlessly achieve premium-quality sound that’s perfect for streaming, podcasting and recording. It provides a warm and ultra-musical sound thanks to its award-winning XENYX microphone preamps featuring 48V Phantom Power for hi-end studio microphones.

Specifications

Number of Analog Input Channels
8 (2 Mono / 6 Stereo)
Number of Mic Preamps
2
Analog Output Channels
1x Stereo Master Output1x Stereo Tape/Record Output1x Stereo Headphone Output
EQ
3-Band EQ
Built-In Effects
No
USB I/O
USB-B
Wireless
No
Rack Mountable
No

Mixer

Number of Analog Input Channels
8 (2 Mono / 6 Stereo)
Number of Mic Preamps
2
Analog Output Channels
1x Stereo Master Output1x Stereo Tape/Record Output1x Stereo Headphone Output
Mix Routing
Stereo Main Mix
Faders & Level Adjustment
5x Channel Knob1x Master Knob
Meters
2x 4-Segment LED

Signal Processing

Gain/Trim Range
XLR Mic Input:+10 dB to +60 dB1/4" Line Input:-10 dB to +40 dB
Dynamic Processing
No
EQ
3-Band EQ
EQ Parameters
Low: ±15 dB at 80 HzMid: ±15 dB at 2.5 kHzHigh: ±15 dB at 12 kHz
Graphic EQ
No
Solo/Mute
No
Built-In Effects
No
Sample Rates
48 kHz
Bit Depth
16-Bit

Performance

Frequency Response
Line InputAnalog :20 Hz to 200 kHzMic Input:10 Hz to 150 kHz (+10 dB Gain)20 Hz to 70 kHz (+60 dB Gain)
Max Input Level
XLR Mic Input:+12 dBu at +10 dB Gain1/4" TRS Line Input:+21 dBu at Unity GainRCA Line Input:+10 dBu
I/O Impedance
XLR Mic Input:2 Kilohms (Balanced)1/4" TRS Line Input:22 Kilohms (Balanced)10 Kilohms (Unbalanced)Stereo RCA Input:10 Kilohms (Unbalanced)1/4" TRS FX/Main/Monitor Output:120 Ohms (Balanced)1/4" TRS Headphone Output:23 OhmsStereo RCA Line Output:1 Kilohm (Unbalanced)
Noise Floor
-109 dBu A-Weighted (Master Level at -∞, Channel Levels at -∞)
THD+N
Mic Input to Analog Output:0.005% at +10 dB Gain (1 kHz)
Analog Inputs
2x XLR TRS Balanced Mic Input2x 1/4" TRS Balanced/Unbalanced Line Input6x 1/4" TRS Balanced/Unbalanced Stereo Line Input (3 Stereo Pair)1x Stereo RCA Coaxial Unbalanced Line Input (1 Stereo Pair)
Analog Outputs
2x 1/4" TRS Balanced/Unbalanced Main Output2x 1/4" TRS Balanced/Unbalanced Monitor Output1x 1/4" TRS Balanced/Unbalanced FX Send1x Stereo RCA Coaxial Unbalanced Stereo Line Output (1 Stereo Pair)1x 1/4" TRS Unbalanced Headphone Output
Phantom Power
+48 V
Digital I/O
No
MIDI I/O
No
USB I/O
1x USB-B
USB I/O Capacity
2x Input / 2x Output
Wireless
No
OS Compatibility
WindowsmacOS

Power

Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
18 VDC at 1A

Physical

Rack Mountable
No
Dimensions
7.4 x 1.9 x 8.7" / 188 x 48.3 x 221 mm
Weight
3.5 lb / 1.6 kg
Package Weight
3.61 lb
Box Dimensions (LxWxH)
12 x 11.188 x 4.063"

Specification Notes

Line 01
Key Specs
Line 02
Mixer
Line 03
Signal Processing
Line 04
Digital Audio
Line 05
Performance
Line 06
Connectivity
Line 07
Compatibility
Line 08
Power
Line 09
Physical
Line 10
Packaging Info
