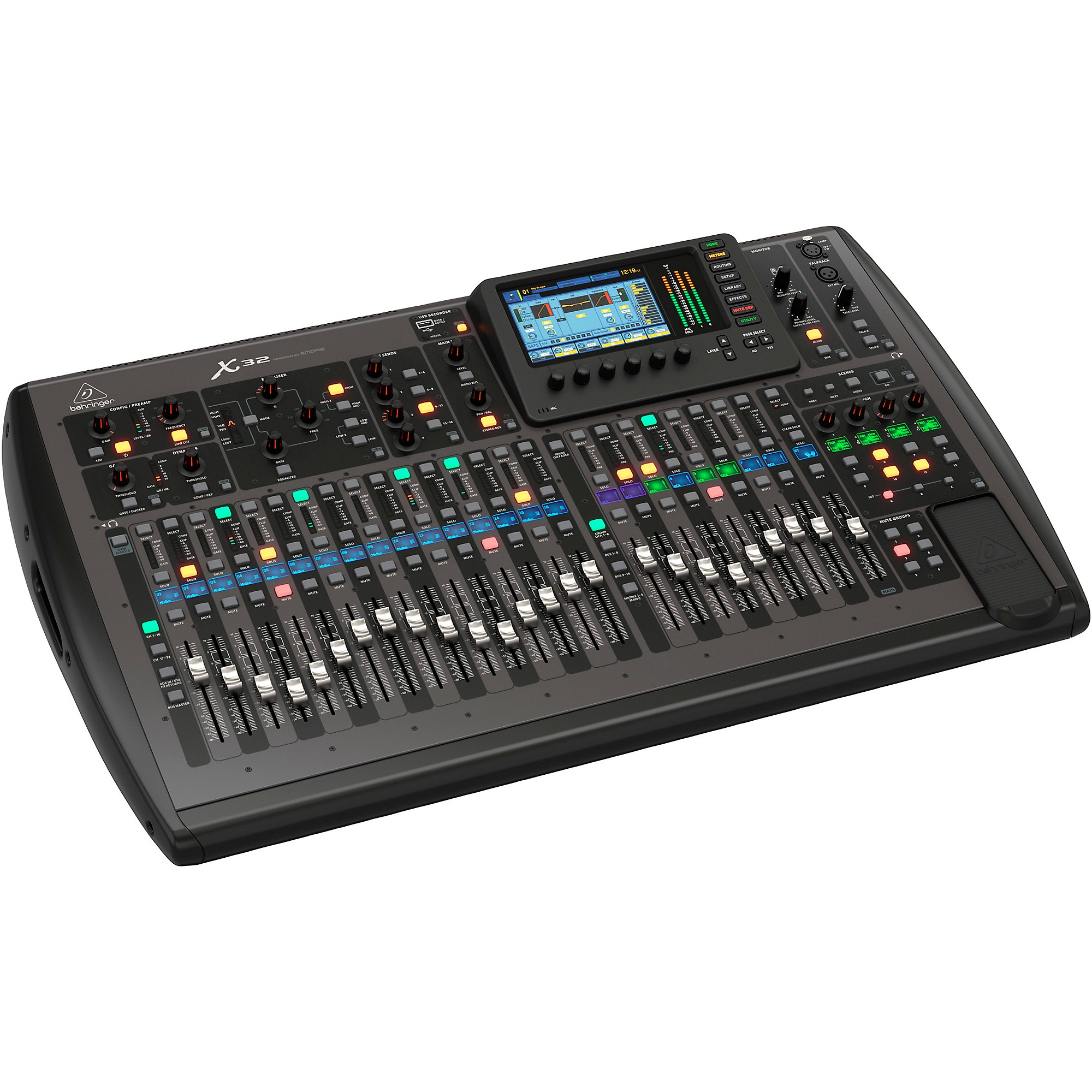

X32 Behringer

RM10,930.00

SPECIFICATION

  • 40-input channel, 25-bus digital mixing console for Studio and Live application
  • 32 Midas-designed, fully programmable mic preamps for audiophile sound quality
  • 25 Fully automated motorized 100 mm faders allow for instant overview, powerful scene management and DAW control
  • 16 XLR outputs plus 6 additional line in/outputs, 2 phones connectors and a talkback section with integrated or external mic
  • Individual and dynamic LCD Scribble Strips on all channels and buses creating easy assignment and intuitive channel distinction
  • 32 x 32 channel USB 2.0 audio interface, with DAW remote control emulating HUI and Mackie Control
  • iPad and iPhone apps for professional remote operation available free of charge-no host PC required
  • High-resolution 7″ day-viewable Color TFT for easy viewing of workflow components and parameters
  • Main LCR, 6 matrix buses and 16 mix buses each featuring inserts, 6-band parametric EQ’s and full dynamics processing, plus 8 DCA and 6 mute groups
  • Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L and PCM70, EMT250 and Quantec QRS etc.
  • 40-Bit floating-point DSP features “unlimited” dynamic range with no internal overload and near-zero overall latency (0.8 msec)
  • Powerful scene management for convenient handling of complex productions
  • 48-channel Digital Snake ready via AES50 ports, featuring Klark Teknik’s SuperMAC networking capability for ultra-low jitter and latency
  • USB type-A connector providing file storage and uncompressed stereo recordings plus show presets and system updates
  • Dedicated and easy-to-use channel strip section with direct access controls and graphic user interface for intuitive workflow
  • Additional user-definable control section allows for on-the-fly adjustments of your favorite parameters
  • ULTRANET connectivity for Behringer’s P-16 Personal Monitoring System plus AES/EBU stereo digital output and MIDI
  • Networked remote control for show setups with on-screen software editor via Ethernet
  • Built-in expansion port for audio interface cards or digital networking bridges
  • Future firmware updates, incl. new FX “Plug Ins”, downloadable from behringer.com free of charge
SKU: X32 Categories: , Tag: Brand:

Description

Product description

40-Input, 25-Bus Digital Mixing Console with 32 Programmable MIDAS Preamps, 25 Motorized Faders, Channel LCD’s, 32-Channel Audio Interface and iPad/iPhone Remote Control

The STEREO PRECISION LIMITER is perfect for setting a precise volume limits, ensuring distortion-free and optimal signal integrity. Use the Stereo Precision Limiter to boost quiet signals or reduce the level of “hot” signals to prevent clipping. (Inspired by Sony Oxford Dynamics *)

The DE-ESSER is a “must-have” tool for reducing the amount of sibilance in vocal mics while adeptly preserving the natural voice timbre of a performance. Use it to enhance the smoothness of the upper mid to high frequencies in vocals as well as drum overheads and strings, etc. (Inspired by SPL 1239 *)

Based on the legendary EMT250, the VINTAGE REVERB delivers a shimmering, bright reverb that won’t drown out or overpower your live/recorded tracks. Use the VINTAGE REVERB to sweeten vocals and snare drums without sacrificing clarity. (Inspired by EMT250 Plate Reverb *)

Taking up only one FX slot, the CHORUS & CHAMBER effect combines the shimmer and doubling characteristics of a studio-grade Chorus with the sweet sound of a traditional Chamber reverb. (Inspired by Lexicon PCM70 *)

Key Specs

Mixer

Signal Processing

Digital Audio

Performance

Connectivity

Recording

Compatibility

Power

Physical

Packaging Info

Specifications

Max I/O Capacity
40x Input / 25x Output
Number of Analog Input Channels
32
Number of Mic Preamps
32
Number of Analog Output Channels
16
Faders & Level Adjustment
25x 3.9" / 100 mm Motorized Fader(Touch Sensitive)
Analog Inputs
32x XLR 3-Pin Balanced Mic/Line Input1x XLR 3-Pin Balanced Mic/Talkback Input1x Stereo RCA Coaxial Unbalanced Aux Input6x 1/4" TRS Aux Return
Analog Outputs
16x XLR Main/Bus Output1x Stereo RCA Aux Output2x XLR Control Room/Monitor Output2x 1/4" Control Room/Monitor Output6x 1/4" Aux Output2x 1/4" Headphone Output
Digital I/O
1x RJ45 Ethernet (Control, 1 Gb/s)1x RJ45 Ultranet (I/O)2x RJ45 AES50 (I/O)1x XLR AES3 Output
USB I/O
USB-BUSB-B
Wireless
No
Rack Mountable
No

Mixer

Max I/O Capacity
40x Input / 25x Output
Number of Analog Input Channels
32
Number of Mic Preamps
32
Number of Analog Output Channels
16
Mix Routing
25x Stereo Bus
Groups
8x DCA Group6x Mute Group
Presets
No
Display
7" LCD (Daylight-Viewable)
Display Resolution/Color
Main Display:800 x 480 / RGB ColorChannel Display:128 x 64 / RGB Color
Faders & Level Adjustment
25x 3.9" / 100 mm Motorized Fader(Touch Sensitive)
Meters
2x 24-Segment LED
Meter Range
-57 dB to +16 dB Before Clip

Signal Processing

Gain/Trim Range
Mic:0 dB to +72 dB
Input Polarity
Normal/Reverse
Dynamic Processing
Input Channels:Compressor, Limiter, Soft Limiter, Gate
EQ
6-Band EQ
Graphic EQ
31-Band 1/3 Octave
Solo/Mute
Solo, Mute per Input ChannelMute per Master
Channel Output/Source Monitoring
AFL
Real Time Analyzer
1x 100-Band
Automatic Mic Mixing
No
Sample Rates
44.1 / 48 kHz
Bit Depth
AD/DA Conversion:24-Bit
DSP
40-Bit Floating Point
Converter Dynamic Range
114 dBA at 48 kHz
Latency
0.8 ms (Analog Input to Analog Output)1.1 ms (Stagebox Input to Stagebox Output)

Performance

Frequency Response
10 Hz to 22 kHz +0/-1 dB (at 48 kHz)
Max Input Level
Mic Input:+23 dBuLine Input:+16 dBu
Output Level
1/4" Aux/Line Output:+16 dBuXLR Output:+21 dBu1/4" TRS Headphone Output:+25 dBm at Max Gain (Unbalanced)
Analog Dynamic Range
Input to Output:106 dB at Unity Gain
I/O Impedance
XLR Mic Input:5 Kilohms (Unbalanced)10 Kilohms (Balanced)1/4" TRS Line Input:20 Kilohms (Unbalanced)40 Kilohms (Balanced)XLR Output:75 Ohms (Balanced/Unbalanced)Line Output:150 Ohms (Unbalanced)300 Ohms (Balanced)
Crosstalk
Adjacent Channels:100 dB at 1 kHz
CMRR
XLR Mic Input:> 70 dB at +20 dB Gain> 80 dB at +40 dB Gain
EIN
XLR Mic Input:-128 dBu
Noise Floor
-87 dB A-Weighted
THD+N
Mic Input to Analog Output:0.006% at +20 dB Gain (0 dBu)
Analog Inputs
32x XLR 3-Pin Balanced Mic/Line Input1x XLR 3-Pin Balanced Mic/Talkback Input1x Stereo RCA Coaxial Unbalanced Aux Input6x 1/4" TRS Aux Return
Analog Outputs
16x XLR 3-Pin Main/Bus Output1x Stereo RCA Aux Output (1 Stereo Pair)2x XLR 3-Pin Stereo Control Room/Monitor Output (1 Stereo Pair)2x 1/4" TRS Stereo Control Room/Monitor Output6x 1/4" TRS Aux Output2x 1/4" TRS Headphone Output
Phantom Power
+48 V (Selectable on Individual Inputs)
Digital I/O
1x RJ45 Ethernet (Control, 1 Gb/s)1x RJ45 Ultranet (I/O)2x RJ45 AES50 (I/O)1x XLR AES3 Output
MIDI I/O
1x MIDI 5-Pin In1x MIDI 5-Pin Out
USB I/O
1x USB-B 2.0 (Control)1x USB-B 2.0 (Audio Playback, Multitrack Record)
USB I/O Capacity
32x Input / 32x Output
Expansion Ports
No
Wireless
No
Mobile App Compatible
Yes: Android & iOSApp Name: X32-Mix, X32-QFunctionality: Adjust Settings, Remote Control, Setup
External Display I/O
No
Max Multitrack Recording
32 Tracks
Media Support
USB Drive
OS Compatibility
macOSWindows
Mobile Device Compatibility
iPadAndroid SmartphoneAndroid Tablet
Required Hardware
Available USB 2.0 Port

Power

Input Power
100 to 240 VAC, 50 / 60 Hz
AC Power I/O
1x IEC Input
Power Consumption
120 W

Physical

Rack Mountable
No
Operating Temperature
41 to 104°F / 5 to 40°C
Dimensions
35.4 x 20.8 x 7.9" / 89.9 x 52.8 x 20.1 cm
Weight
45.4 lb / 20.6 kg
Package Weight
57 lb
Box Dimensions (LxWxH)
40 x 26 x 13"
