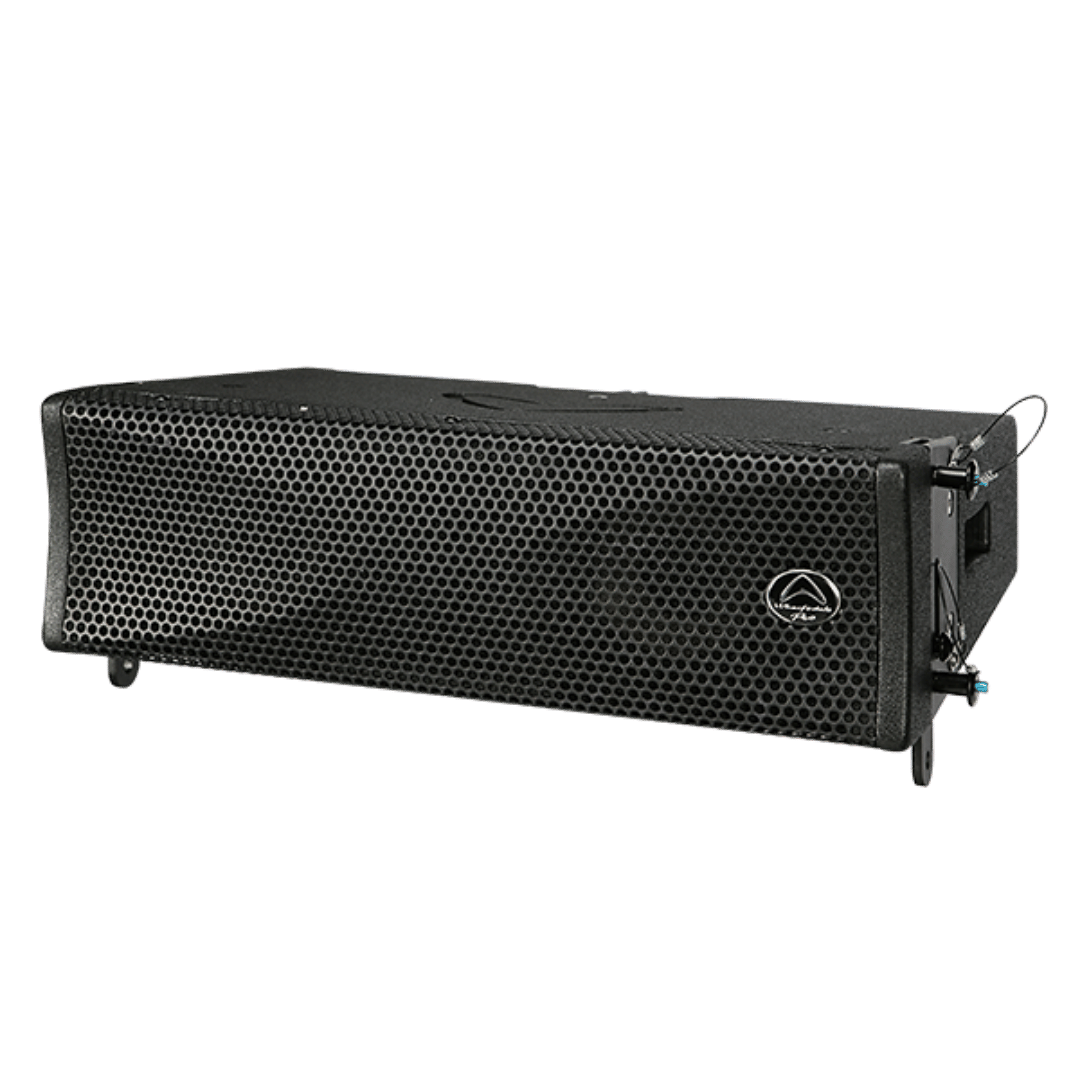

WLA-25 Wharfedale Pro

Dual 5″ array element

  • 2 x 5″ LF drivers
  • 2.5″ LF voice coils
  • Neo HF compression driver
  • 15 mm / 18mm Birch plywood construction
  • Integral, side plate adjustable rigging
  • 100° x 10° dispersion
  • 120 watts AES (RMS)
  • 240 watts Programme
  • 480 watts Peak
SKU: WLA-25 Categories: , , Tag: Brand:

Description

Product description

WLA-25 is a compact two-way passive line array system that delivers powerful performance in a lightweight and portable format. It offers exceptional SPL and clarity from an enclosure that’s ideal for small to medium-scale applications.

At its core are two custom 5″ LF drivers paired with a Wharfedale Pro neodymium HF compression driver, featuring a 1.75″ voice coil and aluminium back plate for improved heat dissipation and reduced distortion under high output. The precision-engineered acoustic grille and 100° × 10° dispersion waveguide ensure accurate mid and high-frequency projection with excellent phase coherence.

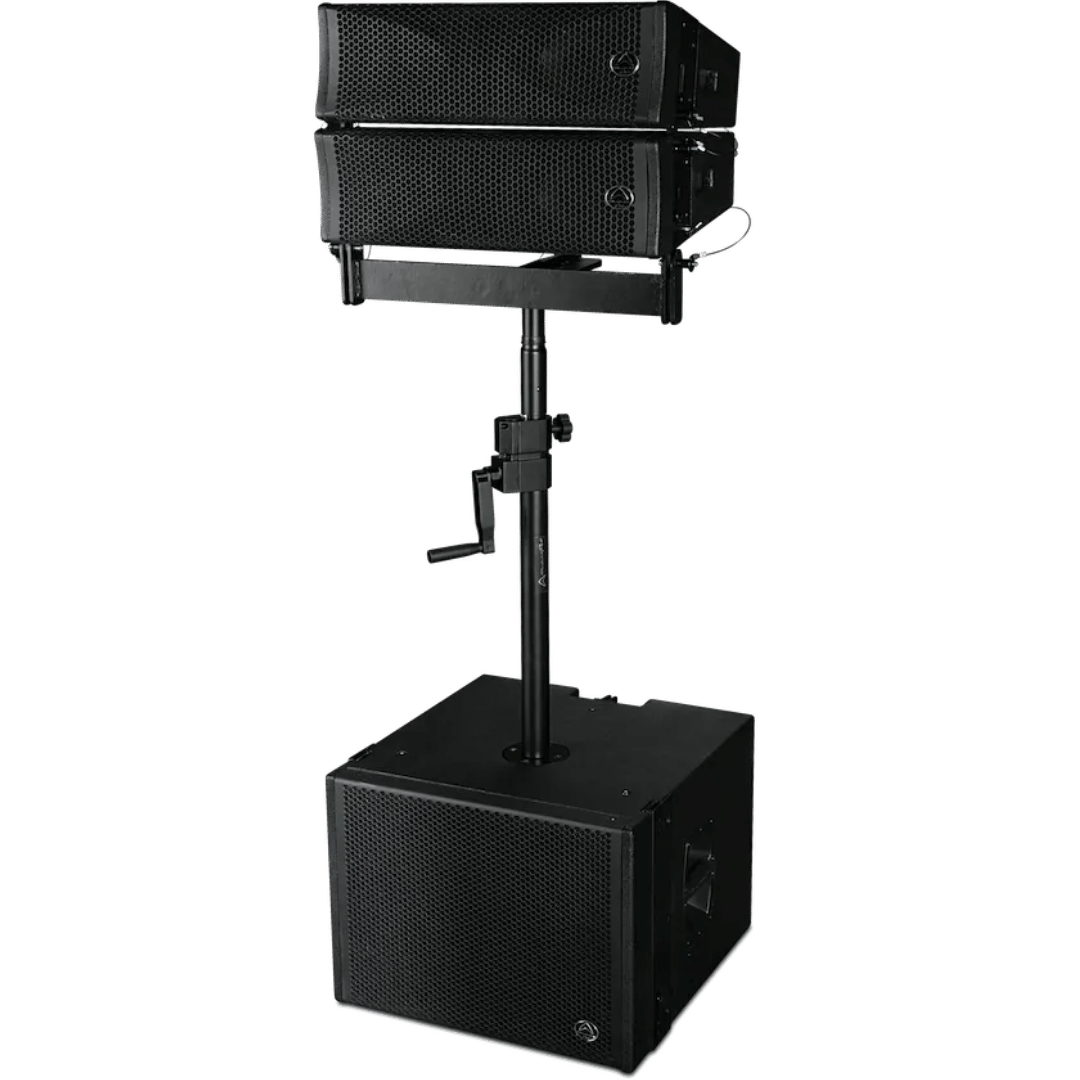

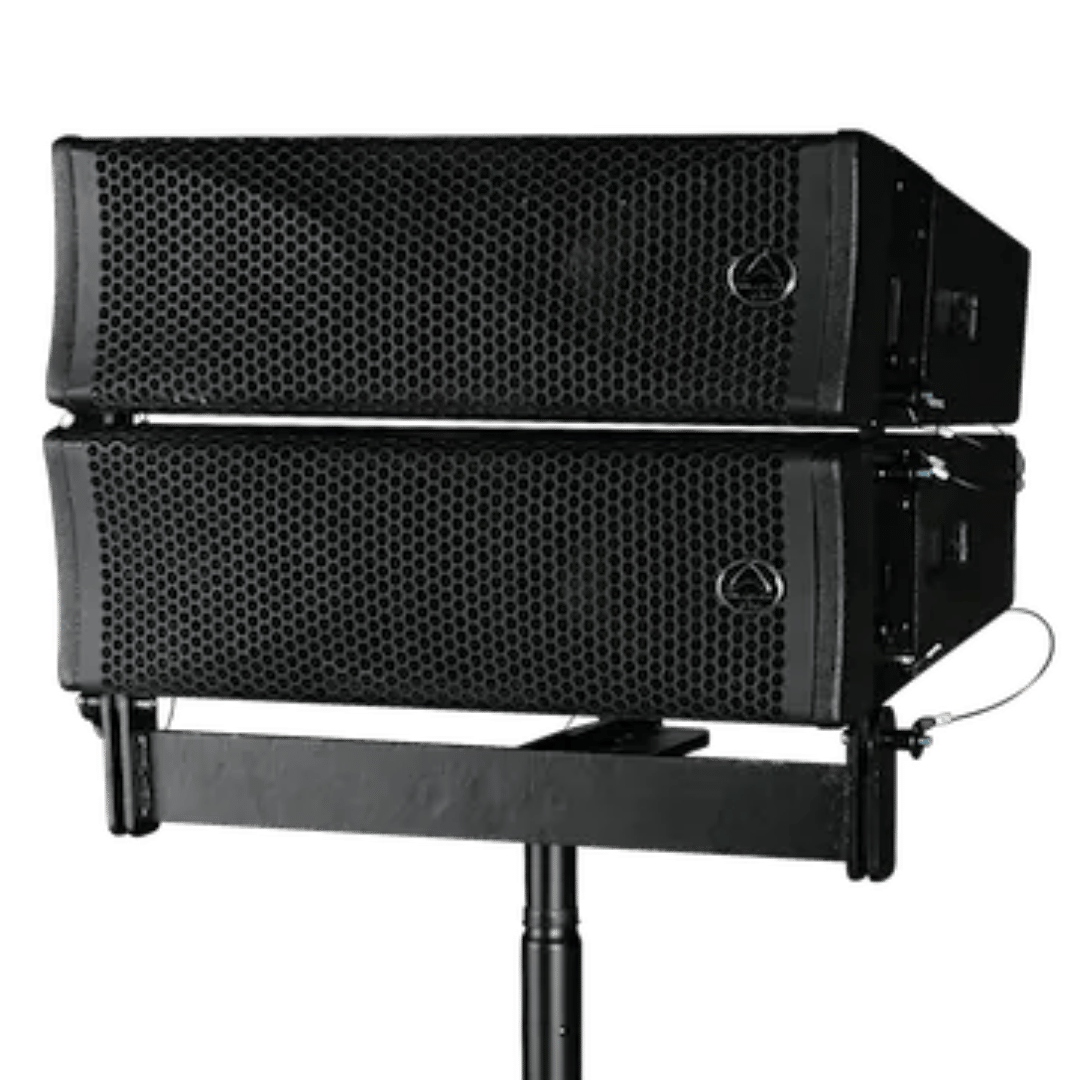

Constructed from 15 mm / 18 mm birch plywood, the WLA-25 combines strength and low resonance for clean, defined sound. The integral rigging system supports flexible flying or groundstacking options using the dedicated WLA-25 Common fly frame.

Handling 120 W continuous (480 W peak) power, the WLA-25 achieves remarkable output and definition for its size — making it a perfect solution for theatres, houses of worship, and multi-function venues.

Specifications

Active or Passive
Passive
System Type
Array Element
Configuration
2-way
System Continuous Power
120 W
System Programme Power
240 W
System Peak Power
480 W
Max SPL @ 1m
132 dB
Freq Response (+/-3 dB)
115 Hz - 18 kHz
Freq Range (-10 dB)
108 Hz - 20 kHz
Bi-amp Mode Switch
No
Bluetooth
No
IP Certification
None
Driver Brand
Wharfedale Pro
LF Driver Size
2 x 5"
LF Magnet Material
Ferrite
LF Frame Material
Aluminium
LF Voice Coil Size
1.4”
LF Rated Impedance
16 Ω
LF Power (RE:AES2-2012)
2 x 60 W
HF Driver Type
Compression Driver – Neo
HF Voice Coil Size
1.75"
HF Diaphragm Material
Titanium
HF Exit Size
1"
HF Power (RE:AES2-2012)
40 W
HF Rated Impedance
16 Ω
Preset Library
Yes
Input Connector
2 x 4 Pole speaker connector
Waveguide Type
Coherent Array Shaping Technology (CAST)
Enclosure Material
Birch Plywood
Grille Material and Finish
Steel Black or White
Finish
Black or White Tough-Tone Paint
Handles
2
Deployment
Ground, Flying
Pole Mount
Optional WLA-25 Stand Frame
Rigging
Yes
Integral Rigging
3 Points
Nominal Coverage (H x V)
100° x System dependant
Sensitivity 2.83 V / 1 m
100 dB
System Rated Impedance
16 Ω
Crossover Frequency
3.7 kHz
Recommended HPF = BW 18 dB/OCT.
108 Hz
Transformer (T)
No
Included Accessory
User Manual
Unpacked - Front Height (mm)
164
Unpacked - Rear Height (mm)
112
Unpacked - Width Front (mm)
536
Unpacked - Width Rear (mm)
536
Unpacked - Depth (mm)
363
Packed - Height (mm)
235
Packed - Width Front (mm)
430
Packed - Width Rear (mm)
430
Packed - Depth (mm)
606
Weight - Nett (kg)
13
Weight - Gross (kg)
15
