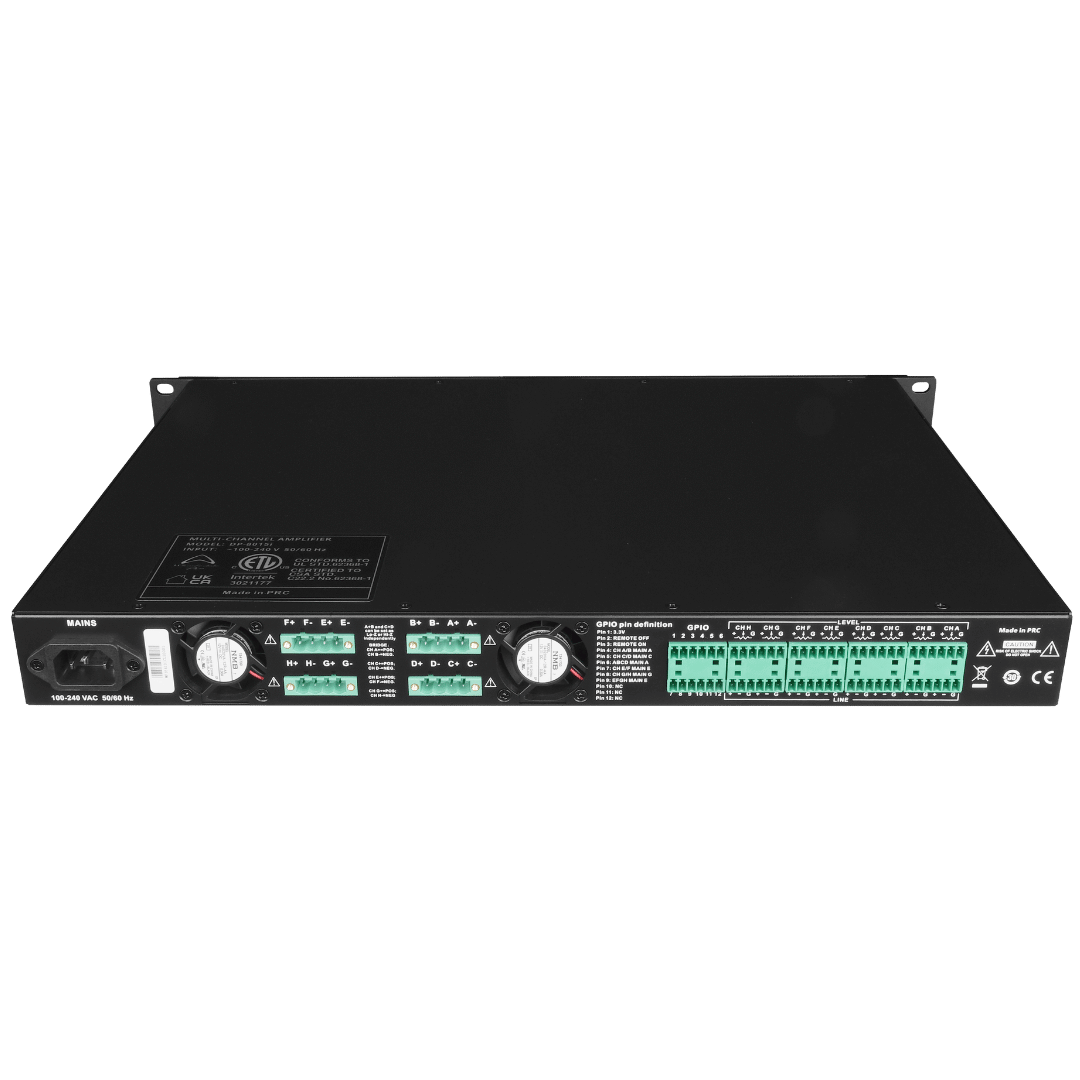

DP-8015i Wharfedale Pro - Image 3
DP-8015i Wharfedale Pro - Image 4
DP-8015i Wharfedale Pro - Image 5

DP-8015i Wharfedale Pro

8 channels of power – perfect for fixed install

  • 8 channels
  • 8 Ohm 8 x 150 W
  • 4 Ohm 8 x 150 W
  • 2 Ohm 8 x 150 W
  • 16 Ohm Bridged 4 x 300 W
  • 8 Ohm Bridged 4 x 300 W
  • 4 Ohm Bridged 4 x 300 W
  • 100 V Hi-Z 8 x 150 W
  • 70 V Hi-Z 8 x 150 W
SKU: DP-8015i Categories: , , Tag: Brand:

Description

Product description

DP-8015i is an 8-channel amplifier from our DP-i Series, engineered for professional fixed installations requiring flexible routing, reliable performance and intuitive control.

Delivering 150 W per channel across low-impedance (2–8 Ω) and high-impedance (70 V/100 V) systems, it can also operate in Bridge mode for up to 4 x 300 W, offering outstanding adaptability for complex multi-zone setups. A 1.8″ colour display on the front panel provides quick access to system status and configuration, while a removable grille allows for easy maintenance and a clean, professional appearance.

Equipped with GPIO functionality for remote control and linking, along with Phoenix connectors for inputs, outputs and remote level adjustment, installation is simple and secure. With built-in protection against overload, short-circuit and thermal faults, the compact 1U DP-8015i delivers dependable power and precision for professional installation environments.

Specifications

Amp Channels
8
Topology
Class D
Stable at 2 Ohms
Yes
8Ω
8 x 150 W
4Ω
8 x 150 W
2Ω
8 x 150 W
16Ω Bridged
4 x 300 W
8Ω Bridged
4 x 300 W
4Ω Bridged
4 x 300 W
Control
GPIO
Input Connectors
Phoenix MC 1, 5/12-ST-3, 81
Output Connectors
Phoenix PC 5/8-STF1-7, 62
Link Connectors
Phoenix MC 1, 5/6-ST-3, 81
Mode Switch
Lo-Z / Hi-Z / 100 V / 70 V / Mono / Bridge Mode
DSP Features
None
Hi-Z
Yes
100V Hi-Z
8 x 150 W
70V Hi-Z
8 x 150 W
Input Gain/Sensitivity Switch
0.775 V / 1 V
Slew Rate
>50 V / us
Output RMS Voltage (V)
34.7 V
THD+N
Typical : 0.05% (10% Rated Power, 8 Ω)
Crosstalk
≥70 dB (20 Hz-1 kHz, Below Rated Power)
Amplifier Frequency Response
Lo-Z Typical: ±0.5 dB (10% Rated Power, 20 Hz-20 kHz)Hi-Z Typical: ±0.5 dB (10% Rated Power, 40 Hz-16 kHz)
Amplifier Input Impedance
20 kΩ (Balanced), 10 kΩ (Unbalanced)
Damping Factor
Typical: 300 (20 Hz-200 Hz, Lo-Z, 8 Ω)
SNR
≥100 dB (A weighted, 20 Hz-20 kHz, 8 Ω)
Protection
Under voltage, DC, Over temperature, Limiter, Overload, Short.
Main Power
100-240 V AC. ±10%, 50/60 Hz
Included Accessory
User Manual, 4 x rubber feet, 10 x 6P Plug-in connector, pitch:3.81 mm, 4 x 4P Plug-in connector, pitch: 7.62 mm, AC Power cord
Unpacked - Height (mm)
45
Unpacked - Width Front (mm)
483
Unpacked - Width Rear (mm)
483
Unpacked - Depth (mm)
340
Packed - Height (mm)
125
Packed - Width Front (mm)
510
Packed - Width Rear (mm)
510
Packed - Depth (mm)
565
Weight - Nett (kg)
6
Weight - Gross (kg)
7.7
