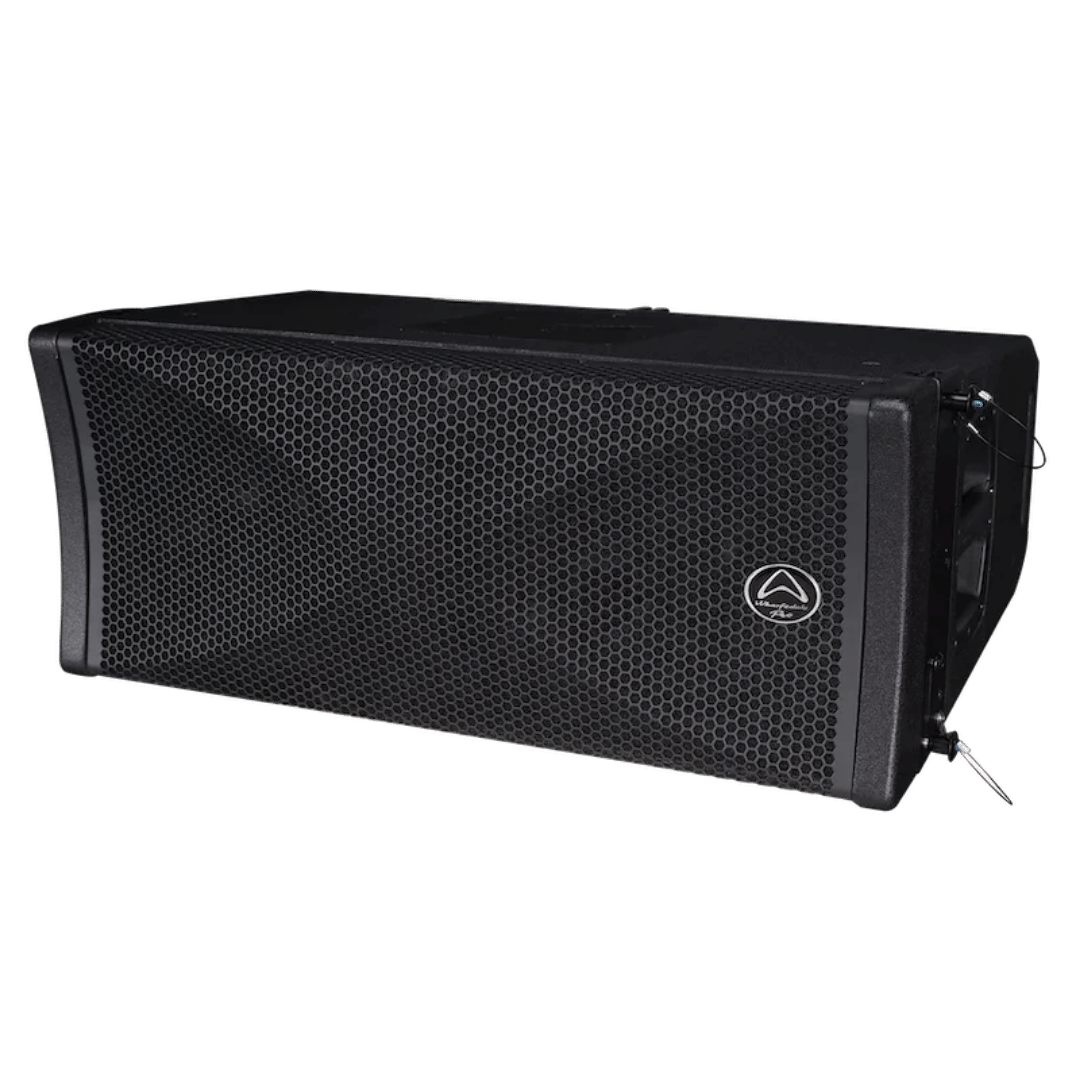

WLA-210X Wharfedale Pro

Dual 10″ practicality

  • 2 x 10″ LF drivers
  • 3″ Neodymium HF compression driver
  • 138 dB Max SPL
  • 15mm / 18mm Birch plywood construction
  • Integral, side plate adjustable rigging system
  • 100° x 10° dispersion
  • 180 watts programme HF
  • 1600 watts programme LF
  • 16 Ω impedance
SKU: WLA-210X Categories: , , Tag: Brand:

Description

Product description

WLA-210X is a dual 10″ line array element from our WLA-210X System, designed for touring and fixed installations that demand high output, precision, and flexibility.

Each enclosure features two custom Wharfedale Pro 10″ LF drivers and a 3″ titanium diaphragm neodymium compression driver, coupled to a 100° x 10° waveguide.

Built for versatility, WLA-210X offers both Passive and Bi-amp modes for system optimisation and versatility. When paired with external processing, such as our XC series management controllers, engineers gain precise control and tuning options.

Crafted from 15 mm / 18 mm birch plywood with a durable Tough-Tone finish, WLA-210X includes integral aluminium side-plate rigging for easy flying or ground-stacking configurations. Delivering a maximum SPL of 138 dB @ 1 m, it’s a powerful, efficient, and dependable line array solution for professional applications.

Specifications

Active or Passive
Passive
System Type
Array Element
Configuration
2-way
System Continuous Power
Passive: 800 W / Bi-amp LF: 800 W / Bi-amp HF: 90 W
System Programme Power
Passive: 1600 W / Bi-amp LF: 1600 W / Bi-amp HF: 180 W
System Peak Power
Passive: 3200 W / Bi-amp LF: 3200 W / Bi-amp HF: 360 W
Max SPL @ 1m
138 dB
Freq Response (+/-3 dB)
65 Hz – 20 KHz
Freq Range (-10 dB)
60 Hz – 20 KHz
Bi-amp Mode Switch
Yes
Bluetooth
No
IP Certification
None
Driver Brand
Wharfedale Pro
LF Driver Size
2 x 10"
LF Magnet Material
Ferrite
LF Frame Material
Aluminium
LF Voice Coil Size
2.5”
LF Rated Impedance
2 x 8 Ω
LF Power (RE:AES2-2012)
2 x 400 W
HF Driver Type
Compression Driver – Neo
HF Voice Coil Size
3”
HF Diaphragm Material
Titanium
HF Exit Size
1.4”
HF Power (RE:AES2-2012)
80 W
HF Rated Impedance
8 Ω
Preset Library
Yes
Input Connector
2 x 4 Pole speaker connector
Waveguide Type
Coherent Array Shaping Technology (CAST)
Enclosure Material
Birch Plywood
Grille Material and Finish
Steel Black
Finish
Black Tough-Tone
Handles
2
Deployment
Ground, Flying
Pole Mount
None
Rigging
Yes
Nominal Coverage (H x V)
100° x System dependant
Sensitivity 2.83 V / 1 m
102 dB
System Rated Impedance
16 Ω
Crossover Frequency
1.5 KHz
Recommended HPF = BW 18 dB/OCT.
60 Hz
Included Accessory
User Manual
Unpacked - Front Height (mm)
314
Unpacked - Rear Height (mm)
240.2
Unpacked - Width Front (mm)
760
Unpacked - Width Rear (mm)
760
Unpacked - Depth (mm)
504
Packed - Height (mm)
840
Packed - Width Front (mm)
395
Packed - Width Rear (mm)
395
Packed - Depth (mm)
585
Weight - Nett (kg)
34.7
Weight - Gross (kg)
38.1
