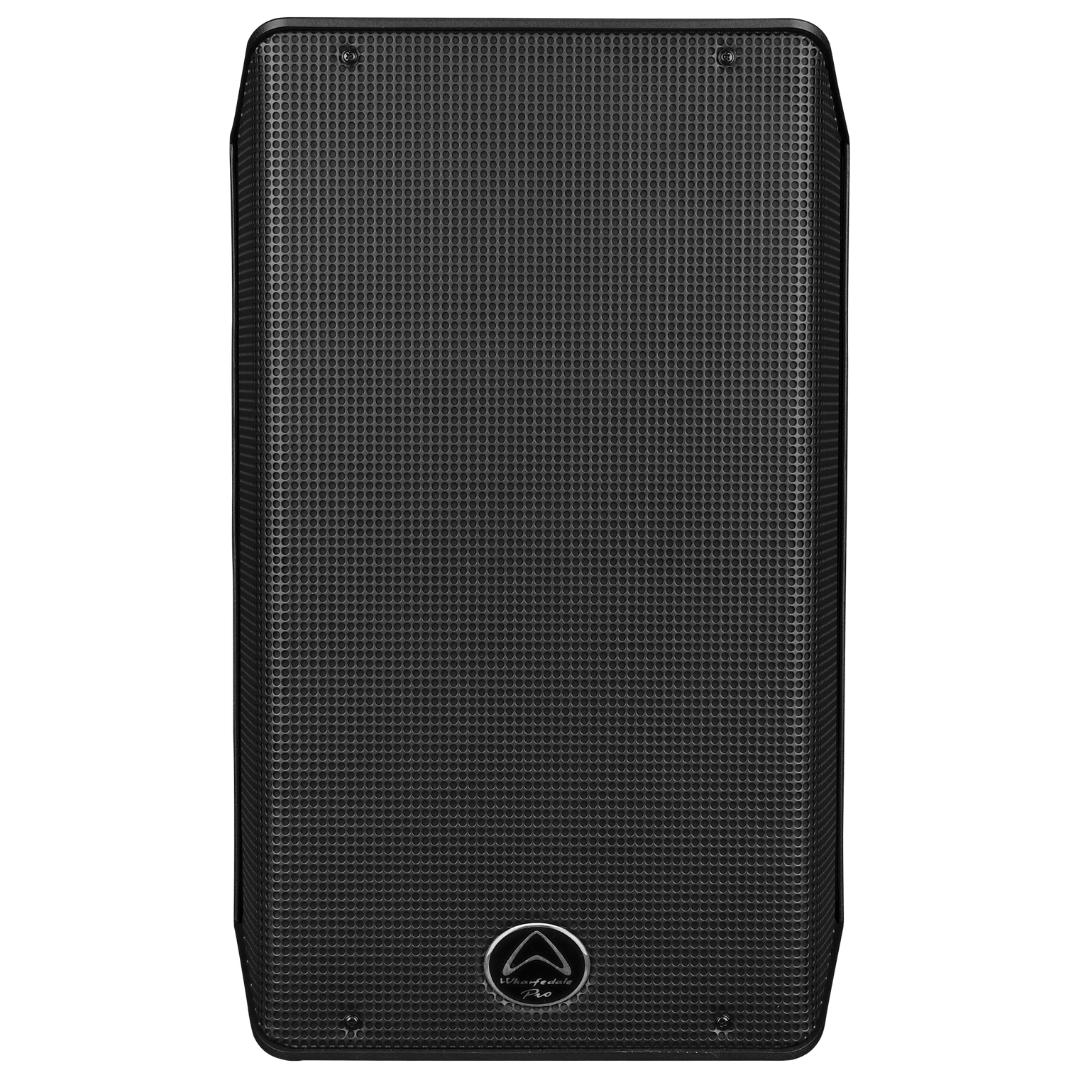

TYPHON-AXF12 Wharfedale Pro

Typhon-AXF12

  • 12″ Bi-amplified active loudspeaker
  • 1.75″ HF compression driver
  • 720 w Continuous
  • 1440 w Peak
  • 129 dB Max SPL @ 1 meter
  • 2.5″ LF voice coil
SKU: TYPHON-AXF12 Categories: , , Tag: Brand:

Description

Product description

12″ Active loudspeaker – with FIR

TYPHON-AXF12 is a 12″ bi-amplified active loudspeaker from our TYPHON-AXF Series — an evolution of the original TYPHON range, upgraded with FIR filtering and refined crossover design for superior sonic performance.

Delivering 720 W continuous and 1440 W peak power with a maximum SPL of 129 dB at 1 m, it features a custom Wharfedale Pro 12″ LF driver with a 2.5″ voice coil and a 1.75″ HF compression driver. The enhanced DSP provides improved bass depth, tighter phase response and a smoother, more accurate frequency balance across the spectrum.

Encased in the same durable polypropylene cabinet as the Typhon-AX models, Typhon-AXF12 maintains IP54 certification, multiple rigging points and ergonomic handles. With its Class D bi-amplified design and updated DSP engine, it delivers greater control, definition and power — built for professionals who demand precision. Pair it with a T-SUB-AX sub for a perfectly matched low-frequency extension.

Typhon-AXF12-BT

12″ Active loudspeaker – with FIR and Bluetooth

Specifications

Active or Passive
Active
System Type
Full-Range
Configuration
2-way
System Continuous Power
720 W
System Peak Power
1440 W
Max SPL @ 1m
129 dB
Freq Response (+/-3 dB)
55 Hz - 20 kHz
Freq Range (-10 dB)
50 Hz - 20 kHz
Bi-amp Mode Switch
No
Bluetooth
Yes
IP Certification
IP54
Driver Brand
Wharfedale Pro
LF Driver Size
12"
LF Voice Coil Size
2.5"
LF Rated Impedance
4 Ω
LF Power (RE:AES2-2012)
250 W
HF Driver Type
Compression Driver
HF Voice Coil Size
1.75"
HF Diaphragm Material
Titanium
HF Exit Size
1"
HF Power (RE:AES2-2012)
40 W
HF Rated Impedance
8 Ω
Preset Library
No
Input Connector
2 x XLR, 2 x 6.3mm Jack, BT
Waveguide Type
Hybrid Symmetry Horn
Enclosure Material
Polypropylene
Grille Material and Finish
Steel Black
Finish
Black Polypropylene
Handles
4
Deployment
Flying, Pole, Wall Mount, Ground

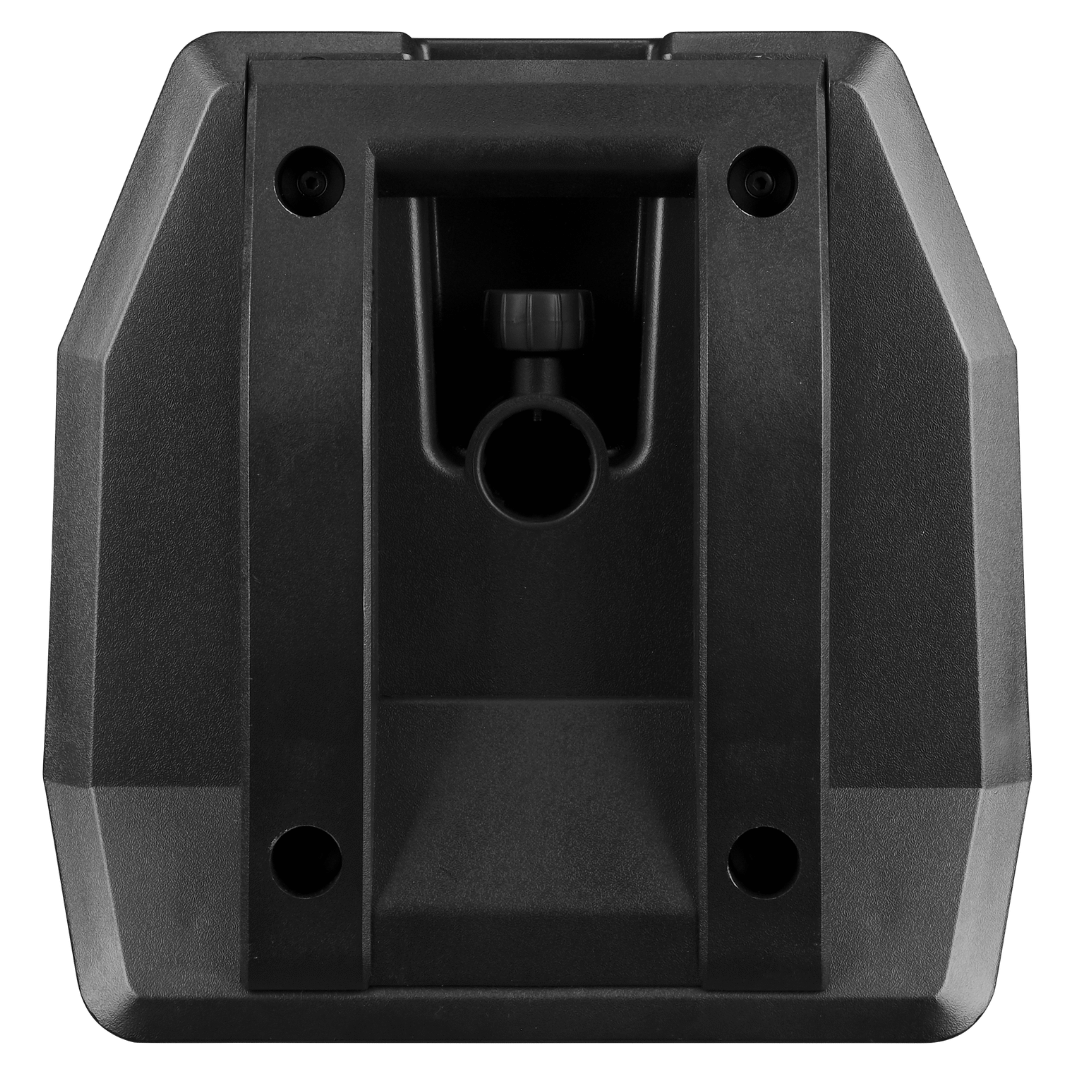

Pole Mount
35 mm With Lock Screw
Brackets Included
No
Rigging
Yes
M8
9
Nominal Coverage (H x V)
100° x 80°
Sensitivity 2.83 V / 1 m
98 dB
System Rated Impedance
n/a
Crossover Frequency
2.1 kHz
Amplifier design
Class D
DSP Controls
Flat / Monitor / Bass / Punch (with FIR)
Preset list
Flat / Monitor / Bass / Punch (with FIR)
Active loudspeaker Input Impedance
20 KΩ
Link Connector
pin XLR
Input sensitivity
775 mV (0 dBu)
Max input level
4 V
Line output
Pin XLR
Main Power
100-120 V~/200-240 V~,50/60 Hz
Power Supply
SMPS
Unpacked - Height (mm)
558
Unpacked - Width Front (mm)
344
Unpacked - Width Rear (mm)
245
Unpacked - Depth (mm)
340
Packed - Height (mm)
690
Packed - Width Front (mm)
445
Packed - Width Rear (mm)
445
Packed - Depth (mm)
450
Weight - Nett (kg)
16.48
Weight - Gross (kg)
19.38
