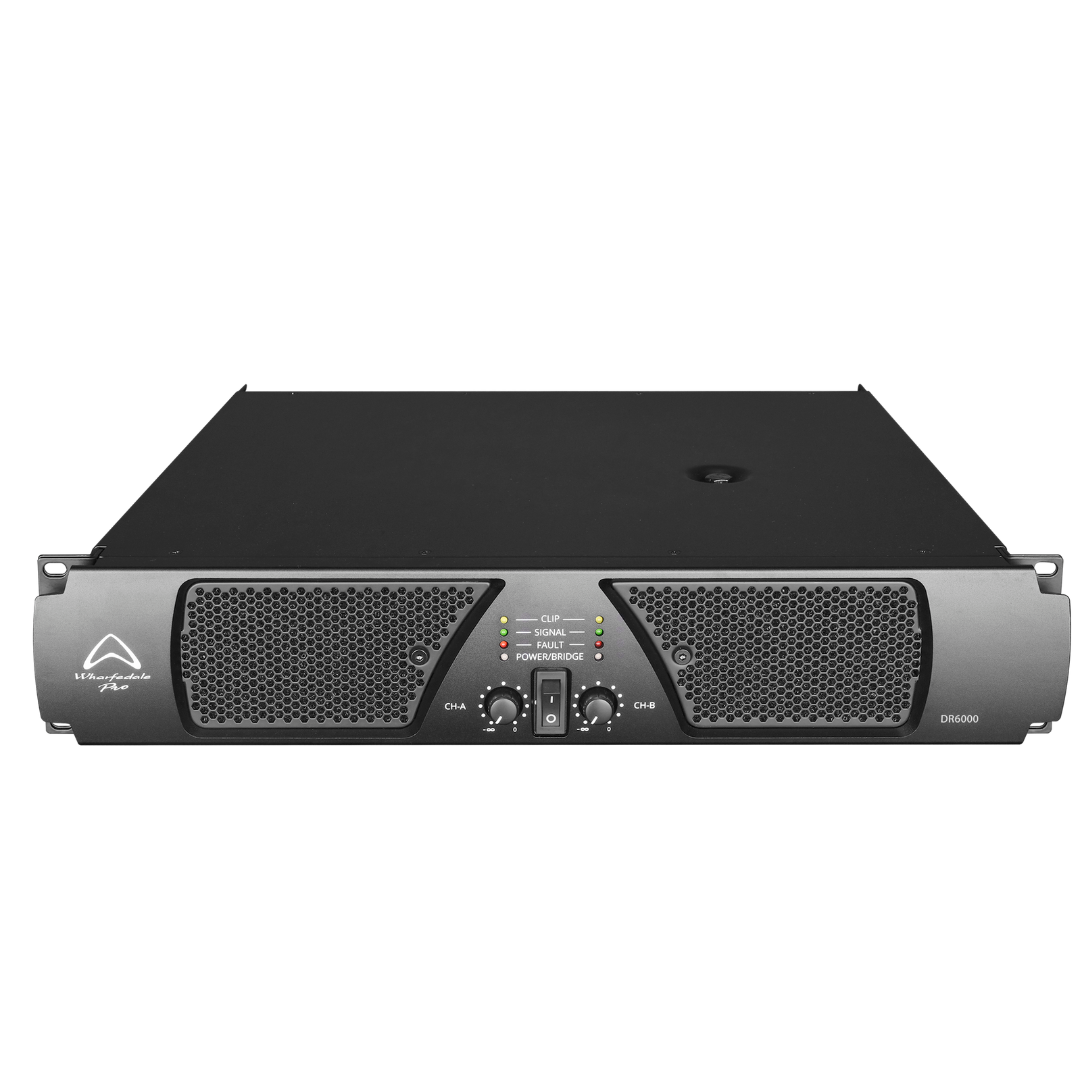

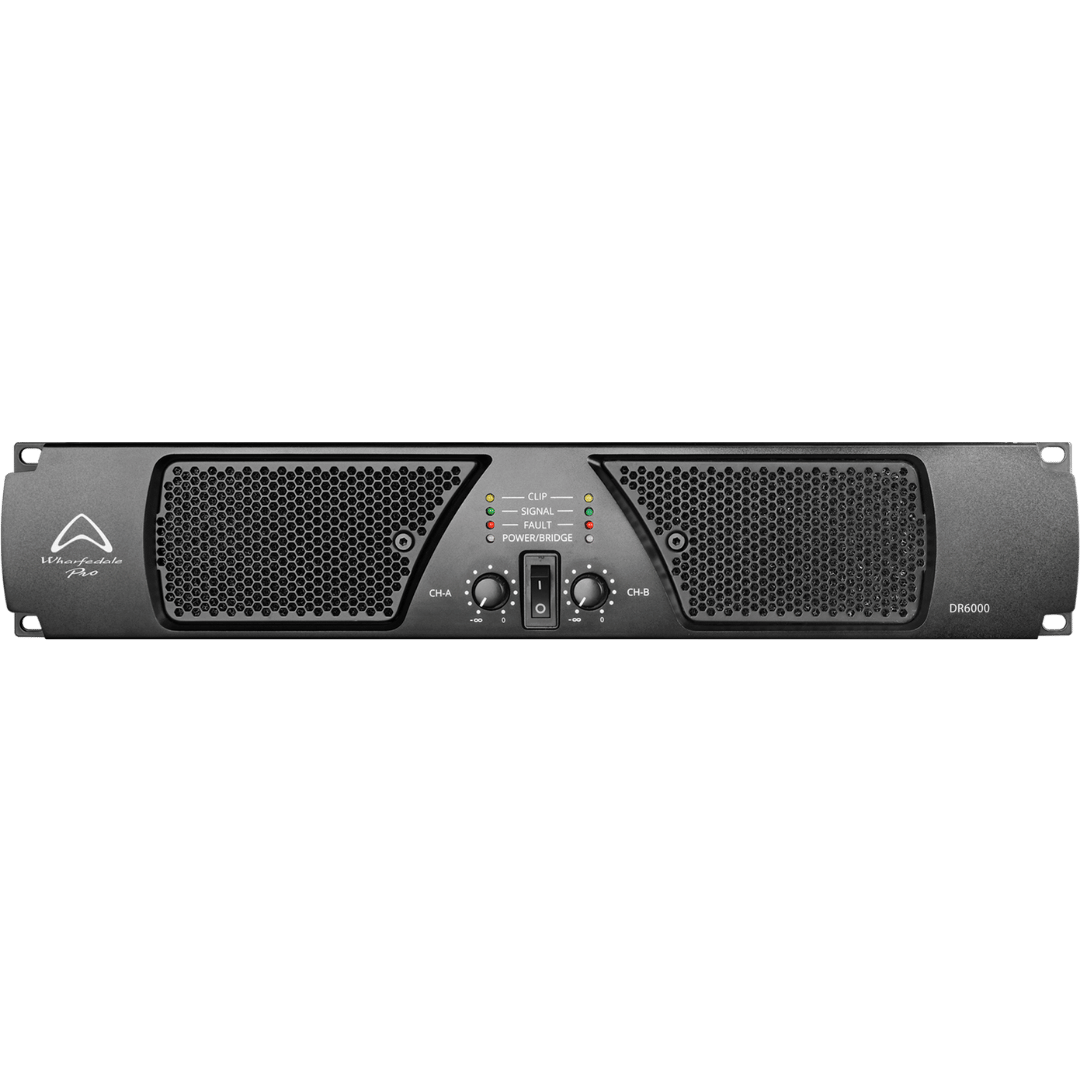

DR6000 Wharfedale Pro

Pushing power, price and performance

  • 2 channels
  • 8 Ohm 2 x 1850 Watts
  • 4 Ohm 2 x 3150 Watts
  • 8 Ohm Bridged 1 x 4700 Watts
  • Class D

Description

Product description

DR6000 is the highest-powered 2-channel Class D amplifier in our DR Series, engineered for large-scale live sound and high-demand installation environments requiring extreme output and uncompromising reliability.

Delivering 1850 W per channel at 8 Ω and a massive 3150 W per channel at 4 Ω, DR6000 provides exceptional power headroom for driving high-performance full-range systems or subwoofer stacks. In bridged mode, it delivers an impressive 4700 W at 8 Ω, making it ideal for large venue and touring setups.

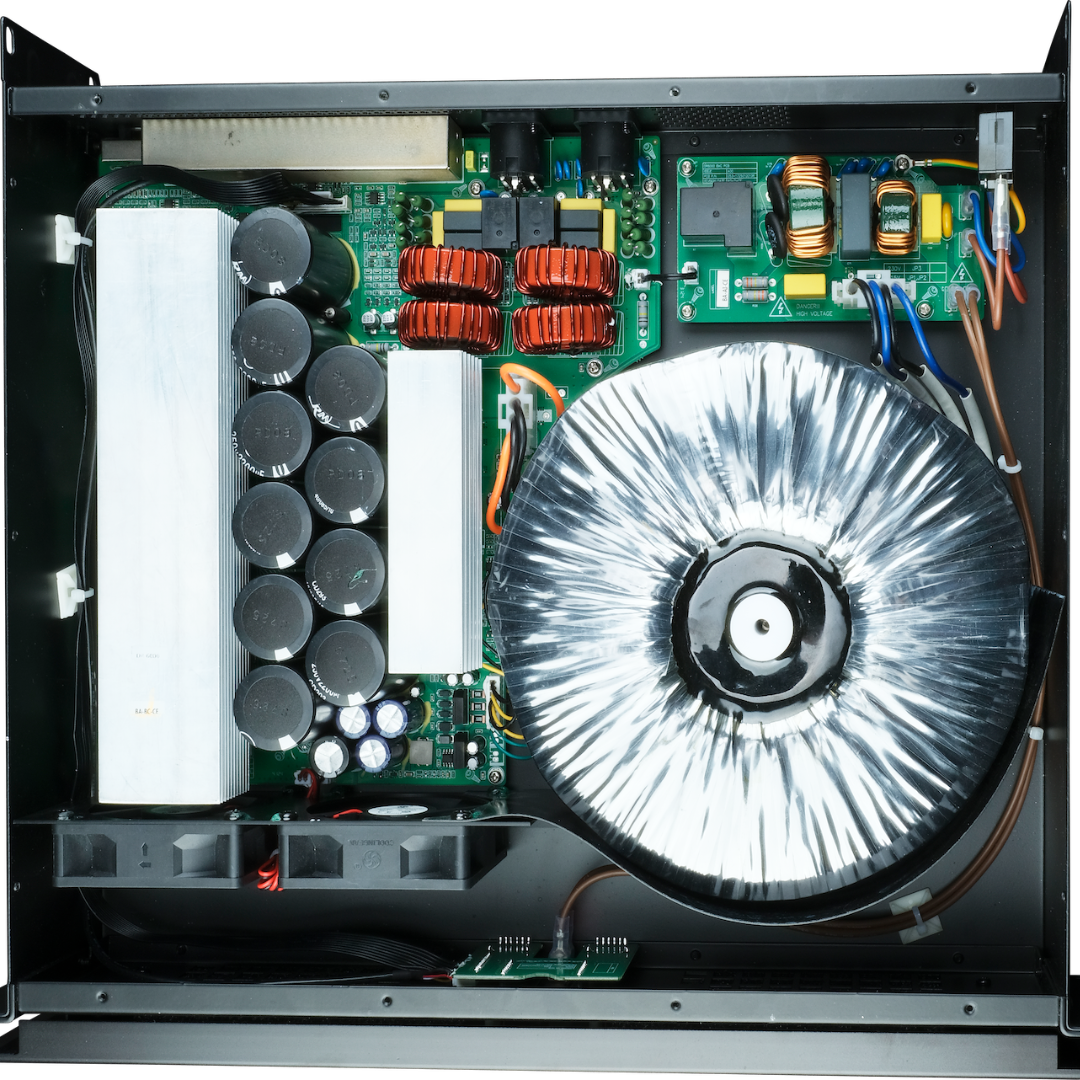

Built around a heavy-duty toroidal transformer, DR6000 offers rapid burst capability for enhanced dynamics and tighter low-end response. Selectable input sensitivity (0.775 V, 1 V, or 35 dB) ensures seamless compatibility across a wide variety of system configurations. With a 20 Hz – 20 kHz frequency response and THD below 0.05%, it delivers clean, consistent performance at all power levels.

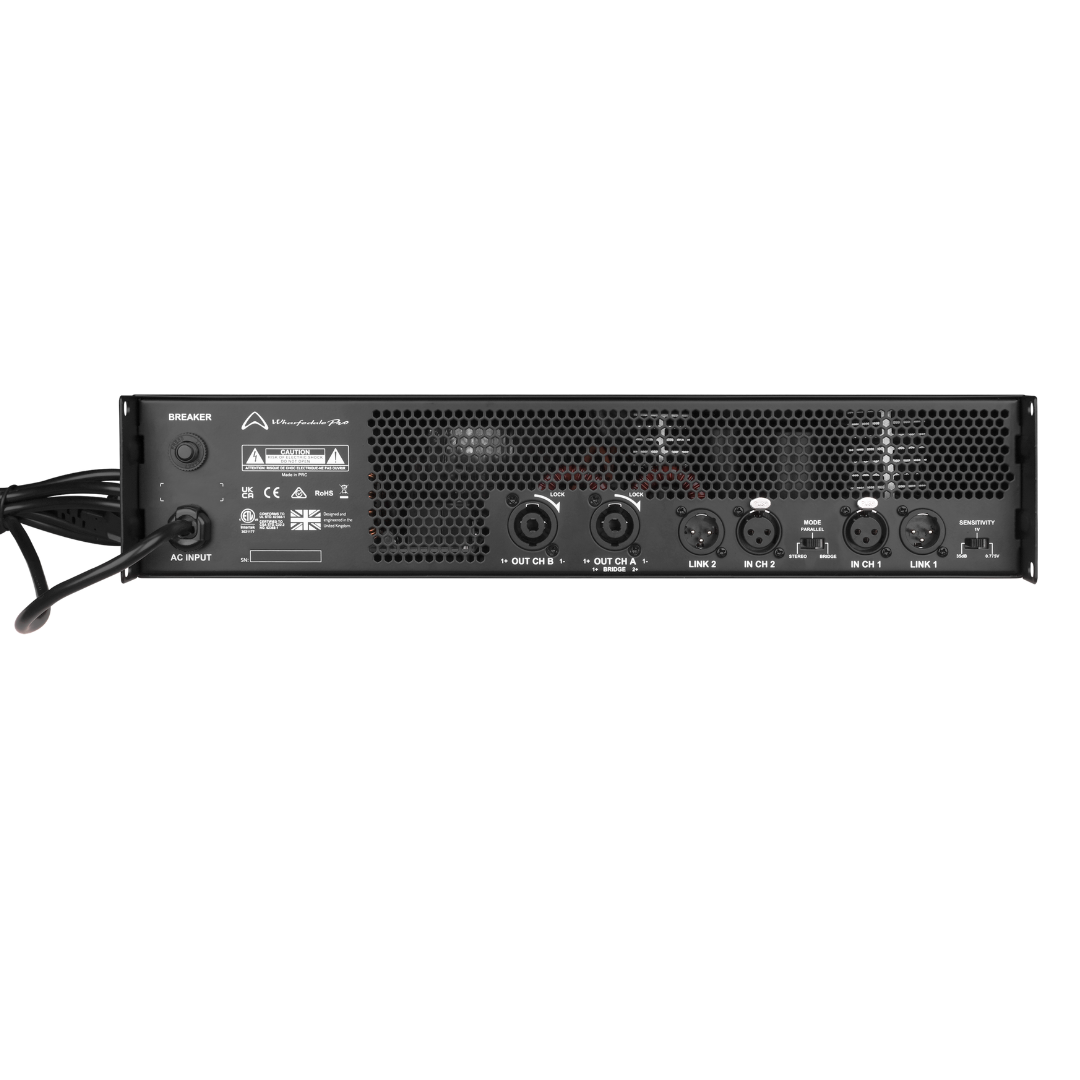

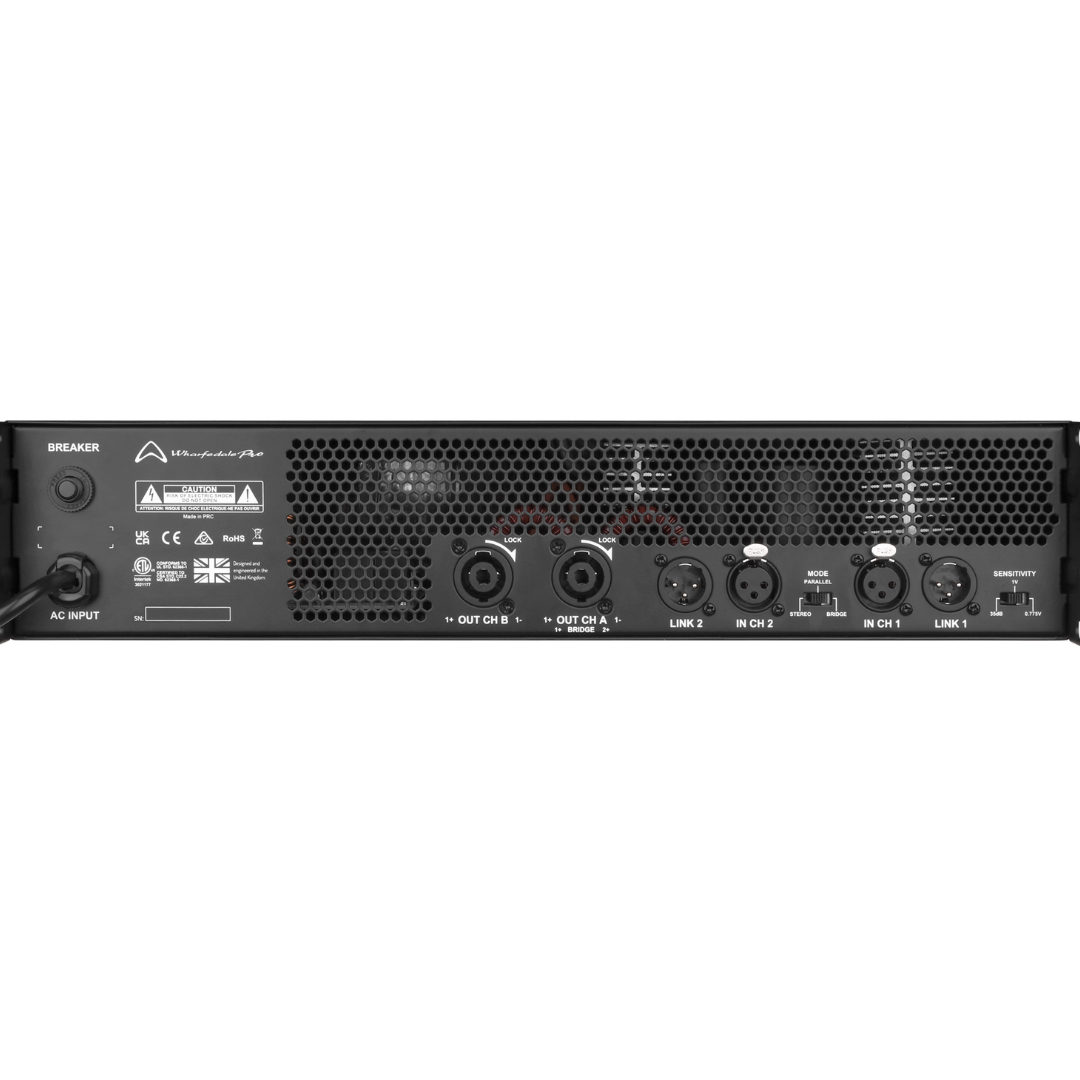

XLR inputs with link outputs and speakON™ connectors provide secure professional interfacing, while advanced cooling and full protection circuitry safeguard against overheating, short circuits, and DC faults.

DR6000 delivers extreme power, dynamic performance and long-term durability — a powerhouse amplifier built for serious professional audio systems.

Specifications

Amp Channels
2
Topology
Class D
8Ω
2 x 1850 W
4Ω
2 x 3150 W
8Ω Bridged
1 x 4700 W
Input Connectors
2 x XLR Socket
Output Connectors
2 x 4 Pole Speaker Connector
Link Connectors
2 x XLR Pin
Mode Switch
Parallel / Stereo / Bridge Mode
DSP Features
None
Input Gain/Sensitivity Switch
0.775 V / 1 V / 35 dB
Slew Rate
>50 V / us
Output RMS Voltage (V)
109.6 V
THD+N
< 0.05%, 20 Hz - 20 kHz
Crosstalk
-75 dB (1 kHz), -60 dB (10 kHz)
Amplifier Frequency Response
20 Hz - 20 kHz, +0/-0.75 dB
Amplifier Input Impedance
20 kΩ, 10 kΩ
Damping Factor
> 300
SNR
> 108
Protection
Protection circuit against short circuit, no load, on/off noise, radio interference
Main Power
100-120 V AC or 200-240 V AC ~ 50/60 Hz
Included Accessory
User Manual
Unpacked - Height (mm)
89
Unpacked - Width Front (mm)
482
Unpacked - Width Rear (mm)
482
Unpacked - Depth (mm)
410
Packed - Height (mm)
185
Packed - Width Front (mm)
535
Packed - Width Rear (mm)
535
Packed - Depth (mm)
575
Weight - Nett (kg)
19.5
Weight - Gross (kg)
21.8
