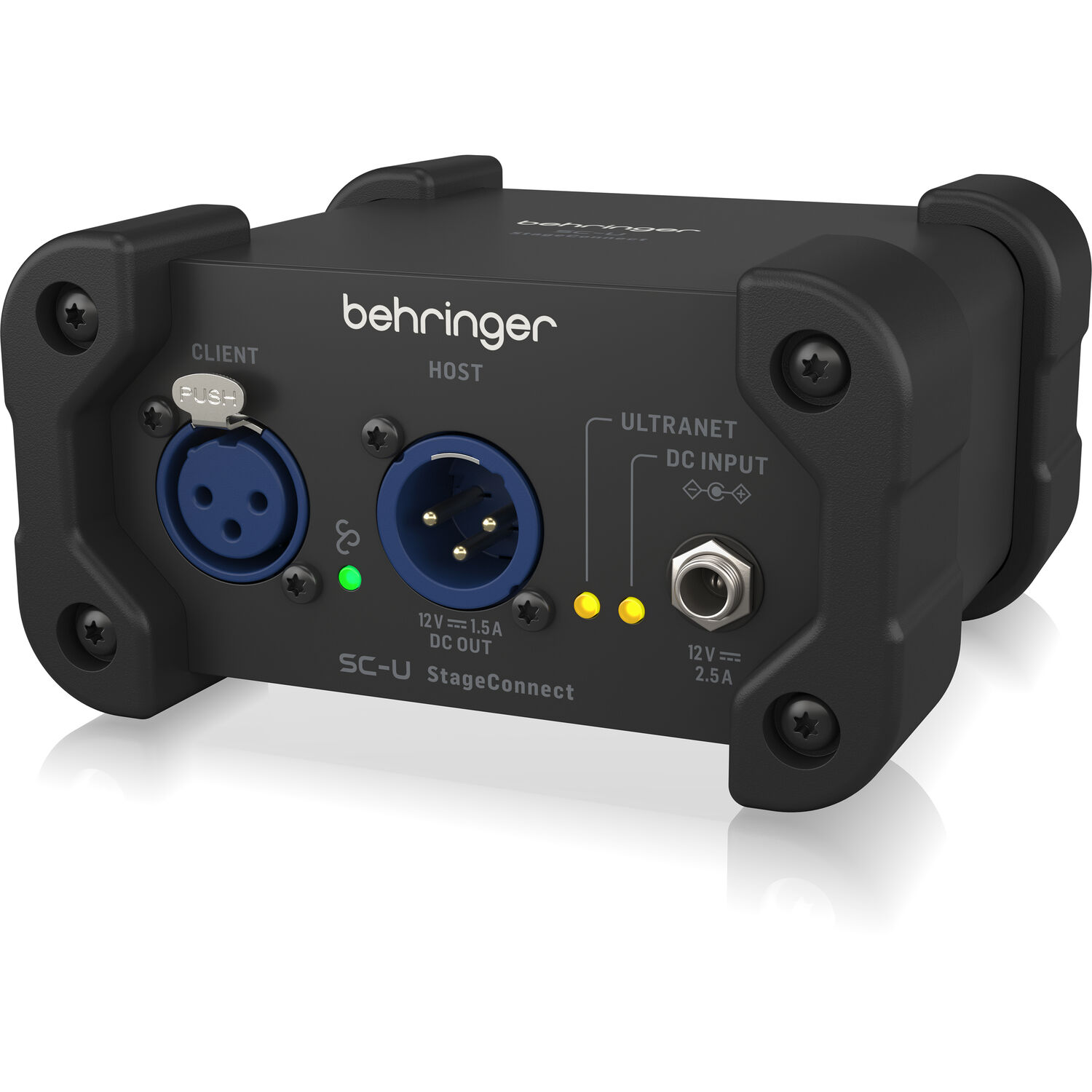

SC-U Behringer

RM775.00

StageConnect Interface Bridge to 32-Channel USB In/Out and Behringer Ultranet In/Out

3-way bridge between StageConnect systems, multi-channel USB audio and Ultranet systems, such as the Behringer P16 products
Compact and sturdy enclosure the size of a DI box
Communication between systems with different word clocks/sample rates via asynchronous 32-channel sample rate conversion (0.4 ms latency, 140 dB dynamic range)
StageConnect 32-channel bidirectional audio transmission with sub-millisecond latency at 44.1/48 kHz and 24 bits over standard 3-pin XLR DMX or mic cable
MIDI data transmission from USB host computer to StageConnect bus
Host connector for multi-channel audio connections with other with other StageConnect devices
Client connector for daisy-chaining multiple devices
External DC power supply included

SKU: SC-U Category: Professional Sound Tag: Behringer Brand: Behringer

Description

Product description

Modern stages run on multiple protocols. The Behringer SC-U bridges three of the most important — StageConnect, multi-channel USB audio, and Ultranet personal-monitoring — all in a sturdy enclosure the size of a DI box. One small unit. Three interoperable worlds.

General

Compatibility

Not Specified by Manufacturer

Inputs/Outputs

USB I/O

1 x USB-C Female Input/Output

Audio I/O

1x XLR 3-Pin Input1x XLR 3-Pin Output

Mobile App Compatible

Power

Power Source

AC Adapter with Power Brick (Included)

DC Input Power

12 VDC at 2.5 A

Power Consumption

2 W

Physical

Color

Black

Operating Conditions

41 to 113°F / 5 to 45°C

Dimensions

4.6 x 4.4 x 2.5" / 118 x 112 x 63 mm

Weight

1.57 lb / 0.71 kg

Package Weight

1.63 lb

Box Dimensions (LxWxH)

9.05 x 6.3 x 4"

Specification Notes

Line 01

General

Line 02

Inputs/Outputs

Line 03

Wireless

Line 04

Power

Line 05

Physical

Line 06

Packaging Info
