S32 Behringer

RM3,180.00

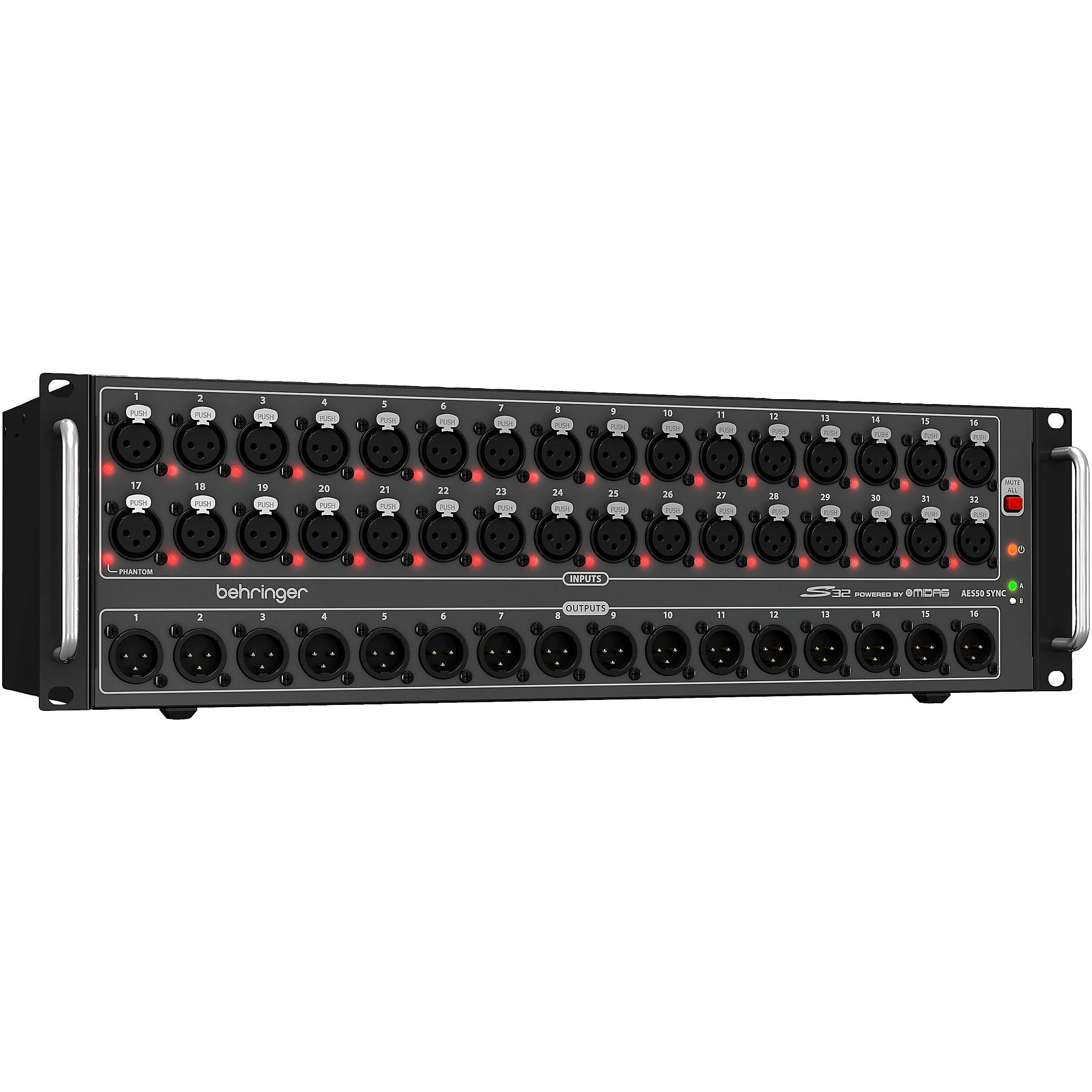

I/O Box with 32 Remote-Controllable Midas Preamps, 16 Outputs and AES50 Networking featuring Klark Teknik SuperMAC Technology

32 Midas-designed, fully programmable mic preamps for audiophile sound quality
16 analog, servo-balanced XLR outputs

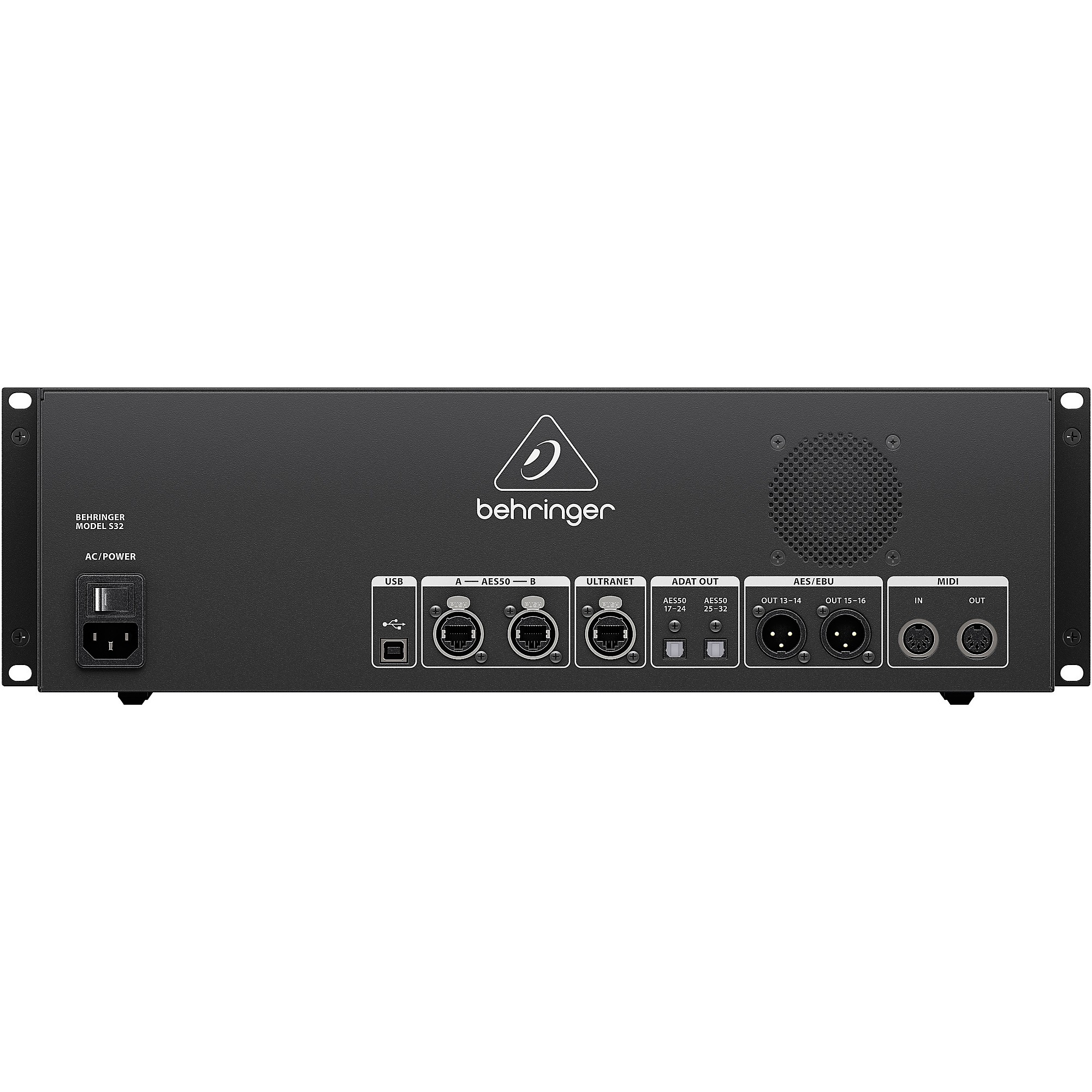

AES50 network ports featuring Klark Teknik’s SuperMAC networking capability for ultra-low jitter and latency
ULTRANET Connectivity for Behringer’s P16 personal monitoring system for in-ear applications
Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability
Automatic AES50 stage-split mode when connected between Behringer X32 Series FOH and monitor consoles
Dual AES50 ports for cascading additional S16, SD16 or SD8 stage boxes-no merger or router required
2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs
Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK connectors
Mute All function for quietly patching any inputs on stage
MIDI In/Out for bi-directional communication between Behringer X32 Series console and on-stage MIDI devices
Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
USB connector for system updates via PC
Planet Earth switching power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
Built like a tank yet compact, all-steel 3U rack-mount chassis

SKU: S32 Category: Professional Sound Tag: Behringer Brand: Behringer

Description

Product description

Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The ultra-affordable S32 digital stage box bridges the gap between the onstage talent, Front of House (FOH) console and the rest of the world with its ultra-fast and rock-solid performance! The S32 provides 32 Midas-designed remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable. While Klark Teknik, the industry-leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible – our superb scale of production makes the S32 so very affordable.

General

Compatibility

Behringer X-Series

Performance

Frequency Range, at 48 kHz Sample Rate, (0 / -1 dB) 10 Hz to 22 kHzDynamic Range, Analog Mic In to Analog Out (Typical): 104 dBA/D Dynamic Range, Mic Preamp and Converter (Typical): 106 dBD/A Dynamic Range, Converter and Output: 106 dBCrosstalk Rejection at 1 kHz, Adjacent Channels 100 dBOutput Level, XLR, (Nominal / Maximum): +4 dBu / +21 dBuOutput Impedance, XLR, (Unbalanced / Balanced): 75 Ohms / 75 OhmsResidual Noise Level, XLR: -83 dBu (-85 dBu, A-Weighted)

Processor

A/D-D/A Conversion (Cirrus Logic A/D CS5368, D/A CS4385): 24-Bit at 44.1 / 48 kHz, 114 dB Dynamic RangeNetworked I/O Latency (Stagebox In > Console Processing > Stagebox Out): 1.1 ms

Inputs/Outputs

USB I/O

1 x USB-B Female Input

Audio I/O

32x XLR 3-Pin Line/Mic Input16x XLR 3-Pin Line Output

Microphone Input

Preamp Design: MidasInput Impedance XLR, (Unbalanced / Balanced): 5 Kilohms / 10 KilohmsNon Clip Maximum Input Level, XLR: +23 dBuTHD + Noise, 20 dB Gain, 0 dBu Out: < 0.008% (< 0.006% A-Weighted)Phantom power, Switchable per Input: 48 VEquivalent Input Noise Level, XLR (Input Shorted): -128 dBuCMRR, XLR, at 20 dB Gain (Typical): > 70 dB

Digital I/O

AES50 SuperMAC Networking at 48 or 44.1 kHz, 24-Bit PCM: 2 x 48 channels, BidirectionalAES50 SuperMAC Cable Length, Cat 5e Shielded: Up to 328.1' / 100 mULTRANET Networking at 48 or 44.1 kHz, 22-Bit PCM: 1 x 16 Channels, UnidirectionalULTRANET Cable Length, Cat 5 Shielded: Up to 246.1' / 75 mADAT Output at 48 or 44.1 kHz, 24-Bit PCM: 2 x 8 Channels, UnidirectionalToslink Optical, Cable Length: 16.4' / 5 m, TypicalAES/EBU output at 48 or 44.1 kHz, 24-Bit PCM: 2 x 2 Channels, UnidirectionalXLR, 110 Ohms Balanced, Cable Length: 16.4' / 5 m, Typical

Power

Power Source

AC Input (Included)

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Power Consumption

55 W

Physical

Color

Gray

Environmental Resistance

Dimensions

19 x 9.5 x 5.4" / 48.3 x 24.1 x 13.7 cm

Weight

12.4 lb / 5.6 kg

Package Weight

14.58 lb

Box Dimensions (LxWxH)

21.25 x 12.25 x 8.5"
