Reason-X15 Wharfedale Pro

RM4,250.00

3-way design with PE HF compression driver

  • 15″ 3-way passive loudspeaker
  • All new Z38 PE HF compression driver
  • 8.0″ mid range driver
  • 15″ LF driver with 3.0″ voice coil
  • 600 watts AES (RMS)
  • 1200 watts Programme
  • 2400 watts Peak
  • 133 dB Max SPL @ 1 meter
SKU: Reason-X15 Categories: , Tag: Brand:

Description

Product description

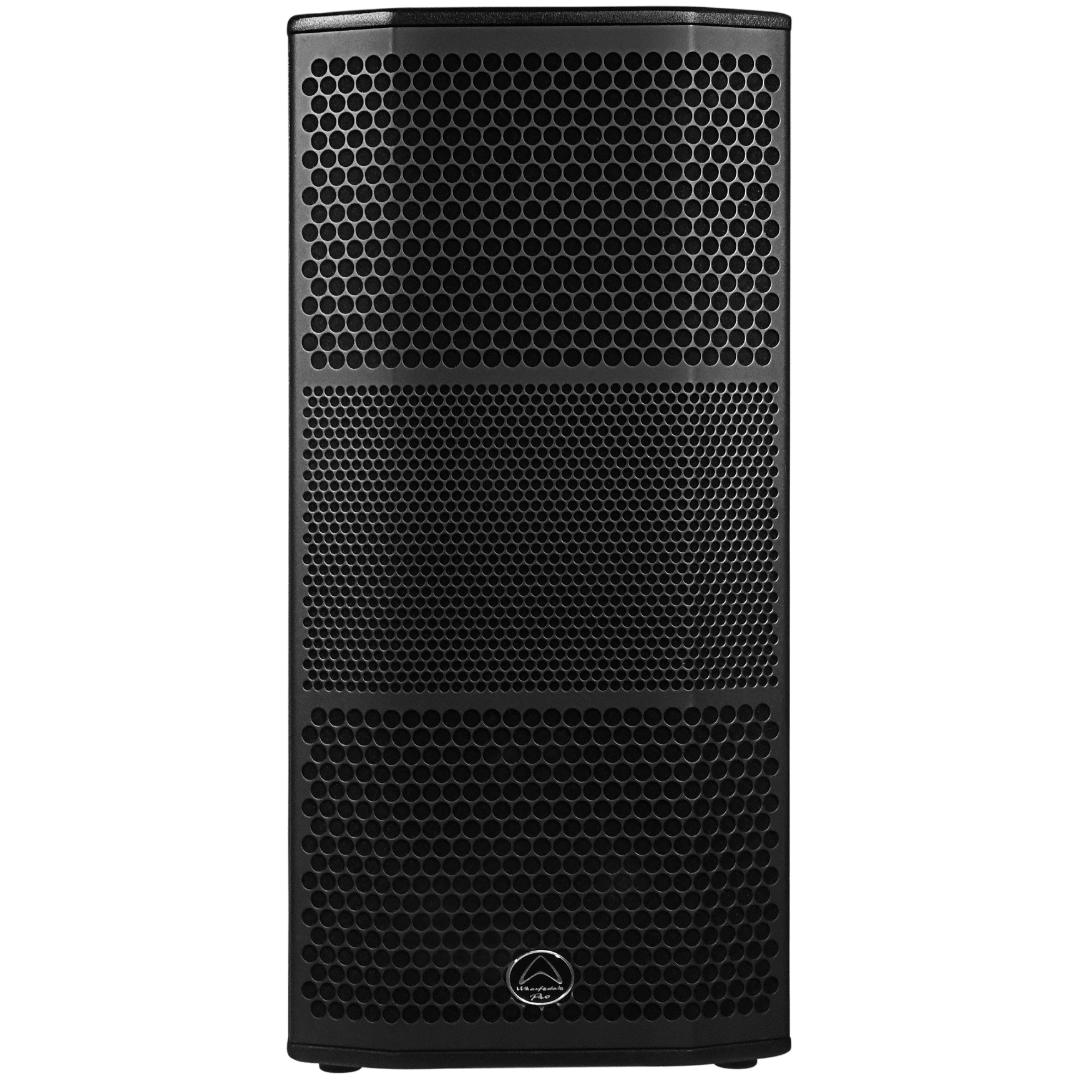

REASON-X15 is a 15″ three-way passive loudspeaker from our REASON-X Series, built to deliver outstanding detail, power, and projection for professional touring and installation environments.

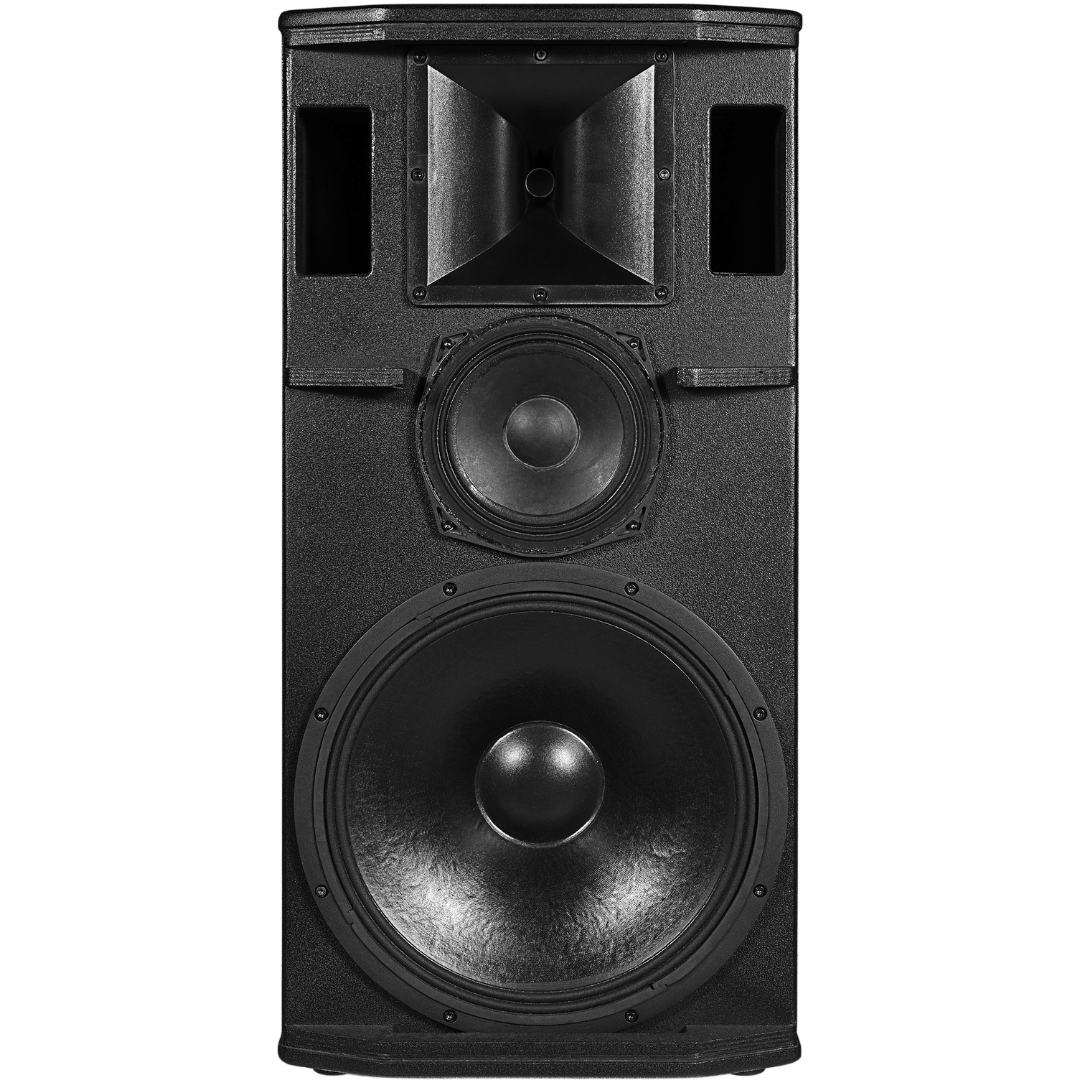

At the heart of REASON-X15 is the Z38 polyethylene HF compression driver, a flat-diaphragm neodymium design offering exceptional clarity and precision at high output levels. The 8″ midrange driver provides rich tonal warmth and smooth vocal articulation, while the 15″ LF driver — featuring a 3.0″ voice coil and 190 mm ferrite magnet — delivers powerful, defined low-end response with ease.

A rotatable 100° × 70° waveguide ensures flexible setup options, allowing seamless adaptation between horizontal or vertical use. Constructed from premium birch plywood with a heavy-duty steel grille, REASON-X15 is built for strength, reliability, and acoustic integrity.

Handling 600 W continuous (2400 W peak) power and producing up to 133 dB max SPL @ 1 m, REASON-X15 combines precision, depth, and dynamic control in every performance.

Specifications

Active or Passive
Passive
System Type
Full-Range
Configuration
3-way
System Continuous Power
600 W
System Programme Power
1200 W
System Peak Power
2400 W
Max SPL @ 1m
133 dB
Freq Response (+/-3 dB)
45 Hz - 20 kHz
Freq Range (-10 dB)
40 Hz - 20 kHz
Bi-amp Mode Switch
No
IP Certification
None
Driver Brand
Wharfedale Pro
LF Driver Size
15"
LF Voice Coil Size
3"
LF Rated Impedance
8 Ω
LF Power (RE:AES2-2012)
500 W
MF Driver Size
8"
MF Voice Coil Size
2"
MF Rated Impedance
8
MF Power (Re:AES2-2012)
100 W
HF Driver Type
Compression Driver
HF Voice Coil Size
1.5"
HF Diaphragm Material
PEN
HF Exit Size
1"
HF Power (RE:AES2-2012)
40 W
HF Rated Impedance
8 Ω
Preset Library
Yes
Input Connector
2 x 4 Pole Speaker Connector
Waveguide Type
Constant Directivity / Rotatable
Enclosure Material
Birch Plywood
Grille Material and Finish
Steel Black
Finish
Black Tough-Tone
Handles
2
Deployment
Flying, Ground
Pole Mount
None
Brackets Included
No
Rigging
Yes
M8
12
Nominal Coverage (H x V)
100° x 70°
Sensitivity 2.83 V / 1 m
99 dB
System Rated Impedance
8 Ω
Crossover Frequency
800 Hz / 2.7 kHz
Recommended HPF = BW 18 dB/OCT.
40 Hz
Transformer (T)
No
Included Accessory
Quick Start Guide
Unpacked - Height (mm)
883
Unpacked - Width Front (mm)
430
Unpacked - Width Rear (mm)
298
Unpacked - Depth (mm)
455
Packed - Height (mm)
966
Packed - Width Front (mm)
525
Packed - Width Rear (mm)
525
Packed - Depth (mm)
550
Weight - Nett (kg)
33
Weight - Gross (kg)
36.8
