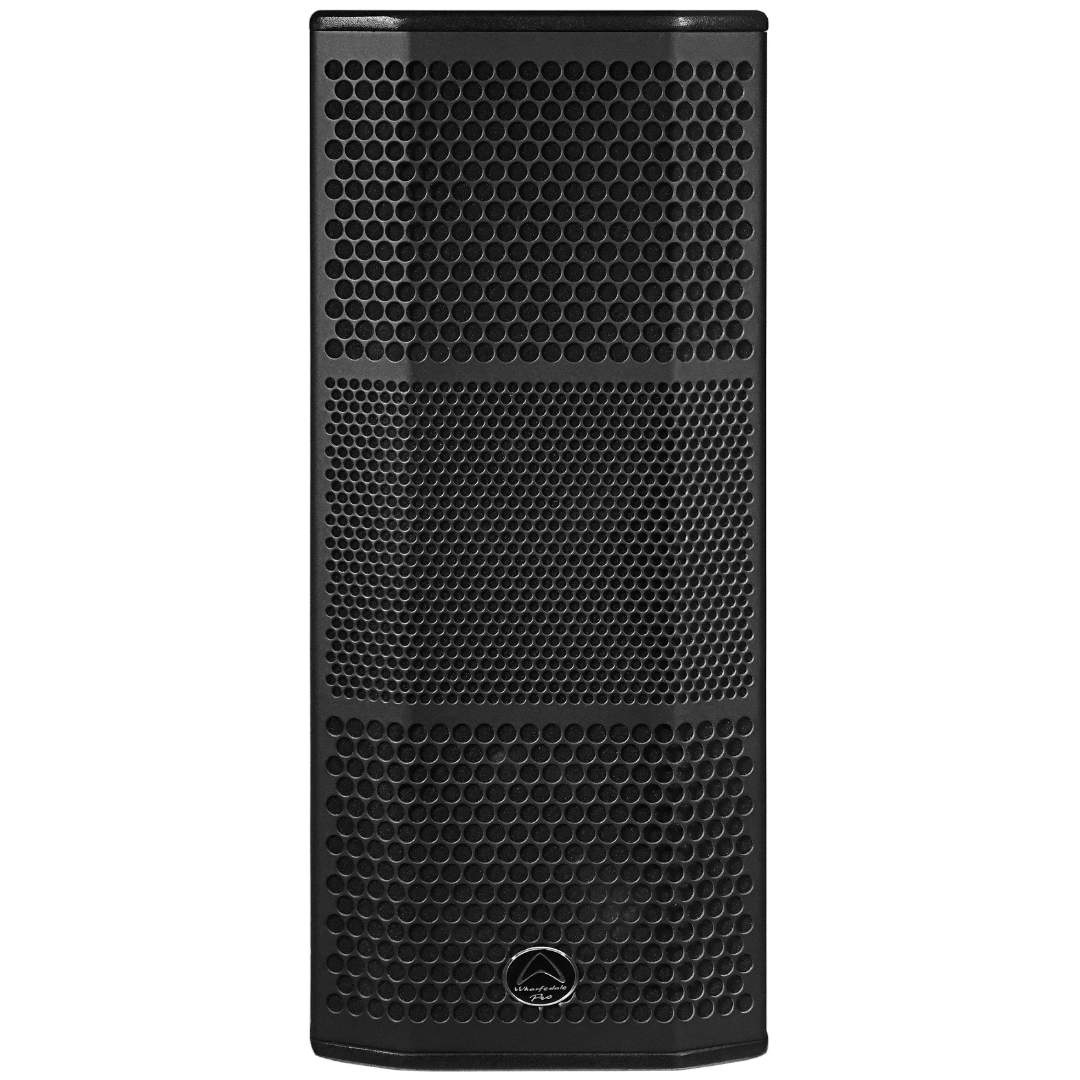

Reason-X12 Wharfedale Pro

RM3,900.00

3-way design with PE HF compression driver

  • 12″ 3-way passive loudspeaker
  • All new Z38 PE HF compression driver
  • 8.0″ mid range driver
  • 12″ LF driver with 3.0″ voice coil
  • 500 watts AES (RMS)
  • 1000 watts Programme
  • 2000 watts Peak
  • 131 dB Max SPL @ 1 meter
SKU: Reason-X12 Categories: , Tag: Brand:

Description

Product description

REASON-X12 is a 12″ three-way passive loudspeaker from our REASON-X Series, engineered to deliver exceptional clarity, power, and definition at high volumes.

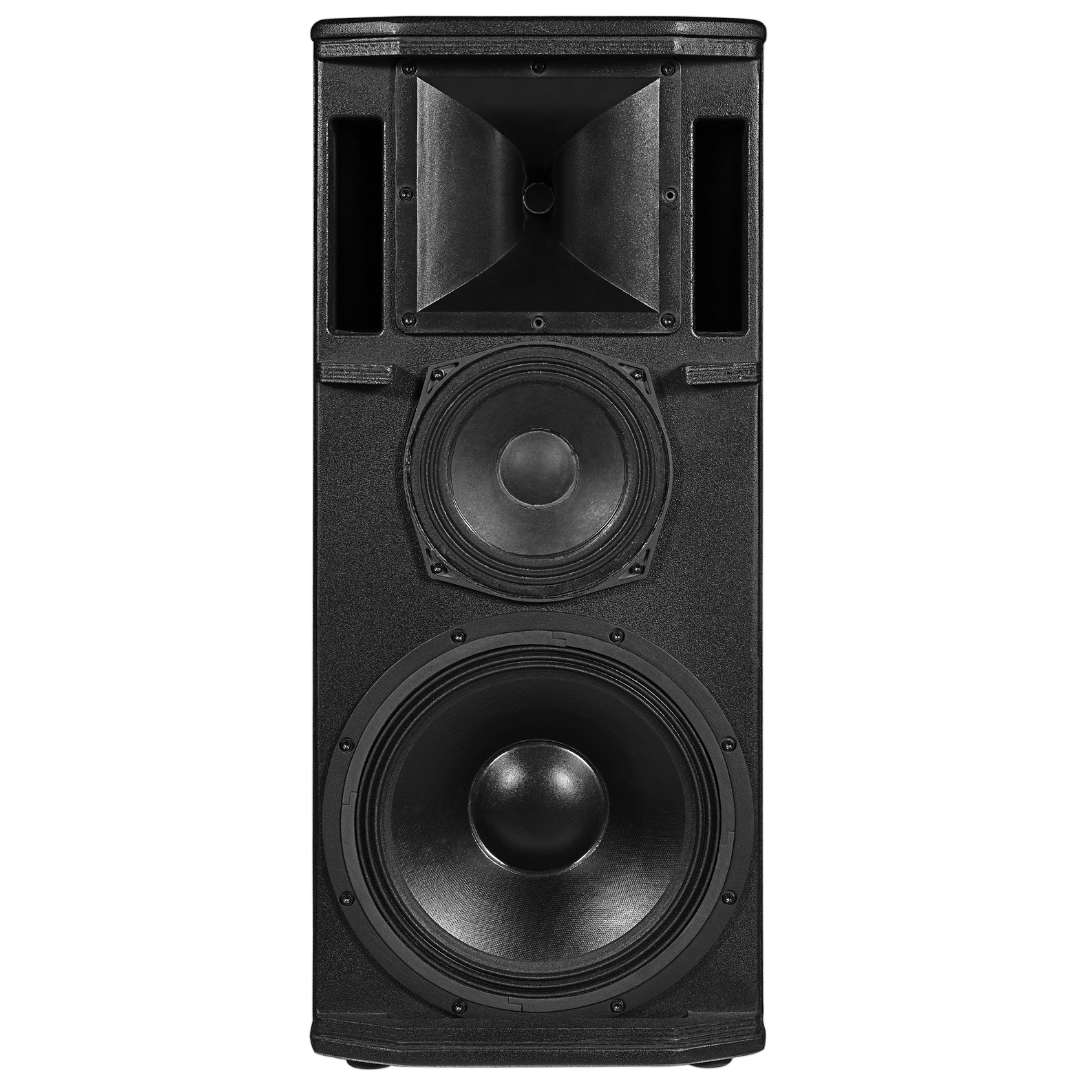

At its core lies the Z38 polyethylene HF compression driver, designed with a flat diaphragm and massive cooling fins for remarkable high-frequency detail. An 8″ midrange driver with an aluminium basket adds warmth and articulation, while the 12″ LF driver, featuring a 3.0″ voice coil and 190 mm ferrite magnet, delivers deep, controlled bass with authority.

A rotatable 100° × 70° waveguide allows flexible horizontal or vertical orientation, making REASON-X12 ideal for both touring and high-end installation use. Built from premium birch plywood with a thick steel grille, it’s as durable as it is refined.

Handling 500 W continuous (2000 W peak) power and reaching 131 dB max SPL @ 1 m, REASON-X12 delivers precise, full-range performance that simply needs to be heard to be believed.

Specifications

Active or Passive
Passive
System Type
Full-Range
Configuration
3-way
System Continuous Power
500 W
System Programme Power
1000 W
System Peak Power
2000 W
Max SPL @ 1m
131 dB
Freq Response (+/-3 dB)
55 Hz - 20 kHz
Freq Range (-10 dB)
50 Hz - 20 kHz
IP Certification
None
Driver Brand
Wharfedale Pro
LF Driver Size
12"
LF Voice Coil Size
3"
LF Rated Impedance
8 Ω
LF Power (RE:AES2-2012)
400 W
MF Driver Size
8"
MF Voice Coil Size
2"
MF Rated Impedance
8
MF Power (Re:AES2-2012)
100 W
HF Driver Type
Compression Driver
HF Voice Coil Size
1.5"
HF Diaphragm Material
PEN
HF Exit Size
1"
HF Power (RE:AES2-2012)
40 W
HF Rated Impedance
8 Ω
Preset Library
Yes

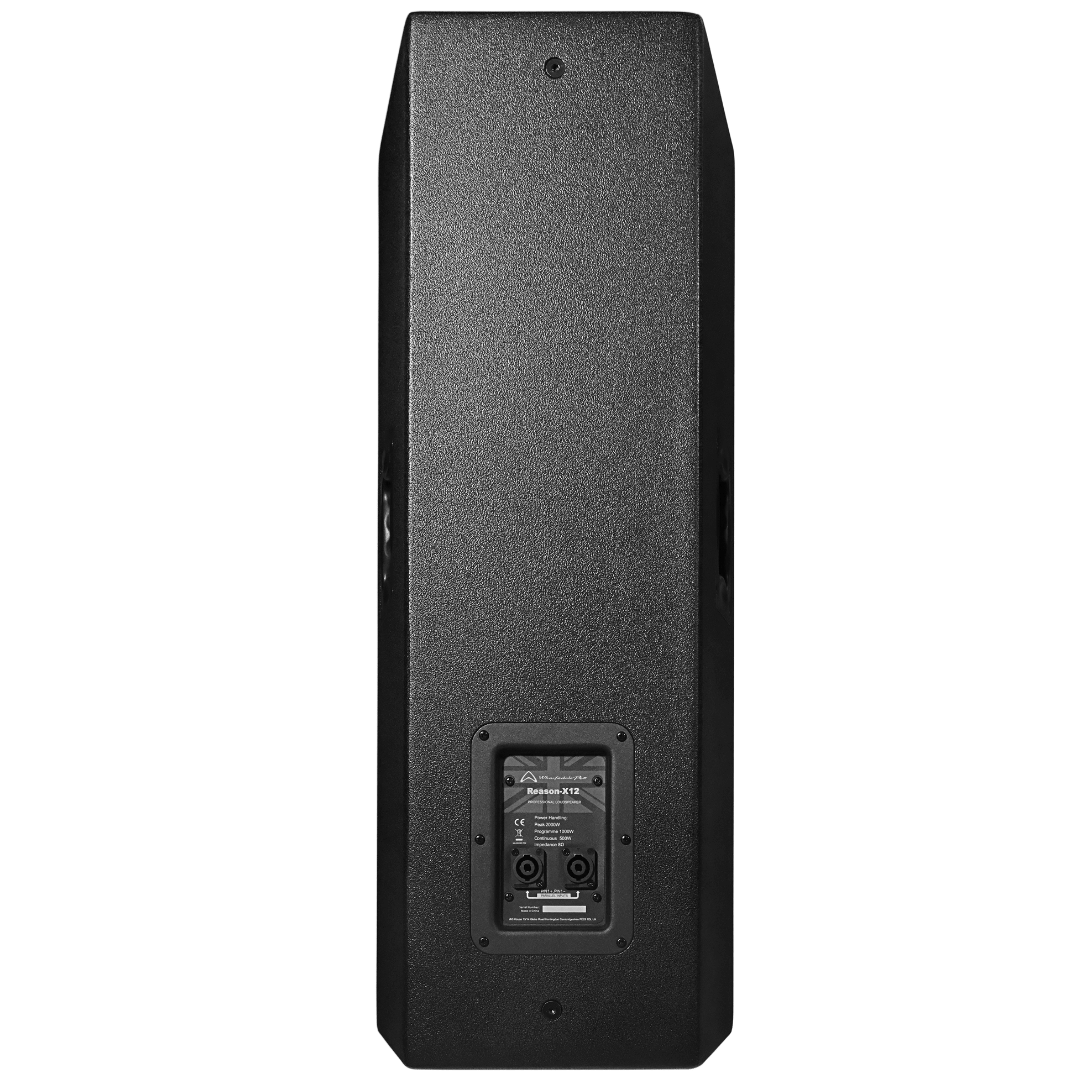

Input Connector
2 x 4 Pole Speaker Connector
Waveguide Type
Constant Directivity / Rotatable
Enclosure Material
Birch Plywood
Grille Material and Finish
Steel Black
Finish
Black Tough-Tone
Handles
2
Deployment
Flying, Ground, Pole
Pole Mount
35 mm
Brackets Included
No
Rigging
Yes
M8
12
Nominal Coverage (H x V)
100° x 70°
Sensitivity 2.83 V / 1 m
98 dB
System Rated Impedance
8 Ω
Crossover Frequency
800 Hz / 2.7 kHz
Recommended HPF = BW 18 dB/OCT.
50 Hz
Transformer (T)
No
Included Accessory
Quick Start Guide
Unpacked - Height (mm)
814
Unpacked - Width Front (mm)
350
Unpacked - Width Rear (mm)
231
Unpacked - Depth (mm)
410
Packed - Height (mm)
924
Packed - Width Front (mm)
445
Packed - Width Rear (mm)
445
Packed - Depth (mm)
505
Weight - Nett (kg)
29.3
Weight - Gross (kg)
32.3
