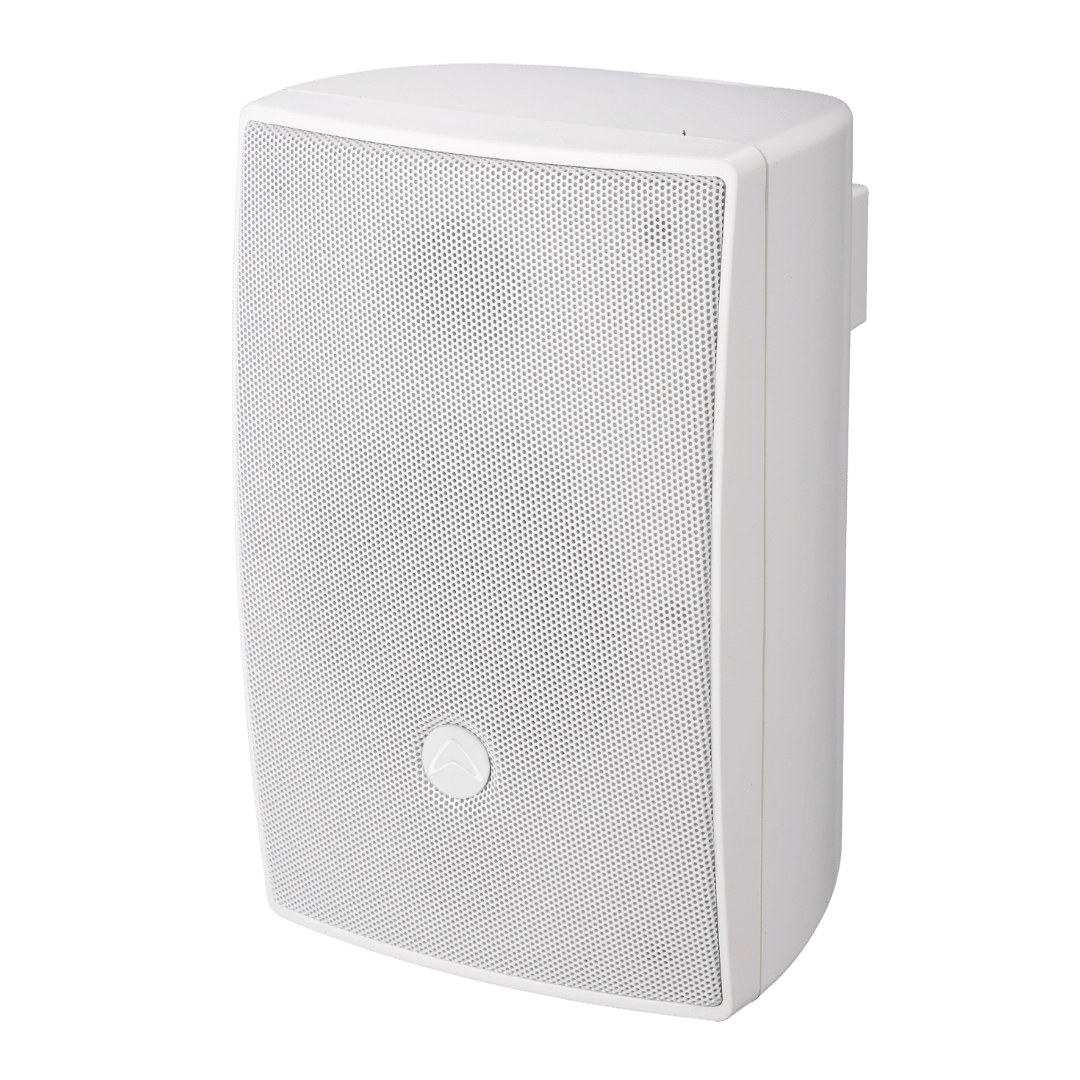

i6T Wharfedale Pro

RM1,870.00

IP54 Certified Installation Loudspeaker – with transformer

  • 6.5″ LF driver
  • 1.0″ HF dome tweeter
  • ABS plastic construction
  • Wall brackets included
  • 8 Ω or 70v/100v versions available
  • Available in black or white

Description

Product description

i6T is a 6.5″ installation loudspeaker from our i Series, designed for distributed audio systems that demand clarity, reliability, and simple installation in any environment.

Featuring a 6.5″ LF driver and 1.0″ HF dome tweeter, i6T delivers smooth, full-range sound ideal for restaurants, offices, retail spaces, and hospitality venues. Its IP54 certification ensures protection against dust and water spray, providing dependable performance indoors or in semi-outdoor areas.

Constructed from durable ABS plastic with a full frontal steel grille, i6T combines longevity with a clean, modern look. Each pair includes fully adjustable wall brackets with a semi-circular “ball and socket” design, allowing flexible angling and quick installation. A seismic restraint tether attachment point offers added security where required.

Finished in black or white, i6T integrates seamlessly into any venue. Designed for 70 V / 100 V distributed audio systems, it uses Phoenix connectors for secure, tool-free wiring, while transformer tap adjustments are easily accessible yet safely recessed to prevent accidental changes.

Specifications

Active or Passive
Passive
System Type
Full-Range
Configuration
2-way
System Continuous Power
50 W
Max SPL @ 1m
102 dB
Freq Response (+/-3 dB)
70 Hz - 20 kHz
Freq Range (-10 dB)
50 Hz - 20 kHz
Bi-amp Mode Switch
No
IP Certification
IP54
Driver Brand
Wharfedale Pro
LF Driver Size
6.5"
LF Voice Coil Size
1"
LF Rated Impedance
8 Ω
LF Power (RE:AES2-2012)
50 W
HF Driver Type
Soft Dome Tweeter
HF Voice Coil Size
1"
HF Diaphragm Material
Silk
HF Power (RE:AES2-2012)
10 W
HF Rated Impedance
8 Ω
Preset Library
Yes
Input Connector
Phoenix Terminal
Enclosure Material
ABS
Grille Material and Finish
Aluminium
Finish
Black or White
Handles
No
Deployment
Wall Mount
Pole Mount
None
Brackets Included
Yes
Rigging
No
Nominal Coverage (H x V)
150° x 170°
Sensitivity 2.83 V / 1 m
85 dB
System Rated Impedance
8 Ω
Crossover Frequency
2.2 kHz
Recommended HPF = BW 18 dB/OCT.
50 Hz
Transformer (T)
Yes
Transformer Taps (70 V)
12.5 / 25 / 50 W
Transformer Taps (100 V)
25 / 50 W
Input Connectors (T)
Screw Terminal
Included Accessory
Wall Bracket, User Manual
Unpacked - Height (mm)
370
Unpacked - Width Front (mm)
245
Unpacked - Width Rear (mm)
245
Unpacked - Depth (mm)
216
Packed - Height (mm)
500
Packed - Width Front (mm)
350
Packed - Width Rear (mm)
350
Packed - Depth (mm)
570
Weight - Nett (kg)
10.6
Weight - Gross (kg)
13.76
