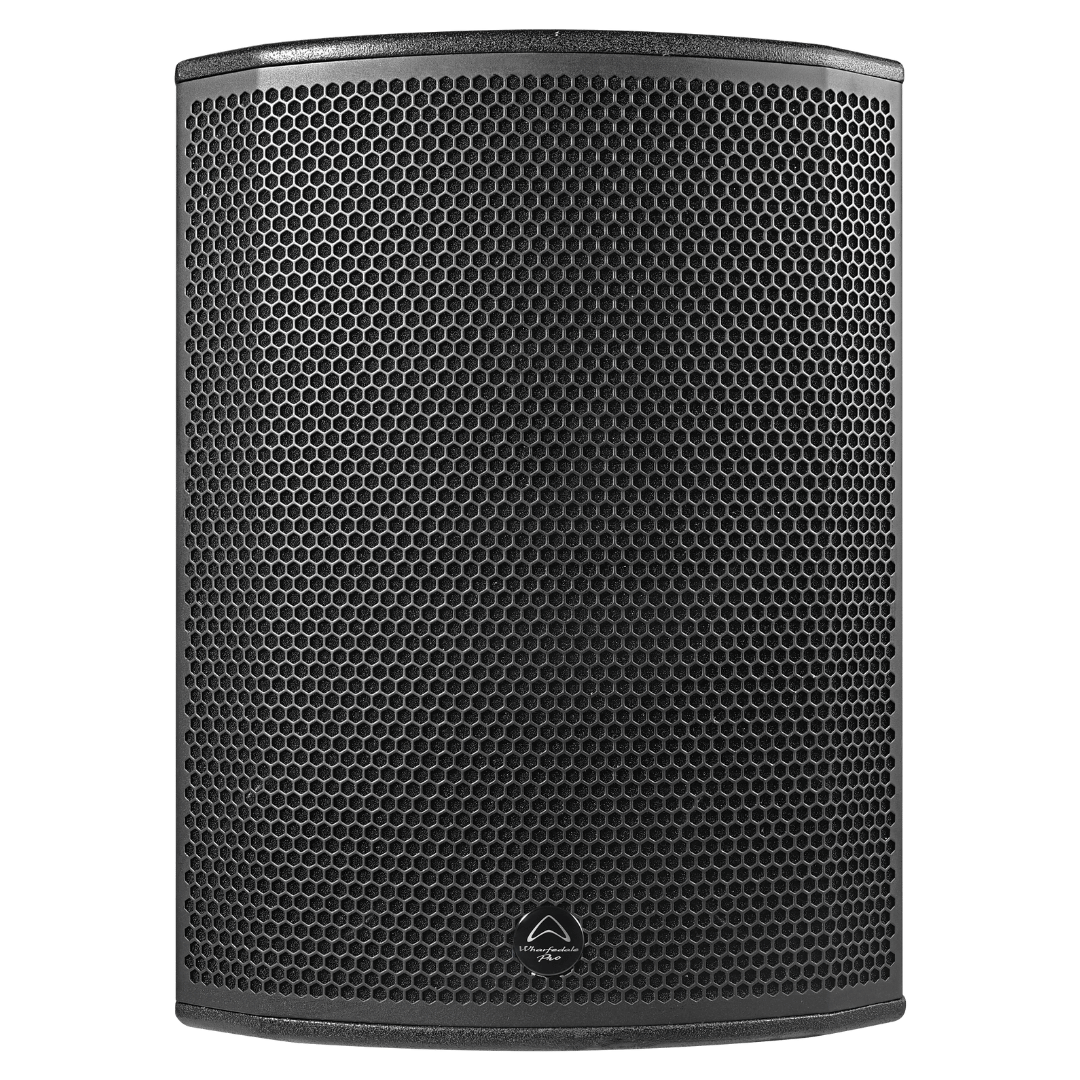

GPL-15HQ Wharfedale Pro

15″ coaxial with Constant Directivity waveguide

  • 80° x 40° constant directivity waveguide
  • 500 W AES (Continuous)
  • 1000 W Programme
  • 2000 W Peak
  • 4.0″ LF Voice coil
  • 132 dB Max SPL @ 1 m
SKU: GPL-15HQ Categories: , Tag: Brand:

Description

Product description

GPL-15HQ is a 15″ full-range loudspeaker from our GPL Series, designed to deliver powerful, high-precision sound for theatres, clubs, and performance spaces.

Equipped with a Beyma coaxial driver featuring a 4.0″ LF voice coil, GPL-15HQ offers exceptional detail and dynamic response. Its 80° x 40° rotatable constant directivity waveguide provides accurate, controlled dispersion, allowing precise HF targeting and reduced reflections in complex acoustic environments.

Built from birch plywood and available in black or white, GPL-15HQ combines premium build quality with flexible installation options. A steel yoke bracket is included for quick mounting, and GPL-15HQ is compatible with optional WPB wall brackets, Powerdrive Series 100, and Omnimount Series 60 ensures maximum versatility for permanent installations.

Handling 500 W continuous (2000 W peak) power and achieving 132 dB max SPL at 1 m, GPL-15HQ delivers refined, high-output sound with impressive consistency. FIR preset libraries and EASE .gll files are available for precise integration into professional audio systems.

Specifications

Active or Passive
Passive
System Type
Full-Range
Configuration
Coaxial 2-way
System Continuous Power
500 W
System Programme Power
1000 W
System Peak Power
2000 W
Max SPL @ 1m
132 dB
Freq Response (+/-3 dB)
42 Hz - 20 kHz
Freq Range (-10 dB)
25 Hz - 25 kHz
Bi-amp Mode Switch
No
IP Certification
None
Driver Brand
Beyma
LF Driver Size
15"
LF Voice Coil Size
4"
LF Rated Impedance
8 Ω
HF Driver Type
Compression Driver
HF Voice Coil Size
2.87"
HF Diaphragm Material
Composite Titanium / Polyester
HF Exit Size
1.5"
HF Power (RE:AES2-2012)
80 W
Preset Library
Yes
Input Connector
2 x 4 Pole Speaker Connector
Waveguide Type
Constant Directivity
Enclosure Material
Birch Plywood
Grille Material and Finish
Steel Black or White
Finish
Black or White Tough-Tone paint
Handles
1
Deployment
Flying, Wall Mount
Pole Mount
None
Brackets Included
Yes
Rigging
Yes
M8
4
M10
4
Nominal Coverage (H x V)
80° x 40°
Sensitivity 2.83 V / 1 m
99 dB
System Rated Impedance
8 Ω
Crossover Frequency
1.2 kHz
Recommended HPF = BW 18 dB/OCT.
25 Hz
Transformer (T)
No
Included Accessory
Quick Start Guide, Flying Yoke
Unpacked - Height (mm)
590
Unpacked - Width Front (mm)
450
Unpacked - Width Rear (mm)
180
Unpacked - Depth (mm)
420
Packed - Height (mm)
680
Packed - Width Front (mm)
495
Packed - Width Rear (mm)
495
Packed - Depth (mm)
525
Weight - Nett (kg)
27.2
Weight - Gross (kg)
31.8
