GPL-12 Wharfedale Pro

RM5,750.00

12″ coaxial with spherical waveguide

  • 60° conical coverage
  • 450 W AES (Continuous)
  • 900 W Programme
  • 1800 W Peak
  • 4.0″ LF Voice coil
  • 131 dB Max SPL @ 1 m
SKU: GPL-12 Categories: , Tag: Brand:

Description

Product description

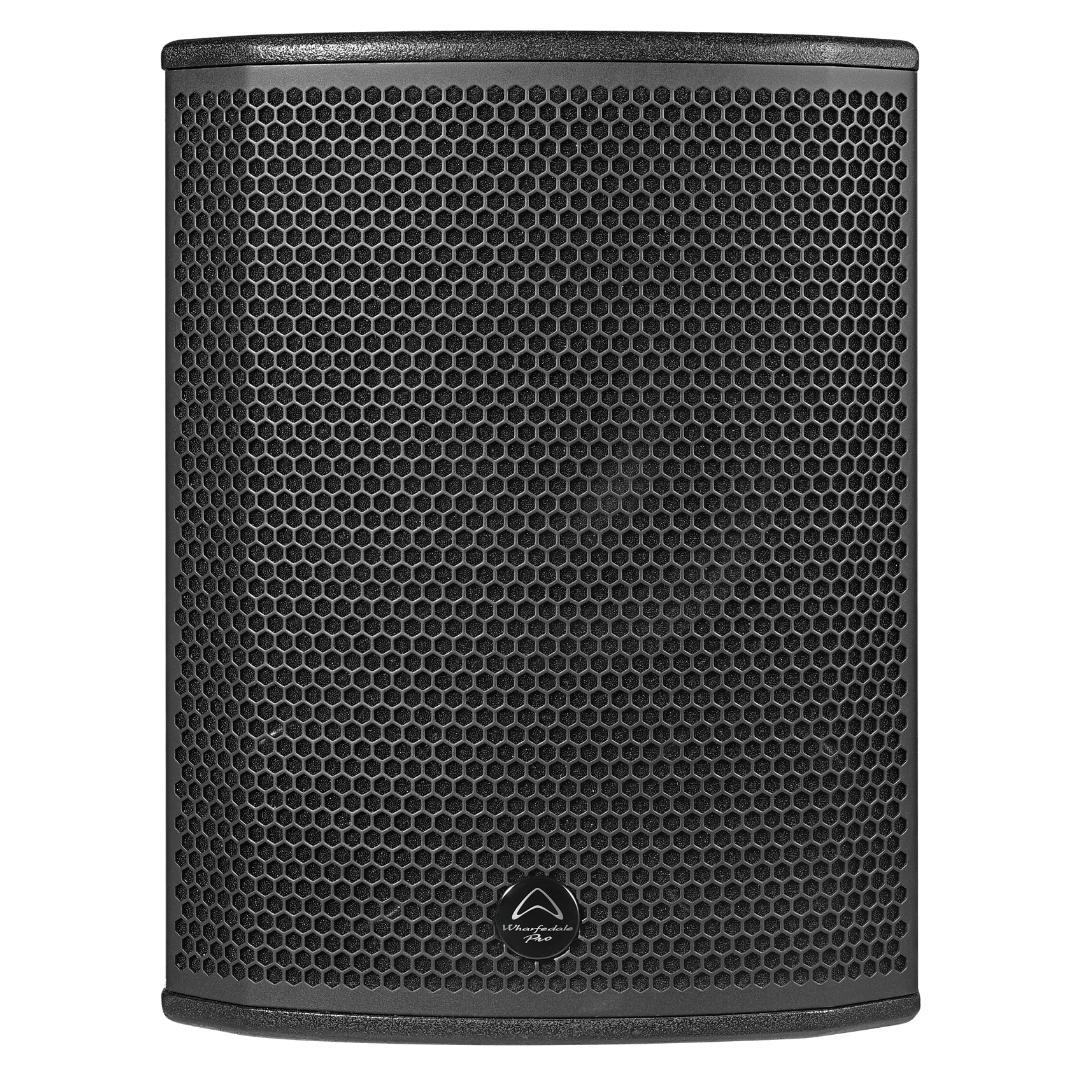

GPL-12 is a 12″ full-range loudspeaker from our GPL Series, engineered for professional installations requiring power, precision, and wide coverage with exceptional clarity.

At its core is a Beyma coaxial driver featuring a 4.0″ LF voice coil, delivering smooth, phase-coherent sound and consistent tonal balance across its 60° conical dispersion. The bespoke Wharfedale Pro waveguide directs high frequencies with accuracy, minimising reflections and ensuring focused, articulate output in any environment.

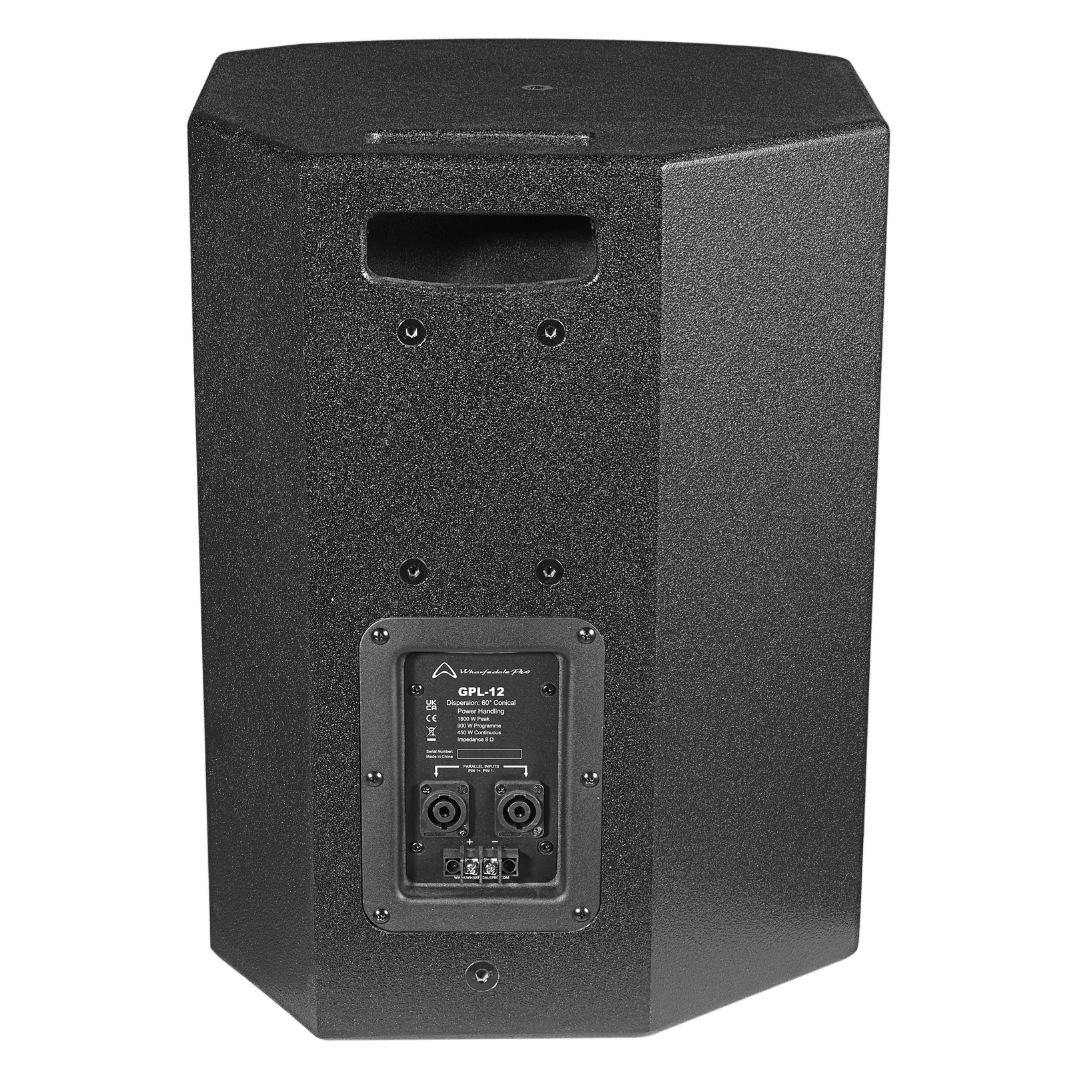

GPL-12 can be quickly fixed to a wall using optional wall brackets or the included steel yoke, allowing flexible mounting options for permanent installations. Built from birch plywood and finished in either black or white, GPL-12 combines a discreet, installation-friendly design with rugged durability.

Handling 450 W continuous (1800 W peak) power and achieving up to 131 dB max SPL @ 1 m, GPL-12 delivers a natural yet commanding sound. FIR preset libraries and EASE .gll files are available for precise tuning and seamless system integration.

Specifications

Active or Passive
Passive
System Type
Full-Range
Configuration
Coaxial 2-way
System Continuous Power
450 W
System Programme Power
900 W
System Peak Power
1800 W
Max SPL @ 1m
131 dB
Freq Response (+/-3 dB)
55 Hz - 20 kHz
Freq Range (-10 dB)
35 Hz - 25 kHz
Bi-amp Mode Switch
No
IP Certification
None
Driver Brand
Beyma
LF Driver Size
12"
LF Voice Coil Size
4"
LF Rated Impedance
8 Ω
HF Driver Type
Compression Driver
HF Voice Coil Size
2.87"
HF Diaphragm Material
Composite Titanium / Polyester
HF Exit Size
1.5"
HF Power (RE:AES2-2012)
80 W
Preset Library
Yes
Input Connector
2 x 4 Pole Speaker Connector
Waveguide Type
Spherical
Enclosure Material
Birch Plywood
Grille Material and Finish
Steel Black or White
Finish
Black or White Tough-Tone paint
Handles
1
Deployment
Flying, Wall Mount
Pole Mount
None
Brackets Included
Yes
Rigging
Yes
M8
4
M10
4
Nominal Coverage (H x V)
60° conical
Sensitivity 2.83 V / 1 m
98 dB
System Rated Impedance
8 Ω
Crossover Frequency
1.2 kHz
Recommended HPF = BW 18 dB/OCT.
35 Hz
Transformer (T)
No
Included Accessory
Quick Start Guide, Flying Yoke
Unpacked - Height (mm)
486
Unpacked - Width Front (mm)
370
Unpacked - Width Rear (mm)
182
Unpacked - Depth (mm)
360
Packed - Height (mm)
576
Packed - Width Front (mm)
435
Packed - Width Rear (mm)
435
Packed - Depth (mm)
445
Weight - Nett (kg)
22.3
Weight - Gross (kg)
25.9
