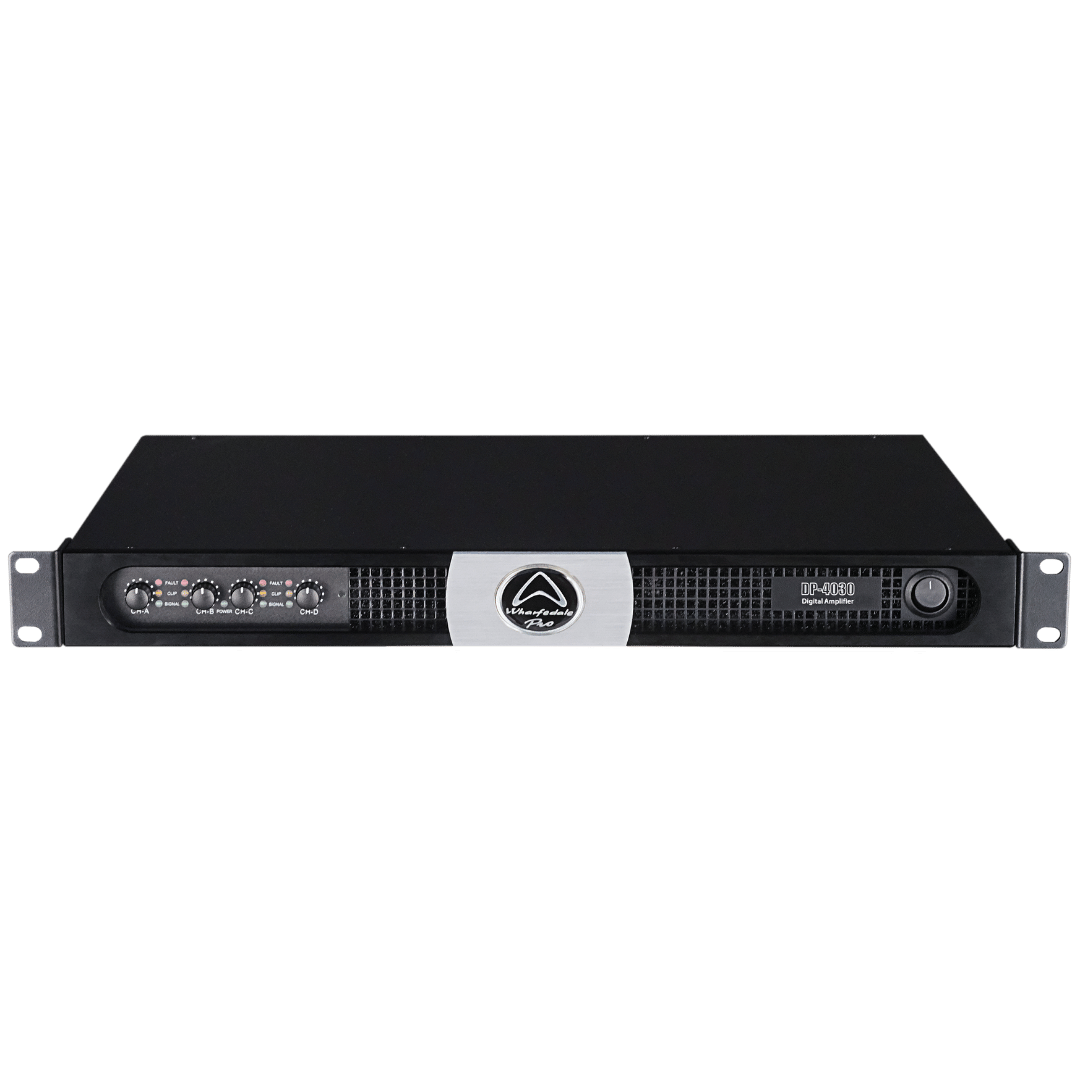

DP-4030 Wharfedale Pro

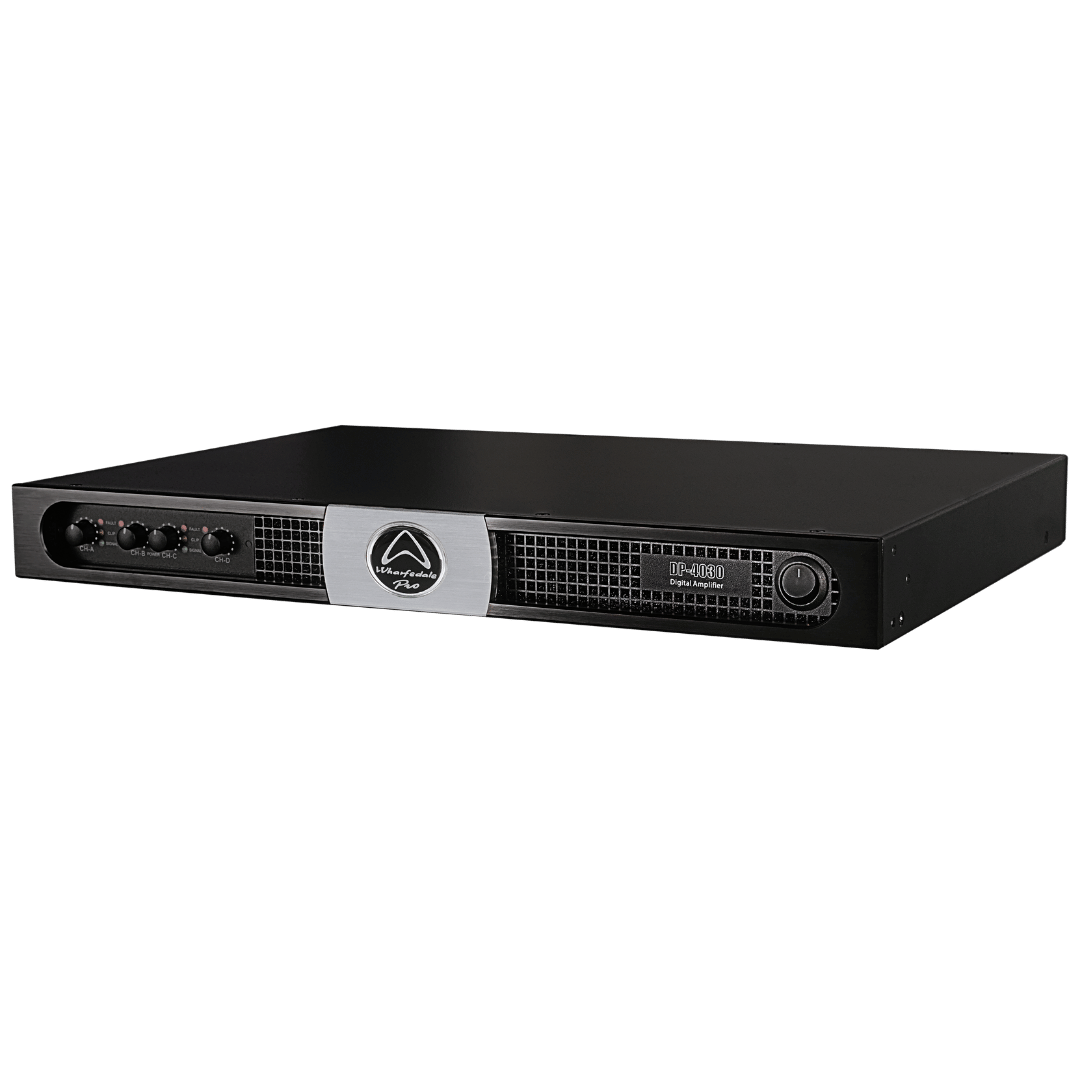

DP-4030 Wharfedale Pro - Image 2

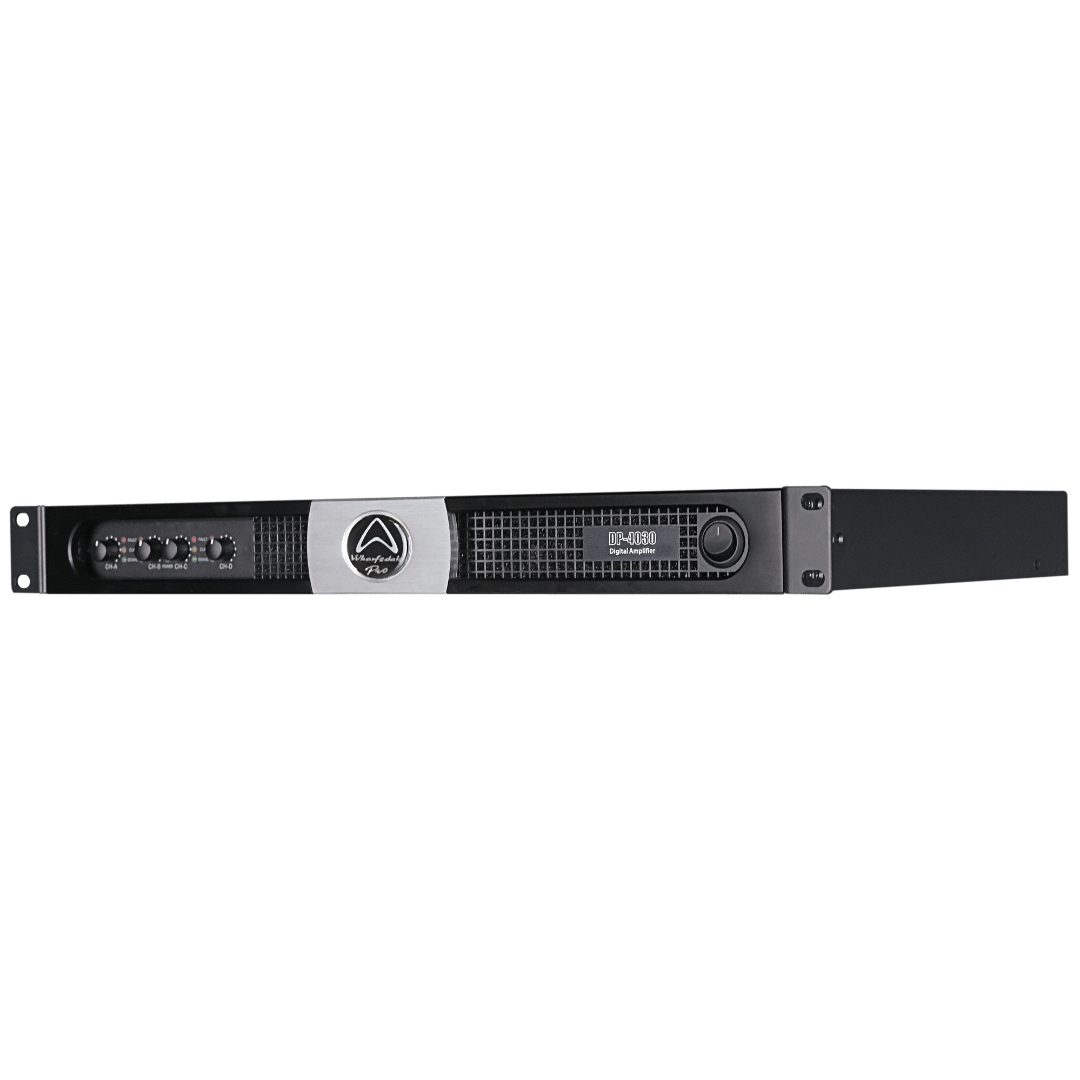

DP-4030 Wharfedale Pro - Image 3

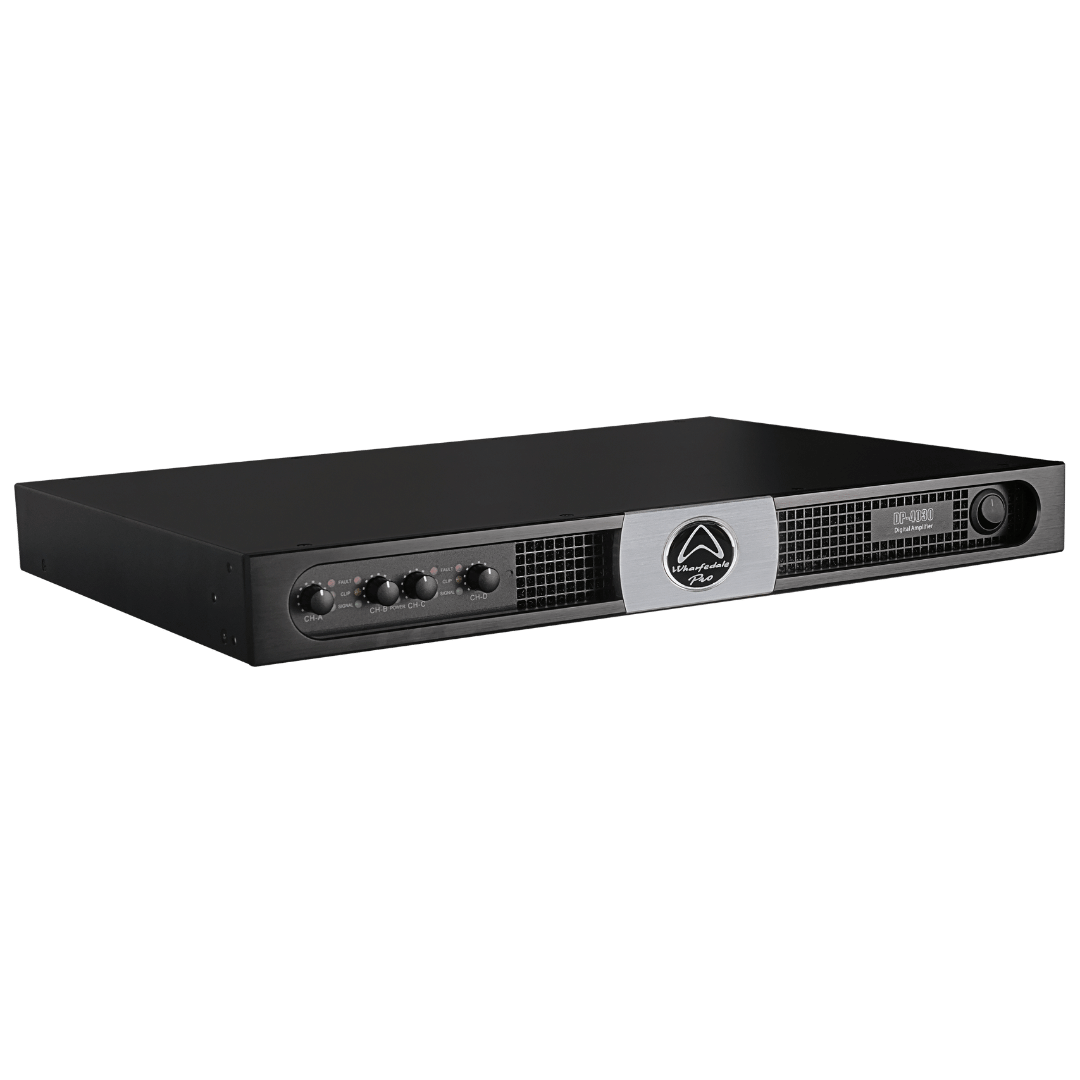

DP-4030 Wharfedale Pro - Image 4

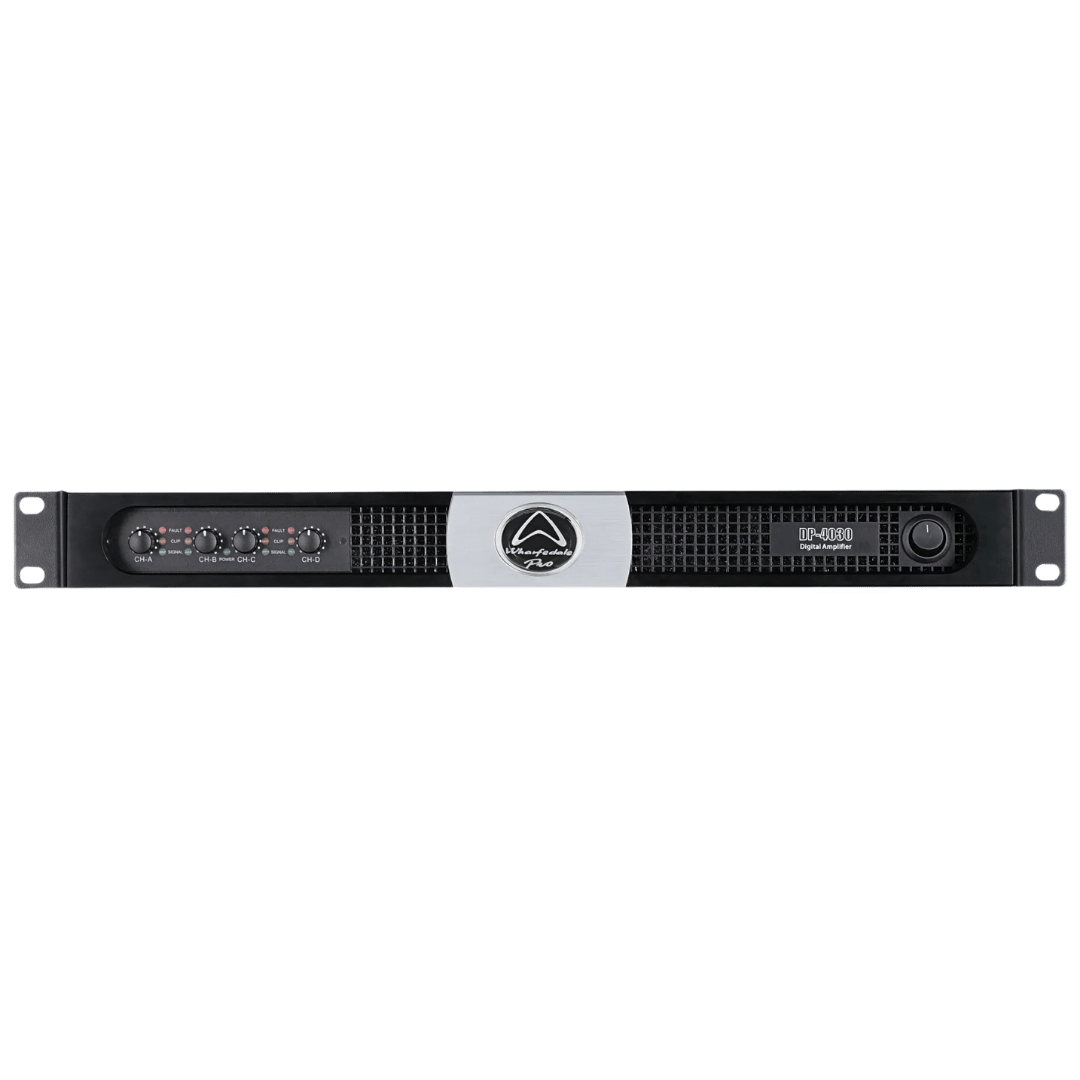

DP-4030 Wharfedale Pro - Image 5

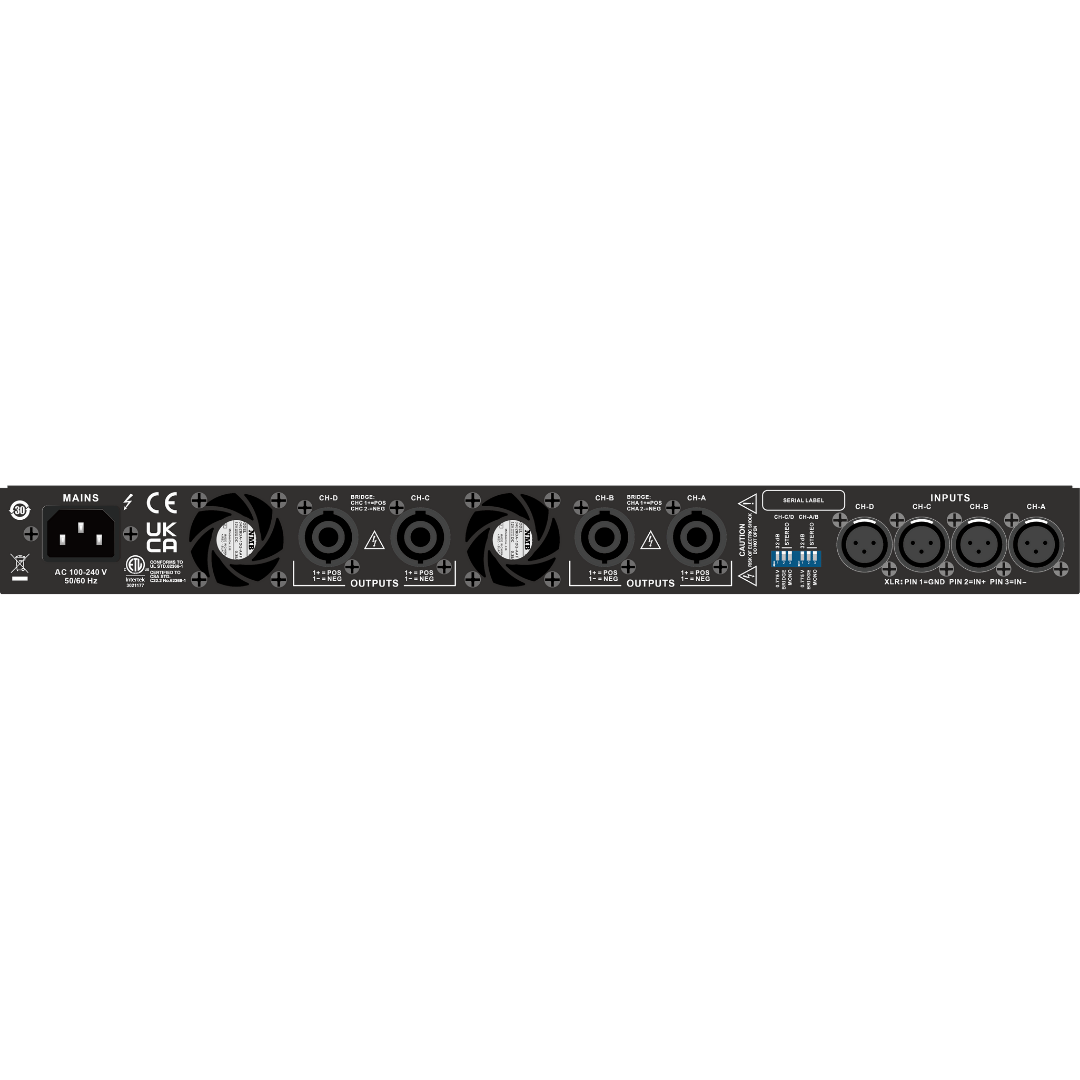

DP-4030 Wharfedale Pro - Image 6

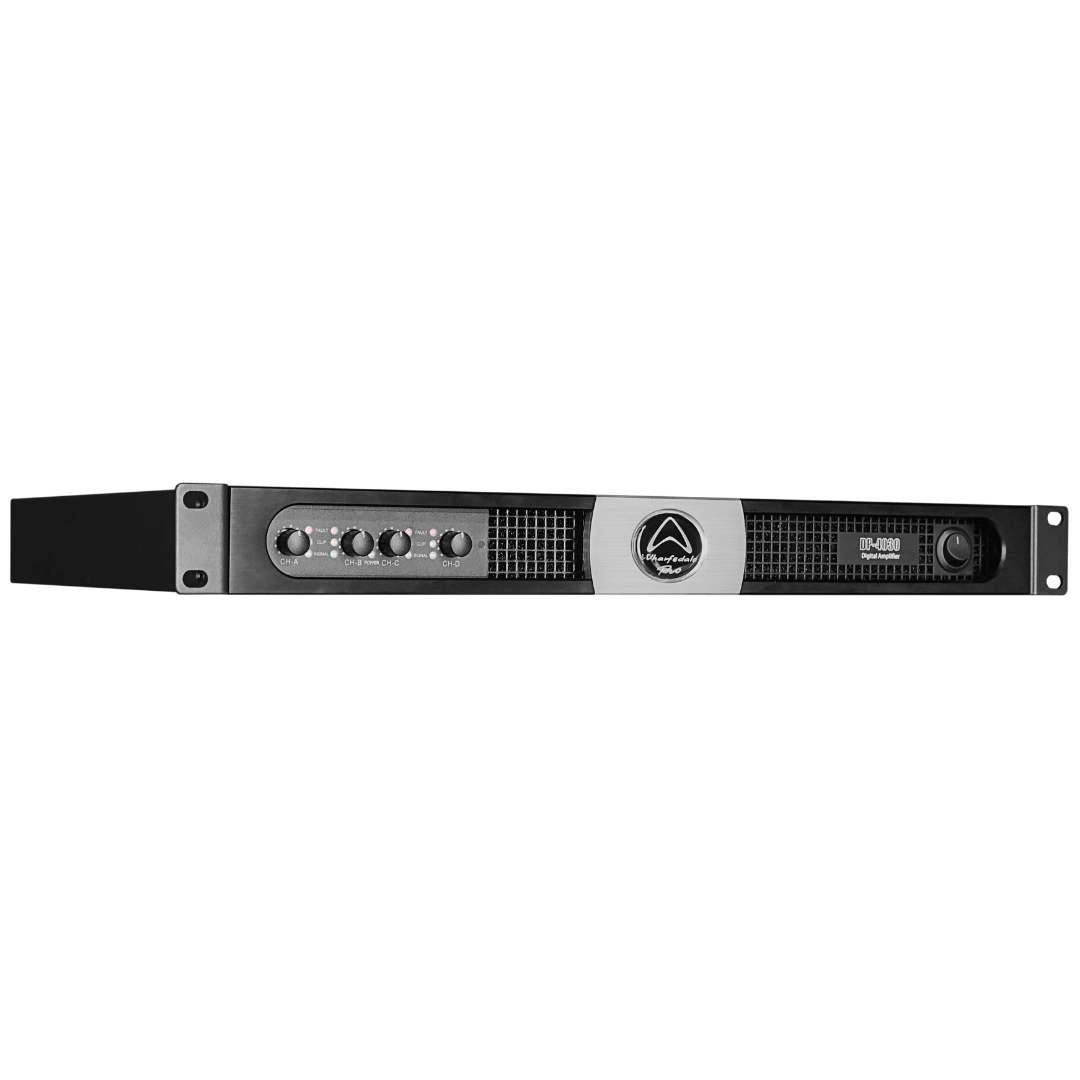

DP-4030 Wharfedale Pro - Image 7

DP-4030 Wharfedale Pro

RM3,110.00

Light on weight, Heavy on POWER

  • 4 channels
  • 8 Ohm 4 x 300 Watts
  • 4 Ohm 4 x 450 Watts
  • 16 Ohm Bridged 2 x 600 Watts
  • 8 Ohm Bridged 2 x 900 Watts
  • 100 V Hi-Z : No
  • 70 V Hi-Z : No
SKU: DP-4030 Categories: , , Tag: Brand:

Description

Product description

DP-4030 is a 4-channel amplifier from our DP Series, designed for installations and live sound setups that require efficient, reliable power in a lightweight format.

Delivering 300 W per channel at 8 Ω and 450 W at 4 Ω, with up to 900 W bridged at 8 Ω, the DP-4030 provides clean, controlled output with impressive efficiency. Its advanced Class D topology and switch-mode power supply ensure low distortion, cool operation and dependable performance across a wide range of applications.

Compact, durable and easy to integrate, DP-4030 is ideal for smaller venues, distributed audio systems or multi-zone installations where space and power efficiency are key. A trusted performer that delivers true Wharfedale Pro reliability.

Specifications

Amp Channels
4
Topology
Class D
8Ω
4 x 300 W
4Ω
4 x 450 W
16Ω Bridged
2 x 600 W
8Ω Bridged
2 x 900 W
Input Connectors
4 x XLR Socket
Output Connectors
4 x 4 Pole Speaker Connector
Mode Switch
Mono / Stereo / Bridge Mode per Channel pair
DSP Features
None
Input Gain/Sensitivity Switch
0.775 V / 26 dB
Output RMS Voltage (V)
49 V
Maximum input Level
21 dBu (8.7 Vrms)
Default Gain (Rated power, 1 kHz) (dB)
36 dB
Gain (Rated Power, 1 kHz)
26 dB
THD+N
Typical : 0.05% (10% Rated Power, 8 Ω)
Crosstalk
≥75 dB (20 Hz-1 kHz, Below Rated Power, 8 Ω)
Amplifier Frequency Response
Typical :+0,-0.5 dB (10% Rated Power, 20 Hz-20 kHz, 8 Ω)
Amplifier Input Impedance
20 kΩ (Balanced), 10 kΩ (Unbalanced)
Damping Factor
Typical: 300 (20 Hz-200 Hz, 8 Ω)
SNR
≥105
Protection
Over temp limit, Overload and DC protection
Main Power
100-240 V AC. ±10%, 50/60 Hz
Included Accessory
User Manual, AC Cable, 4 x rubber feet
Unpacked - Height (mm)
45
Unpacked - Width Front (mm)
483
Unpacked - Width Rear (mm)
430
Unpacked - Depth (mm)
297
Packed - Height (mm)
120
Packed - Width Front (mm)
435
Packed - Width Rear (mm)
435
Packed - Depth (mm)
550
Weight - Nett (kg)
4.5
Weight - Gross (kg)
6
