Delta-X12 Wharfedale Pro

RM2,110.00

12″ passive with bi-amp functionality

  • 12″ 2-way passive
  • 2.0″ voice coil HF driver
  • 3.0″ LF voice coil
  • 400 watts AES (RMS)
  • 800 watts Programme
  • 1600 watts Peak
  • 129 dB Max SPL @ 1 meter
SKU: Delta-X12 Categories: , Tag: Brand:

Description

Product description

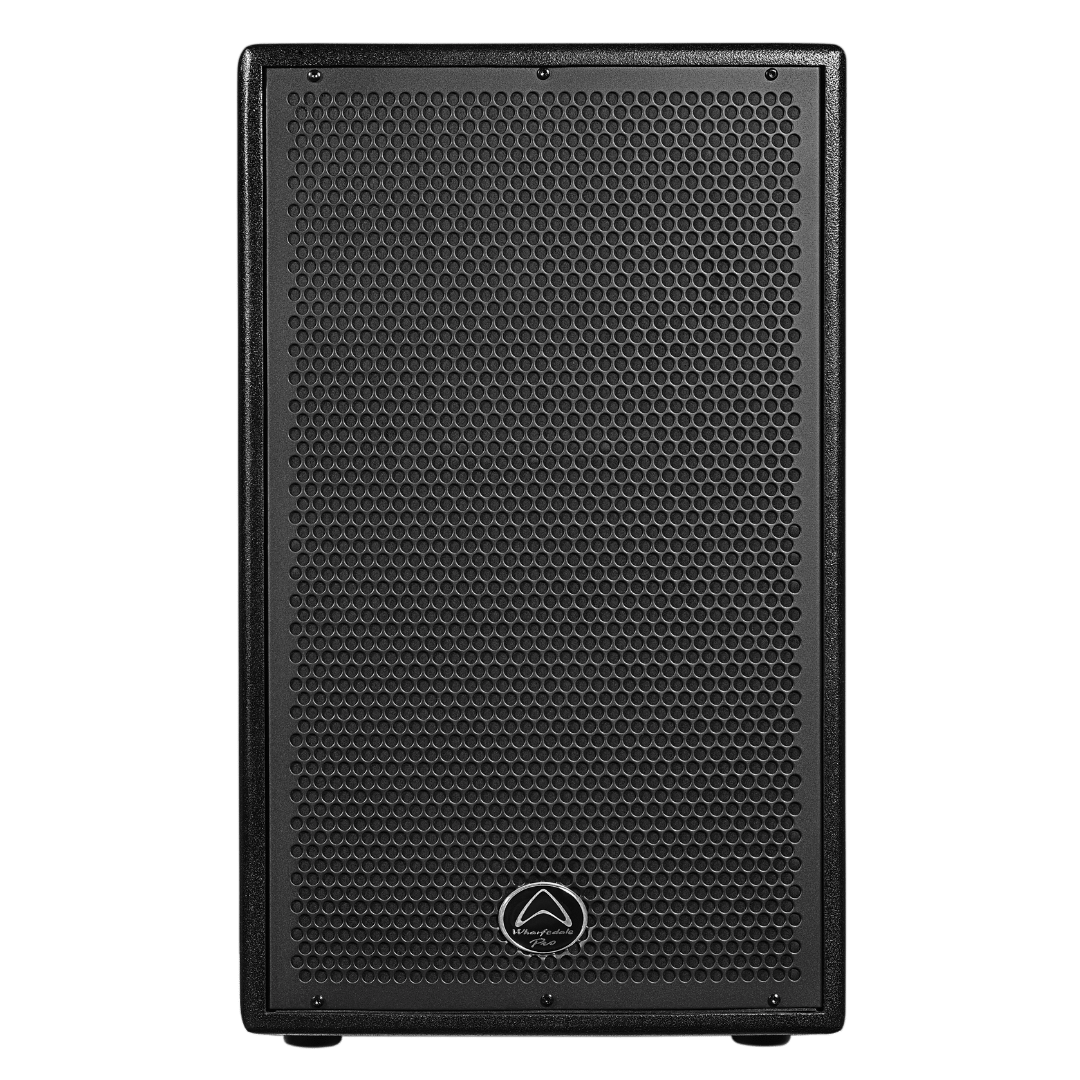

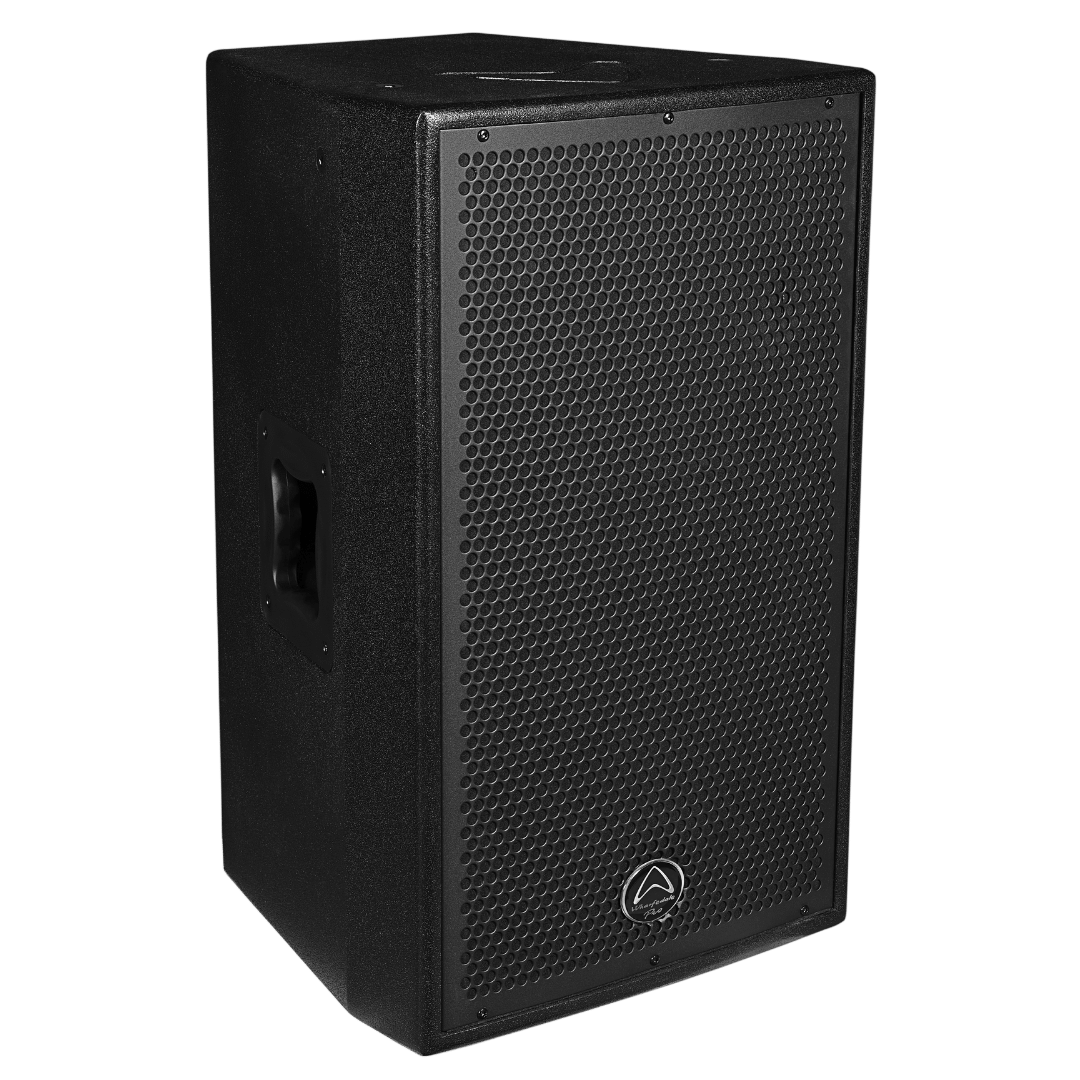

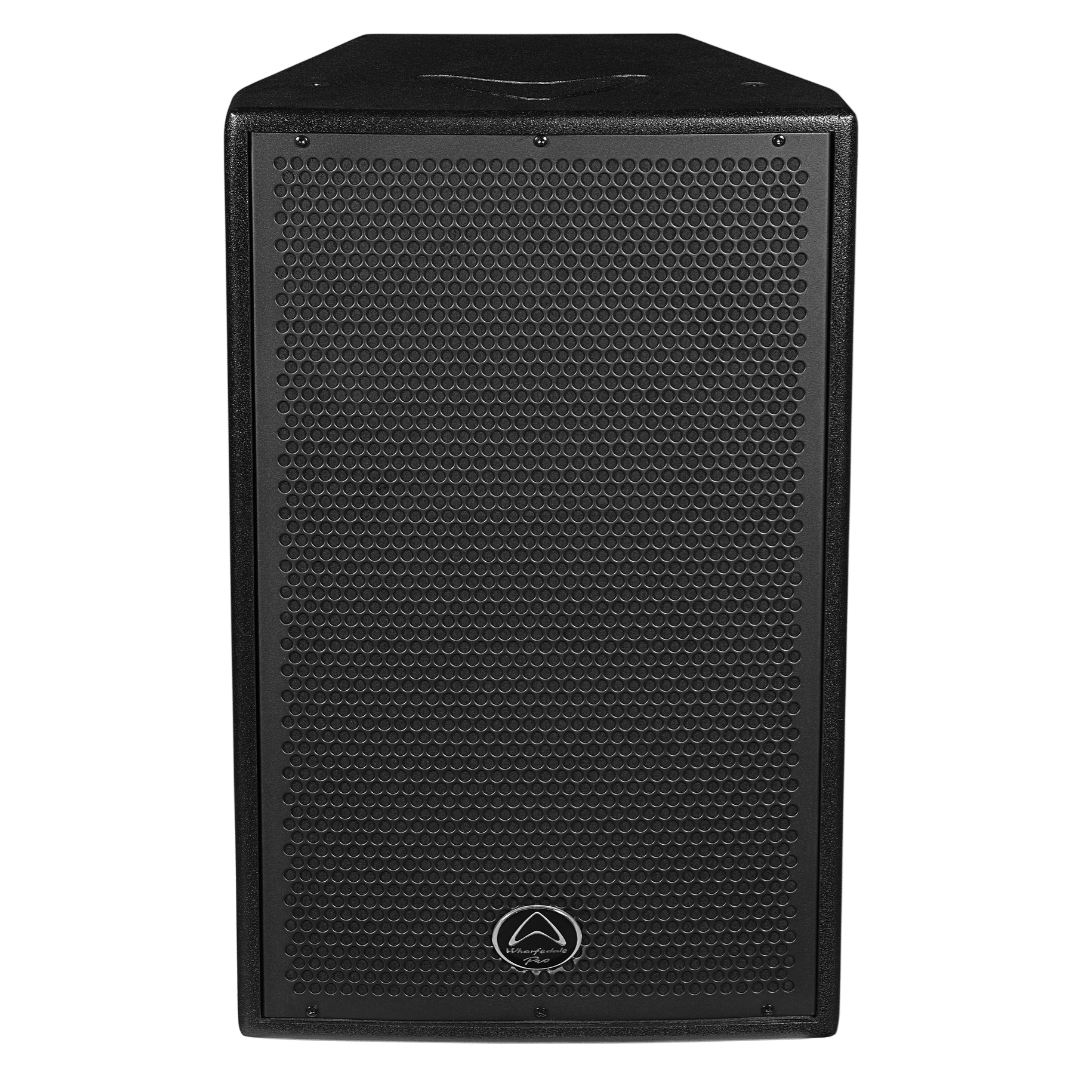

Delta-X12 is a versatile 12-inch 2-way passive loudspeaker that balances power and portability, making it ideal for live venues, installs, or mobile rigs.

Constructed from 15 mm birch plywood and finished in durable Tough-Tone paint, it’s built to handle the knocks of life on the road while maintaining a professional look.

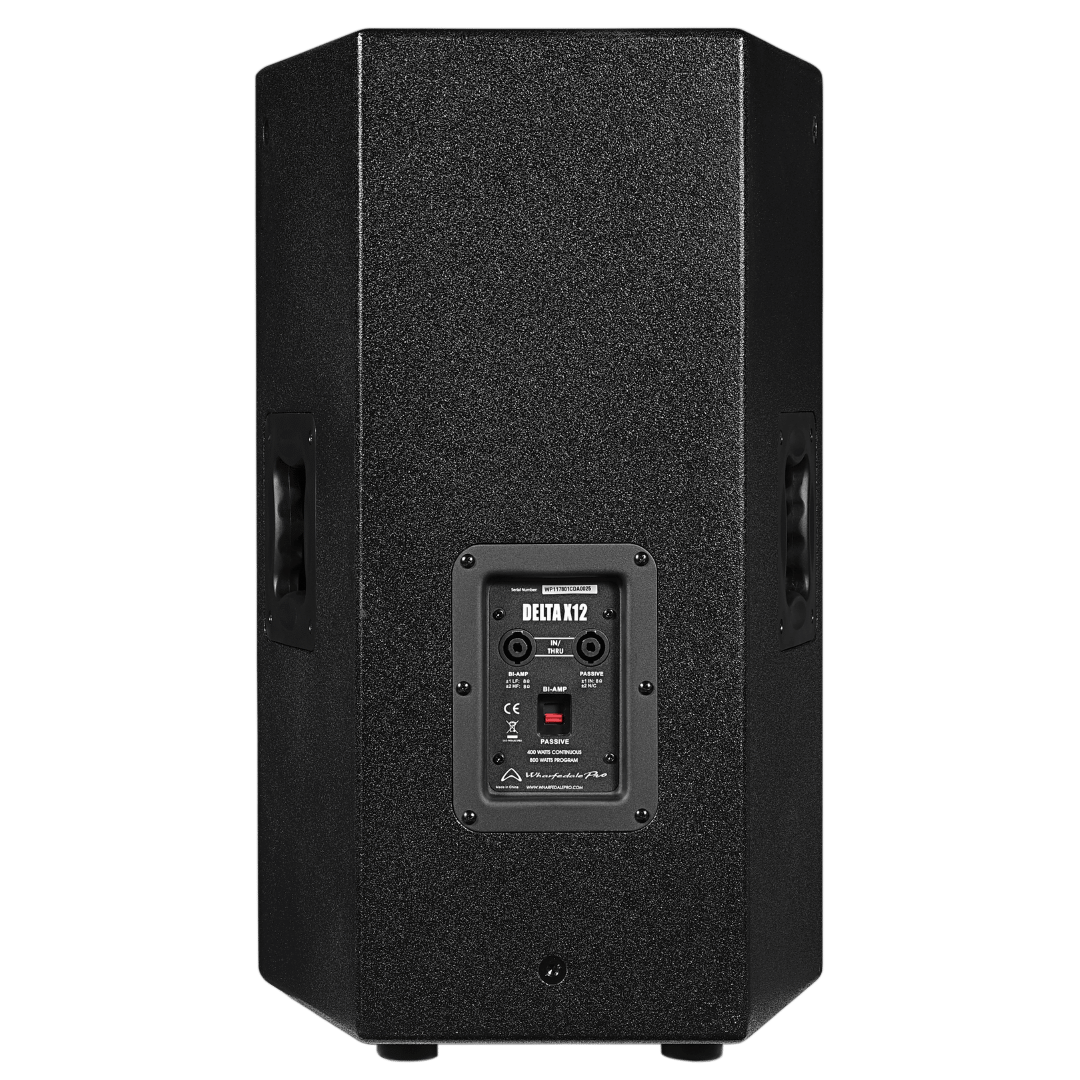

Like the rest of the Delta-X family, the rear panel gives you the choice of running in full-range passive mode or switching to a bi-amped setup for greater control over low and high frequencies with separate amplifiers.

Delivering 400 W continuous (up to 1,600 W peak) and capable of 129 dB max SPL, the Delta-X12 packs serious output into a manageable enclosure. A Wharfedale Pro custom LF driver ensures tight, punchy bass, while the titanium-diaphragm compression driver provides clear, defined highs. With a dual-angle pole socket and ergonomic side handles, it’s practical to position, carry, and integrate into any system.

Specifications

Active or Passive
Passive
System Type
Full-Range
Configuration
2-way
System Continuous Power
400 W
System Programme Power
800 W
System Peak Power
1600 W
Max SPL @ 1m
129 dB
Freq Response (+/-3 dB)
60 Hz - 20 kHz
Freq Range (-10 dB)
55 Hz - 20 kHz
Bi-amp Mode Switch
Yes
IP Certification
None
Driver Brand
Wharfedale Pro
LF Driver Size
12"
LF Voice Coil Size
3"
LF Rated Impedance
8 Ω
LF Power (RE:AES2-2012)
400 W
HF Driver Type
Compression Driver
HF Voice Coil Size
2"
HF Diaphragm Material
Titanium
HF Exit Size
1.4"
HF Power (RE:AES2-2012)
50 W
HF Rated Impedance
8 Ω
Preset Library
Yes
Input Connector
2 x 4 Pole Speaker Connector
Waveguide Type
Elliptical
Enclosure Material
Birch Plywood
Grille Material and Finish
Steel Black
Finish
Black Tough-Tone
Handles
2
Deployment
Ground, Flying, Pole
Pole Mount
Dual Angle (0° / 10°) 35 mm
Brackets Included
No
Rigging
Yes
M10
6
Nominal Coverage (H x V)
90° x 45°
Sensitivity 2.83 V / 1 m
97 dB
System Rated Impedance
8 Ω
Crossover Frequency
1.8 kHz
Recommended HPF = BW 18 dB/OCT.
55 Hz
Transformer (T)
No
EQ Type
None
Included Accessory
User Manual
Unpacked - Height (mm)
630
Unpacked - Width Front (mm)
390
Unpacked - Width Rear (mm)
241
Unpacked - Depth (mm)
373
Packed - Height (mm)
464
Packed - Width Front (mm)
566
Packed - Width Rear (mm)
566
Packed - Depth (mm)
773
Weight - Nett (kg)
24.7
Weight - Gross (kg)
29
