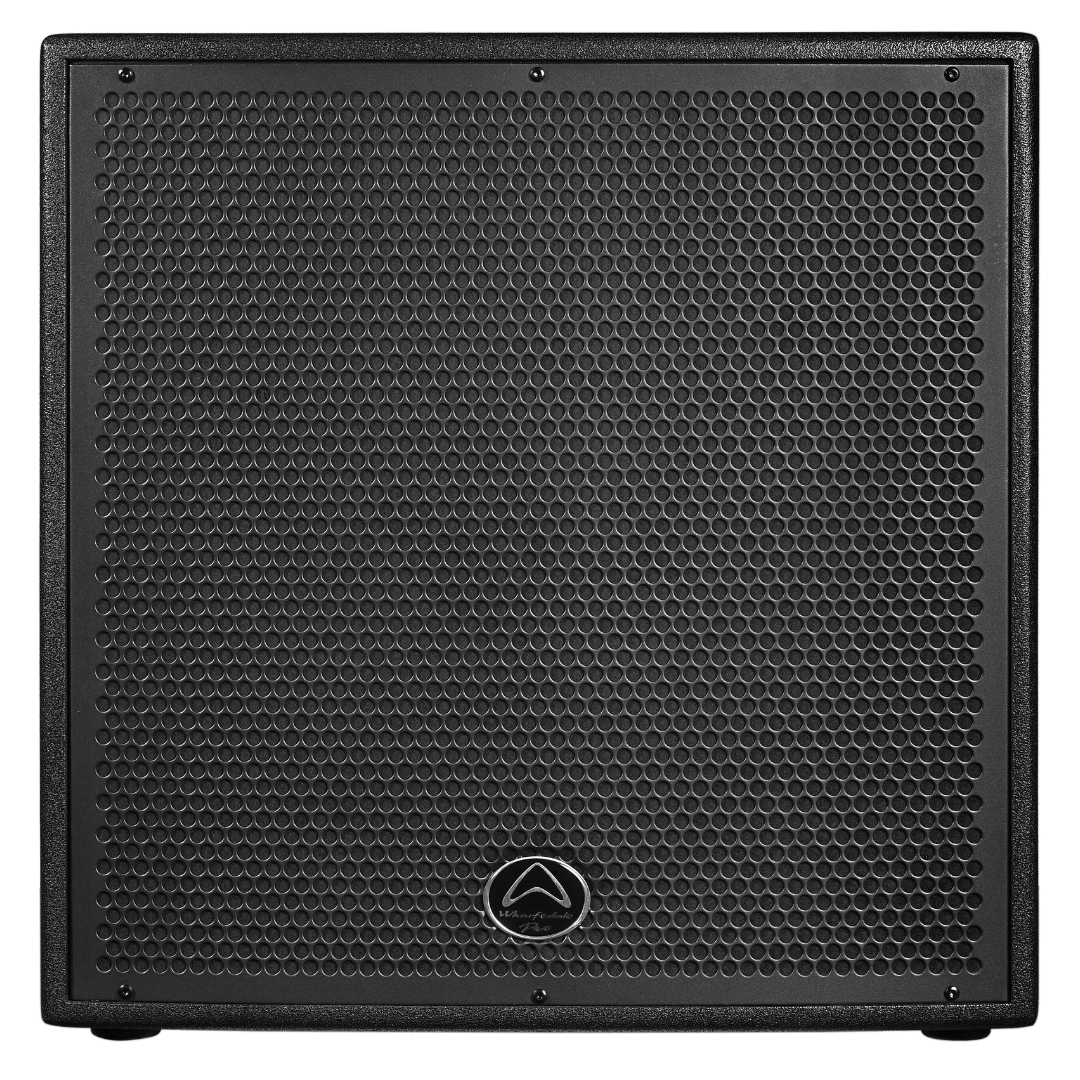

Delta-AX18B Wharfedale Pro

18″ active subwoofer – with adjustable Low pass filter

  • 18″ active subwoofer
  • Low pass filter control
  • Hi Pass link outputs
  • 38 Hz – 200 Hz Frequency response
  • 180° phase switch
  • 4″ LF voice coil
  • 1000 watts Continuous
  • 2000 watts Peak
  • 132 dB Max SPL @ 1m
SKU: Delta-AX18B Categories: , , Tag: Brand:

Description

Product description

Delta-AX18B is a serious 18-inch active subwoofer designed for professional PA systems where deep, explosive bass is required.

Powered by a high-efficiency Class D amplifier, it delivers 1000 W continuous (2000 W peak), producing a maximum SPL of 132 dB @ 1 m – ideal for clubs, touring setups, and demanding installs. Its frequency response of 38 Hz to 200 Hz (±3 dB) offers tight, punchy lows without sacrificing clarity in crossover regions. Equipped with a 4-inch LF voice coil, adjustable low-pass filter, 180° phase switch, and hi-pass link outputs, it ensures seamless integration with full-range loudspeakers.

Rugged in build, the enclosure uses 15 mm birch plywood, finished in durable Tough-Tone paint, and features a 1.2 mm steel grille plus 4-way rubberised handles for road safety. Thermal, DC/short-circuit, low voltage and limiter protections make it a reliable workhorse for serious sound reinforcement.

Specifications

Active or Passive
Active
System Type
Subwoofer
Configuration
Bass-reflex
System Continuous Power
1000 W
System Peak Power
2000 W
Max SPL @ 1m
132 dB (Half Space)
Freq Response (+/-3 dB)
38 Hz - 200 Hz
Freq Range (-10 dB)
30 Hz - 200 Hz
Bi-amp Mode Switch
No
Bluetooth
No
IP Certification
None
Driver Brand
Wharfedale Pro
LF Driver Size
18"
LF Voice Coil Size
4"
LF Rated Impedance
8 Ω
Preset Library
No
Input Connector
TRS Jack and Socket XLR
Enclosure Material
Birch Plywood
Grille Material and Finish
Steel Black
Finish
Black Tough-Tone
Handles
2
Deployment
Ground
Pole Mount
35 mm
Brackets Included
No
Rigging
No
Sensitivity 2.83 V / 1 m
n/a dB
System Rated Impedance
n/a
Crossover Frequency
80 Hz - 200 Hz (Adjustable)
Transformer (T)
No
Amplifier design
Class D
EQ Type
None
Active loudspeaker Input Impedance
Balanced: 20K Ω / Unbalanced: 10K Ω
Link Connector
2 x pin XLR
Input sensitivity
Line: 0 dBu
Max input level
22 dBu
Line output
Pin XLR
Main Power
AC100-120 V~ / 220-240 V~,50/60 HZ
Power Supply
High Efficiency SMPS
Included Accessory
User Manual, AC Cable
Unpacked - Height (mm)
539
Unpacked - Width Front (mm)
539
Unpacked - Width Rear (mm)
539
Unpacked - Depth (mm)
650
Packed - Height (mm)
630
Packed - Width Front (mm)
620
Packed - Width Rear (mm)
620
Packed - Depth (mm)
720
Weight - Nett (kg)
38.4
Weight - Gross (kg)
44.3
