DECO-8 DAS Audio

RM700.00

60 W, 8″ two-way passive full-range ceiling speaker, 8 ohm, white

  • SPL Max: 114 dB
  • Dispersion: 90º
  • Weight: 1,6 kg ( 3,5 lb )
  • Weight: 1,8 kg ( 4,0 lb )
SKU: DECO-8 Categories: , , Tag: Brand:

Description

Product description

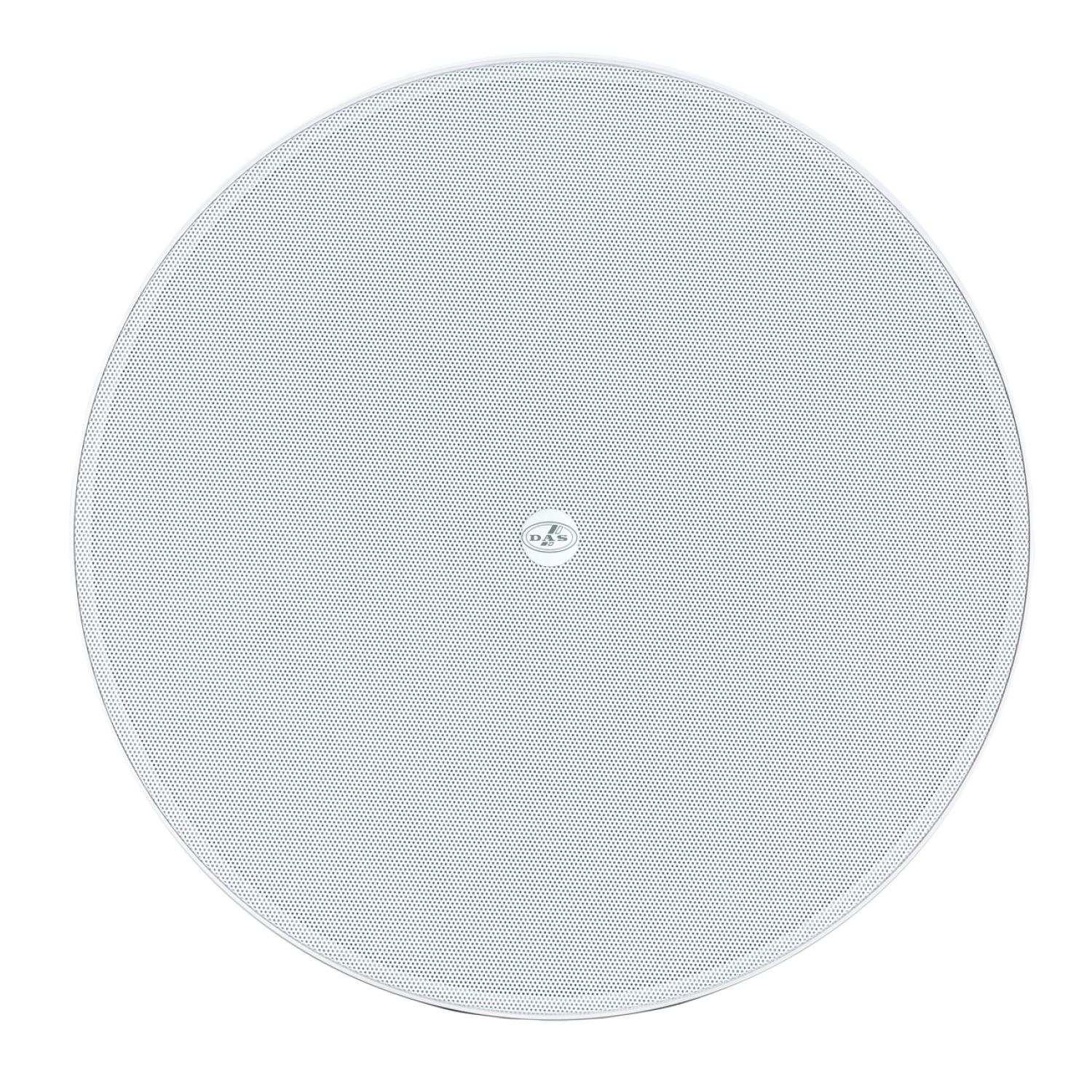

The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings.

The DECO-8 is a wide-range passive two-way ceiling-mounted acoustic system featuring an 8″ low-frequency cone loudspeaker and a 1″ ferrofluid-cooled soft dome tweeter with an integrated diffraction ring. A frameless grille design means the system extends just 3 mm from the ceiling, making it practically invisible. It does not include a transformer and is specifically designed for low impedance.

DECO-8-T

30 W, 8″ two-way passive full-range ceiling speaker, 70 V/100 V line transformer, white

The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings.

The DECO-8T is a wide-range passive two-way ceiling-mounted acoustic system featuring an 8″ low-frequency cone loudspeaker and a 1″ ferrofluid-cooled soft dome tweeter with an integrated diffraction ring. A frameless grille design means the system extends just 3 mm from the ceiling, making it practically invisible. It is equipped with a 30W 100V specifically designed line transformer for high impedance.

Performance

Frequency Range (-10 dB)
50 Hz – 20 kHz
Nominal Impedance
8 ohms
Conical Coverage
90º
RMS Power Handling
60 W
Peak Power Handling
240 W
On-axis Sensitivity 1W/1 m
90 dB SPL
Maximum Peak SPL at 1 m
114 dB
Recommended Amplifier
INTEGRAL-A402INTEGRAL-A404INTEGRAL-A1002INTEGRAL-A1004INTEGRAL-A1602INTEGRAL-A1604INTEGRAL-MA1004INTEGRAL-MA1604
Recommended Processor
INTEGRAL-M88INTEGRAL-MA1604INTEGRAL-MA1004
Transformer Taps 70 V
Tap1, 5 W. Tap2, 7.5 W. Tap3 10 W.
Transformer Taps 100 V
Tap1, 10 W. Tap2, 20 W. Tap3 30 W.

Connectors

Audio Input Connector
Spring Terminals
Audio Output Connector
Spring Terminals

Enclosure

Enclosure Geometry
Round
Color
White
Cut Out Diameter
250 mm (9,9 in)
Dimensions ( H x W x D )
285 x 285 x 115 mm11,3 x 11,3 x 4,6 in
Net Weight
1,8 kg ( 4,0 lb )

Shipping

Carton Dimensions ( H x W x D )
310 x 300 x 450 mm12,2 x 11,8 x 17,7 in
Shipping Weight
2,1 kg ( 4,6 lb )
