DECO-6 DAS Audio

RM550.00

40 W, 6.5″ two-way passive full-range ceiling speaker, 8 ohm, white

  • SPL Max: 112 dB
  • Dispersion: 95º
  • Weight: 1,2 kg ( 2,6 lb )
  • Weight: 1,4 kg ( 3,1 lb )
SKU: DECO-6 Categories: , , Tag: Brand:

Description

Product description

The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings.

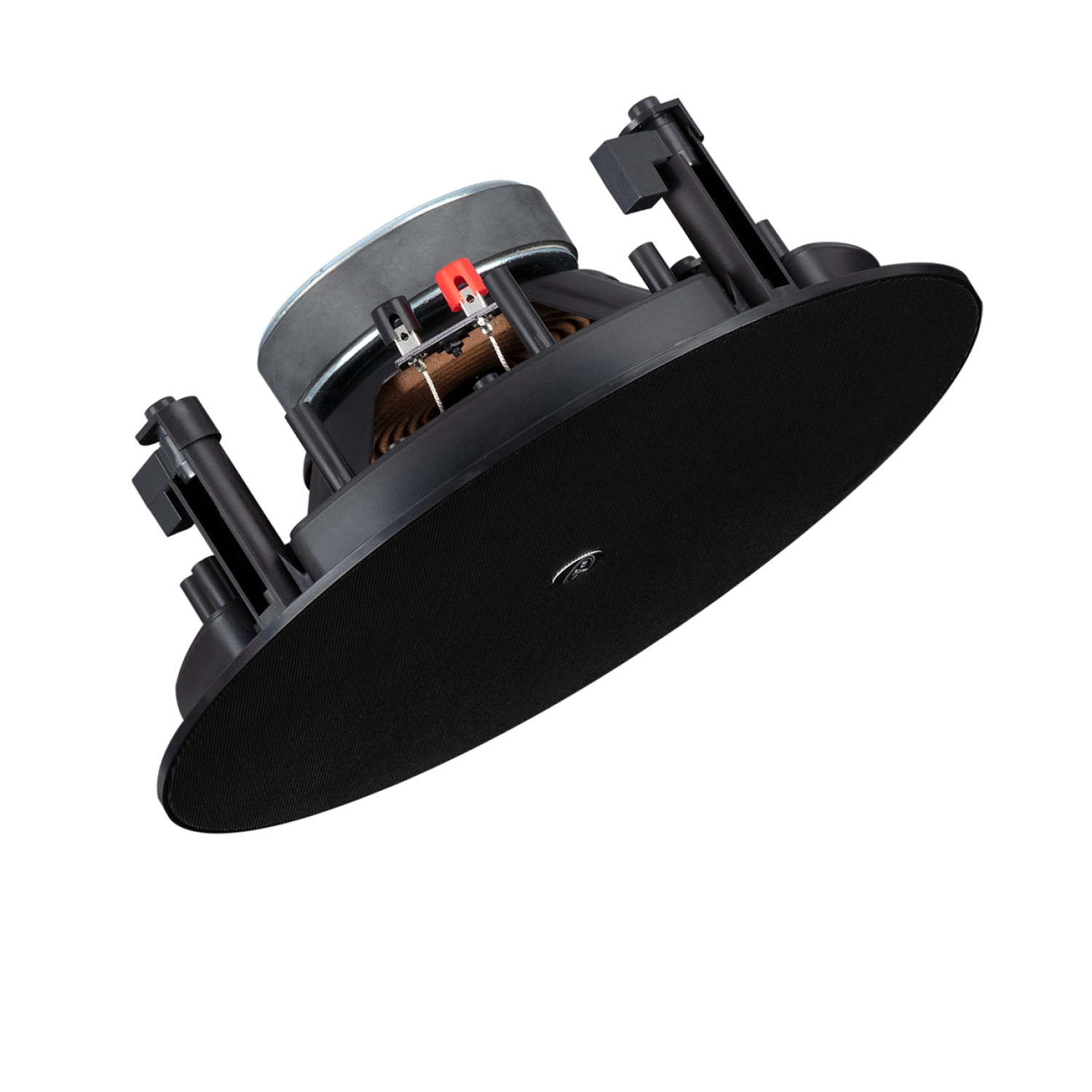

The DECO-6 is a wide-range passive two-way ceiling-mounted acoustic system featuring a 6.25″ low-frequency cone loudspeaker and a 1″ ferrofluid-cooled soft dome tweeter with an integrated diffraction ring. A frameless grille design means the system extends just 3 mm from the ceiling, making it practically invisible. It does not include a transformer and is specifically designed for low impedance.

DECO-6-T

15 W, 6.5″ two-way passive full-range ceiling speaker, 70 V/100 V line transformer, white

The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings.

The DECO-6T is a wide-range passive two-way ceiling-mounted acoustic system featuring a 6.25″ low-frequency cone loudspeaker and a 1″ ferrofluid-cooled soft dome tweeter with an integrated diffraction ring. Thanks to the frameless grille design, the system extends just 3 mm from the ceiling, making it practically invisible. It is equipped with a 15W 100V line transformer specifically designed for high impedance.

Performance

Frequency Range (-10 dB)
60 Hz – 20 kHz
Nominal Impedance
8 ohms
Conical Coverage
95º
RMS Power Handling
40 W
Peak Power Handling
160 W
On-axis Sensitivity 1W/1 m
90 dB SPL
Maximum Peak SPL at 1 m
112 dB
Recommended Amplifier
INTEGRAL-A402INTEGRAL-A404INTEGRAL-A1002INTEGRAL-A1004INTEGRAL-A1602INTEGRAL-A1604INTEGRAL-MA1004INTEGRAL-MA1604
Recommended Processor
INTEGRAL-M88INTEGRAL-MA1604INTEGRAL-MA1004
Transformer Taps 70 V
Tap1, 2.5 W. Tap2, 5 W. Tap3 7.5 W.
Transformer Taps 100 V
Tap1, 5 W. Tap2, 10 W. Tap3 15 W.

Connectors

Audio Input Connector
Spring Terminals
Audio Output Connector
Spring Terminals

Enclosure

Enclosure Geometry
Round
Color
White
Cut Out Diameter
210 mm (8,3 in)
Dimensions ( H x W x D )
230 x 230 x 80 mm9,0 x 9,0 x 3,2 in
Net Weight
1,4 kg ( 3,1 lb )

Shipping

Carton Dimensions ( H x W x D )
270 x 250 x 390 mm10,6 x 9,8 x 15,4 in
Shipping Weight
1,5 kg ( 3,3 lb )
