ALTEA-718 DAS Audio

RM6,420.00

Passive, 600 W, 18″, long excursion bass-reflex subwoofer, black

SPL Max: 134 dB
Dispersion: Omnidirectional
Weight: 40,5 kg ( 89,3 lb )

SKU: ALTEA-718 Categories: Professional Sound, Speakers, Subwoofer Tag: DAS Audio Brand: DAS Audio

Description

Product description

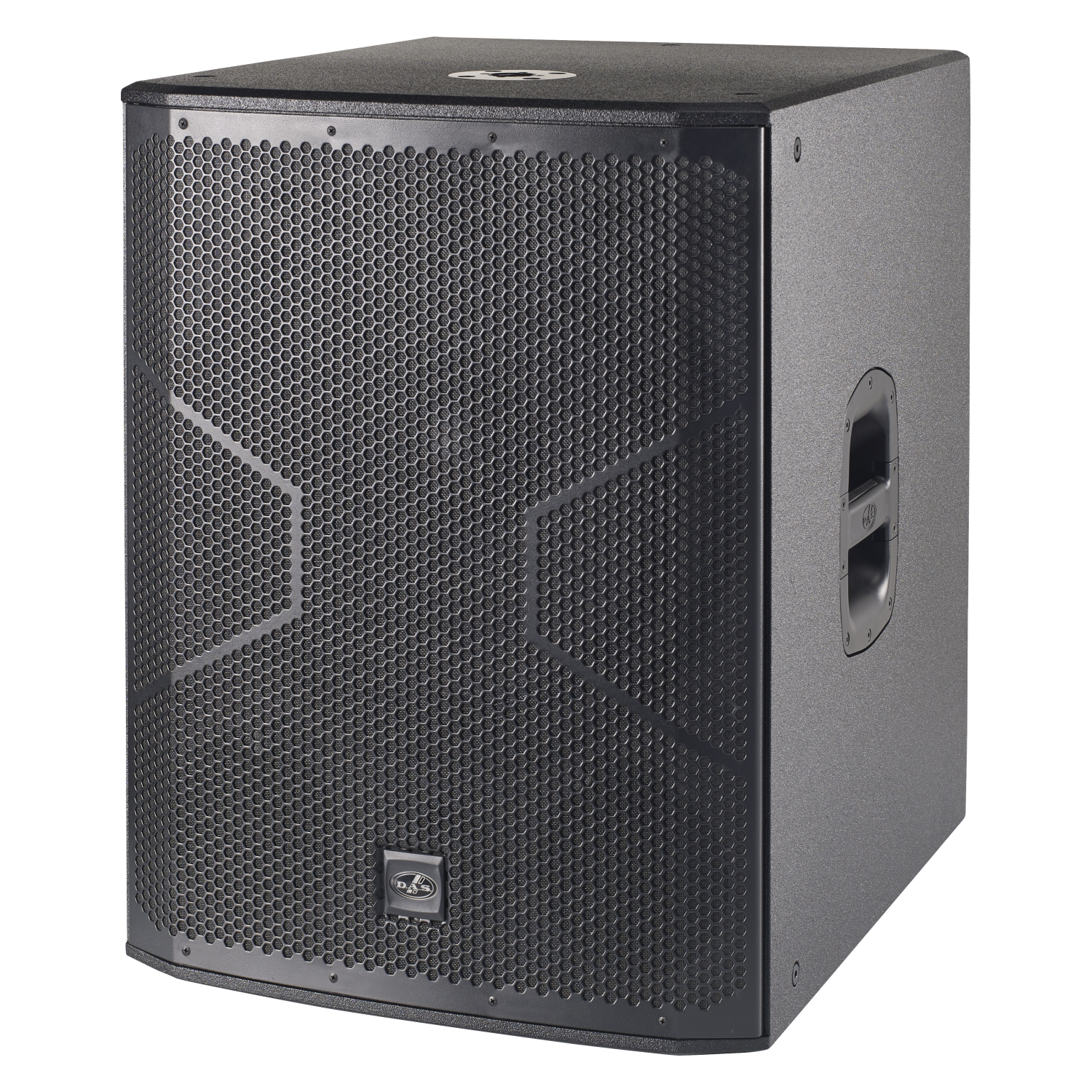

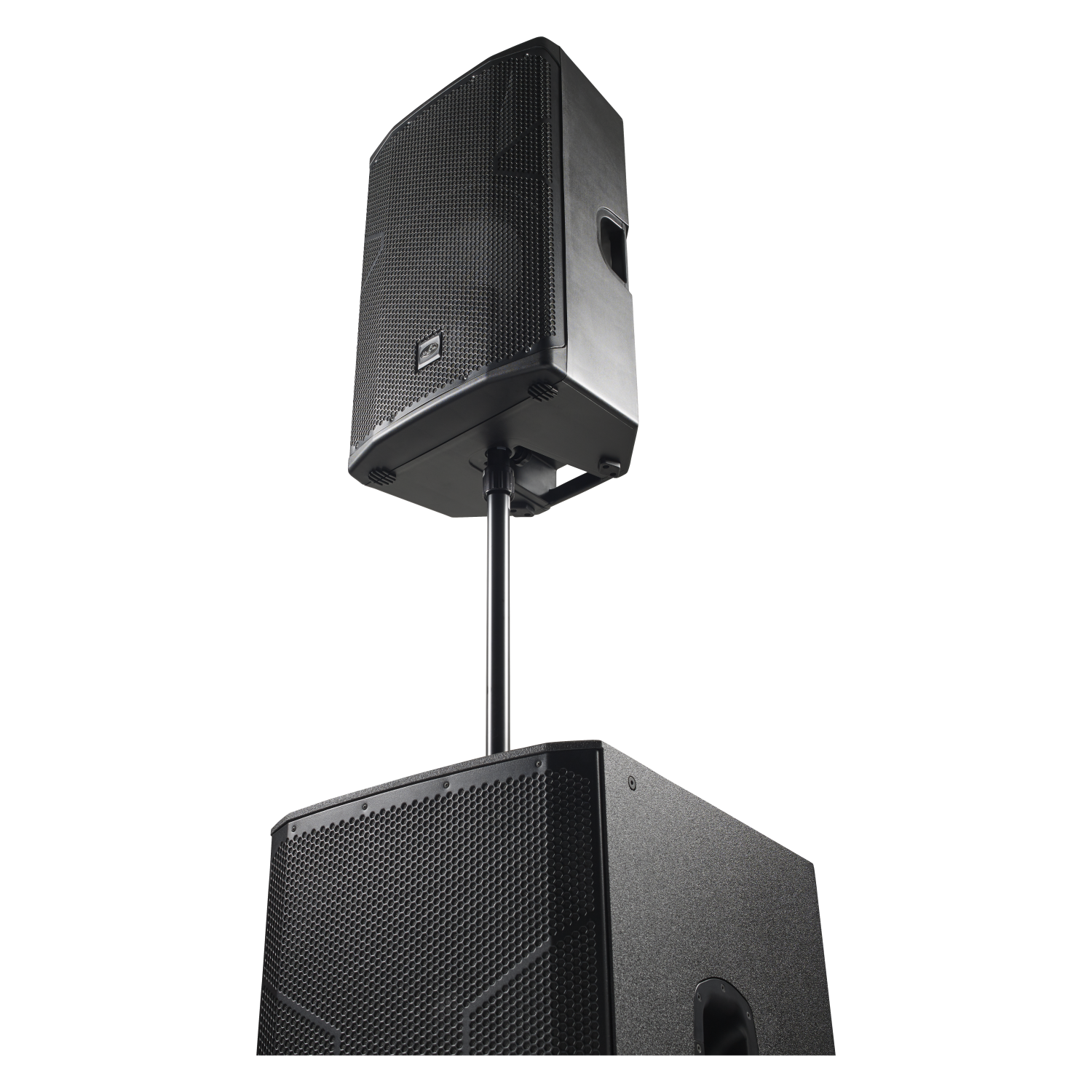

The ALTEA-718 is a powerful subwoofer system designed to provide extended bass response for the ALTEA full-range cabinets. At the heart of the system is a DAS 18FW bass loudspeaker. This loudspeaker incorporates a FEM optimized high-efficiency speaker design and an extended 3″ voice coil for long excursions. Cooling is assured thanks to the 18FW´s vented pole piece and abundant apertures in the speaker’s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.

The compact Birch plywood cabinet is protected with a tough ISO-flex outer coating for long years of use in portable systems.

Performance

Frequency Range (-10 dB)

45 Hz – 138 Hz

Nominal Impedance

8 ohms

RMS Power Handling

600 W

Peak Power Handling

2400 W

On-axis Sensitivity 1W/1 m

98 dB SPL

Maximum Peak SPL at 1 m

134 dB

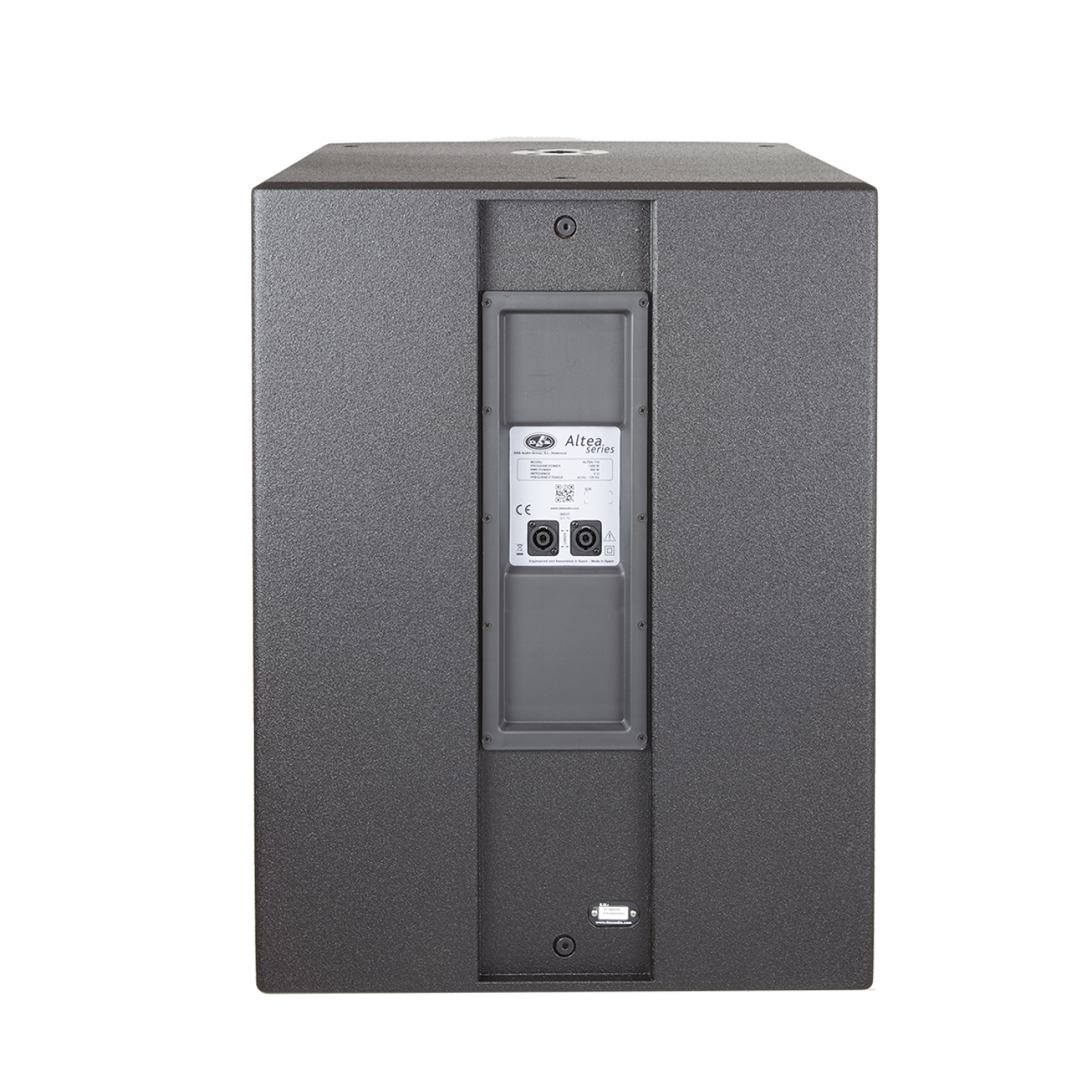

Connectors

Audio Input Connector

1 x speakON NL4

Audio Output Connector

1 x speakON NL4

Enclosure

Enclosure Construction

Birch Plywood

Enclosure Geometry

Rectangular

Rigging

M10 Rigging Points

Finish

ISO-flex Paint

Color

Black

Dimensions ( H x W x D )

720 x 545 x 650 mm28,4 x 21,5 x 25,6 in

Net Weight

40,5 kg ( 89,3 lb )

Components

LF Driver

18FW

Shipping

Carton Dimensions ( H x W x D)

820 x 600 x 700 mm32,3 x 23,6 x 27,6 in

Shipping Weight

44,5 kg ( 98,1 lb )
