DECO-5 DAS Audio

RM450.00

20 W, 5.25″ dual cone passive full-range ceiling speaker, 8 ohm, white

  • SPL Max: 108 dB
  • Dispersion: 100º
  • Weight: 0,7 kg ( 1,5 lb )
  • Weight: 0,9 kg ( 2,0 lb )
SKU: DECO-5 Categories: , , Tag: Brand:

Description

Product description

The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings.

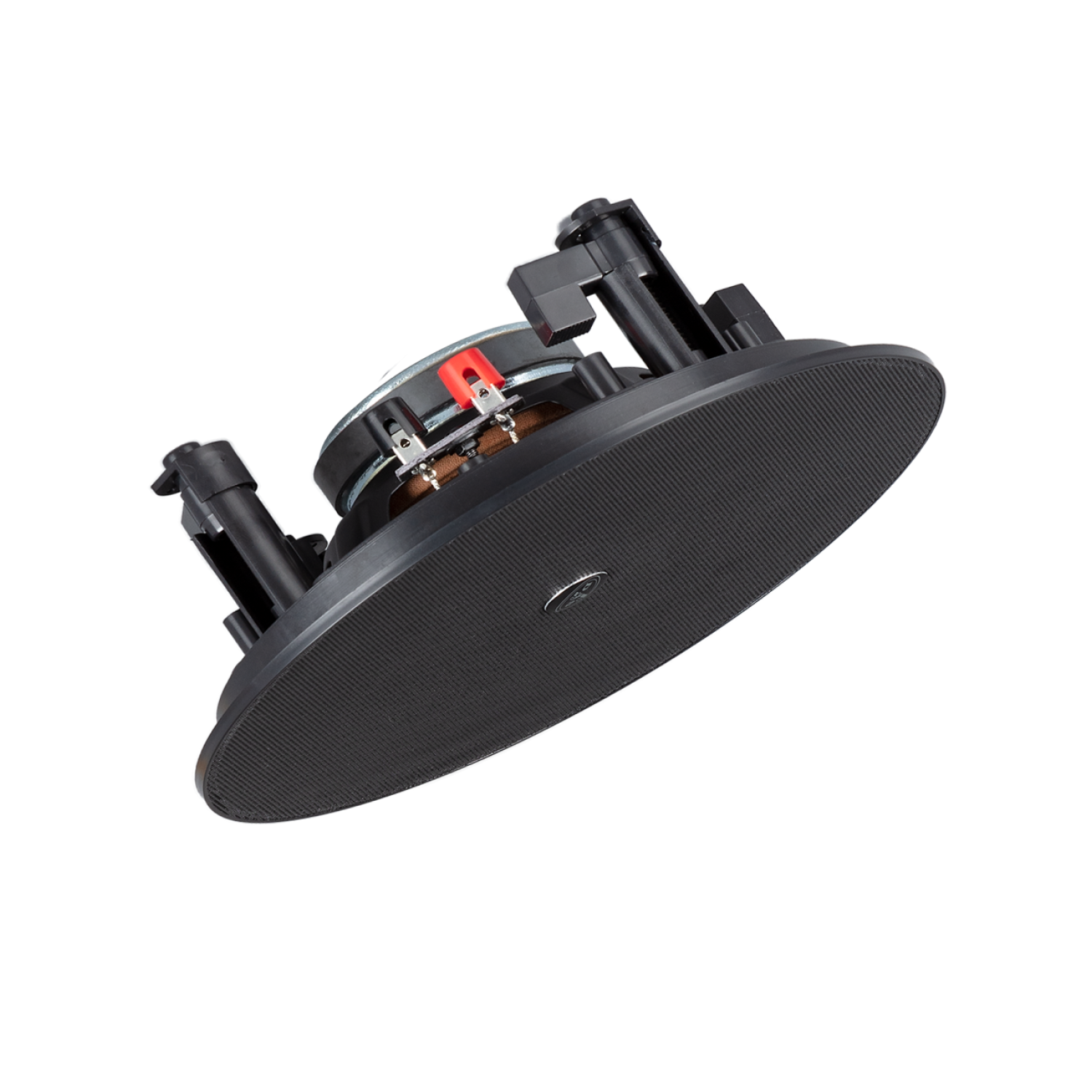

The DECO-5 model is a 5″ full-range ceiling-mounted acoustic system. It does not include a transformer and is specifically designed for low impedance. It is equipped with a 5.25″ double cone loudspeaker and a 1″ voice coil. A frameless grille design means the system extends just 3 mm from the ceiling, making it practically invisible.

DECO-5-T

6 W, 5.25″ dual cone passive full-range ceiling speaker, 70 V/100 V line transformer, white

The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings.

The DECO-5T model is a 5″ full-range ceiling-mounted acoustic system. It features a 6W 100V line transformer and is specifically designed for high impedance. It is equipped with a 5.25″ double cone loudspeaker and a 1″ voice coil. A frameless grille design means the system extends just 3 mm from the ceiling, making it practically invisible.

Performance

Frequency Range (-10 dB)
70 Hz – 15 kHz
Nominal Impedance
8 ohms
Conical Coverage
100º
RMS Power Handling
20 W
Peak Power Handling
80 W
On-axis Sensitivity 1W/1 m
89 dB SPL
Maximum Peak SPL at 1 m
108 dB
Recommended Amplifier
INTEGRAL-A402INTEGRAL-A404INTEGRAL-A1002INTEGRAL-A1004INTEGRAL-A1602INTEGRAL-A1604INTEGRAL-MA1004INTEGRAL-MA1604
Recommended Processor
INTEGRAL-M88INTEGRAL-MA1604INTEGRAL-MA1004
Transformer Taps 70 V
Tap1, 1.5 W. Tap2, 3 W. Tap3 6 W.
Transformer Taps 100 V
Tap1, 3 W. Tap2, 6 W. Tap3 X.

Connectors

Audio Input Connector
Spring Terminals
Audio Output Connector
Spring Terminals

Enclosure

Enclosure Geometry
Round
Color
White
Cut Out Diameter
181 mm (7,2 in)
Dimensions ( H x W x D )
205 x 205 x 75 mm8,0 x 8,0 x 3,0 in
Net Weight
0,9 kg ( 2,0 lb )

Shipping

Carton Dimensions ( H x W x D )
250 x 230 x 370 mm9,8 x 9,1 x 14,6 in
Shipping Weight
1,0 kg ( 2,2 lb )
