ARTEC-S15 DAS Audio

RM7,970.00

Passive, 800 W, 15″, band-pass subwoofer, black

SPL Max: 137 dB
Dispersion: Omnidirectional
Weight: 32,0 kg ( 70,6 lb )

SKU: ARTEC-S15 Categories: Professional Sound, Speakers, Subwoofer Tag: DAS Audio Brand: DAS Audio

Description

Product description

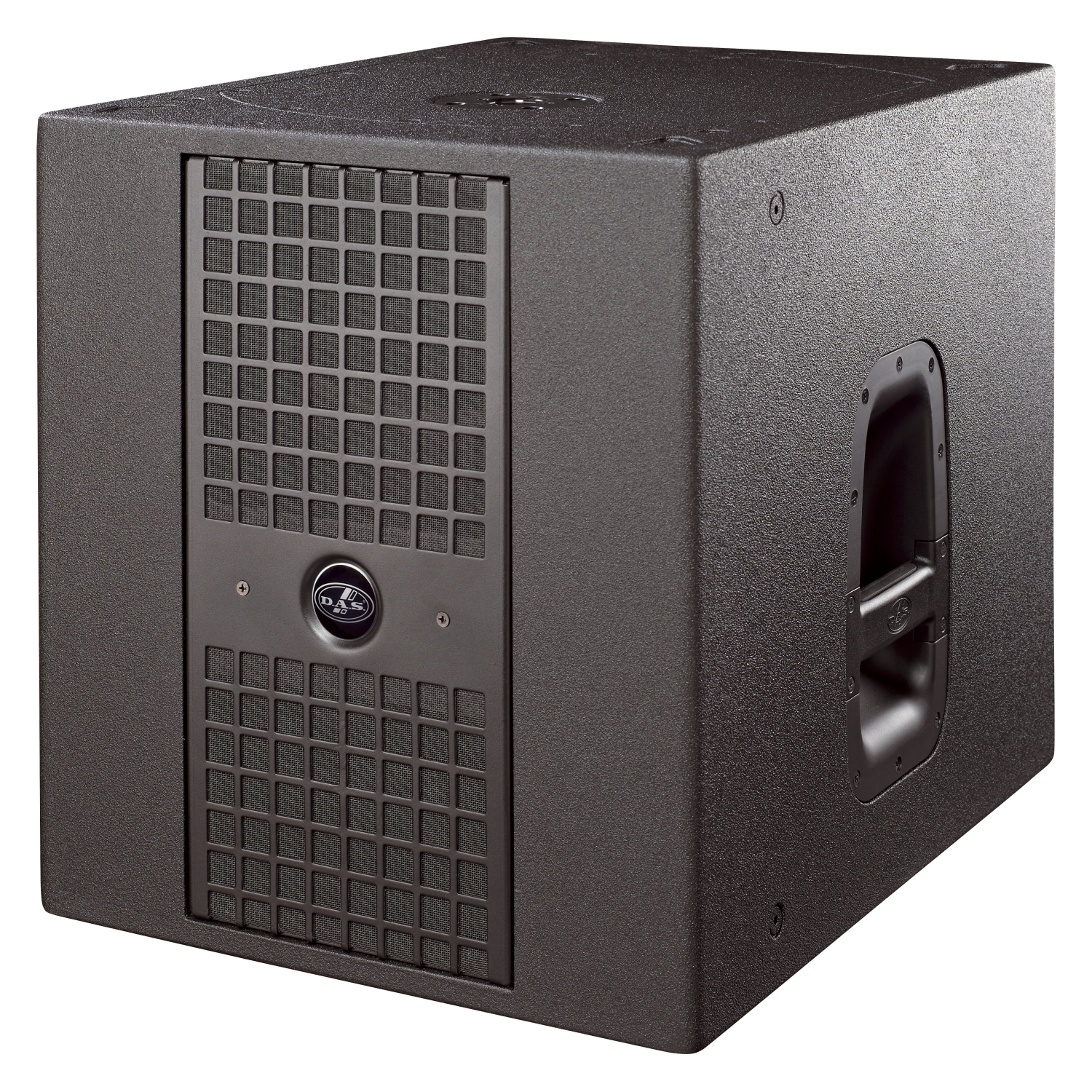

The Artec S15 band-pass bass system incorporates a 15SX low frequency transducer with a 4 ” voice coil. The loudspeaker is protected by a perforated steel grille, sealed against corrosion using a powder coat finish. The Artec S15 is designed for use in biamped systems. A top-located pole-mount socket permits mounting full-range systems above the Artec S15 and two bar handles makes moving easy.

ARTEC-S15-W

Passive, 800 W, 15″, band-pass subwoofer, white

Performance

Frequency Range (-10 dB)

45 Hz – 138 Hz

Nominal Impedance

8 ohms

RMS Power Handling

800 W

Peak Power Handling

3200 W

On-axis Sensitivity 1W/1 m

99 dB SPL

Maximum Peak SPL at 1 m

137 dB

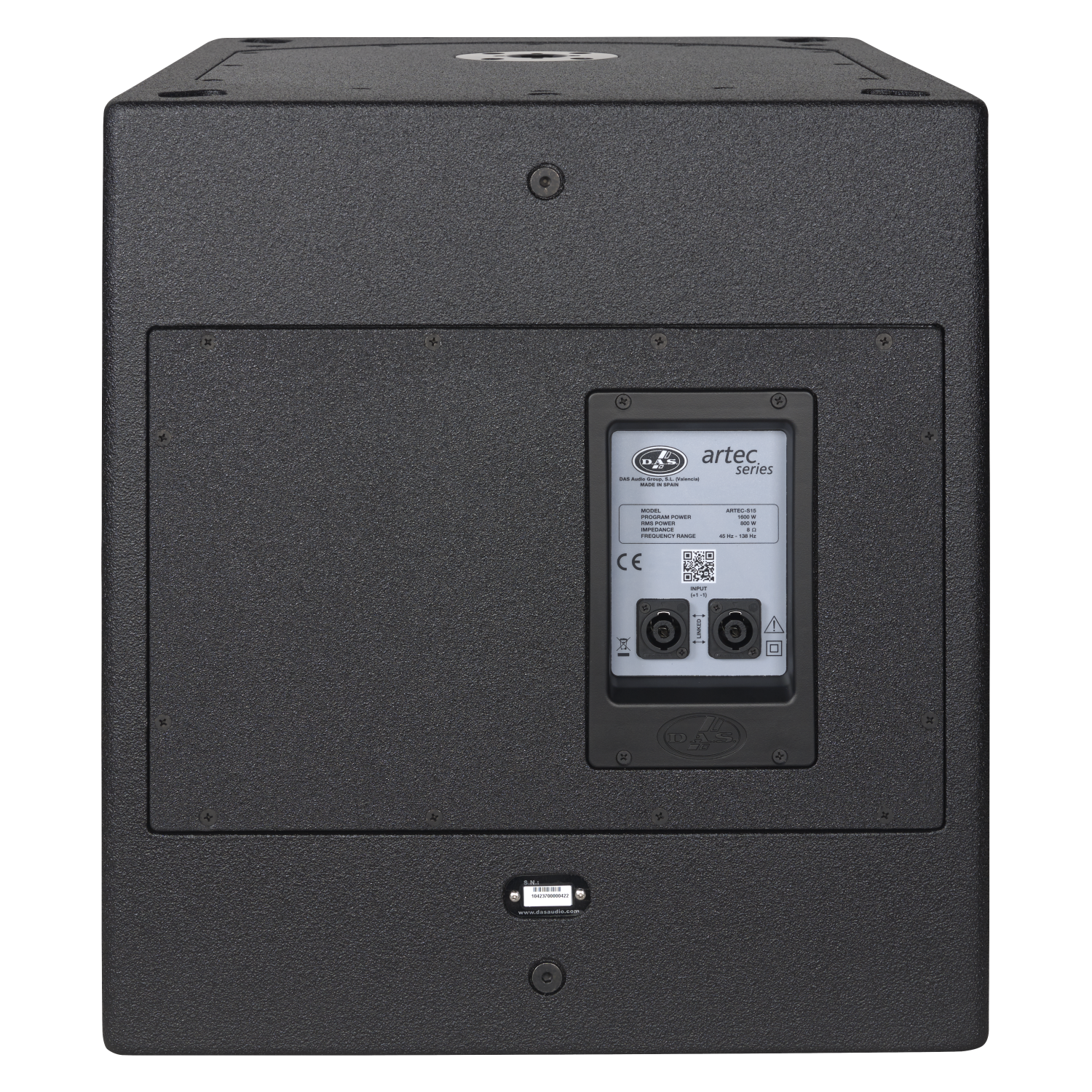

Connectors

Audio Input Connector

1 x speakON NL4

Audio Output Connector

1 x speakON NL4

Enclosure

Enclosure Construction

Birch Plywood

Enclosure Geometry

Rectangular

Rigging

M10 Rigging Points

Finish

ISO-flex Paint

Color

White

Dimensions ( H x W x D )

515 x 465 x 585 mm20,3 x 18,3 x 23,0 in

Net Weight

32,0 kg ( 70,6 lb )

Components

LF Driver

15LXN

Shipping

Carton Dimensions ( H x W x D)

580 x 510 x 632 mm22,8 x 20,1 x 24,9 in

Shipping Weight

34,5 kg ( 76,1 lb )
