XC-44F Wharfedale Pro

RM4,000.00

Maximise and Protect, ethernet connectivity.

  • RMS Compressors and Peak Limiters.
  • Dual band Dynamic EQ stage on Inputs.
  • 96 KHz sampling frequency
  • PC Software control
  • USB, Ethernet and RS485
SKU: XC-44F Categories: , , Tag: Brand:

Description

Product description

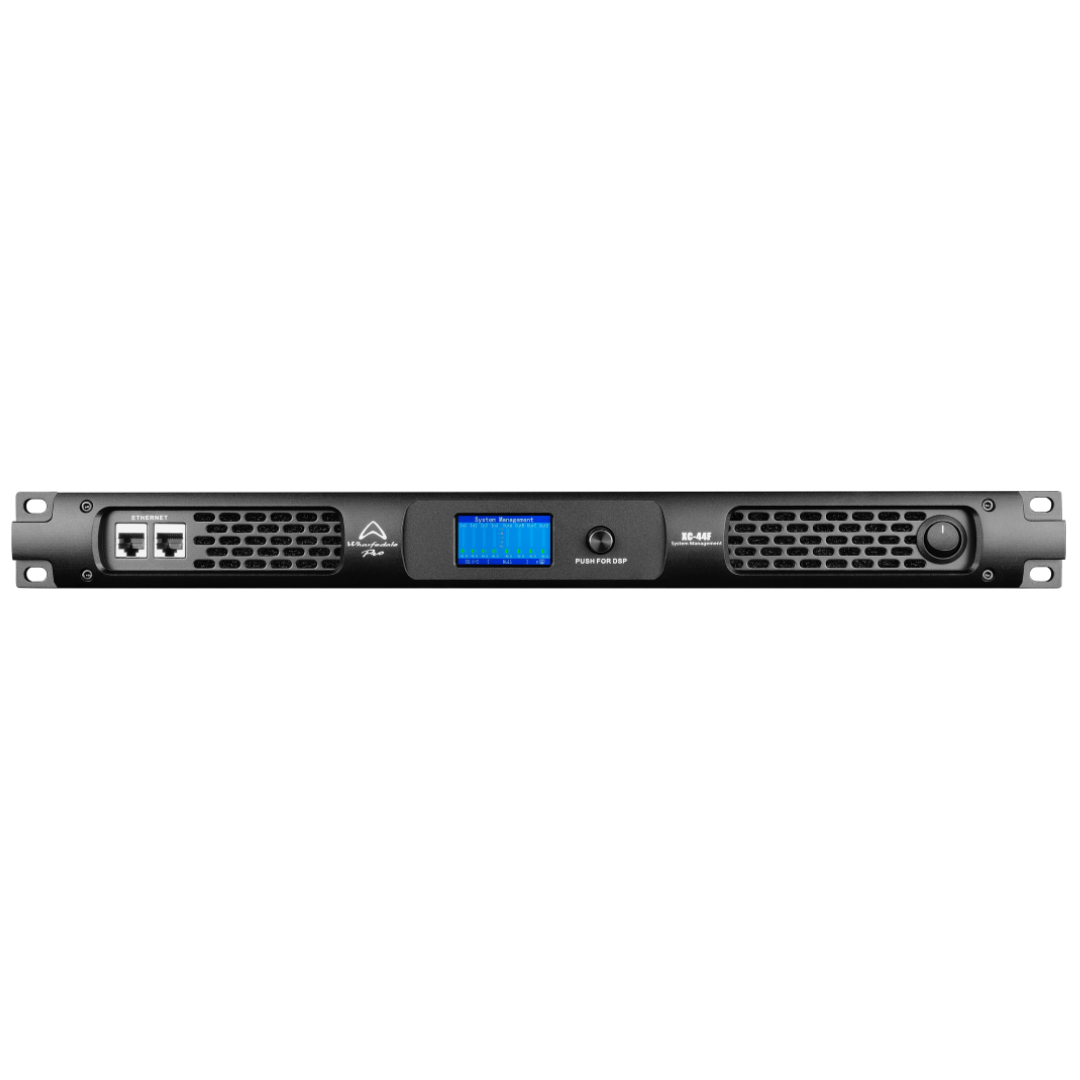

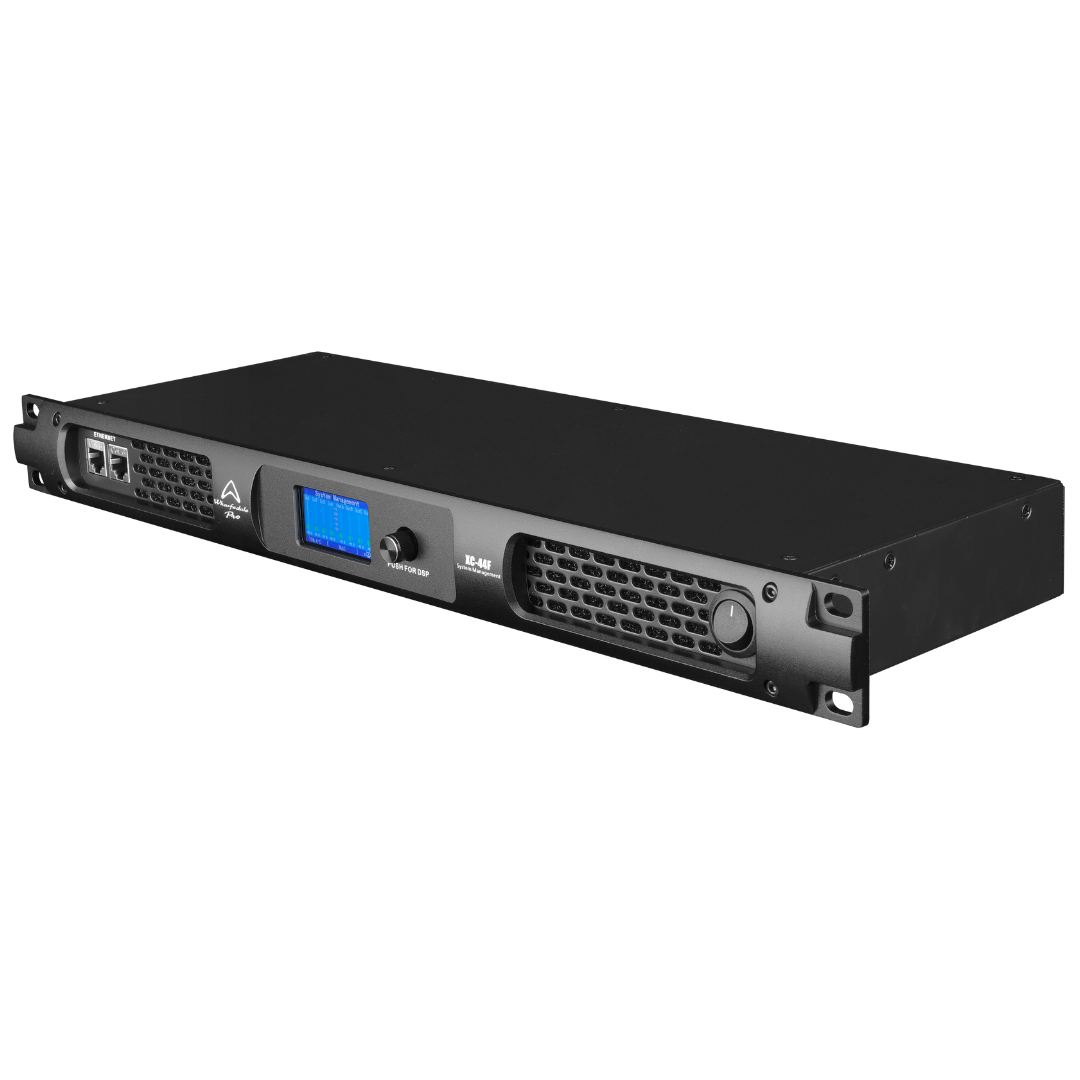

XC-44F is a 4-in / 4-out system management controller designed to deliver precise DSP control, advanced protection, and enhanced definition to any loudspeaker system.

Harnessing the same DSP engine technology found in our DP-F and DP-N amplifiers, XC-44F offers full compatibility across platforms, allowing seamless migration and familiar operation within the Wharfedale Pro ecosystem.

Equipped with comprehensive FIR filters, advanced dynamics processing, and an extensive library of Wharfedale Pro loudspeaker presets, the XC-44F ensures optimal performance and consistent results in both touring and installation environments.

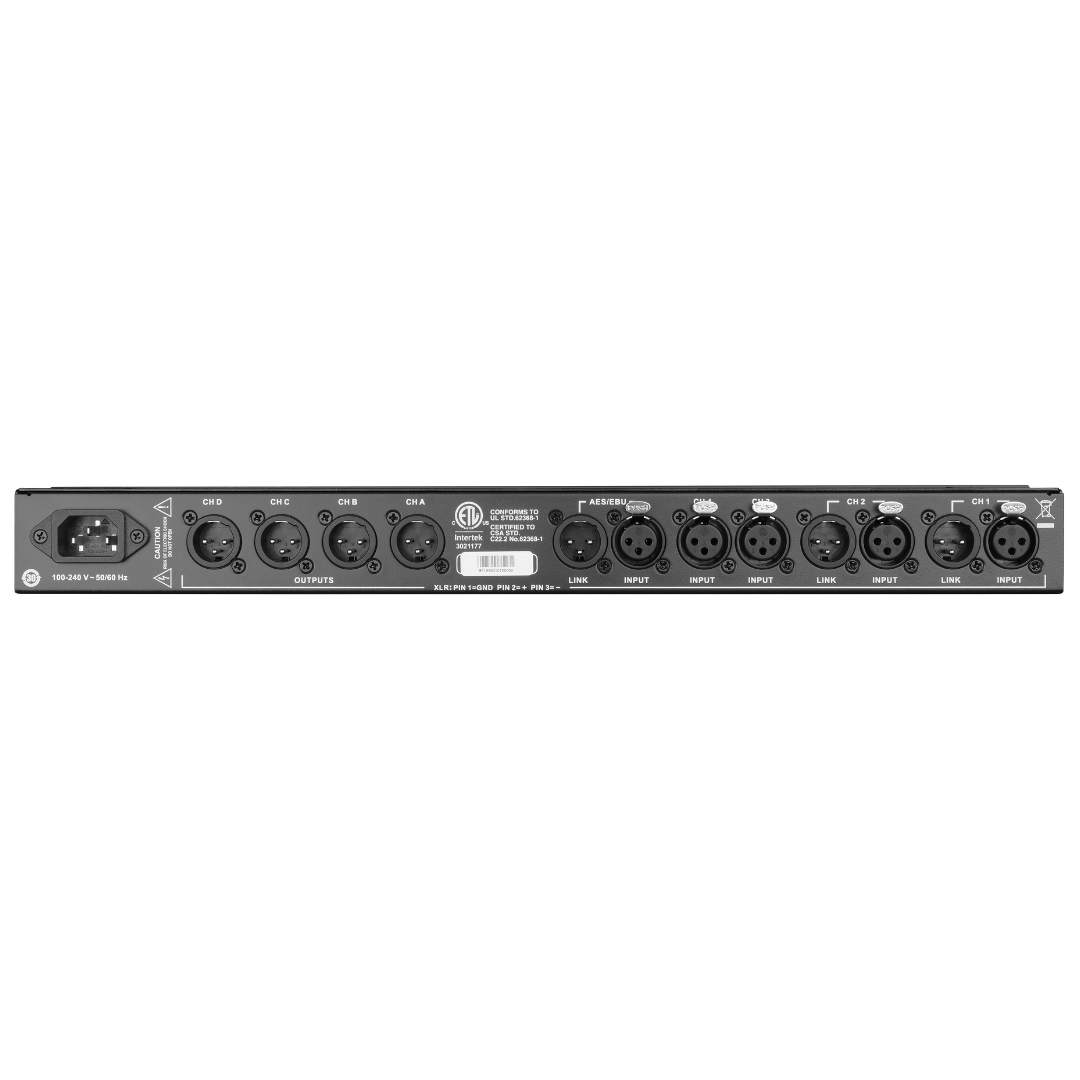

Featuring analogue and AES/EBU inputs with link outputs, plus Ethernet connectivity for remote control, the XC-44F integrates effortlessly with our DSP Controller software. Locking XLR connectors ensure secure signal paths for demanding professional use.

Specifications

Inputs
4
Outputs
4
Input Type
Analog, AES/EBU, Ethernet
Controller Data Connection
Ethernet
Input Connections
Locking XLR Input Connectors
Output Connections
XLR
Input Impedance
20 kΩ（Balanced), 10 kΩ（Unbalanced)
Output Impedance
600 Ω
Max Input Level
+20 dBu
Max Output Level
+20 dBu
Frequency Response
typical:+0, -1 dB(0 dB,20 Hz-20 kHz)
FIR
Yes
SNR
>105 dB（A weighted）
User Presets
Yes
Ethernet
Yes
Display Type
1.9-inch colour LCD display screen
Password Protected
Yes
Main Power
100 VAC - 240 VAC wide voltage range
Included Accessory
Power Cable, User Manual, Rubber Feet
Unpacked - Height (mm)
45
Unpacked - Width Front (mm)
483
Unpacked - Width Rear (mm)
483
Unpacked - Depth (mm)
160
Packed - Height (mm)
95
Packed - Width Front (mm)
540
Packed - Width Rear (mm)
540
Packed - Depth (mm)
270
Weight - Nett (kg)
2.2
Weight - Gross (kg)
2.8
