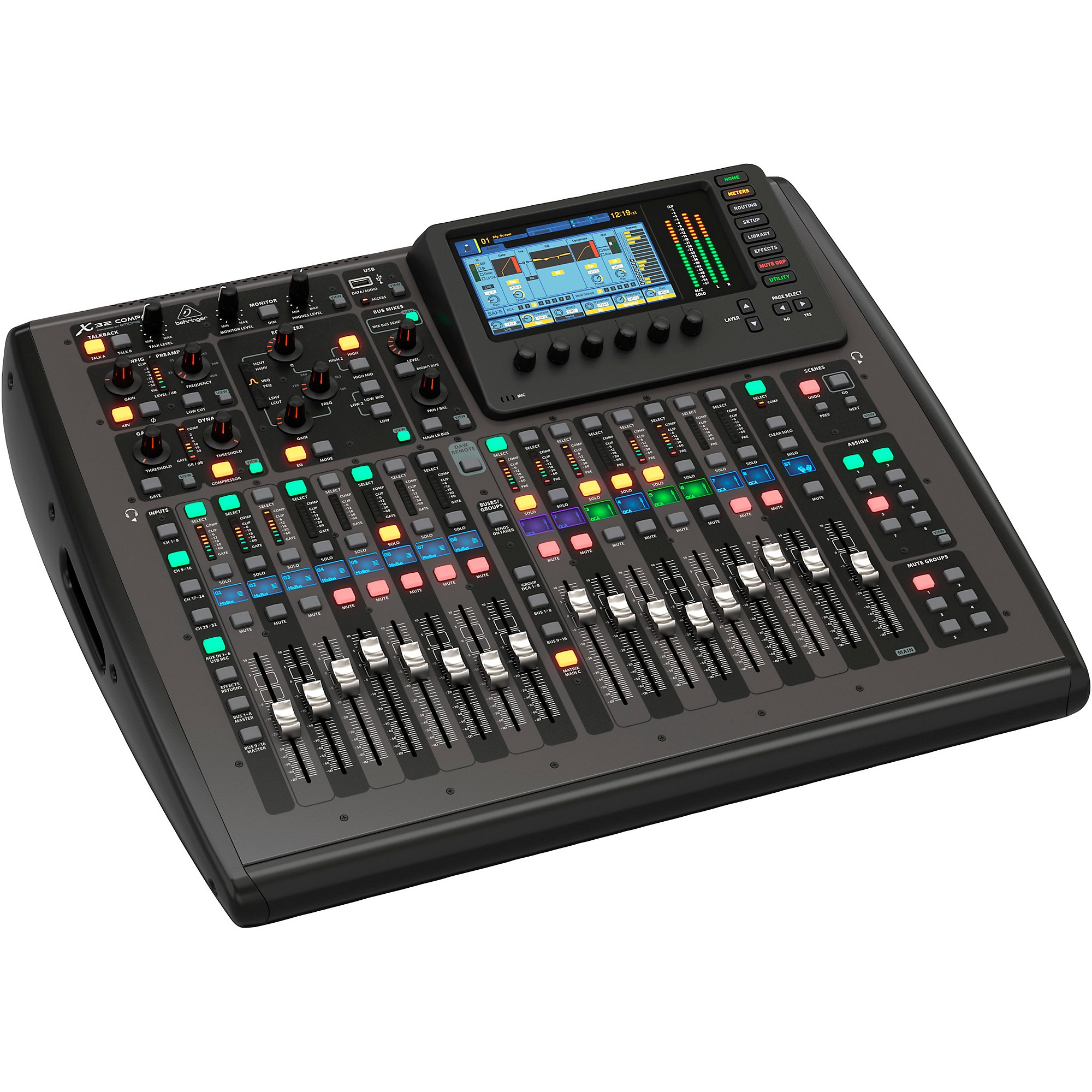

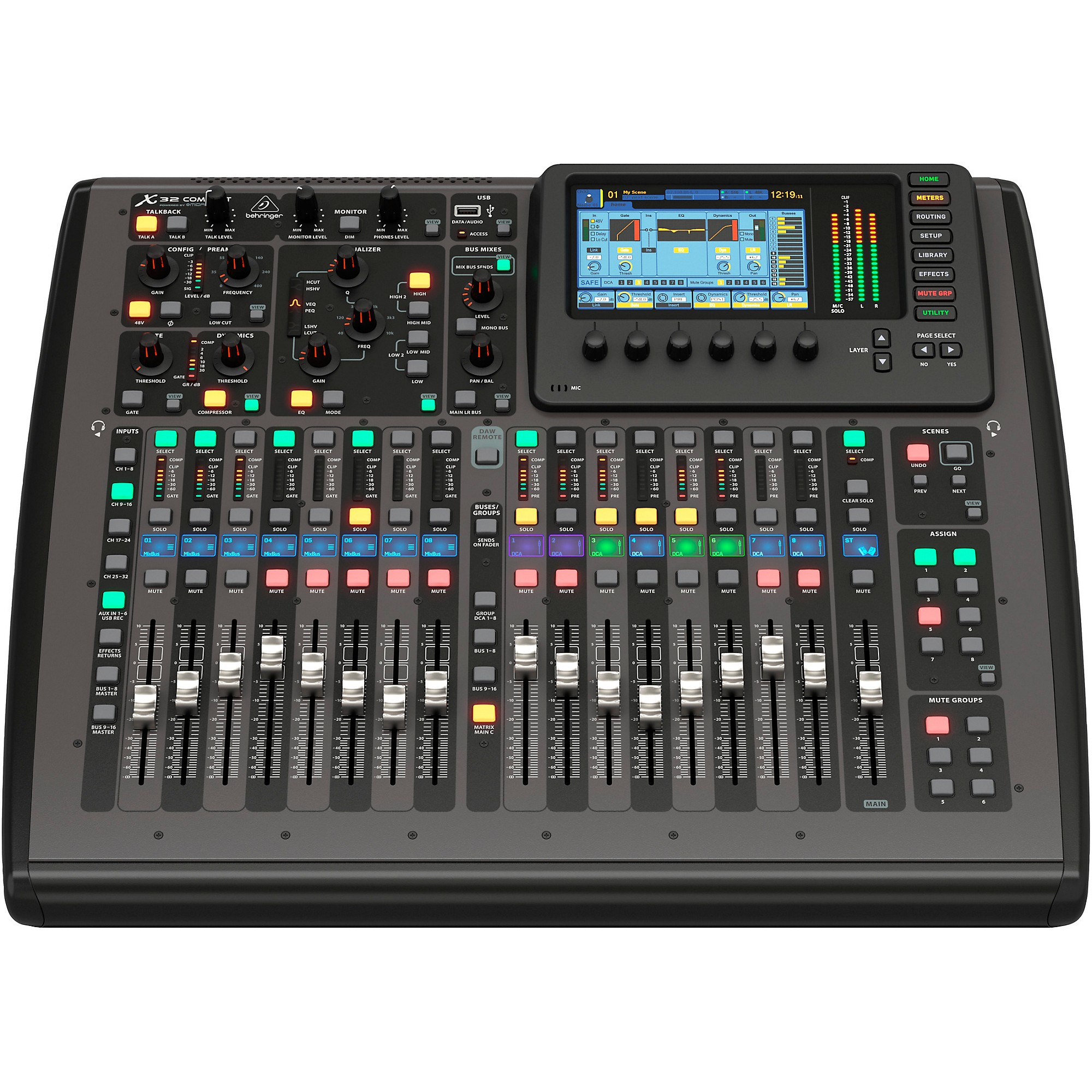

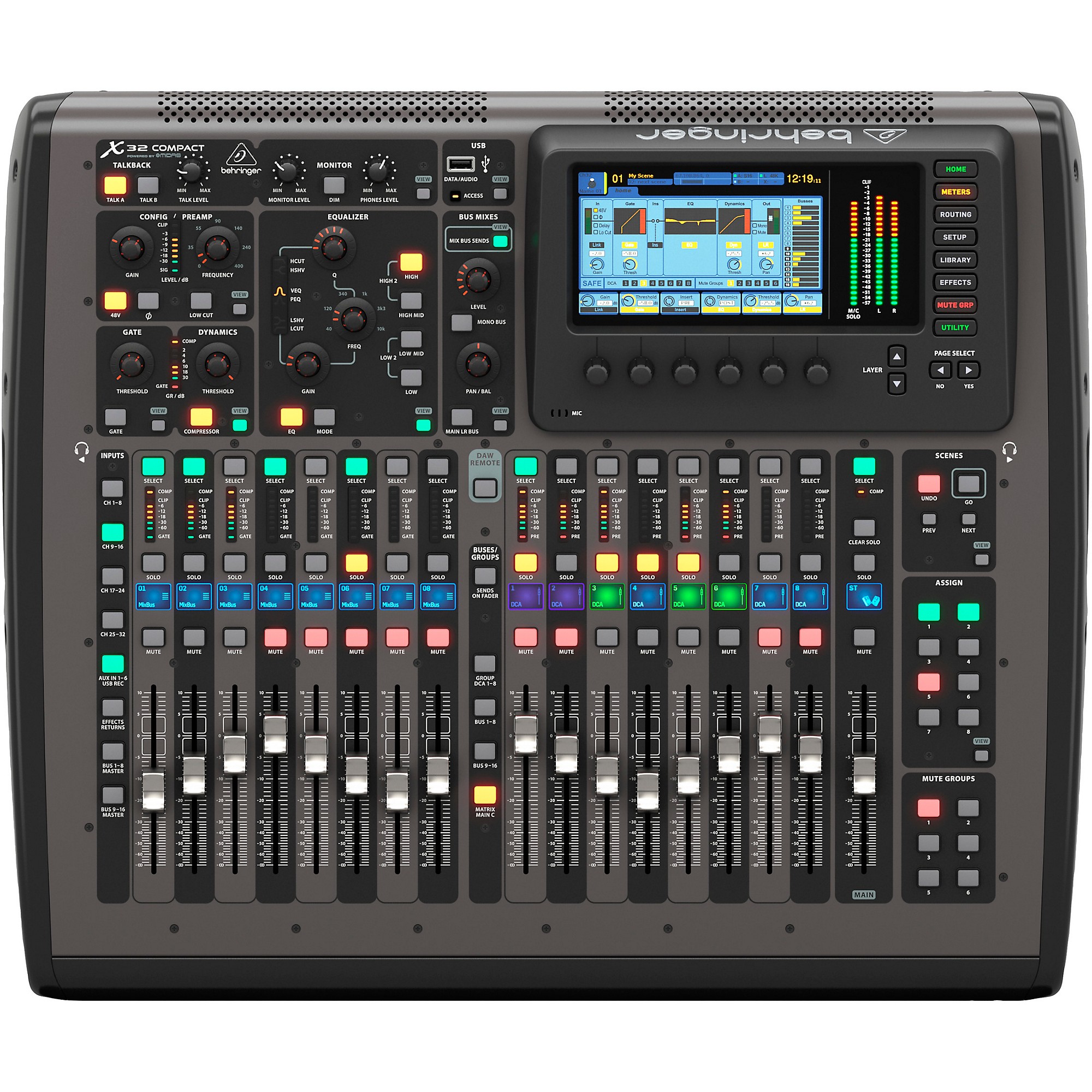

X32 COMPACT Behringer
X32 COMPACT Behringer - Image 2
X32 COMPACT Behringer - Image 3
X32 COMPACT Behringer - Image 4
X32 COMPACT Behringer - Image 5

X32 COMPACT Behringer

RM7,890.00

SPECIFICATION

  • Compact 40-input channel, 25-bus digital mixing console for Studio and Live application
  • 16 Midas-designed, fully programmable mic preamps for audiophile sound quality
  • 17 Fully automated motorized 100 mm faders allow for instant overview, powerful scene management and DAW control
  • 8 XLR outputs plus 6 additional line in/outputs, 2 phones connectors and a talkback section with integrated or external mic
  • Individual and dynamic LCD Scribble Strips on all channels and buses creating easy assignment and intuitive channel distinction
  • 32 x 32 channel USB 2.0 audio interface, with DAW remote control emulating HUI and Mackie Control
  • iPad and iPhone apps for professional remote operation available free of charge no host PC required
  • High-resolution 7″ day-viewable Color TFT for easy viewing of workflow components and parameters
  • Main LCR, 6 matrix buses and all 16 mix buses each featuring inserts, 6-band parametric EQ’s and full dynamics processing, plus 8 DCA and 6 mute groups
  • Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L and PCM70, EMT250 and Quantec QRS etc.
  • 40-Bit floating-point DSP features “unlimited” dynamic range with no internal overload and near-zero overall latency (0.8 msec)
  • Powerful scene management for convenient handling of complex productions
  • 48-channel Digital Snake ready via dual AES50 ports, featuring Klark Teknik’s SuperMAC networking capability for ultra-low jitter and latency
  • USB type-A connector providing file storage and uncompressed stereo recordings plus show presets and system updates
  • Dedicated and easy-to-use channel strip section with direct access controls and graphic user interface for intuitive workflow
  • Additional user-definable control section allows to set up short-cuts to your favorite views or parameters
  • ULTRANET connectivity for Behringer’s P-16 Personal Monitoring System plus AES/EBU stereo digital output and MIDI
  • Networked remote control for show setups with on-screen software editor via Ethernet
  • Built-in expansion port for audio interface cards or digital networking bridges
  • Future firmware updates, incl. new FX “Plug Ins”, downloadable from behringer.com free of charge
SKU: X32 COMPACT Categories: , Tag: Brand:

Description

Product description

Compact 40-Input, 25-Bus Digital Mixing Console with 16 Programmable Midas Preamps, 17 Motorized Faders,-Channel LCD’s, 32-Channel Audio Interface and iPad/iPhone Remote Control

Thanks to its legendary onboard X32 mix engine, the X32 COMPACT can be your top-notch studio recording interface today, control a complex theater production tomorrow, or sit securely in your side-rack while you mix your band’s club gig from your iPad. A revolution in its own right, the incredible X32 COMPACT combines the finest analog I/O and powerful digital connectivity with ample processing for 40 channels, 25 buses and up to 152 signal sources. You can easily control every parameter of the mix directly on the X32 COMPACT using the 800 x 480 graphic UI, but the awesome flexibility of networked remote control literally opens up an amazing world of possibilities. Use our X32-EDIT PC/Mac/Linux application, X32-MIX for iPad, X32-Q for iPhone/iPod touch and X32-Q for Android to control the mix from anywhere in the room. You can even run multiple instances of these powerful apps at the same time, giving your performers the ability to mix their own personal monitors on-the-fly! With its 16 Midas -design mic preamps and dual AES50 ports, the X32 COMPACT can support up to six S16 digital stage boxes for massive I/O connectivity. Ultra-flexible routing options and 8 powerful stereo FX engines make the X32 COMPACT the ideal choice for handling audio now – and as your needs grow.

Key Specs

Mixer

Signal Processing

Digital Audio

Performance

Connectivity

Recording

Compatibility

Power

Physical

Packaging Info

Specifications

Max I/O Capacity
40x Input / 25x Output
Number of Analog Input Channels
16
Number of Mic Preamps
16
Number of Analog Output Channels
8
Faders & Level Adjustment
17x 3.9" / 100 mm Motorized Fader(Touch Sensitive)
Analog Inputs
16x XLR 3-Pin Balanced Mic/Line Input1x XLR 3-Pin Balanced Mic/Talkback Input1x Stereo RCA Coaxial Unbalanced Aux Input6x 1/4" TRS Aux Return
Analog Outputs
8x XLR Main/Bus Output1x Stereo RCA Aux Output2x XLR Control Room/Monitor Output2x 1/4" Control Room/Monitor Output6x 1/4" Aux Output2x 1/4" Headphone Output
Digital I/O
1x RJ45 Ethernet (Control, 1 Gb/s)1x RJ45 Ultranet (I/O)2x RJ45 AES50 (I/O)1x XLR AES3 Output
USB I/O
USB-BUSB-B
Wireless
No
Rack Mountable
No

Mixer

Max I/O Capacity
40x Input / 25x Output
Number of Analog Input Channels
16
Number of Mic Preamps
16
Number of Analog Output Channels
8
Mix Routing
25x Stereo Bus
Groups
8x DCA Group6x Mute Group
Presets
No
Display
7" LCD (Daylight-Viewable)
Faders & Level Adjustment
17x 3.9" / 100 mm Motorized Fader(Touch Sensitive)
Meters
2x 24-Segment LED

Signal Processing

Gain/Trim Range
Mic:0 dB to +72 dB
Input Polarity
Normal/Reverse
Dynamic Processing
Input Channels:Compressor, Limiter, Soft Limiter, Gate
EQ
6-Band EQ
Graphic EQ
31-Band 1/3 Octave
Solo/Mute
Solo, Mute per Input ChannelMute per Master
Automatic Mic Mixing
No
Sample Rates
44.1 / 48 kHz
Bit Depth
AD/DA Conversion:24-Bit

Performance

Frequency Response
10 Hz to 22 kHz +0/-1 dB (at 48 kHz)
Max Input Level
Mic Input:+23 dBuLine Input:+16 dBu
Analog Dynamic Range
Input to Output:106 dB at Unity Gain
I/O Impedance
XLR Mic Input:5 Kilohms (Unbalanced)10 Kilohms (Balanced)1/4" TRS Line Input:20 Kilohms (Unbalanced)40 Kilohms (Balanced)XLR Output:75 Ohms (Balanced/Unbalanced)Line Output:150 Ohms (Unbalanced)300 Ohms (Balanced)
Noise Floor
-87 dB A-Weighted
THD+N
Mic Input to Analog Output:0.006% at +20 dB Gain (0 dBu)
Analog Inputs
16x XLR 3-Pin Balanced Mic/Line Input1x XLR 3-Pin Balanced Mic/Talkback Input1x Stereo RCA Coaxial Unbalanced Aux Input6x 1/4" TRS Aux Return
Analog Outputs
8x XLR 3-Pin Main/Bus Output1x Stereo RCA Aux Output (1 Stereo Pair)2x XLR 3-Pin Stereo Control Room/Monitor Output (1 Stereo Pair)2x 1/4" TRS Stereo Control Room/Monitor Output6x 1/4" TRS Aux Output2x 1/4" TRS Headphone Output
Phantom Power
+48 V (Selectable on Individual Inputs)
Digital I/O
1x RJ45 Ethernet (Control, 1 Gb/s)1x RJ45 Ultranet (I/O)2x RJ45 AES50 (I/O)1x XLR AES3 Output
MIDI I/O
1x MIDI 5-Pin In1x MIDI 5-Pin Out
USB I/O
1x USB-B 2.0 (Control)1x USB-B 2.0 (Audio Playback, Multitrack Record)
USB I/O Capacity
32x Input / 32x Output
Expansion Ports
No
Wireless
No
Mobile App Compatible
Yes: Android & iOSApp Name: X32-Mix, X32-QFunctionality: Adjust Settings, Remote Control, Setup
External Display I/O
No
Max Multitrack Recording
32 Tracks
Media Support
USB Drive
OS Compatibility
macOSWindows
Mobile Device Compatibility
iPadAndroid SmartphoneAndroid Tablet

Power

Input Power
100 to 240 VAC, 50 / 60 Hz

Physical

Rack Mountable
No
Operating Conditions
41 to 104°F / 5 to 40°C
Dimensions
24.6 x 20 x 8.5" / 62.5 x 50.8 x 21.6 cm
Weight
33.9 lb / 15.4 kg
Package Weight
40.5 lb
Box Dimensions (LxWxH)
29.5 x 25 x 13"
