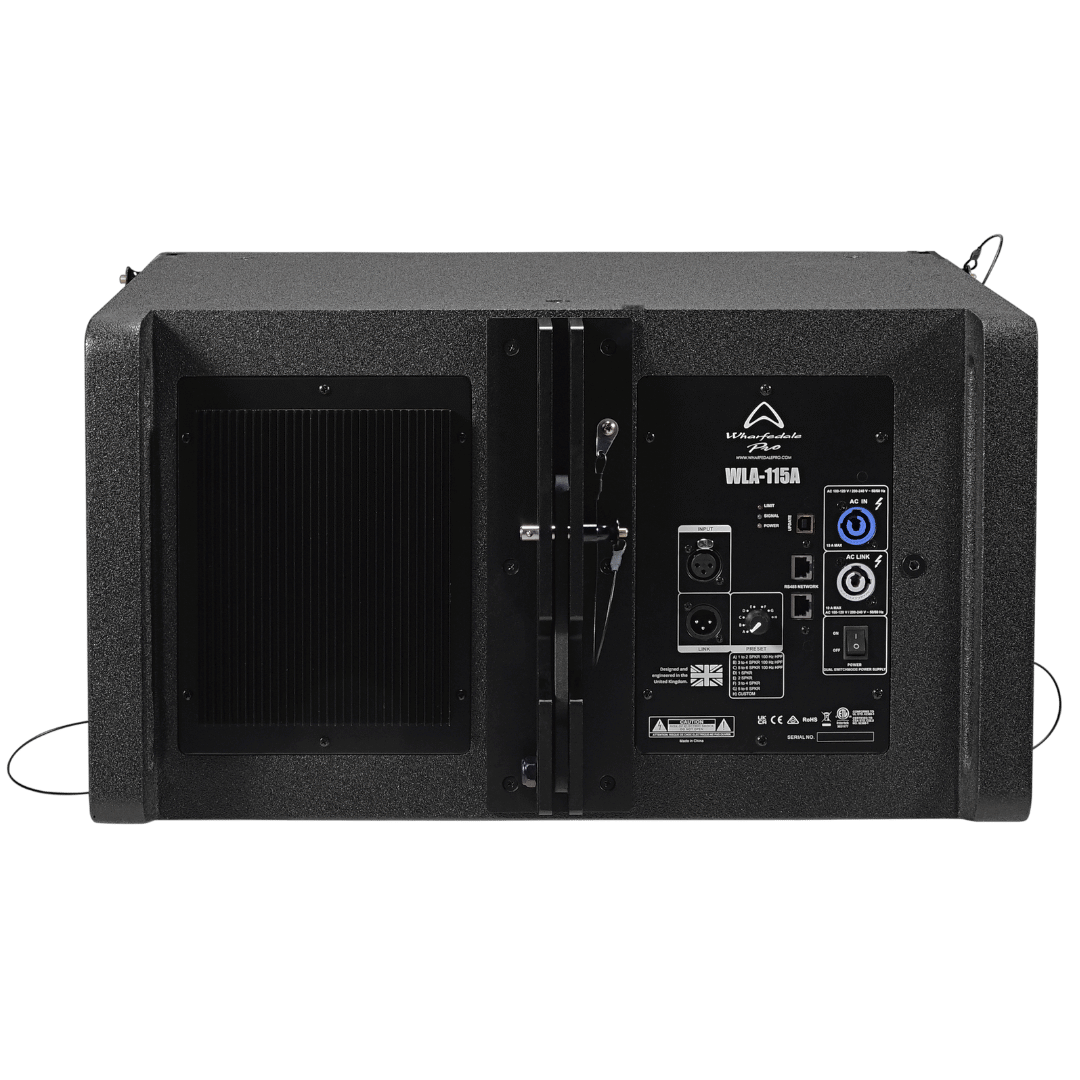

WLA-115A Wharfedale Pro - Image 3

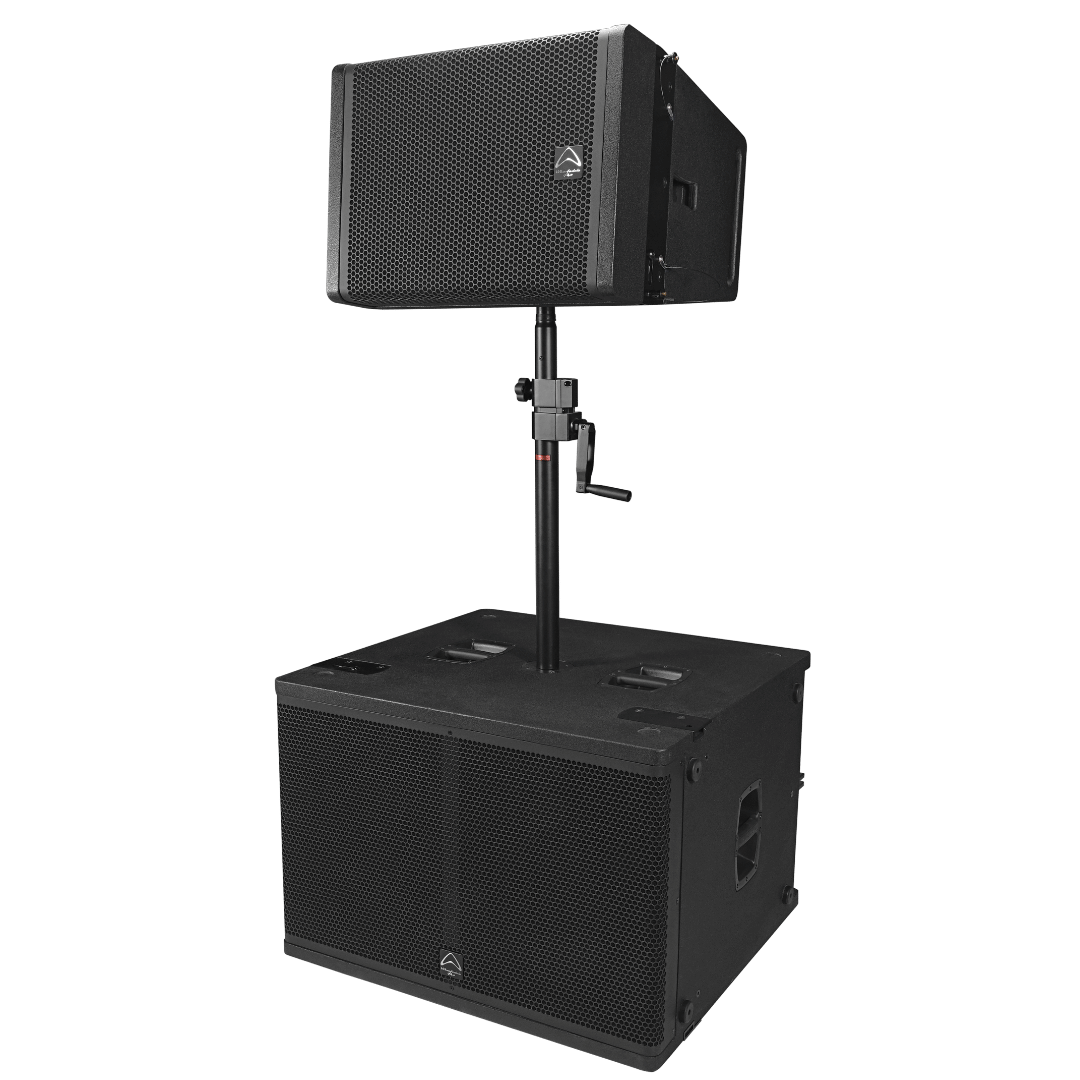

WLA-115A Wharfedale Pro - Image 4
WLA-115A Wharfedale Pro - Image 5

WLA-115A Wharfedale Pro

15″ active coaxial hybrid curvature array element

  • Active with DSP & FIR filters
  • 15″ Coaxial Beyma driver
  • 830 W Continuous
  • 1660 W Peak
  • 4.0″ LF voice coil
  • 2.87″ HF voice coil
  • 141 dB System Peak SPL
SKU: WLA-115A Categories: , , Tag: Brand:

Description

Product description

WLA-115A is a 15″ full-range active line array element from our WLA-1A System — delivering enhanced low-frequency depth and output power through integrated amplification and precision DSP control.

Equipped with a coaxial Beyma driver and our advanced EVO-Fold waveguide, it provides perfectly coherent coverage with exceptional clarity and tonal balance. Internal DSP with FIR filtering and software control with Pro=Link ensures optimal tuning, allowing seamless integration across any professional venue or touring setup.

With a 4.0″ LF driver voice coil and 2.87″ high-frequency voice coil, WLA-115A delivers 830 W continuous and 1660 W peak power, delivering a maximum SPL of 135 dB @ 1 m. Constructed from premium birch plywood with integral side plate rigging, it offers the power, precision and flexibility demanded by modern sound professionals.

Specifications

Active or Passive
Active
System Type
Array Element
Configuration
Coaxial 2-way
System Continuous Power
830 W
System Peak Power
1660 W
Max SPL @ 1m
135 dB
Freq Response (+/-3 dB)
42 Hz – 20 KHz
Freq Range (-10 dB)
25 Hz – 25 KHz
Bi-amp Mode Switch
No
Bluetooth
No
IP Certification
None
Driver Brand
Beyma
LF Driver Size
15"
LF Magnet Material
Ferrite
LF Frame Material
Aluminium
LF Voice Coil Size
4"
HF Driver Type
Compression Driver
HF Voice Coil Size
2.87"
HF Diaphragm Material
Composite Titanium / Polyester
HF Exit Size
1.5″
HF Power (RE:AES2-2012)
80 W
HF Rated Impedance
16 Ω
Vertical Splay Angle Range
0°- 5° – 10° – 15°
Horizontal Splay Angle
15°
Preset Library
No
Input Connector
Balanced Socket XLR
Waveguide Type
EVO-Fold
Cabinet Type
Trapezoid
Enclosure Material
Birch Plywood
Grille Material and Finish
Powder Coated Perforated Steel
Finish
Black Tough-Tone
Handles
2 side / 2 back
Deployment
Flying, Ground, Pole
Pole Mount
35 mm Dual Angle -2.5° / +7.5°
Brackets Included
Yes
Rigging
Yes
Integral Rigging
3 Points
Nominal Coverage (H x V)
100° x System dependant
Sensitivity 2.83 V / 1 m
102 dB
Crossover Frequency
1.2 kHz
Amplifier design
Class D
Driver Protection
Independent LF/ HF RMS and Peak Limiters
Thermal Protection
Amplifier Shut Down. Auto Reset
DC and Short Protection
Yes
Clip Limiter
Yes
Signal Processing
DSP Based, 8 FIR Presets
Low Line Voltage Shut Down
60% Nominal Line Voltage
Limiter Indicator
Red LED
Signal Indicator
Green LED
Power/Active Indicator
White LED
Find Function Indicator
Blue LED
Active loudspeaker Input Impedance
Balanced: 10 KΩ
Link Connector
Balanced Socket XLR
Input sensitivity
+4 dBu
Max input level
+18 dBu
Update
USB Type B
Network (RS485)
RJ45
Main Power
AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic
Power Supply
High Efficiency Dual Switching Mode Power Supply
Included Accessory
User Manual, WLA-RH3 Rain hood
Unpacked - Front Height (mm)
408
Unpacked - Rear Height (mm)
302
Unpacked - Width Front (mm)
566
Unpacked - Width Rear (mm)
566
Unpacked - Depth (mm)
543
Packed - Height (mm)
490
Packed - Width Front (mm)
630
Packed - Width Rear (mm)
630
Packed - Depth (mm)
661
Weight - Nett (kg)
35.5
Weight - Gross (kg)
38.5
