WING COMPACT Behringer

RM12,790.00

48-Channel, 28-Bus Full Stereo Digital Mixing Console, with 24-Midas PRO Preamps, 8 Midas PRO Outputs, 10″ Touch Screen and 13-Fader Control Surface

  • 24 award-winning Midas PRO microphone preamps and 8 Midas PRO outputs onboard

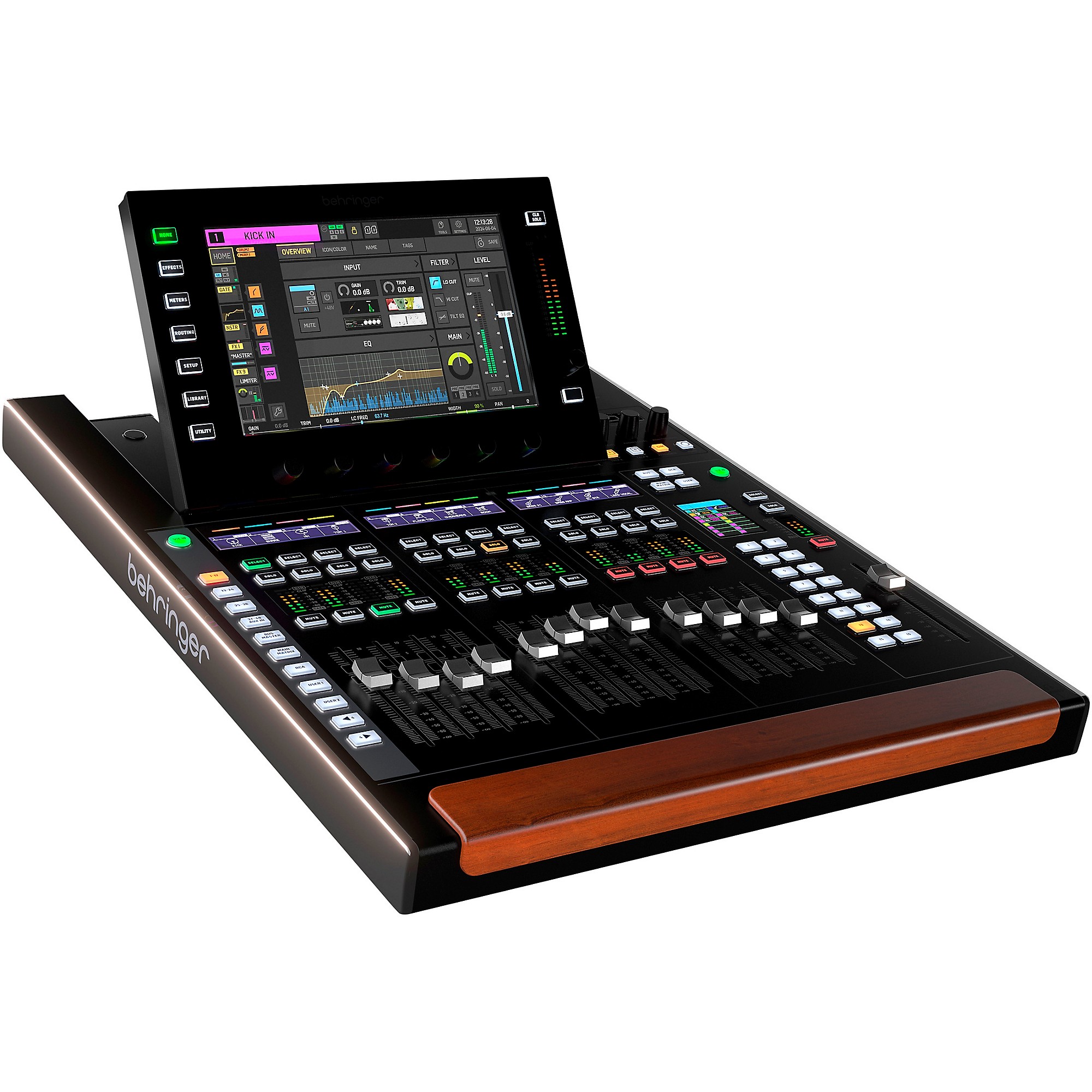

  • 13 motorized 100 mm faders in 2 separate configurable sections
  • “Plug and play” remote I/O connectivity for up to 144 input and output signals over 3 AES50 ports featuring Klark Teknik’s SuperMAC technology for ultra-low jitter and latency

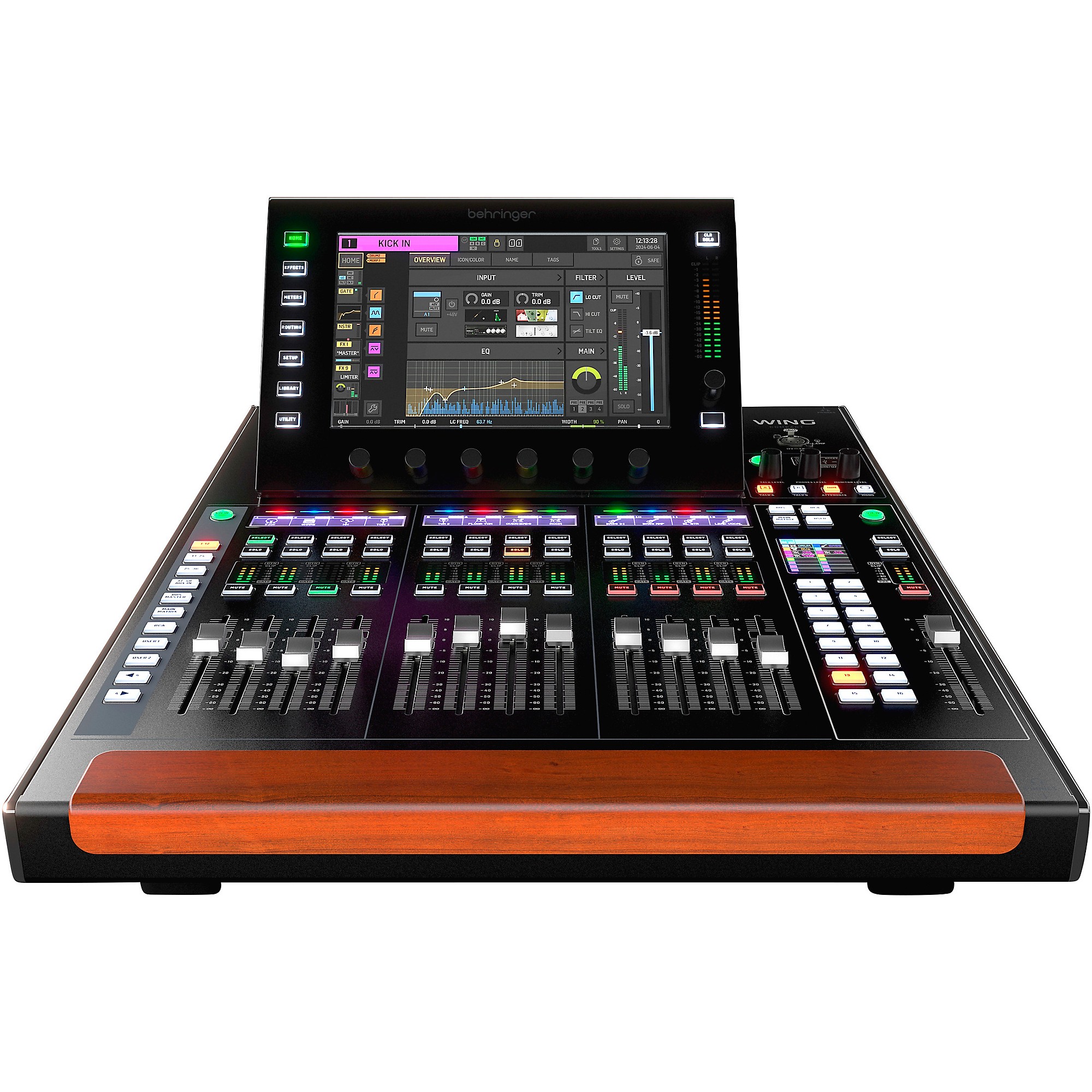

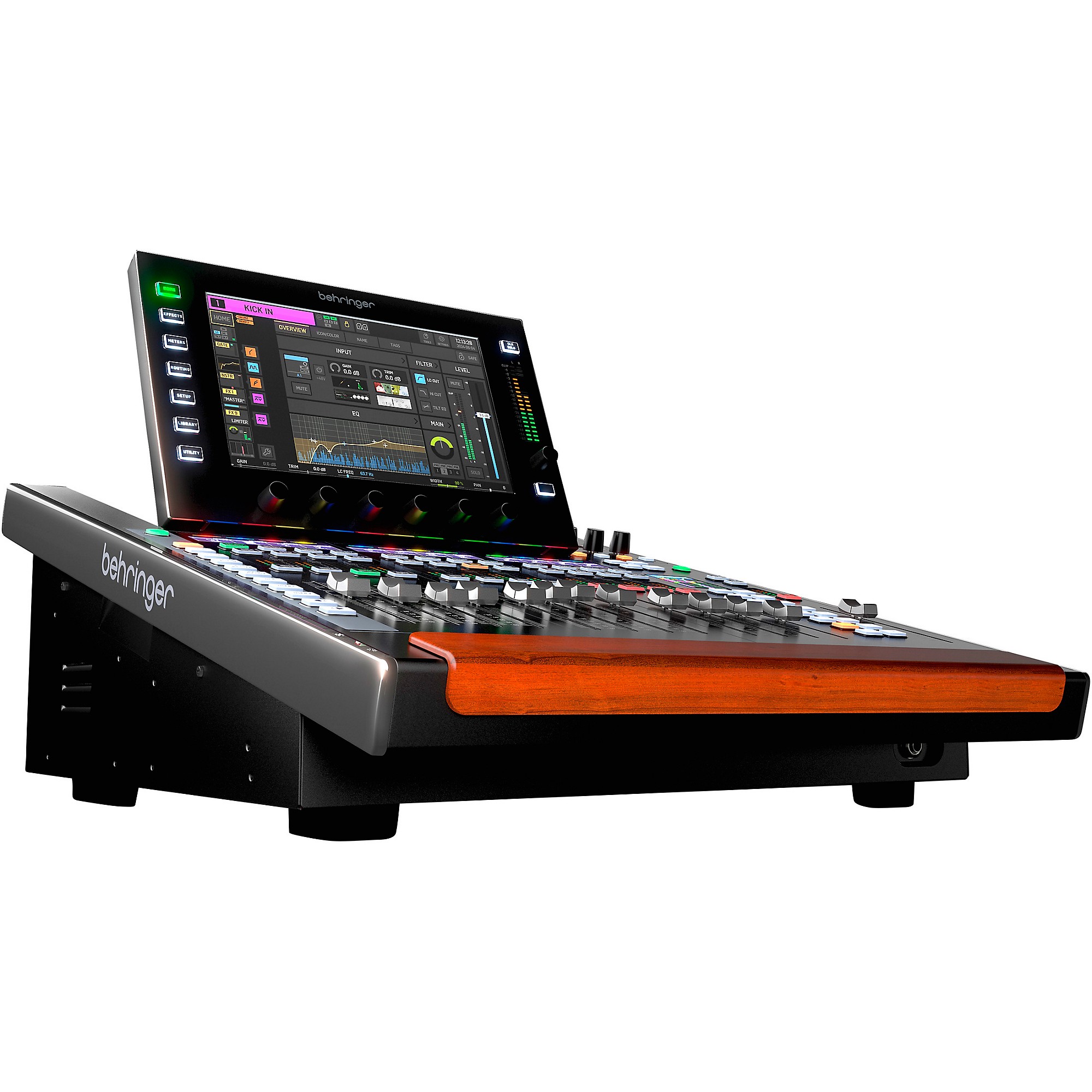

  • Large main display on an adjustable display swivel, featuring the innovative touch optimized WING user interface
  • Optional module for 64 x 64 channels of audio over Ethernet, supporting WAVES SoundGrid Technology or Dante/AES67 Technology
  • 48 x 48 channel USB 2.0 audio interface onboard with DAW remote control emulating HUI and Mackie Control
  • Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
  • Premium FX rack with 8 true-stereo processors and worldclass TC M3000 algorithms, Lexicon, Quantec and EMT emulations
  • Standard FX rack with 8 true-stereo processors for a wide array of modulation, EQ, dynamics etc., also allows blending outboard effects to the mix
  • 5 variable plug-in processing slots for all 40 stereo input channels, featuring the most iconic vintage analog equalizers and compressors, plus insert FX slot and 4-band parametric EQ for all 8 stereo aux channels
  • 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ’s, stereo imager and full dynamics processing
  • 2 Ethernet ports with integrated switch for networked remote control and optional AoIP
  • Built-in expansion port for optional audio interface cards or digital networking bridges, MADI and ADAT/WC
  • StageCONNECT 32-channel low-latency interface for personal monitoring or analog I/O boxes, AES/EBU stereo digital in- and outputs on balanced XLR, 1 TRS phones connectors, MIDI I/O and 2 GPIO ports
  • Comes with a pair of 19-inch rack brackets that can be assembled in 3 positions
SKU: WING COMPACT Categories: , Tag: Brand:

Description

Product description

What if you could carry a true flagship digital console in one hand? The Behringer WING COMPACT brings the full power of the award-winning WING platform — 48 input channels, 24 MIDAS PRO mic preamps, and the revolutionary touch-optimized WING UI — into a footprint that fits on every stage, in every truck, on every desk.

Specifications

Max I/O Capacity
48x Input / 28x Output
Number of Analog Input Channels
24 (24 Mono / 0 Stereo)
Number of Mic Preamps
24
Number of Analog Output Channels
8
Faders & Level Adjustment
13x 3.9" / 100 mm Motorized Channel Fader(Touch Sensitive)

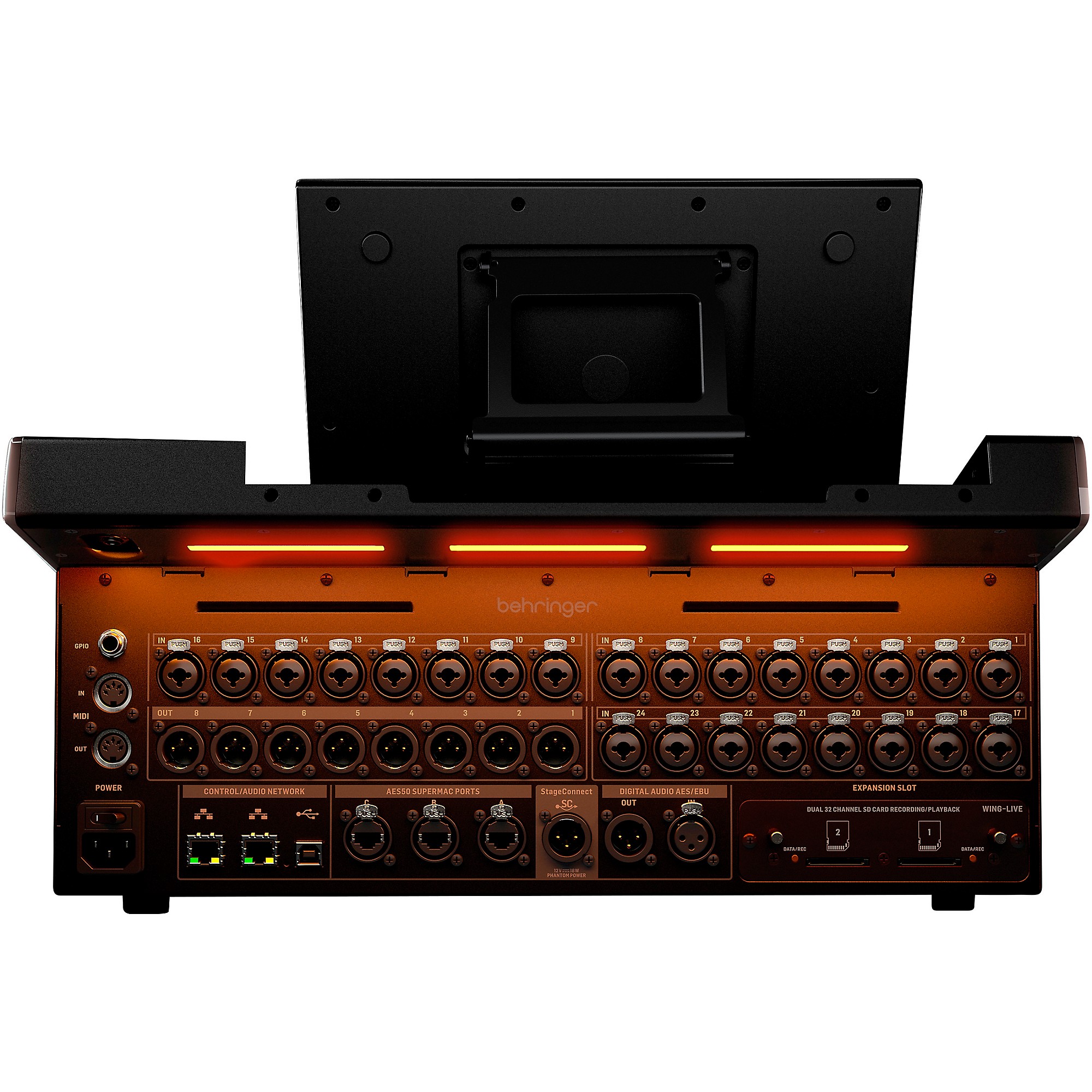

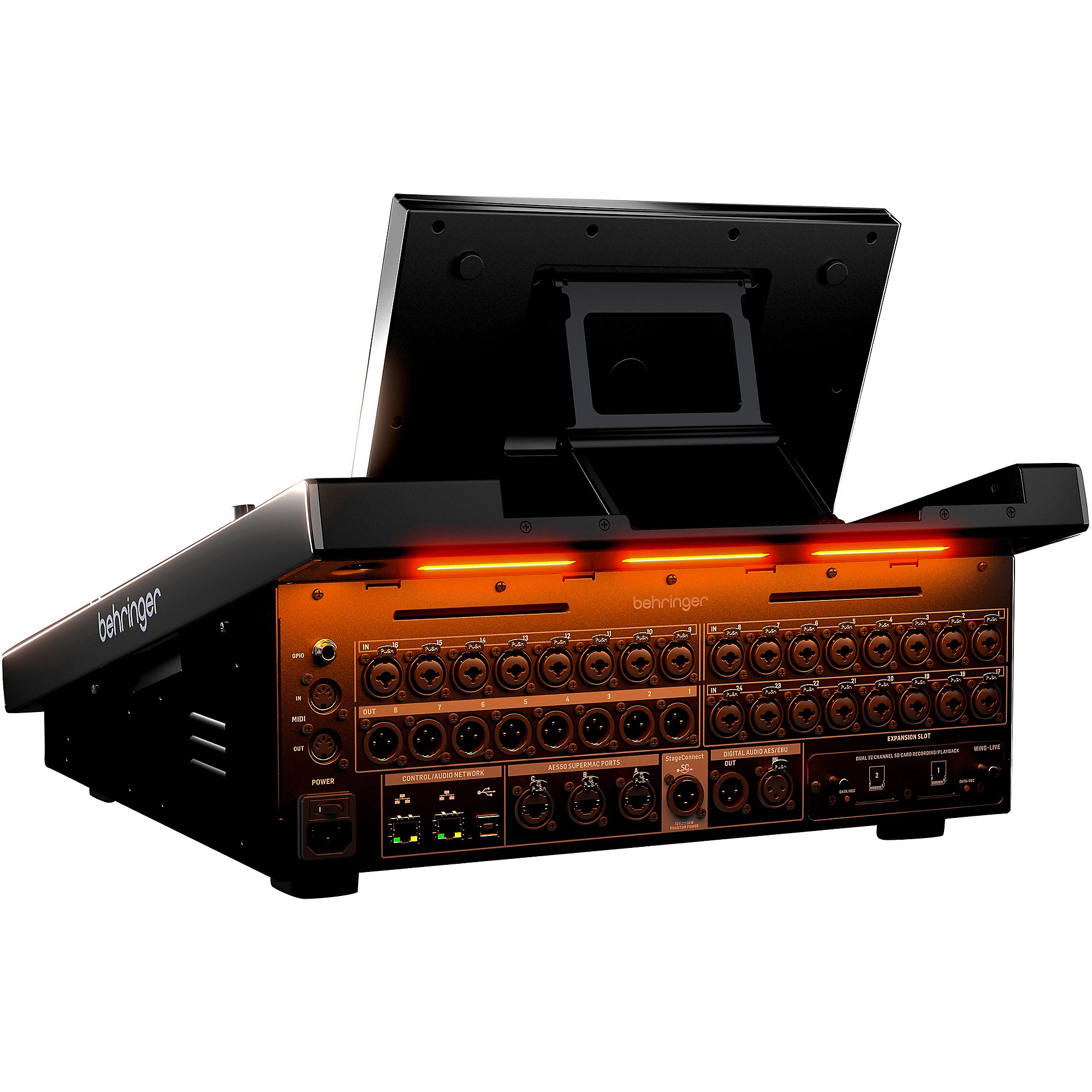

Analog Inputs
24x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
Analog Outputs
8x XLR Main/Bus Output1x 1/4" Headphone Output
Digital I/O
2x RJ45 Ethernet (Control, 1 Gb/s)3x RJ45 AES50 (I/O)1x XLR AES3 Input (I/O)1x XLR AES3 Output1x XLR Input/Output (I/O)
USB I/O
USB-B
Wireless
No
Rack Mountable
Yes

Mixer

Max I/O Capacity
48x Input / 28x Output
Number of Analog Input Channels
24 (24 Mono / 0 Stereo)
Number of Mic Preamps
24
Number of Analog Output Channels
8
Mix Routing
28x Stereo Bus
Groups
No
Presets
No
Display
Main Display:10.1" LCD Touchscreen (Daylight-Viewable)Channel Display:2.4" LCD
Faders & Level Adjustment
13x 3.9" / 100 mm Motorized Channel Fader(Touch Sensitive)
Meters
2x 18-Segment LED

Signal Processing

Gain/Trim Range
Mic:0 dB to +72 dB
Input Polarity
Normal/Reverse
Dynamic Processing
Input Channels:Compressor, Limiter, Soft Limiter, Gate
EQ
4-Band EQ
Graphic EQ
Yes
Solo/Mute
Solo, Mute per Input ChannelMute per Master
Audio Delay
Yes
Automatic Mic Mixing
No
Sample Rates
Up to 192 kHz
Bit Depth
AD/DA Conversion:24-Bit

Performance

Frequency Response
10 Hz to 20 kHz +0/-1 dB (at 48 kHz)
Max Input Level
XLR Mic Input:+21 dBu
Analog Dynamic Range
111 dB
Headphone Output Power
500 mW per Channel into 75 Ohms
I/O Impedance
XLR Mic Input:1 Kilohms (Unbalanced)2 Kilohms (Balanced)XLR Output:75 Ohms (Balanced/Unbalanced)
Noise Floor
-97 dBu A-Weighted
THD+N
Mic Input to Analog Output:0.006% at +40 dB Gain (+20 dBu, Output)0.004% at Unity Gain (0 dBu, Output)
Signal Generator
No
Analog Inputs
24x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
Analog Outputs
8x XLR 3-Pin Main/Bus Output1x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power
+48 V (Selectable on Individual Inputs)
Digital I/O
2x RJ45 Ethernet (Control, 1 Gb/s)3x RJ45 AES50 (I/O)1x XLR AES3 Input (I/O)1x XLR AES3 Output1x XLR Input/Output (I/O)
MIDI I/O
1x MIDI 5-Pin In1x MIDI 5-Pin Out
USB I/O
1x USB-B 2.0 (Audio Playback, Control, Multitrack Record)
USB I/O Capacity
48x Input / 48x Output
Other I/O
1x 1/4" TRS GPIO In/Out
Expansion Ports
No
Wireless
No
External Display I/O
No
Max Multitrack Recording
64 Tracks
Media Support
SD, SDHC
Mobile Device Compatibility
iPadAndroid Tablet

Power

Input Power
100 to 240 VAC, 50 / 60 Hz

Physical

Rack Mountable
Yes
Dimensions
22.6 x 17.8 x 8.9" / 57.4 x 45.2 x 22.6 cm
Weight
34 lb / 15.4 kg
Package Weight
42 lb
Box Dimensions (LxWxH)
27.5 x 23 x 14"

Specification Notes

Line 01
Key Specs
Line 02
Mixer
Line 03
Signal Processing
Line 04
Digital Audio
Line 05
Performance
Line 06
Connectivity
Line 07
Recording
Line 08
Compatibility
Line 09
Power
Line 10
Physical
Line 11
Packaging Info
