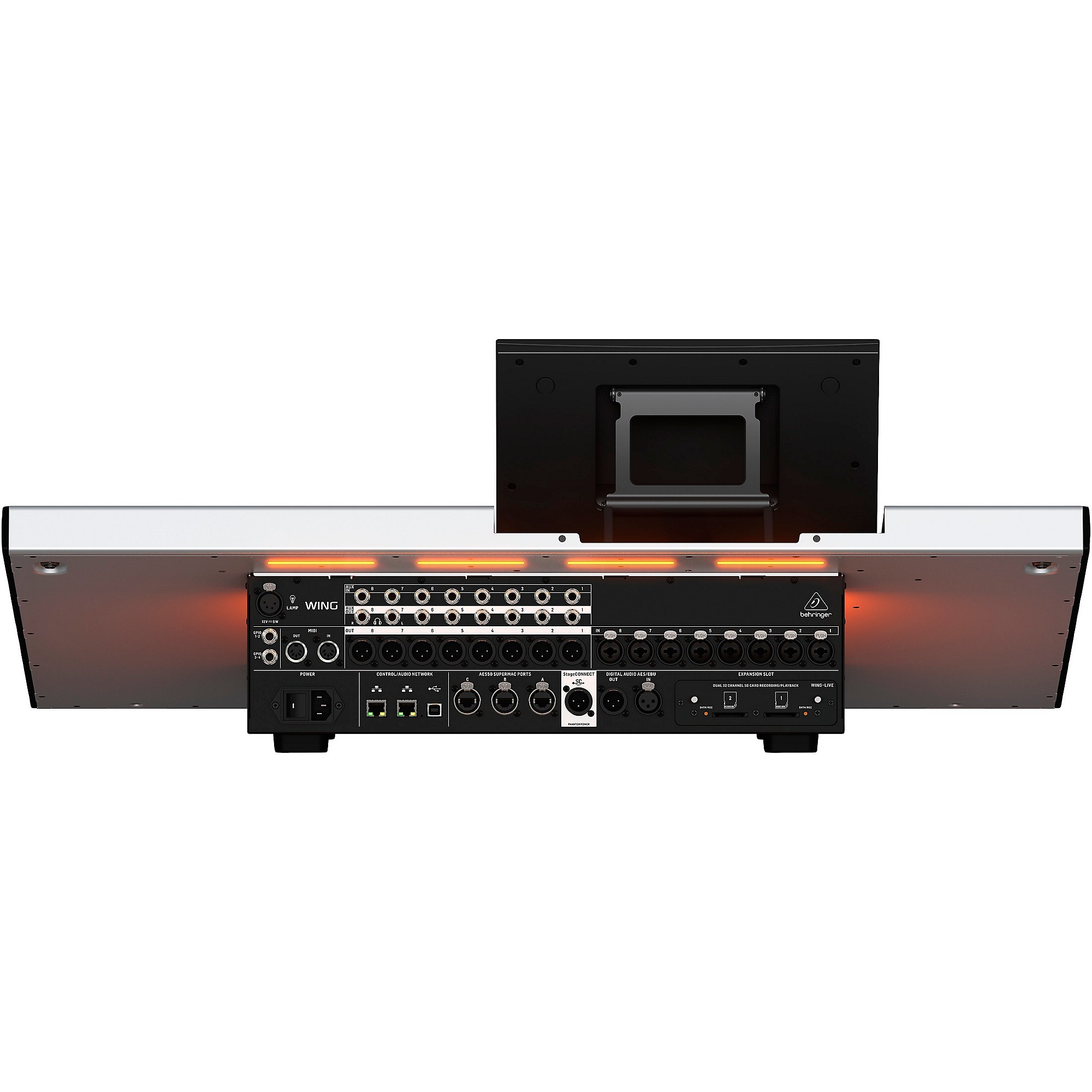

WING Behringer - Image 2
WING Behringer - Image 3
WING Behringer - Image 4

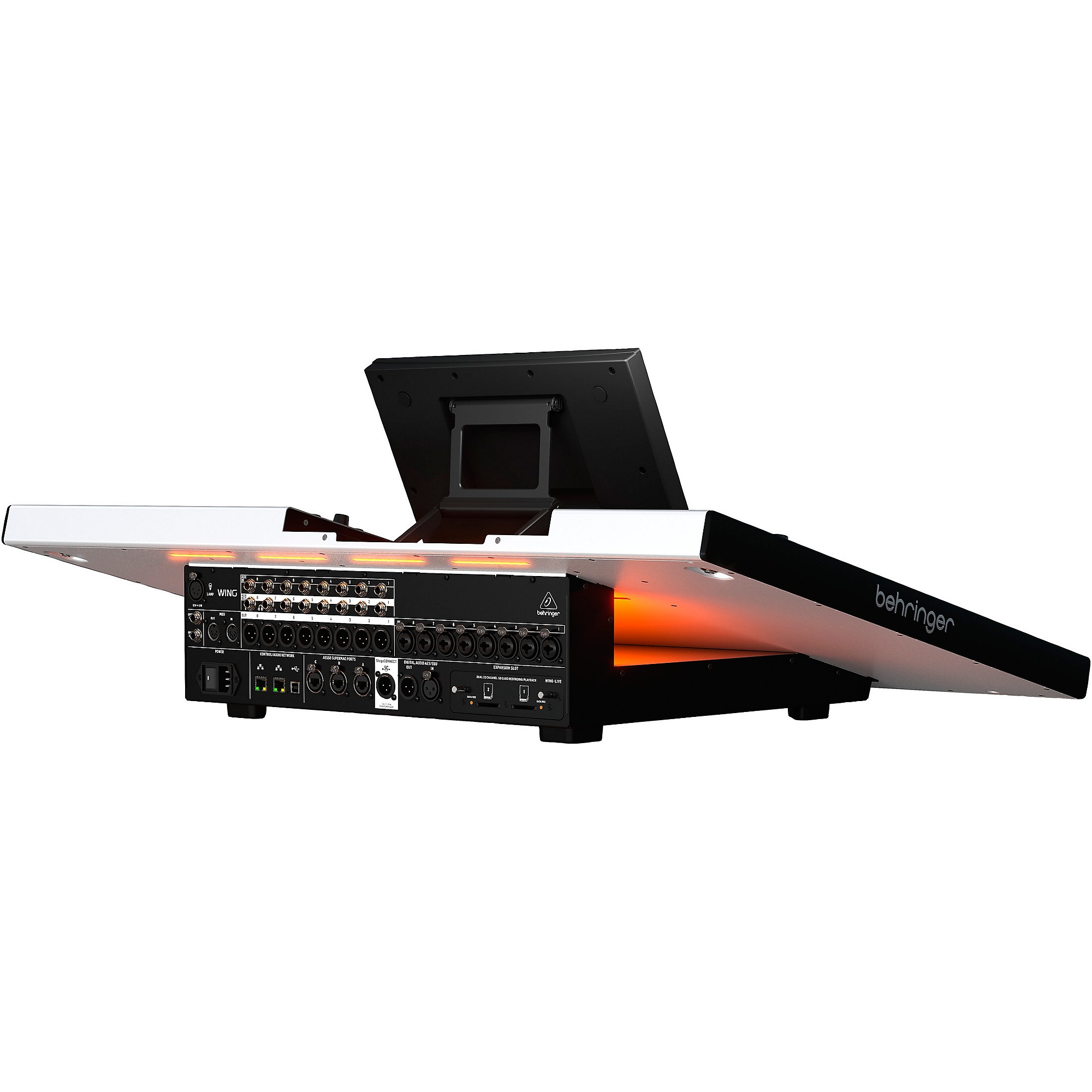

WING Behringer - Image 5

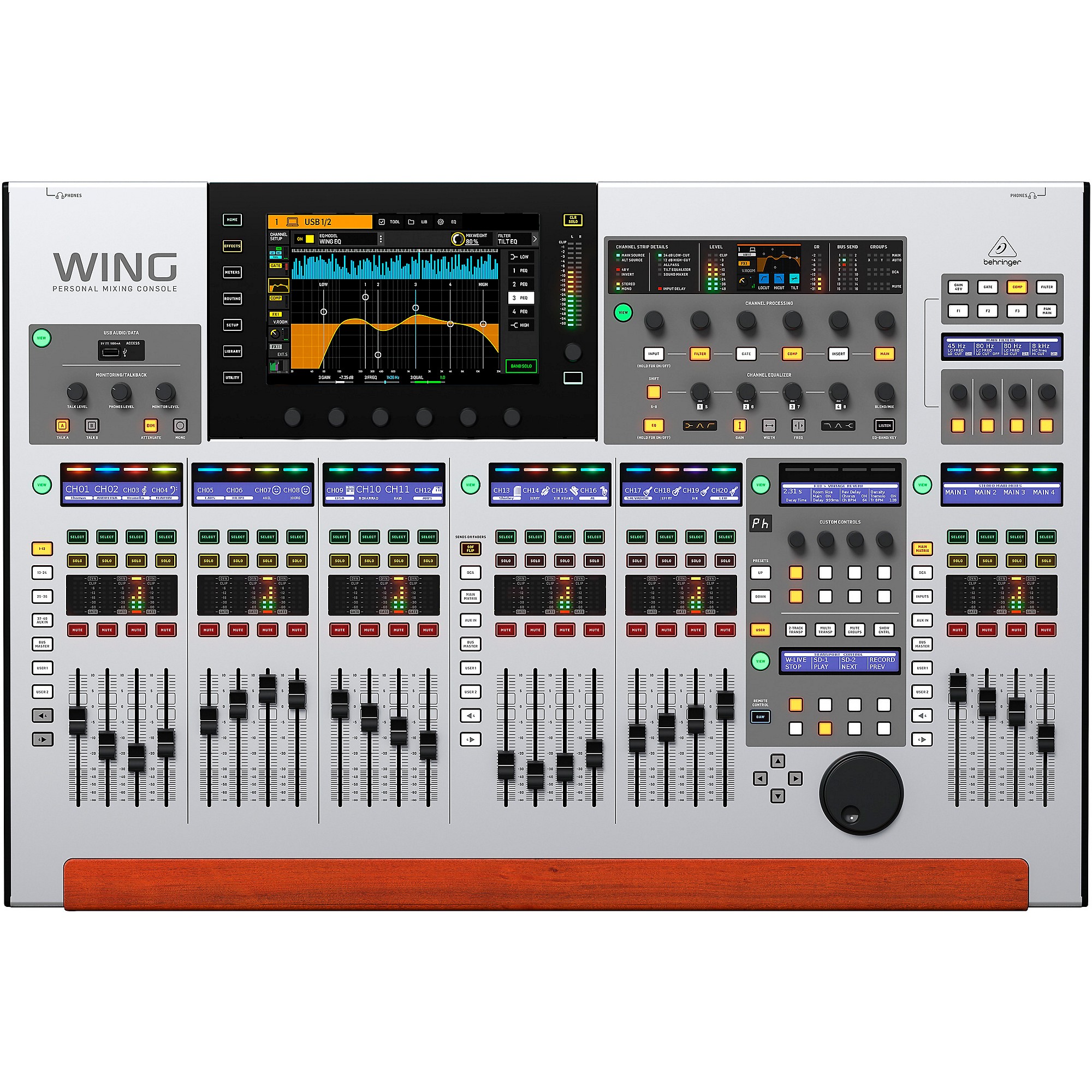

WING Behringer

RM15,930.00

48-Channel, 28-Bus Full Stereo Digital Mixing Console with 24-Fader Control Surface and 10″ Touch Screen

  • 8 award-winning Midas PRO mic preamps and 8 Midas PRO outputs onboard
  • 24 motorized 100 mm faders in 3 separate, fully configurable sections
  • Plug and play remote I/O connectivity for up to 144 input and output signals over 3 AES50 ports featuring Klark Teknik’s SuperMAC technology for ultra-low jitter and latency
  • Large main display with capacitive touch screen and adjustable display swivel
  • Unique touch-sensitive channel editing section with 11 rotary controls and dedicated color TFT for staying on top of all channel properties
  • Optional module for 64 x 64 channels of audio over Ethernet – supporting WAVES SoundGrid Technology or Dante/AES67 Technology
  • 48 x 48 channel USB 2.0 audio interface onboard with DAW remote control emulating HUI and Mackie Control
  • Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
  • Additional 4-channel control section with rotary controls, buttons and parameter display for permanent access to mains, matrices or “money-channels”
  • Premium FX rack with 8 true-stereo processors and world-class TC algorithms, Lexicon, Quantec and EMT emulations
  • Standard FX rack with 8 true-stereo processors for a wide array of modulation, EQ, dynamics etc. – also allows blending outboard effects to the mix
  • 5 variable plug-in processing slots for all 40 stereo input channels, featuring the most iconic vintage analog equalizers and compressors, plus insert FX slot and 4-band parametric EQ for all 8 stereo aux channels
  • Custom Controls offering 16 latching or momentary buttons and 4 rotary controls, easily being configured for preferred functions
  • 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ’s, stereo imager and full dynamics processing
  • 2 Ethernet ports with integrated switch for networked remote control
  • Built-in expansion port for optional audio interface cards or digital networking bridges, MADI and ADAT/WC
  • StageCONNECT 32-channel low-latency interface for personal monitoring or analog I/O boxes, AES/EBU stereo digital in- and outputs on balanced XLR, 8 x 8 balanced TRS auxiliary line in- and outputs, 2 TRS phones connectors, MIDI I/O and 4 GPIO ports
SKU: WING Categories: , Tag: Brand:

Description

Product description

The WING control surface utilizes a large capacitive touchscreen interface with touch-sensitive rotary controls for a new ease of operation. Three separate fader sections and a Custom Controls section can be tailored easily and intuitively to meet your personal requirements. No matter if you need a specific bus send fader next to the corresponding channel fader, or a dedicated “money” channel always at your fingertip, or even sharing the surface with two engineers – WING can be configured to elevate your production to a new level. You can even replace and customize the massive wooden armrest with something funkier if you like. The technical drawing can be found in the Downloads section of the product page.

Specifications

Max I/O Capacity
48x Input / 28x Output
Number of Analog Input Channels
8
Number of Mic Preamps
8
Number of Analog Output Channels
8
Faders & Level Adjustment
24x 3.9" / 100 mm Motorized Fader(Touch Sensitive)
Analog Inputs
8x XLR 3-Pin Balanced Mic/Line Input8x 1/4" TRS Aux Input
Analog Outputs
8x XLR Main/Bus Output8x 1/4" Aux/Headphone Output2x 1/4" Headphone Output
Digital I/O
2x RJ45 Ethernet (Control, 1 Gb/s)1x XLR (I/O)3x RJ45 AES50 (I/O)2x XLR AES3 Input/Output
USB I/O
USB-B
Wireless
No
Rack Mountable
No

Mixer

Max I/O Capacity
48x Input / 28x Output
Number of Analog Input Channels
8
Number of Mic Preamps
8
Number of Analog Output Channels
8
Mix Routing
28x Stereo Bus
Groups
No
Presets
No
Display
Main Display:10.1" LCD Touchscreen (Daylight-Viewable)Channel Display:2.4" LCD
Display Resolution/Color
Main Display:1280 x 800 / RGB ColorChannel Display:320 x 240 / Monochrome
Faders & Level Adjustment
24x 3.9" / 100 mm Motorized Fader(Touch Sensitive)
Meters
2x 18-Segment LED
Meter Range
-60 dB to +21 dB Peak/Clip

Signal Processing

Gain/Trim Range
Mic:0 dB to +72 dB
Input Polarity
Normal/Reverse
Dynamic Processing
Input Channels:Compressor, Limiter, Soft Limiter, Gate
EQ
4-Band EQ
Solo/Mute
Solo, Mute per Input ChannelMute per Master
Channel Output/Source Monitoring
AFL
Real Time Analyzer
No
Automatic Mic Mixing
No
Sample Rates
Up to 192 kHz
Bit Depth
AD/DA Conversion:24-Bit
DSP
40-Bit Floating Point
Converter Dynamic Range
A/D:114 dB at 48 kHzD/A:120 dB at 48 kHz
Latency
1 ms (Analog Input to Analog Output)1.2 ms (Stagebox Input to Stagebox Output)

Performance

Frequency Response
10 Hz to 20 kHz +0/-1 dB (at 48 kHz)
Max Input Level
XLR Mic Input:+21 dBu1/4" TRS Line Input:+16 dBu
Output Level
1/4" Aux/Line Output:+16 dBu (Maximum)+4 dBu (Nominal)XLR Output:+21 dBu (Maximum)+4 dBu (Nominal)1/4" TRS Headphone Output:+18 dBm at Max Gain (Unbalanced)
Analog Dynamic Range
111 dB
Headphone Output Power
500 mW per Channel into 75 Ohms
I/O Impedance
XLR Mic Input:5 Kilohms (Unbalanced)10 Kilohms (Balanced)1/4" TRS Line Input:20 Kilohms (Unbalanced)40 Kilohms (Balanced)XLR Output:75 Ohms (Balanced/Unbalanced)Line Output:150 Ohms (Unbalanced)300 Ohms (Balanced)
Crosstalk
Adjacent Channels:100 dB at 1 kHz
CMRR
XLR Mic Input:> 50 dB at Unity Gain> 70 dB at +40 dB Gain
EIN
XLR Mic Input:-128 dBu
Noise Floor
-95 dBu A-Weighted
THD+N
Mic Input to Analog Output:0.006% at +40 dB Gain (+20 dBu, Output)0.004% at Unity Gain (0 dBu, Output)
Signal Generator
No
Analog Inputs
8x XLR 3-Pin Balanced Mic/Line Input8x 1/4" TRS Aux Input
Analog Outputs
8x XLR 3-Pin Main/Bus Output8x 1/4" TRS Stereo Aux/Headphone Output2x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power
+48 V (Selectable on Individual Inputs)
Digital I/O
2x RJ45 Ethernet (Control, 1 Gb/s)1x XLR (I/O)3x RJ45 AES50 (I/O)2x XLR AES3 Input/Output
MIDI I/O
1x MIDI 5-Pin In1x MIDI 5-Pin Out
USB I/O
1x USB-B 2.0 (Audio Playback, Control, Multitrack Record)
USB I/O Capacity
48x Input / 48x Output
Other I/O
2x 1/4" TRS GPIO In/Out
Expansion Ports
No
Wireless
No
Mobile App Compatible
Yes: Android & iOSApp Name: Wings Co-PilotFunctionality: Adjust Settings, Remote Control, Setup, View Live Feed
External Display I/O
No
Max Multitrack Recording
64 Tracks
Media Support
SD, SDHC
OS Compatibility
macOSWindows
Mobile Device Compatibility
iPadAndroid Tablet
Required Hardware
Available USB 2.0 Port

Power

Input Power
100 to 240 VAC, 50 / 60 Hz
AC Power I/O
1x IEC Input
Power Consumption
130 W

Physical

Rack Mountable
No
Operating Temperature
41 to 104°F / 5 to 40°C
Dimensions
34.3 x 22.6 x 7.9" / 87.1 x 57.4 x 20.1 cm
Weight
52.8 lb / 23.9 kg
Package Weight
64.7 lb
Box Dimensions (LxWxH)
39 x 26.75 x 13"

Specification Notes

Line 01
Key Specs
Line 02
Mixer
Line 03
Signal Processing
Line 04
Digital Audio
Line 05
Performance
Line 06
Connectivity
Line 07
Recording
Line 08
Compatibility
Line 09
Power
Line 10
Physical
Line 11
Packaging Info
