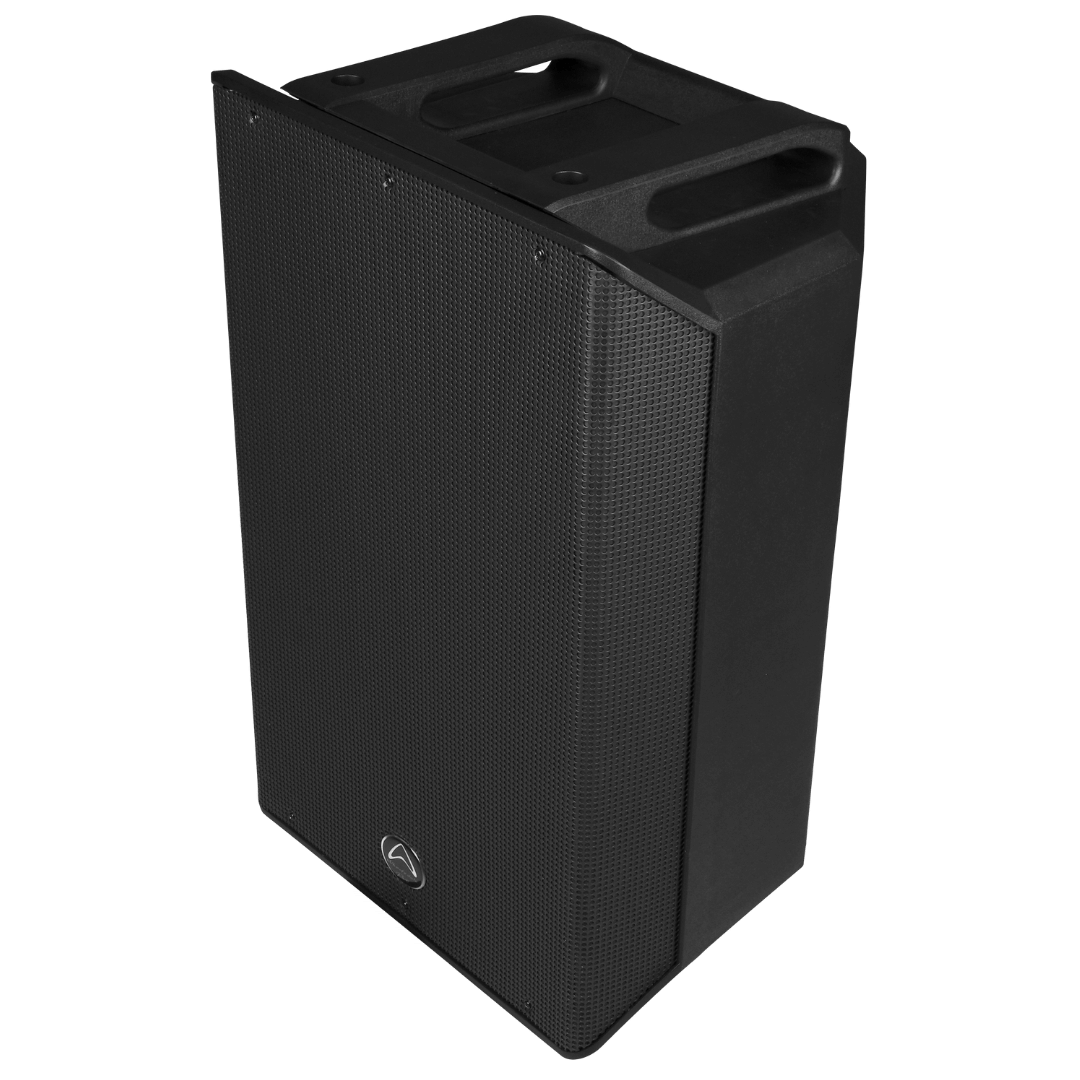

TYPHON-AXF15 Wharfedale Pro

Typhon-AXF15

  • 15″ Bi-amplified active loudspeaker
  • 1.75″ HF compression driver
  • 770 w Continuous
  • 1540 w Peak
  • 130 dB Max SPL @ 1 meter
  • Huge 3.0″ LF voice coil
SKU: TYPHON-AXF15 Categories: , , Tag: Brand:

Description

Product description

15″ Active loudspeaker – with FIR

TYPHON-AXF15 is a 15″ bi-amplified active loudspeaker from our TYPHON-AXF Series — the latest evolution of the TYPHON range, enhanced with FIR filtering and redesigned crossovers for improved accuracy and low-end performance.

Delivering 770 W continuous and 1540 W peak power with a maximum SPL of 130 dB at 1 m, it features a custom Wharfedale Pro 15″ LF driver with a huge 3.0″ voice coil and a 1.75″ HF compression driver. The updated DSP architecture provides tighter phase coherence, improved bass depth and smoother overall response, making it ideal for powerful, full-range reinforcement.

Built within the same durable polypropylene cabinet as the original Typhon-AX models, Typhon-AXF15 retains IP54 certification, multiple rigging points and robust carry handles. With its Class D bi-amplified design and advanced DSP engine, it delivers precision, punch and reliability for demanding professional applications. Pair it with a T-SUB-AX sub for a perfectly matched low-frequency extension.

TYPHON-AXF15-BT

15″ Active loudspeaker – with FIR and Bluetooth

Specifications

Active or Passive
Active
System Type
Full-Range
Configuration
2-way
System Continuous Power
770 W
System Peak Power
1540 W
Max SPL @ 1m
130 dB
Freq Response (+/-3 dB)
45 Hz - 20 kHz
Freq Range (-10 dB)
40 Hz - 20 kHz
Bi-amp Mode Switch
No
Bluetooth
Yes
IP Certification
IP54
Driver Brand
Wharfedale Pro
LF Driver Size
15"
LF Voice Coil Size
3"
LF Rated Impedance
4 Ω
LF Power (RE:AES2-2012)
400 W
HF Driver Type
Compression Driver
HF Voice Coil Size
1.75"
HF Diaphragm Material
Titanium
HF Exit Size
1"
HF Power (RE:AES2-2012)
40 W
HF Rated Impedance
8 Ω
Preset Library
No
Input Connector
2 x XLR, 2 x 6.3mm Jack, BT
Waveguide Type
Hybrid Symmetry Horn
Enclosure Material
Polypropylene
Grille Material and Finish
Steel Black
Finish
Black Polypropylene
Handles
4
Deployment
Flying, Pole, Wall Mount, Ground
Pole Mount
35 mm With Lock Screw
Brackets Included
No
Rigging
Yes
M8
9
Nominal Coverage (H x V)
100° x 80°
Sensitivity 2.83 V / 1 m
99 dB
System Rated Impedance
n/a
Crossover Frequency
2.0 kHz
Amplifier design
Class D
DSP Controls
Flat / Monitor / Bass / Punch (with FIR)
Preset list
Flat / Monitor / Bass / Punch (with FIR)
Active loudspeaker Input Impedance
20 KΩ
Link Connector
pin XLR
Input sensitivity
775 mV (0 dBu)
Max input level
4 V
Line output
Pin XLR
Main Power
100-120 V~/200-240 V~,50/60 Hz
Power Supply
SMPS
Unpacked - Height (mm)
698
Unpacked - Width Front (mm)
480
Unpacked - Width Rear (mm)
186
Unpacked - Depth (mm)
400
Packed - Height (mm)
790
Packed - Width Front (mm)
475
Packed - Width Rear (mm)
475
Packed - Depth (mm)
555
Weight - Nett (kg)
26.86
Weight - Gross (kg)
29.8
