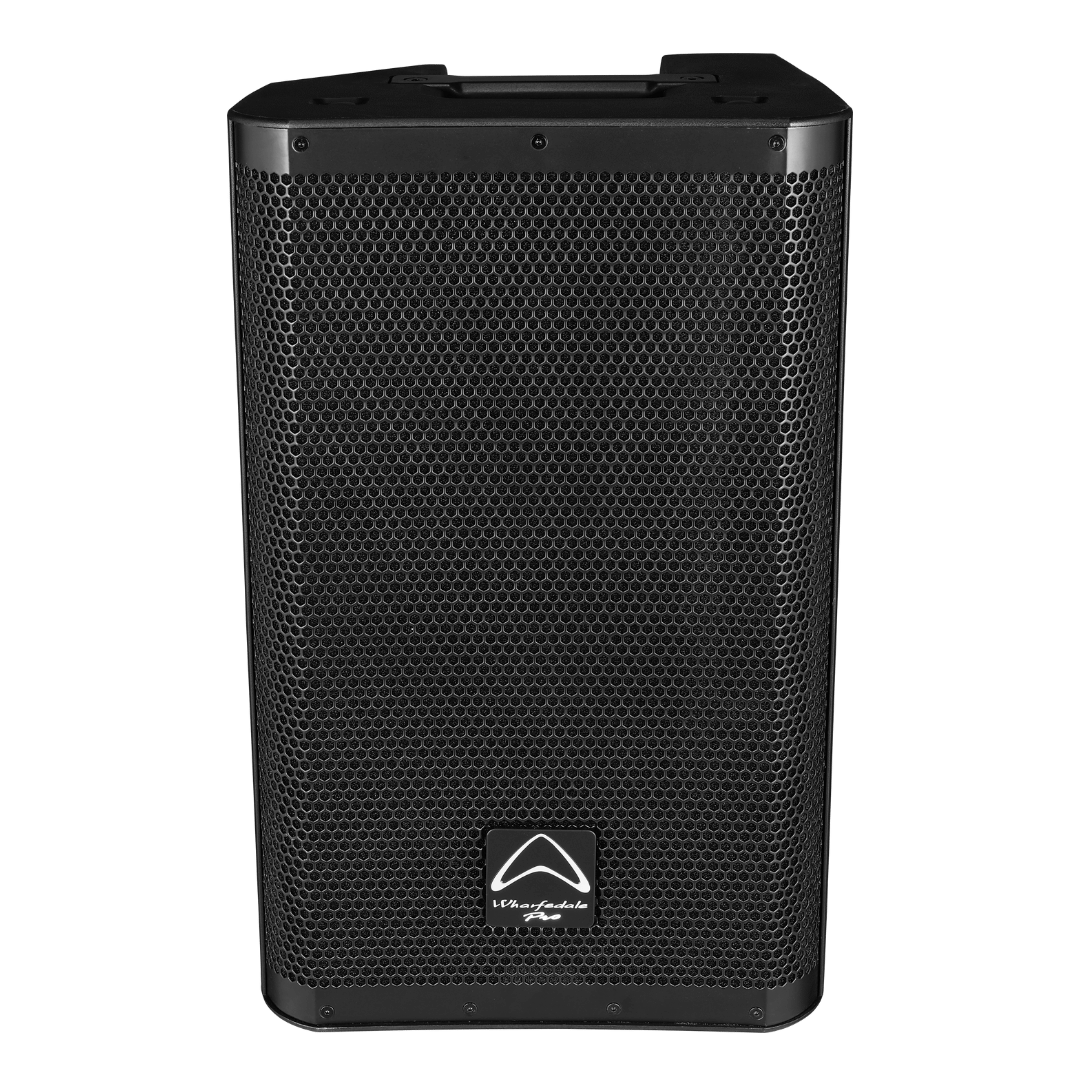

Tourus+ 10 Wharfedale Pro

RM1,420.00

Tourus+10

  • 10″ Passive loudspeaker
  • Max SPL @ 1 M : 125 dB
  • 2.5″ LF Voice coil
  • 200 W Continuous
  • 400 W Programme
  • 800 W Peak
SKU: Tourus+ 10 Categories: , Tag: Brand:

Description

Product description

10″ passive versatile loudspeaker

TOURUS+ 10 is a 10″ passive loudspeaker from our TOURUS+ Passive Series — delivering powerful, accurate sound for live performance, installation and portable PA use.

Handling 200 W continuous, 400 W programme and 800 W peak power with a maximum SPL of 125 dB at 1 m, it features a custom Wharfedale Pro 10″ LF driver with a 2.5″ voice coil for tight bass response and smooth midrange clarity. Its rugged polypropylene cabinet with reinforced steel grille is IP54 Certified, ensuring dependable operation indoors or outdoors.

With dual-angle pole sockets (0° and 3°), 5 x M8 rigging points and a 45° monitor angle, TOURUS+ 10 adapts easily for stage, floor or wall-mounted use. Compatible with optional WPB-T+10 wall brackets and the T-SUB-AX active subwoofers, it’s a versatile, durable and great-sounding solution for professional audio setups.

Specifications

Active or Passive
Passive
System Type
Full-Range
Configuration
2-way
System Continuous Power
200 W
System Programme Power
400 W
System Peak Power
600 W
Max SPL @ 1m
125 dB
Freq Response (+/-3 dB)
63 Hz - 20 kHz
Freq Range (-10 dB)
55 Hz - 20 kHz
Bi-amp Mode Switch
No
IP Certification
IP54
Driver Brand
Wharfedale Pro
LF Driver Size
10"
LF Voice Coil Size
2.5
LF Rated Impedance
8 Ω
LF Power (RE:AES2-2012)
200 W
HF Driver Type
Compression Driver
HF Voice Coil Size
1.33"
HF Diaphragm Material
Titanium
HF Exit Size
1.37"
HF Power (RE:AES2-2012)
40 W
HF Rated Impedance
8 Ω
Preset Library
Yes
Input Connector
2 x 4 Pole Speaker Connector
Waveguide Type
Constant Directivity
Enclosure Material
Polypropylene
Grille Material and Finish
Steel Black
Finish
Black Polypropylene
Handles
2
Deployment
Ground, Flying, Pole, Wall Mount
Pole Mount
Dual Angle (0° / -3°) 35 mm
Brackets Included
No
Rigging
Yes
M8
5
Nominal Coverage (H x V)
90° x 60°
Sensitivity 2.83 V / 1 m
96 dB
System Rated Impedance
8 Ω
Crossover Frequency
2.0 kHz
Recommended HPF = BW 18 dB/OCT.
55 Hz
Transformer (T)
No
Unpacked - Height (mm)
528
Unpacked - Width Front (mm)
320
Unpacked - Width Rear (mm)
179
Unpacked - Depth (mm)
300
Packed - Height (mm)
610
Packed - Width Front (mm)
390
Packed - Width Rear (mm)
390
Packed - Depth (mm)
360
Weight - Nett (kg)
12.1
Weight - Gross (kg)
14.3
