Titan-X15 Wharfedale Pro

RM2,310.00

TITAN-X15

  • 15″ passive
  • 1.75″ HF compression driver
  • 3.0″ LF voice coil
  • 400 watts AES (RMS)
  • 800 watts Programme
  • 1600 watts Peak
  • 129 dB Max SPL @ 1 meter
SKU: Titan-X15 Categories: , Tag: Brand:

Description

Product description

Legendary 15″ Passive with IP54 Certification

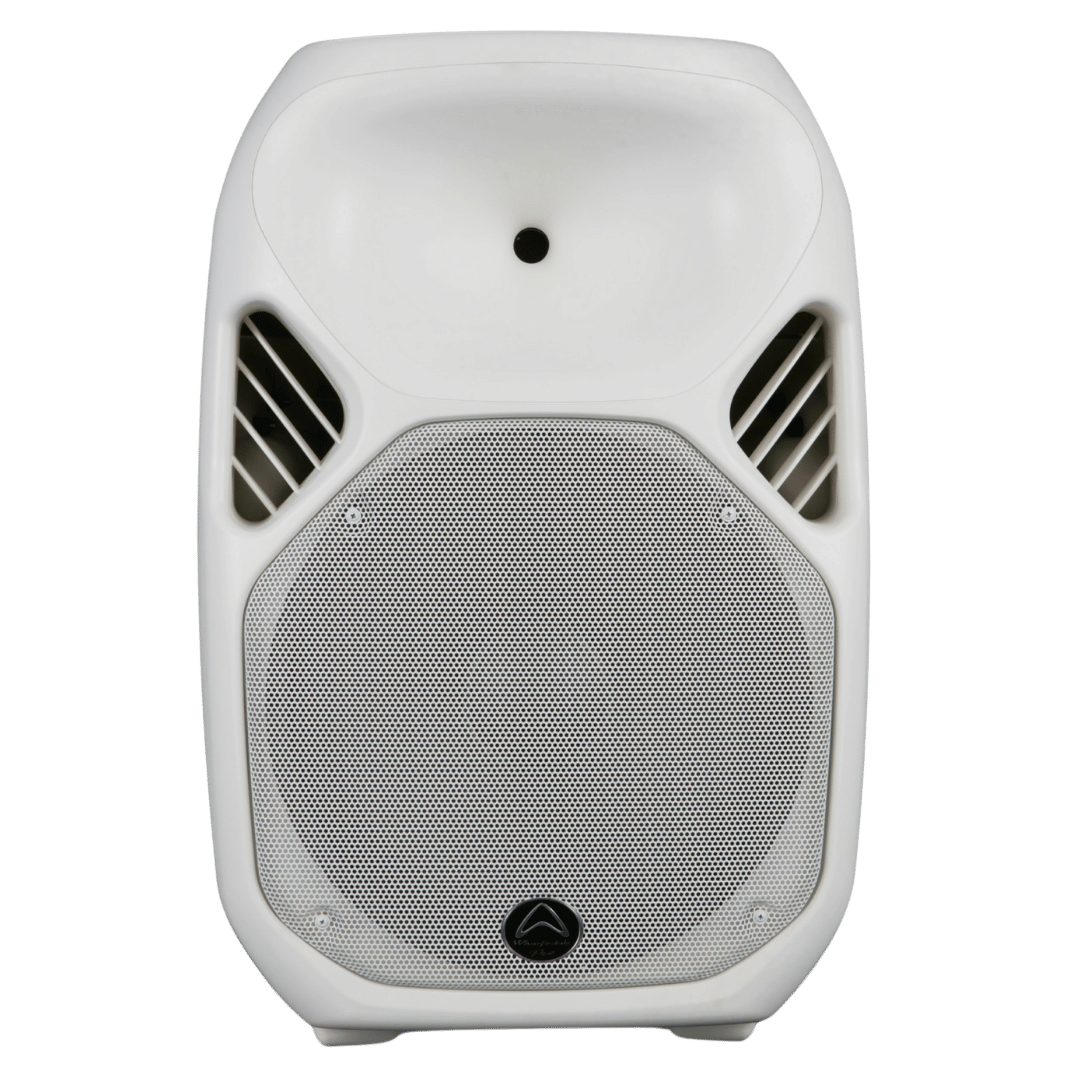

TITAN-X15 is a 15″ passive loudspeaker from our TITAN Series — delivering powerful, full-range sound with outstanding durability and versatility.

Featuring a custom Wharfedale Pro 15″ LF driver with a 3.0″ voice coil and a 1.75″ HF compression driver, TITAN-X15 delivers deep, controlled low-end with crisp, defined highs. Handling 400 W AES (1600 W peak) power and producing up to 129 dB max SPL @ 1 m, it’s ideal for larger performance spaces, installations, or mobile PA systems that demand clean, high-output sound.

The rugged polypropylene enclosure is IP54 certified, ensuring protection from dust and moisture for both indoor and outdoor use. M8 rigging points and Titan Tourbag compatibility offer flexible mounting and transport options.

Built for reliability and performance, TITAN-X15 combines Wharfedale Pro engineering with a practical design — a proven choice for professionals who need power, precision, and portability in one enclosure.

Specifications

Active or Passive
Passive
System Type
Full-Range
Configuration
2-way
System Continuous Power
400 W
System Programme Power
800 W
System Peak Power
1600 W
Max SPL @ 1m
129 dB
Freq Response (+/-3 dB)
55 Hz - 20 kHz
Freq Range (-10 dB)
40 Hz - 20 kHz
Bi-amp Mode Switch
No
IP Certification
IP54
Driver Brand
Wharfedale Pro
LF Driver Size
15"
LF Voice Coil Size
3"
LF Rated Impedance
8 Ω
LF Power (RE:AES2-2012)
400 W
HF Driver Type
Compression Driver
HF Voice Coil Size
1.75"
HF Diaphragm Material
Titanium
HF Exit Size
1"
HF Power (RE:AES2-2012)
40 W
HF Rated Impedance
8 Ω
Preset Library
Yes
Input Connector
2 x 4 Pole Speaker Connector
Waveguide Type
Hybrid Symmetry Horn
Enclosure Material
Polypropylene
Grille Material and Finish
Steel Black or White
Finish
Black or White Polypropylene
Handles
2
Deployment
Flying, Ground, Pole, Wall Mount
Pole Mount
35 mm
Brackets Included
No
Rigging
Yes
M8
10
Nominal Coverage (H x V)
100° x 80°
Sensitivity 2.83 V / 1 m
97 dB
System Rated Impedance
8 Ω
Crossover Frequency
2.7 kHz
Recommended HPF = BW 18 dB/OCT.
40 Hz
Transformer (T)
No
Included Accessory
User Manual, Dust Cover
Unpacked - Height (mm)
729
Unpacked - Width Front (mm)
481
Unpacked - Width Rear (mm)
481
Unpacked - Depth (mm)
396
Packed - Height (mm)
830
Packed - Width Front (mm)
490
Packed - Width Rear (mm)
490
Packed - Depth (mm)
510
Weight - Nett (kg)
23.6
Weight - Gross (kg)
25.5
