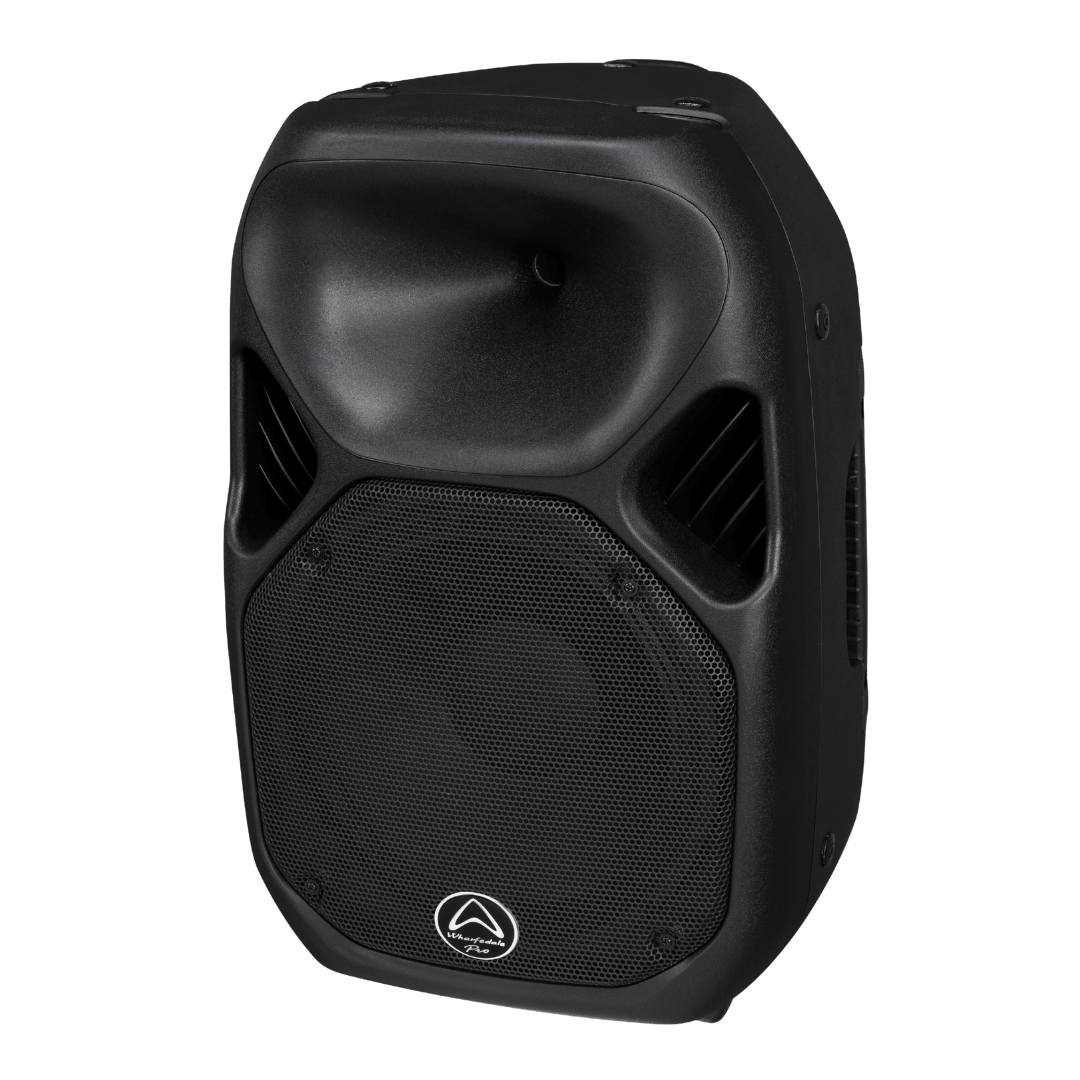

Titan-X12 Wharfedale Pro

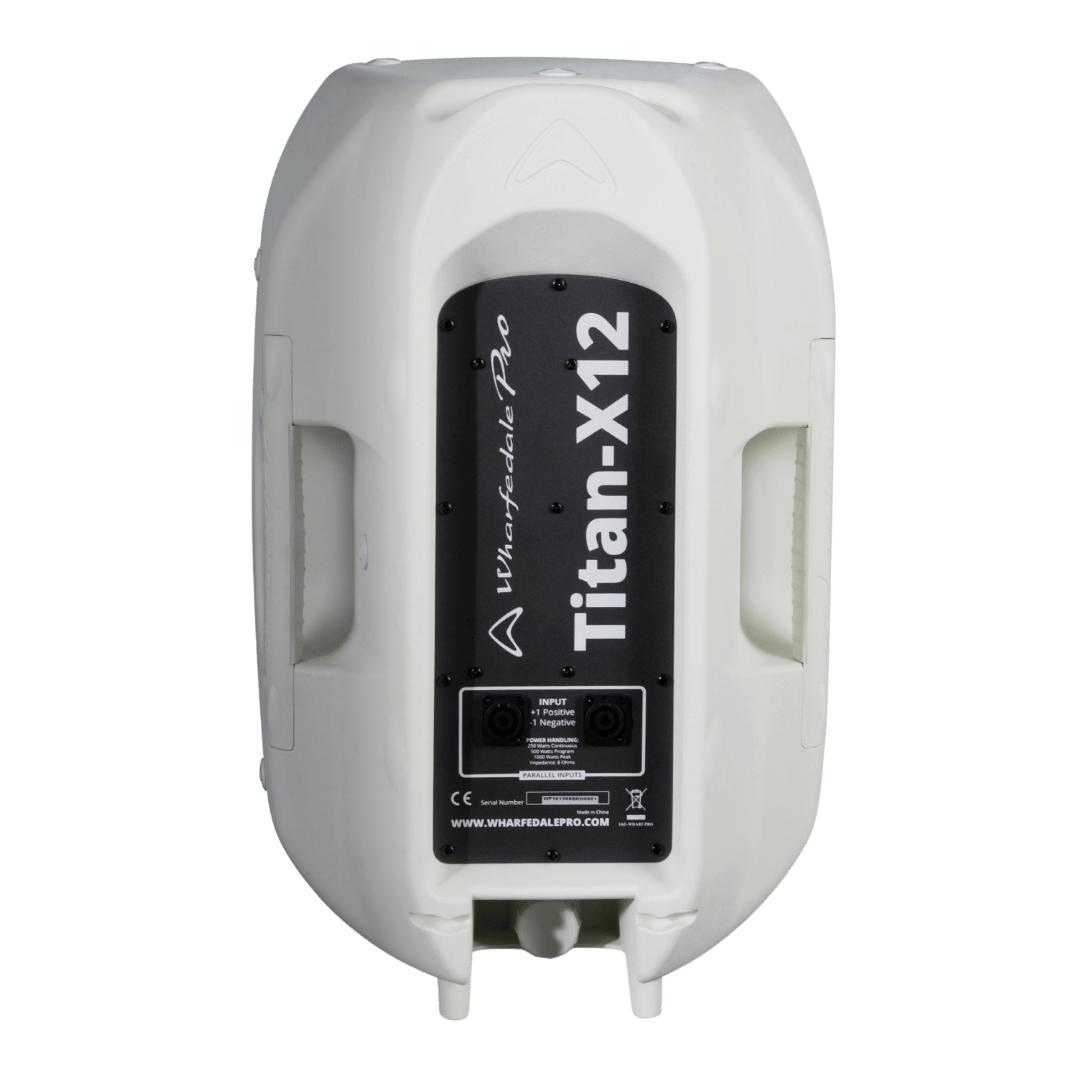

Titan-X12 Wharfedale Pro - Image 2
Titan-X12 Wharfedale Pro - Image 3
Titan-X12 Wharfedale Pro - Image 4

Titan-X12 Wharfedale Pro

RM1,750.00

TITAN-X12

  • 12″ passive
  • 1.75″ HF compression driver
  • 2.5″ LF voice coil
  • 250 watts AES (RMS)
  • 500 watts Programme
  • 1000 watts Peak
  • 128 dB Max SPL @ 1 meter
SKU: Titan-X12 Categories: , Tag: Brand:

Description

Product description

Legendary 12″ Passive with IP54 Certification

TITAN-X12 is a 12″ passive loudspeaker from our TITAN Series — delivering impressive power, clarity, and reliability for live sound, installation, and mobile PA applications.

Equipped with a custom Wharfedale Pro 12″ LF driver featuring a 2.5″ voice coil and a 1.75″ HF compression driver, TITAN-X12 produces a balanced, full-range sound with tight bass response and smooth high-frequency detail. Handling 250 W AES (1000 W peak) power and reaching up to 128 dB max SPL @ 1 m, it offers strong, consistent output in a compact, portable enclosure.

Its durable polypropylene cabinet is IP54 certified for protection against dust and moisture, making it suitable for both indoor and outdoor use. With integrated M8 rigging points, multiple optional wall brackets, and Titan Tourbag compatibility, installation and transport are effortless.

Designed for performance and practicality, TITAN-X12 delivers the sound quality and versatility expected from Wharfedale Pro’s trusted and legendary TITAN lineup.

Specifications

Active or Passive
Passive
System Type
Full-Range
Configuration
2-way
System Continuous Power
250 W
System Programme Power
500 W
System Peak Power
1000 W
Max SPL @ 1m
128 dB
Freq Response (+/-3 dB)
55 Hz - 20 kHz
Freq Range (-10 dB)
50 Hz - 20 kHz
Bi-amp Mode Switch
No
IP Certification
IP54
Driver Brand
Wharfedale Pro
LF Driver Size
12"
LF Voice Coil Size
2.5
LF Rated Impedance
8 Ω
LF Power (RE:AES2-2012)
250 W
HF Driver Type
Compression Driver
HF Voice Coil Size
1.75"
HF Diaphragm Material
Titanium
HF Exit Size
1"
HF Power (RE:AES2-2012)
40 W
HF Rated Impedance
8 Ω
Preset Library
Yes
Input Connector
2 x 4 Pole Speaker Connector
Waveguide Type
Hybrid Symmetry Horn
Enclosure Material
Polypropylene
Grille Material and Finish
Steel Black or White
Finish
Black or White polypropylene
Handles
2
Deployment
Flying, Ground, Pole, Wall Mount
Pole Mount
35 mm
Brackets Included
No
Rigging
Yes
M8
10
Nominal Coverage (H x V)
100° x 80°
Sensitivity 2.83 V / 1 m
98 dB
System Rated Impedance
8 Ω
Crossover Frequency
2.6 kHz
Recommended HPF = BW 18 dB/OCT.
50 Hz
Transformer (T)
No
Included Accessory
User Manual, Dust Cover
Unpacked - Height (mm)
583
Unpacked - Width Front (mm)
385
Unpacked - Width Rear (mm)
385
Unpacked - Depth (mm)
319
Packed - Height (mm)
480
Packed - Width Front (mm)
320
Packed - Width Rear (mm)
320
Packed - Depth (mm)
740
Weight - Nett (kg)
13.7
Weight - Gross (kg)
15
