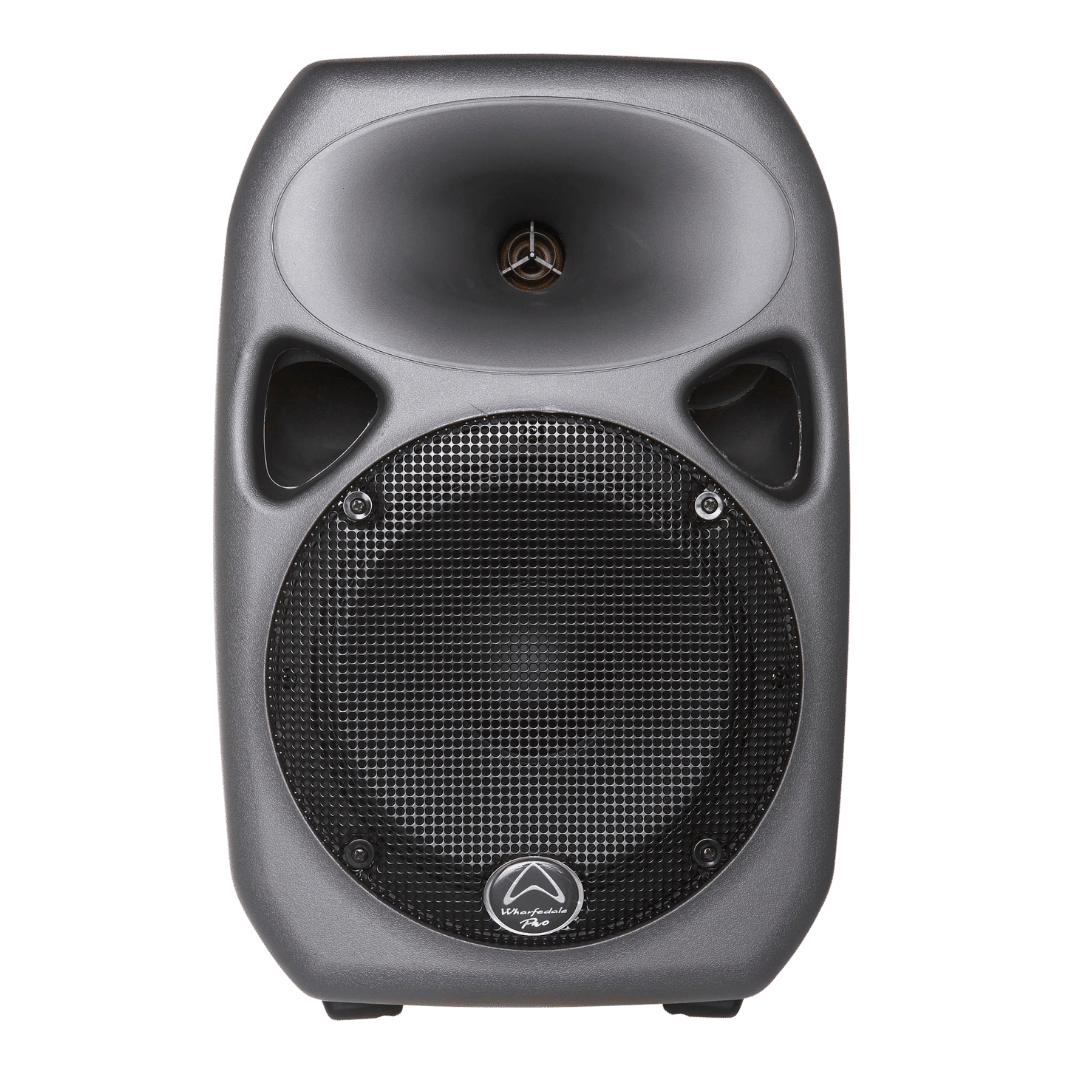

Titan-8 Wharfedale Pro

RM1,290.00

TITAN-8

  • 8″ passive
  • 1.0″ HF compression driver
  • 150 watts AES (RMS)
  • 300 watts Programme
  • 600 watts Peak
  • 124 dB Max SPL @ 1 meter
SKU: Titan-8 Categories: , Tag: Brand:

Description

Product description

Legendary 8″ Passive with IP54 Certification

TITAN 8 is an 8″ passive loudspeaker from our TITAN Series — compact, powerful, and built for versatility across live performance, installation, and mobile applications.

Featuring a custom Wharfedale Pro 8″ LF driver and a 1.0″ HF compression driver, TITAN 8 delivers clear, articulate sound with surprising low-end extension for its size. Handling 150 W AES (600 W peak) power and producing up to 124 dB max SPL @ 1 m, it provides reliable output for small venues, monitors, and portable PA setups.

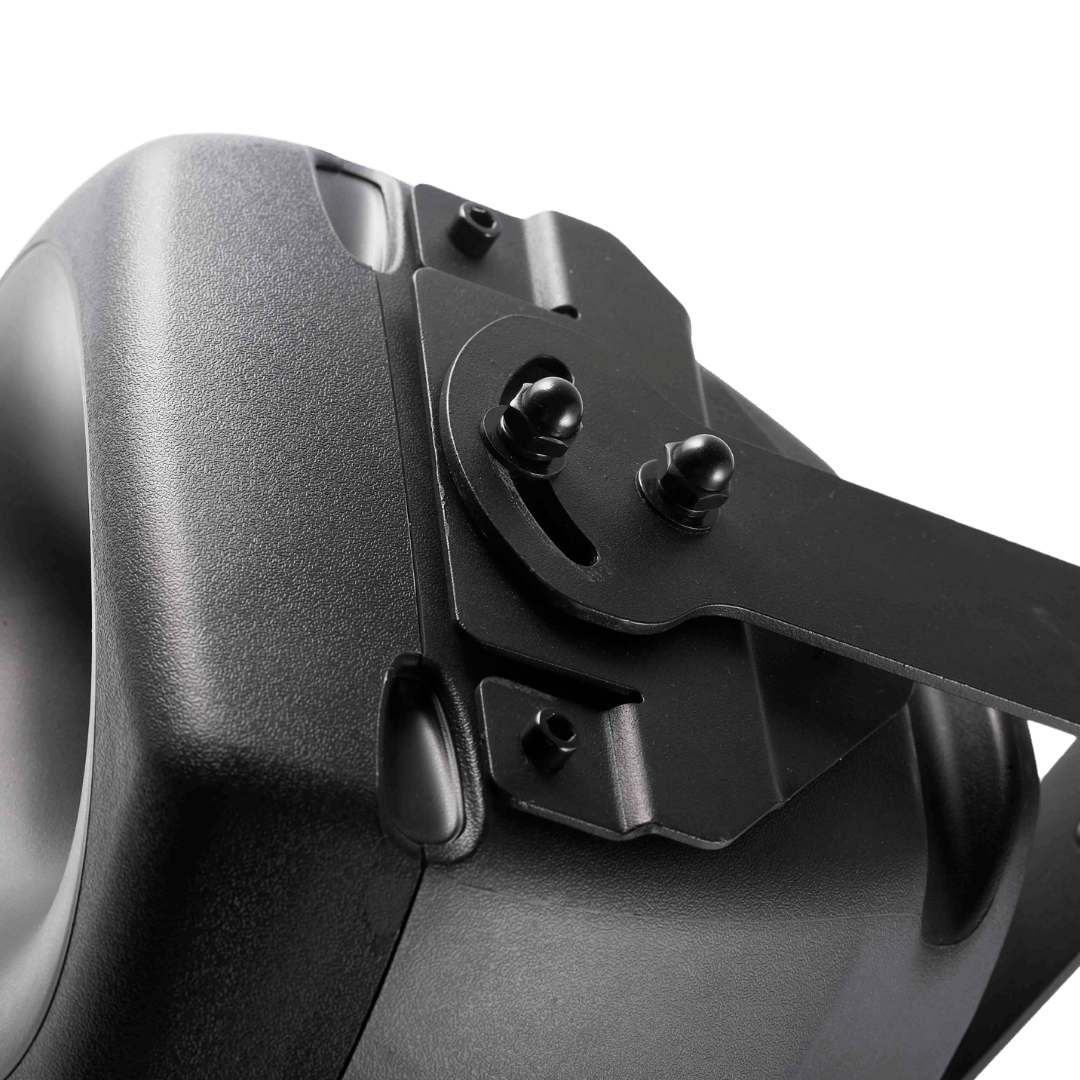

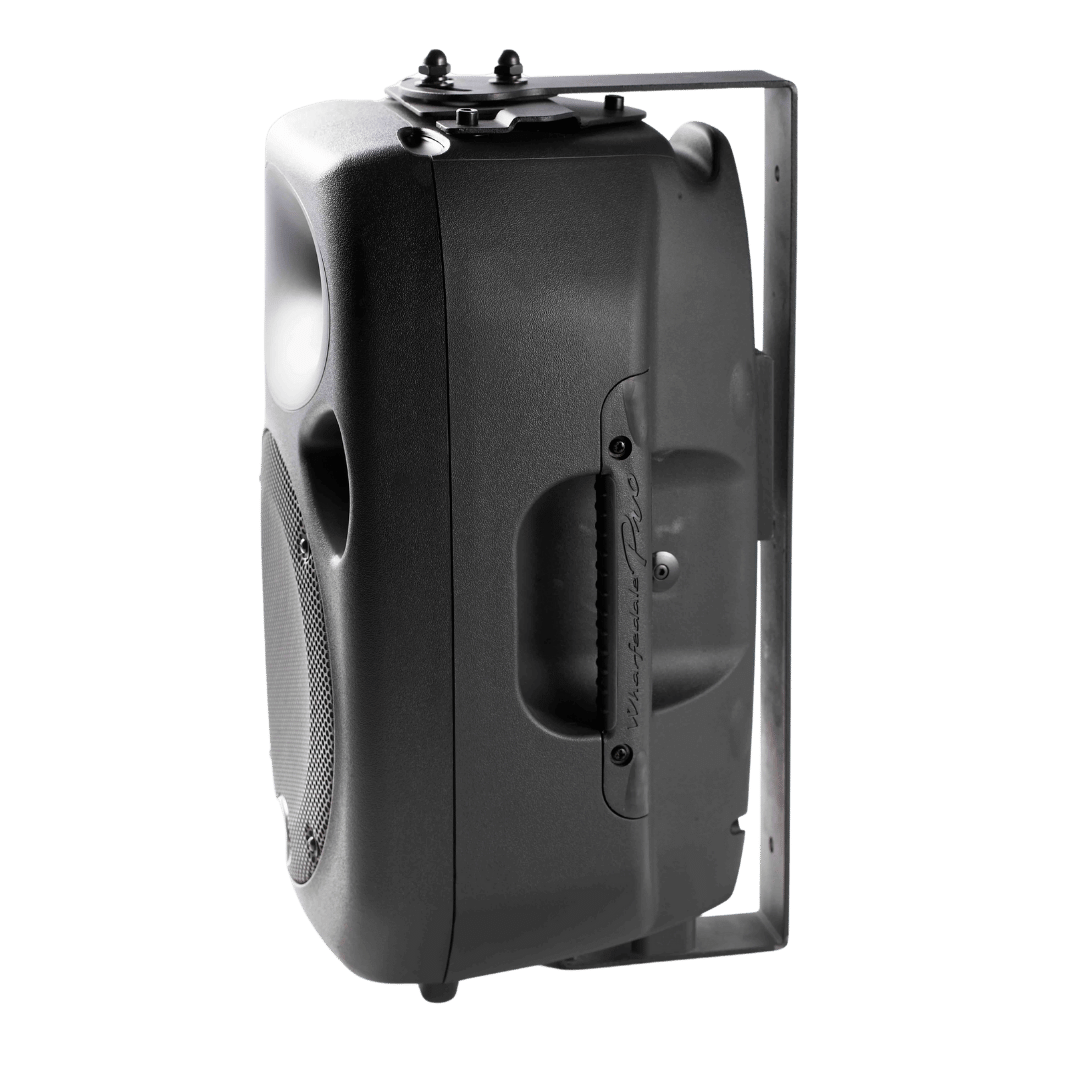

The lightweight polypropylene cabinet is IP54 certified, ensuring protection against dust and moisture for both indoor and outdoor use. M8 rigging points and multiple optional wall brackets offer flexible installation options, while optional Titan Tourbags provide additional protection on the road.

Compact yet robust, TITAN 8 combines performance, portability, and durability — a true all-round loudspeaker for professionals who need dependable sound wherever they perform.

Specifications

Active or Passive
Passive
System Type
Full-Range
Configuration
2-way
System Continuous Power
150 W
System Programme Power
300 W
System Peak Power
600 W
Max SPL @ 1m
124 dB
Freq Response (+/-3 dB)
70 Hz - 20 kHz
Freq Range (-10 dB)
65 Hz - 20 kHz
Bi-amp Mode Switch
No
IP Certification
IP54
Driver Brand
Wharfedale Pro
LF Driver Size
8"
LF Voice Coil Size
1.53
LF Rated Impedance
8 Ω
LF Power (RE:AES2-2012)
150 W
HF Driver Type
Compression Driver
HF Voice Coil Size
1"
HF Diaphragm Material
Mylar
HF Exit Size
1.2"
HF Power (RE:AES2-2012)
20 W
HF Rated Impedance
8 Ω
Preset Library
Yes
Input Connector
2 x 4 Pole Speaker Connector / 2 x 6.3mm jacks
Waveguide Type
Elliptical
Enclosure Material
Polypropylene
Grille Material and Finish
Steel, Black, Grey, White
Finish

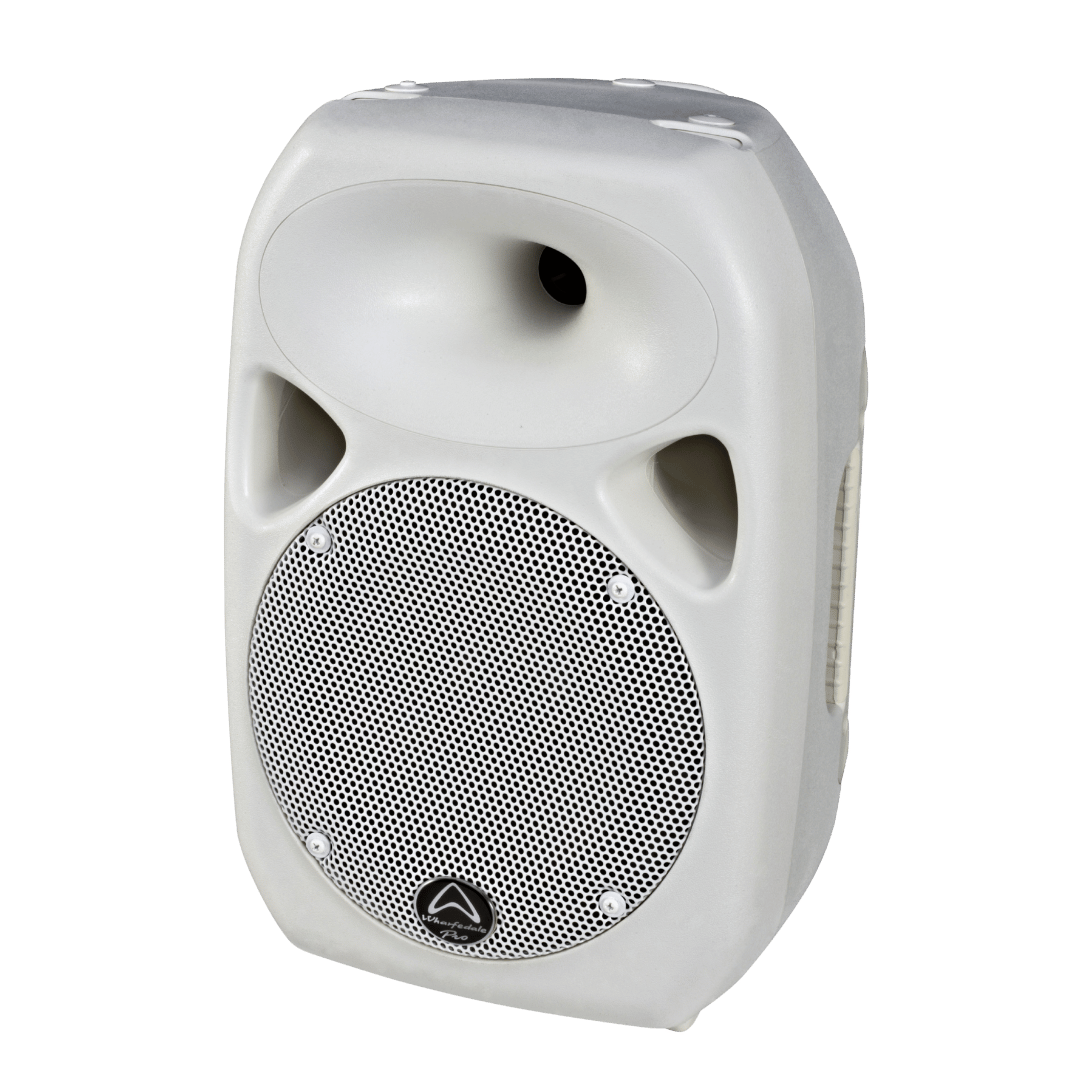

Black, Grey or White Polypropylene
Handles
1
Deployment
Flying, Ground, Pole, Wall Mount
Pole Mount
35 mm
Brackets Included
No
Rigging
Yes
M6
8
Nominal Coverage (H x V)
90° x 60°
Sensitivity 2.83 V / 1 m
96 dB
System Rated Impedance
8 Ω
Crossover Frequency
2-way 2.4 kHz / Linkwitz-Riley
Recommended HPF = BW 18 dB/OCT.
65 Hz
Transformer (T)
No
Included Accessory
Quick Start Guide, Dust cover
Unpacked - Height (mm)
396
Unpacked - Width Front (mm)
266
Unpacked - Width Rear (mm)
266
Unpacked - Depth (mm)
221
Packed - Height (mm)
470
Packed - Width Front (mm)
290
Packed - Width Rear (mm)
290
Packed - Depth (mm)
320
Weight - Nett (kg)
6.25
Weight - Gross (kg)
7.36
