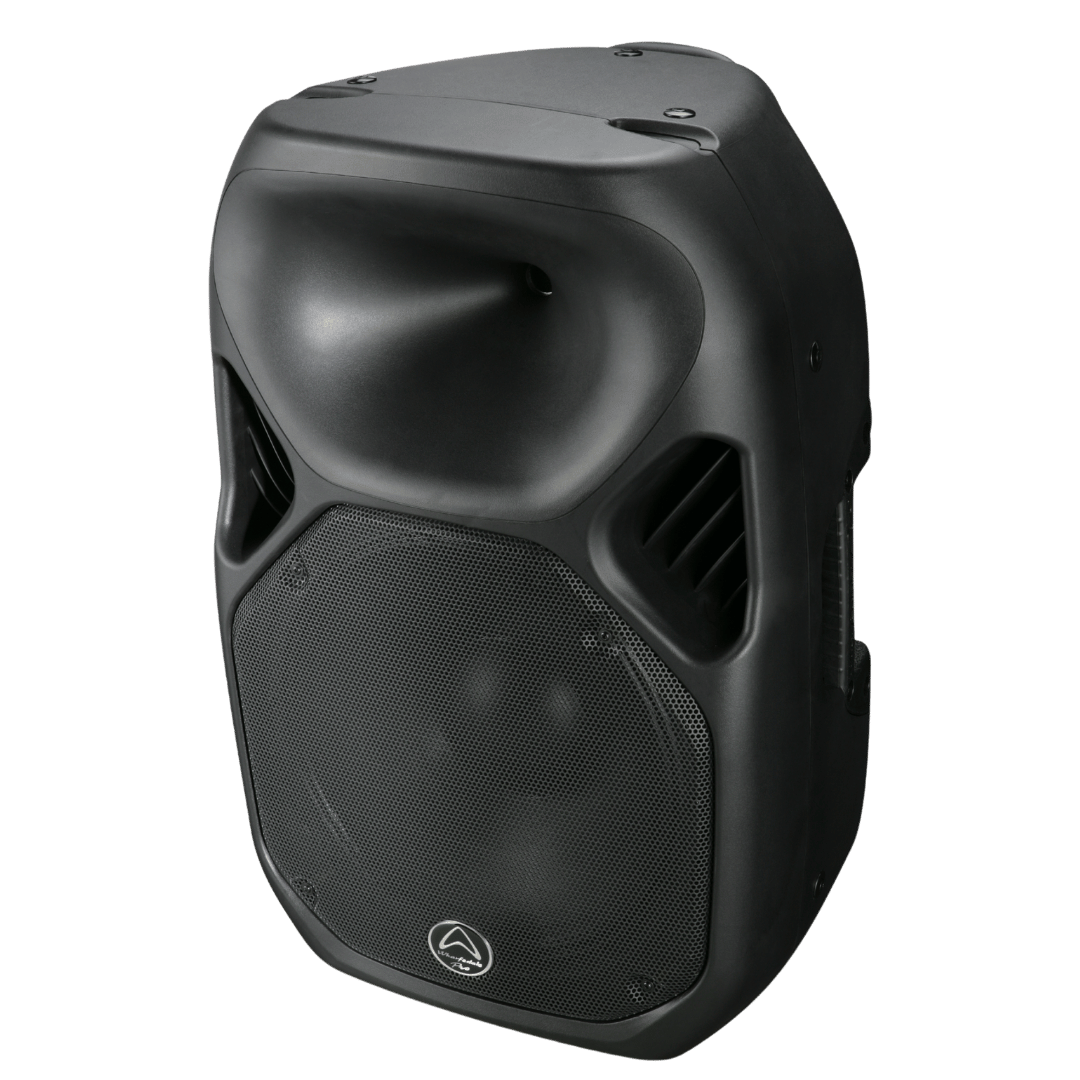

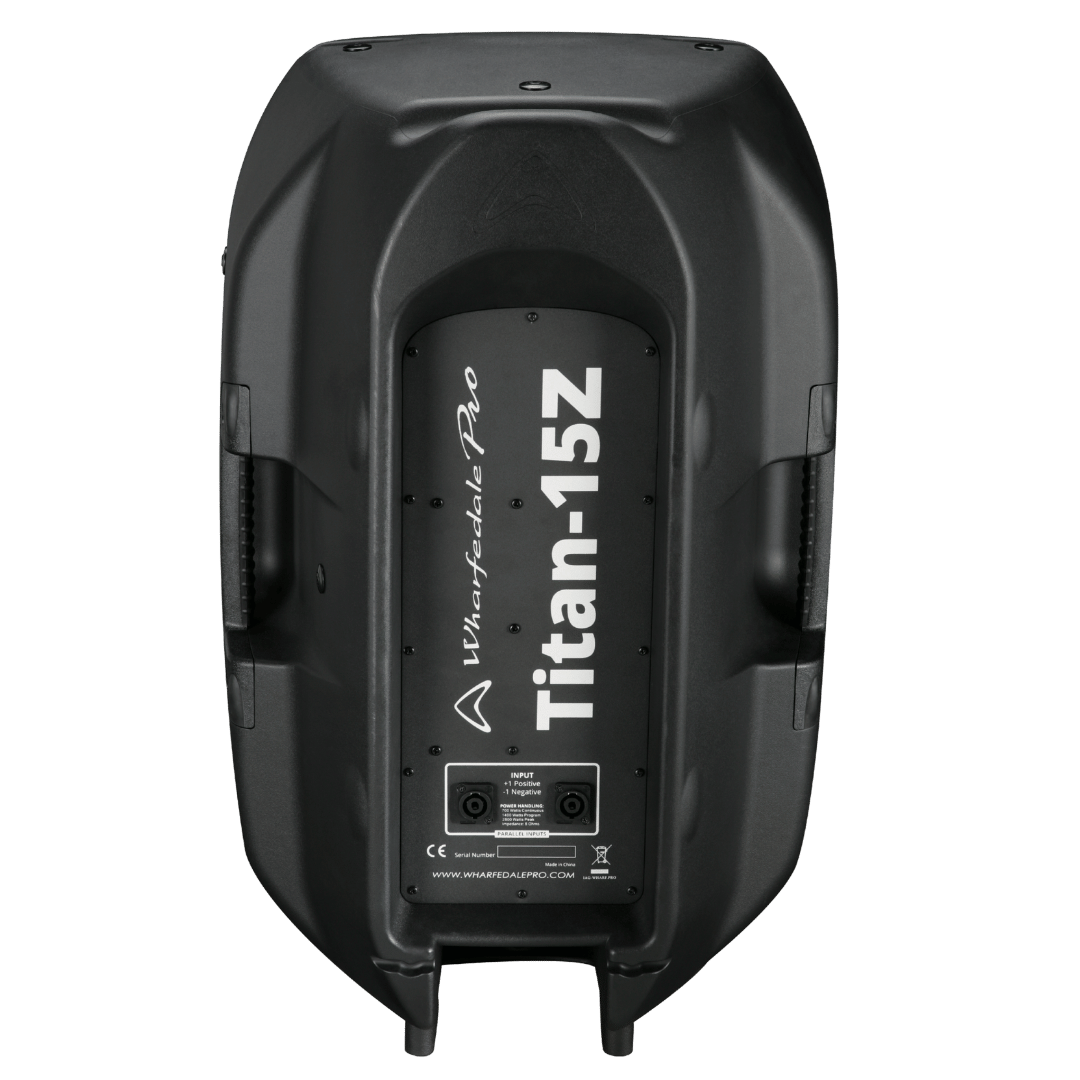

Titan-15Z Wharfedale Pro
Titan-15Z Wharfedale Pro - Image 2
Titan-15Z Wharfedale Pro - Image 3

Titan-15Z Wharfedale Pro

RM2,670.00

TITAN-15Z

  • 15″ passive
  • 2.0″ HF compression driver
  • 4.0″ LF voice coil
  • 700 watts AES (RMS)
  • 1400 watts Programme
  • 2800 watts Peak
  • 133 dB Max SPL @ 1 meter
SKU: Titan-15Z Categories: , Tag: Brand:

Description

Product description

High power 15″ Passive with IP54 Certification

TITAN-15Z is a 15″ passive loudspeaker from our TITAN Series — engineered for high-output performance, superior clarity, and durability in demanding live and installation environments.

Equipped with a precision 2.0″ HF compression driver and a powerful 15″ LF driver featuring a 4.0″ voice coil, TITAN-15Z delivers exceptional sonic accuracy with deep, controlled low frequencies and smooth, extended highs. Handling 700 W AES (2800 W peak) power and achieving up to 133 dB max SPL @ 1 m, it provides commanding performance for large-scale venues and outdoor applications.

Its IP54-certified polypropylene cabinet offers protection against dust and moisture, ensuring reliability in any environment. Integrated M8 rigging points and Titan Tourbag compatibility provide flexible installation and transport options.

Designed for professional use, TITAN-15Z combines power, precision, and practicality — delivering the ultimate passive performance within the TITAN lineup.

Specifications

Active or Passive
Passive
System Type
Full-Range
Configuration
2-way
System Continuous Power
700 W
System Programme Power
1400 W
System Peak Power
2800 W
Max SPL @ 1m
133.5 dB
Freq Response (+/-3 dB)
45 Hz - 20 kHz
Freq Range (-10 dB)
40 Hz - 20 kHz
IP Certification
IP54
Driver Brand
Wharfedale Pro
LF Driver Size
15"
LF Voice Coil Size
4"
LF Rated Impedance
8 Ω
LF Power (RE:AES2-2012)
700 W
HF Driver Type
Compression Driver
HF Voice Coil Size
2"
HF Diaphragm Material
Titanium
HF Exit Size
1"
HF Power (RE:AES2-2012)
50 W
HF Rated Impedance
8 Ω
Preset Library
Yes
Input Connector
2 x 4 Pole Speaker Connector
Waveguide Type
Hybrid Symmetry Horn
Enclosure Material
Polypropylene
Grille Material and Finish
Steel Black
Finish
Black Polypropylene
Handles
2
Deployment
Flying, Ground, Pole, Wall Mount
Pole Mount
35 mm
Brackets Included
No
Rigging
Yes
M8
10
Nominal Coverage (H x V)
100° x 80°
Sensitivity 2.83 V / 1 m
99 dB
System Rated Impedance
8 Ω
Crossover Frequency
2.1 kHz
Recommended HPF = BW 18 dB/OCT.
40 Hz
Transformer (T)
No
Included Accessory
User Manual, Dust Cover
Unpacked - Height (mm)
729
Unpacked - Width Front (mm)
481
Unpacked - Width Rear (mm)
481
Unpacked - Depth (mm)
396
Packed - Height (mm)
840
Packed - Width Front (mm)
520
Packed - Width Rear (mm)
520
Packed - Depth (mm)
500
Weight - Nett (kg)
26.8
Weight - Gross (kg)
29.3
