SD8 Behringer

RM1,871.00

I/O Stage Box with 8 Remote-Controllable Midas Preamps, 8 Outputs, AES50 Networking and ULTRANET Personal Monitoring Hub

8 Midas-designed, fully programmable mic preamps for audiophile sound quality
8 analog, servo-balanced XLR outputs
AES50 network ports featuring Klark Teknik’s SuperMAC networking capability for ultra-low jitter and latency
2-port ULTRANET distribution hub for powered connection of 2 Behringer P16-M personal monitoring mixers
Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability

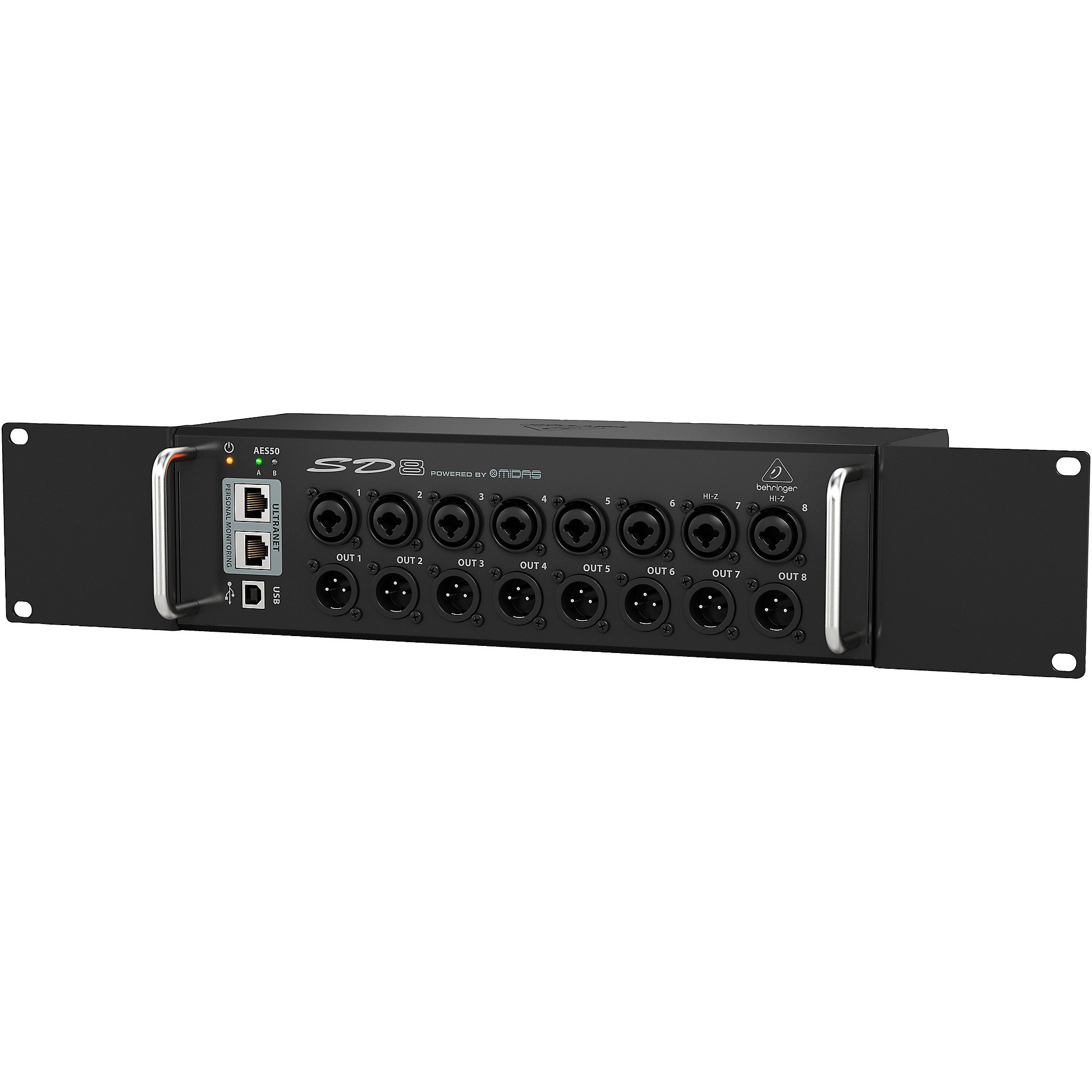

Rack ears and protection bumpers included for installed and mobile applications
Dual AES50 ports for cascading multiple units-no merger or router required
Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
USB connector for system updates via PC
Ultra-compact and roadworthy, all-steel chassis

SKU: SD8 Category: Professional Sound Tag: Behringer Brand: Behringer

Description

Product description

Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. Now we’ve come up with the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the ultra-cool and ultra-affordable SD8 Stage Box! The SD8 provides 8 Midas -designed remote-controllable mic preamps, 8 balanced analog XLR returns at the stage end, plus an integrated 2-port ULTRANET distribution hub for direct connection to our P16-M personal monitor mixers – without any additional hardware required. Plus the SD8 is extremely compact and comes with rugged protective bumpers, so you can toss them directly on stage wherever you need them. The best part – all it takes is a single shielded CAT5e cable per stage box. And If you need more inputs, or just want to keep your cable runs short and tidy, putting an SD8 at stage front and another behind the drum riser gives you an additional 8 inputs for drum and guitar/ bass amp mic’ing. When used as part of a complete X32 system, as many as six SD8 Stage Boxes can be cascaded via the built-in AES50 ports to provide up to 48 balanced XLR Combo inputs and 48 balanced XLR outputs. An onboard ULTRANET distribution hub provides power and 16 channels of audio to 2 Behringer POWERPLAY P16-M personal monitor mixers per SD8, all via inexpensive shielded CAT5e cabling – and without any additional hardware. Two of the programmable inputs are also compatible with Hi-Z sources, so you can connect keyboards, acoustic and bass guitars, etc., with no DI box required. The SD8 also features a USB port for fast and easy system updates via your PC.

General

Compatibility

Behringer X-Series

Performance

Frequency Range, at 48 kHz Sample Rate, (0 to -1 dB) 10 Hz to 22 kHzDynamic Range, Analog Mic In to Analog Out (Typical): 105 dBA/D Dynamic Range, Mic Preamp to Converter (Typical): 109 dBD/A Dynamic Range, Converter and Output: 108 dBCrosstalk Rejection at 1 kHz: Adjacent Channels 90 dBMic Input Impedance XLR Jack, (Unbalanced / Balanced): 5 Kilohms / 10 KilohmsNon Clip Maximum Input Level, XLR: +23 dBuHi-Z Input Impedance TRS Jack, (Unbalanced / Balanced): 1 Megohm / 2 MegohmsLine input impedance TRS Jack, (Unbalanced / Balanced) 20 Kilohms / 40 KilohmsNon Clip Maximum Input Level, TRS: +21 dBu

Output

Output Impedance, XLR, (Unbalanced / Balanced): 50 Ohms / 50 OhmsOutput Level, XLR, (Nominal / Maximum): +4 dBu / +21 dBuResidual Noise Level, XLR: -88 dBu, A-Weighted

Inputs/Outputs

USB I/O

1 x USB-B Female Input

Audio I/O

8x XLR 3-Pin Line/Mic Input8x XLR 3-Pin Line Output

Microphone Input

Preamp Design: MidasTHD + Noise, 20 dB Gain, 0 dBu Out: < 0.005%, A-WeightedPhantom Power, Switchable per Input: 48 VEquivalent Input Noise Level, XLR (Input Shorted): -128 dBu, A-WeightedCMRR, XLR, at 20 dB Gain (Typical): >60 dBCMRR, XLR, at 40 dB Gain: >65 dB

Digital I/O

ULTRANET Outputs (Power Supplied for Behringer P16-M Personal Mixers): 2 RJ45ULTRANET Networking at 48 or 44.1 kHz, 22-Bit PCM: 16 Channels per RJ45, UnidirectionalULTRANET Cable Length, CAT5 Shielded: Up to 246.1' / 75 mAES50 SuperMac Networking at 48 or 44.1 kHz, 24-Bit PCM: 2 x 48 Channels, Bidirectional, Neutrik etherCONAES50 SuperMac Cable Length, Cat 5 Shielded: Up to 328.1' / 100 m

Power

Power Source

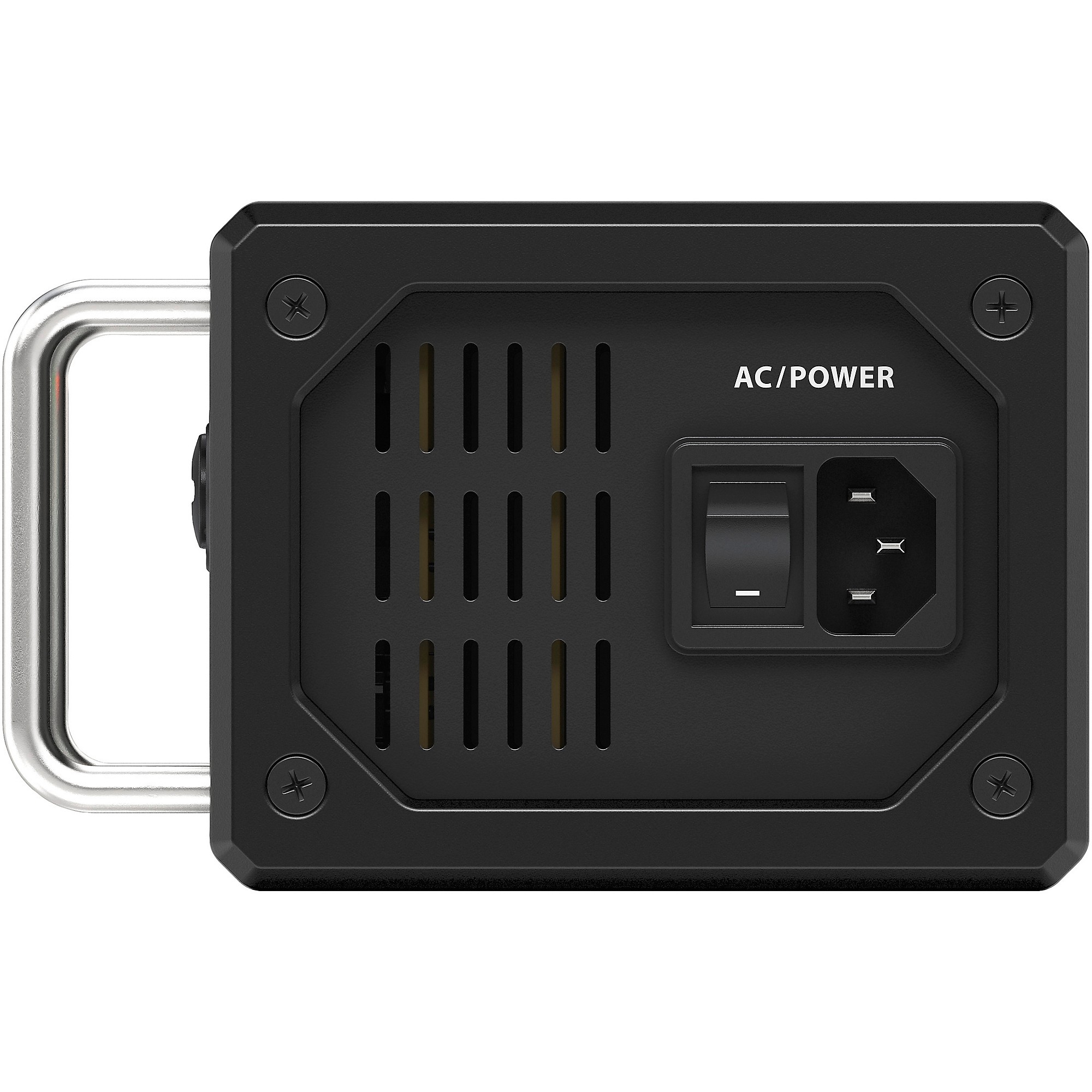

AC Input

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Power Consumption

45 W

Physical

Color

Gray

Environmental Resistance

Dimensions

13.1 x 5.9 x 3.7" / 33.3 x 15 x 9.4 cm

Weight

5.5 lb / 2.5 kg

Package Weight

7.46 lb

Box Dimensions (LxWxH)

15.25 x 8.5 x 5.8"

Specification Notes

Line 01

General

Line 02

Inputs/Outputs

Line 03

Power

Line 04

Physical

Line 05

Packaging Info
