SC-RE Behringer

RM516.00

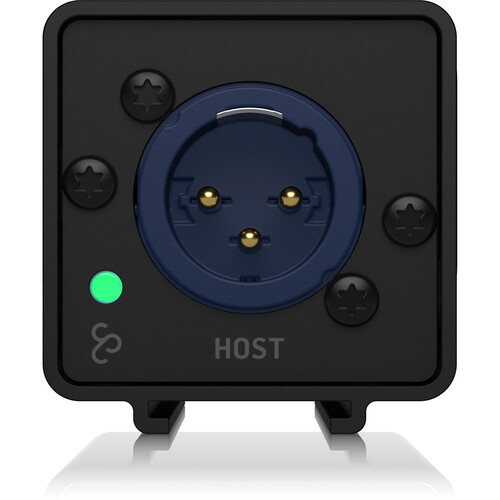

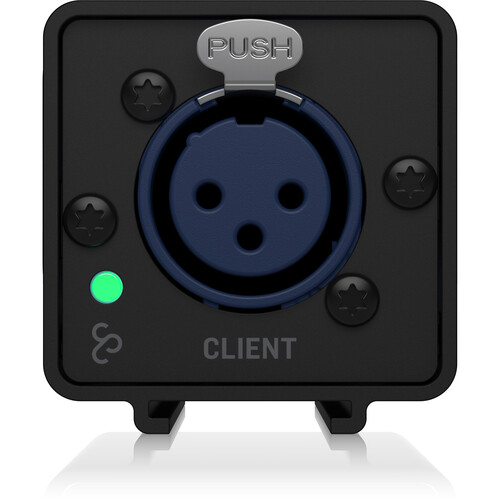

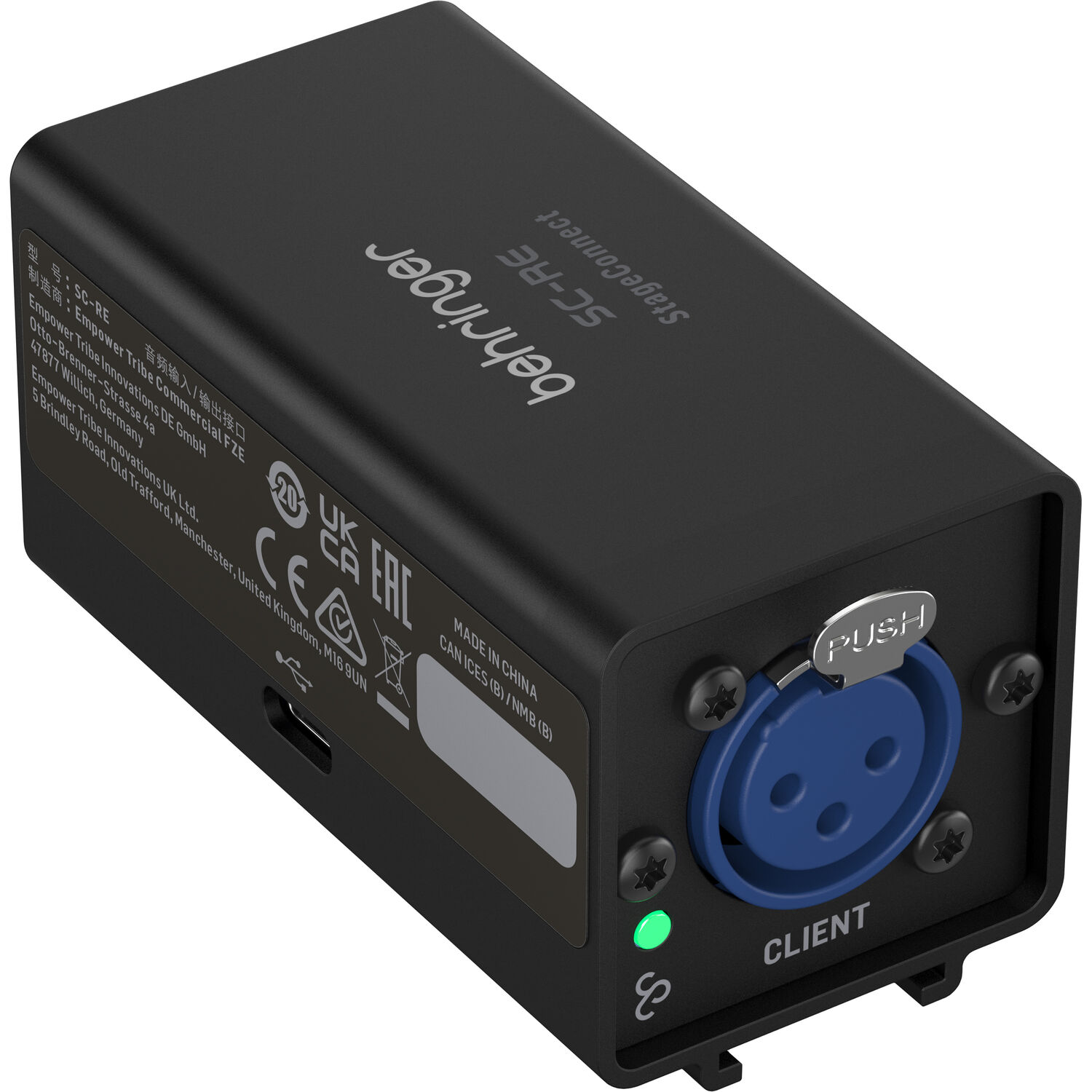

StageConnect Range Extender

Doubles the maximum transmission range of StageConnect over XLR/DMX cable from 40 to 80 m
Bi-directional audio transmission for up to 32 channels
Control data and 12 VDC / 18 W remote power sent over the same XLR or DMX cable
StageConnect 32-channel bidirectional audio transmission with sub-millisecond latency at 44.1/48 kHz and 24 bits over standard 3-pin XLR DMX cable, or microphone cable for short distances
Slim design, just over the size of 2 XLR connectors
Includes metal bracket for mounting in touring cases or fixed installations

SKU: SC-RE Category: Professional Sound Tag: Behringer Brand: Behringer

Description

Product description

Works with WING. And without it.

SC-RE is made to work across the entire StageConnect ecosystem. Extend connections to StageConnect I/O interfaces Connect StageConnect devices directly to a computer via SC-U Place P24 personal monitoring systems and P24 HUBs further away Extend FLOW 4V and FLOW VIO stageboxes Use it with WING consoles One extender per chain. Double the distance. Nothing else changes.

What is StageConnect?

StageConnect is a professional digital connection designed to simplify complex setups. It carries uncompressed audio, clock, data, MIDI, and power over a single cable. 32 channels at 44.1 kHz / 48 kHz, 24-bit Sub-one millisecond latency with uncompressed digital audio Standard XLR cable up to 5 meters / 16 feet 110 Ω DMX cable up to 40 meters / 130 feet Cable runs can be doubled once using StageConnect Range Extender Need help planning a setup? The StageConnect Configurator helps calculate channel count, power, and cable lengths.

General

Compatibility

Behringer StageConnect

Processing

StageConnect Bus: 32 Channels, 44.1/48 kHz, 24-bit PCM AudioI/O Latency: 0.1 ms

Inputs/Outputs

USB I/O

1 x USB-C Female Input

Audio I/O

1x SC-Plug 3-Pin Input1x SC-Plug 3-Pin Output

Connectors

Type: StageConnectShielded Balanced 110 Ohm DMX Cable: Max 131.2' / 40.0 mUSB: Type C (Firmware Update Only)

Power

Power Source

Plug-In Power

Power Consumption

0.5 W

Physical

Color

Blue

Dimensions

3.1 x 1.7 x 1.6" / 78 x 42 x 40 mm

Weight

3.5 oz / 0.1 kg

Package Weight

0.44 lb

Box Dimensions (LxWxH)

5.9 x 3.4 x 3"

Specification Notes

Line 01

General

Line 02

Inputs/Outputs

Line 03

Power

Line 04

Physical

Line 05

Packaging Info
