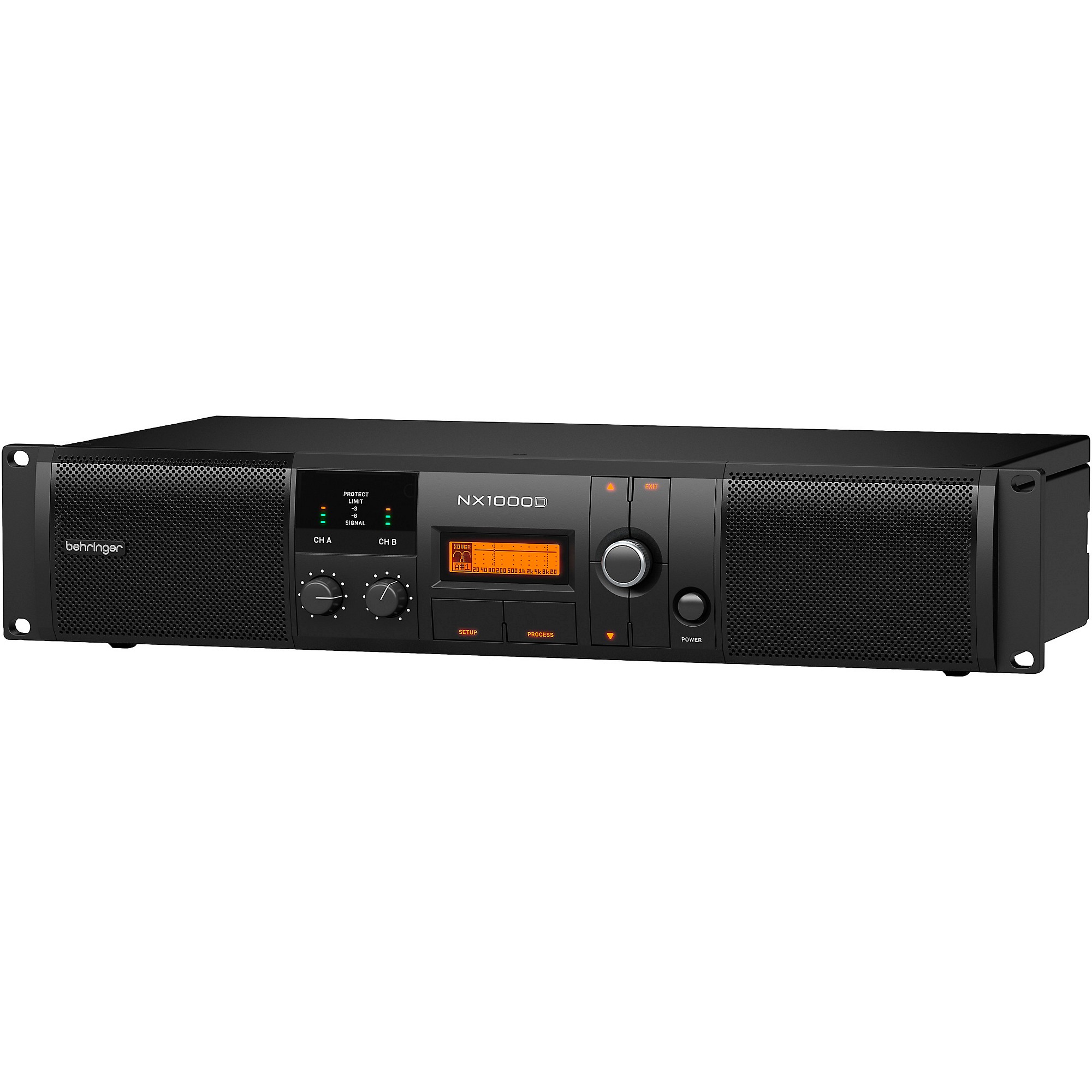

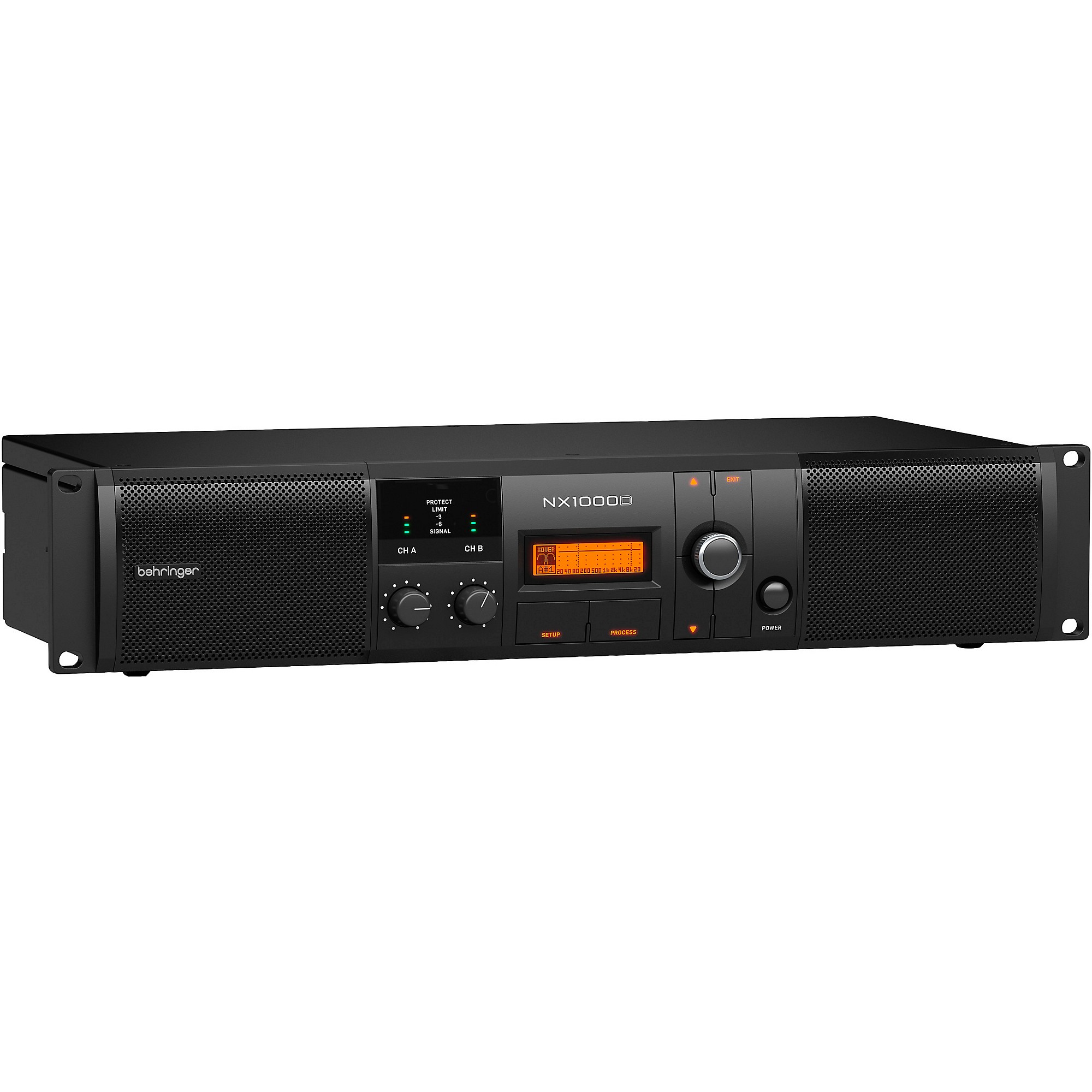

NX1000D Behringer

RM1,411.00

Ultra-Lightweight 1000-Watt Class-D Power Amplifier with DSP Control and SmartSense Loudspeaker Impedance Compensation

Delivers 2 x 500 Watts into 2 Ohms; 2 x 300 Watts into 4 Ohms; 1000 Watts into 4 Ohms (bridge mode) and weighs less than 7.5 lbs / 3.4 kg
Ultimate reliability through revolutionary cool-running High-Density Class-D technology with “near-zero” thermal buildup
Ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption
High-performance DSP and 24-bit/96 kHz converters deliver ultimate signal integrity and extreme dynamic range
DSP section features sophisticated delay, crossover (3 filter types, up to 48 dB/octave), EQ (8 parametric, 2 dynamic), dynamics processing and lockable security settings
SmartSense Loudspeaker impedance compensation features fully linear frequency response at any speaker load impedance
Front panel LCD display enables setup and adjustment without PC
Can be set up, controlled and monitored via rear panel USB connector. Powerful remote software downloadable at behringer.com
Zero-Attack limiters offer maximum output level with reliable overload protection
Built-in Subwoofer/Satellite crossover for perfect subwoofer operation
Detented gain controls for precise level setting
Precise 4-segment Signal and Limit LEDs to monitor performance
XLR and 1/4” TRS combination input connectors for compatibility with any source
Professional twist-lock speaker connectors for ultimate reliability
Independent DC, LF and thermal overload protection on each channel automatically protects amplifier and speakers without shutting down the show
Back-to-front ventilation system prevents thermal buildup for reliable operation

SKU: NX1000D Categories: Professional Sound, Speakers, Subwoofer Tag: Behringer Brand: Behringer

Description

Product description

The NX1000D power amplifier packs 1000 Watts (2 x 500 Watts @ 2 Ohms; 2 x 300 Watts @ 4 Ohms; 1000 Watts into 4 Ohms bridge mode) into exceptionally lightweight (7.5 lbs / 3.4 kg) and rack-mountable packages. Plus, the built-in DSP and 24-bit/ 96 kHz converters ensure the ultimate signal integrity with an extremely broad dynamic range. And because the NX1000D is so much more efficient than conventional designs, it runs cooler and doesn’t require the massive heat sinks and heavy toroid transformers typically associated with its conventional counterparts. Thanks to our “Zero-Attack” limiters that offer maximum output level with exceptionally-reliable overload protection and SmartSense Loudspeaker impedance compensation, which provides fully linear frequency response at any speaker load impedance, you can run the NX1000D full-out for hours on-end. Our revolutionary high-density Class-D technology, combined with an ultra-efficient, switch-mode power supply ensure this feather-light powerhouse will drive your rig effortlessly for many years to come.

Specifications

Form Factor/Type

Rackmount

Number of Amplifier Channels

Load Impedance/Voltage Support

2 / 4 / 8 Ohms

Power Rating per Channel

2x 500 W at 2 Ohms2x 300 W Peak at 4 Ohms2x 160 W Peak at 8 Ohms

Channel Bridging & Power Sharing

1x 1000 W Bridged at 4 Ohms1x 620 W Peak Bridged at 8 Ohms

Amplifier Class

Class-D

Performance

Protections

DC Fault, DC Offset, On/Off Muting, Thermal

Frequency Response

20 Hz to 20 kHz +0/-1 dB

Damping Factor

> 155 at 8 Ohms

SNR/Noise

> 100 dB SNR

THD/Distortion

≤ 0.05% THD+N (20 Hz to 20 kHz for 1 W)≤ 0.04% THD+N (1 kHz and 1 dB Below Clipping)≤ 0.1% Distortion

Signal Processing

DSP

Yes

Audio Delay

Adjustable Up to 300 ms

EQ & Filters

8-Band Parametric EQ

Dynamics

Zero-Attack Limiter

Analog Audio I/O

2x Combo XLR-1/4" TRS Balanced/Unbalanced Line Input2x speakON NL4 Speaker Output

Digital Audio I/O

Network I/O

USB I/O

1x USB-B (Host Connection, Remote)

Phantom Power

Wireless

Power

Input Power

100 to 120 VAC, 50 / 60 Hz

AC Power Connector

1x IEC 15 A / NEMA 5-15

Power Consumption

150 W (1/8 Power at 2 Ohms)

Physical

Display

Backlit LCD

Rackmount Size

2 U

Cooling

Fan (Variable Speed)

Dimensions

19 x 3.7 x 0.4" / 483 x 94 x 9.1 mm

Weight

7.5 lb / 3.4 kg

Package Weight

9.42 lb

Box Dimensions (LxWxH)

22 x 12 x 6.75"

Specification Notes

Line 01

Performance

Line 02

Signal Processing

Line 03

Connectivity

Line 04

Power

Line 05

Physical

Line 06

Packaging Info
