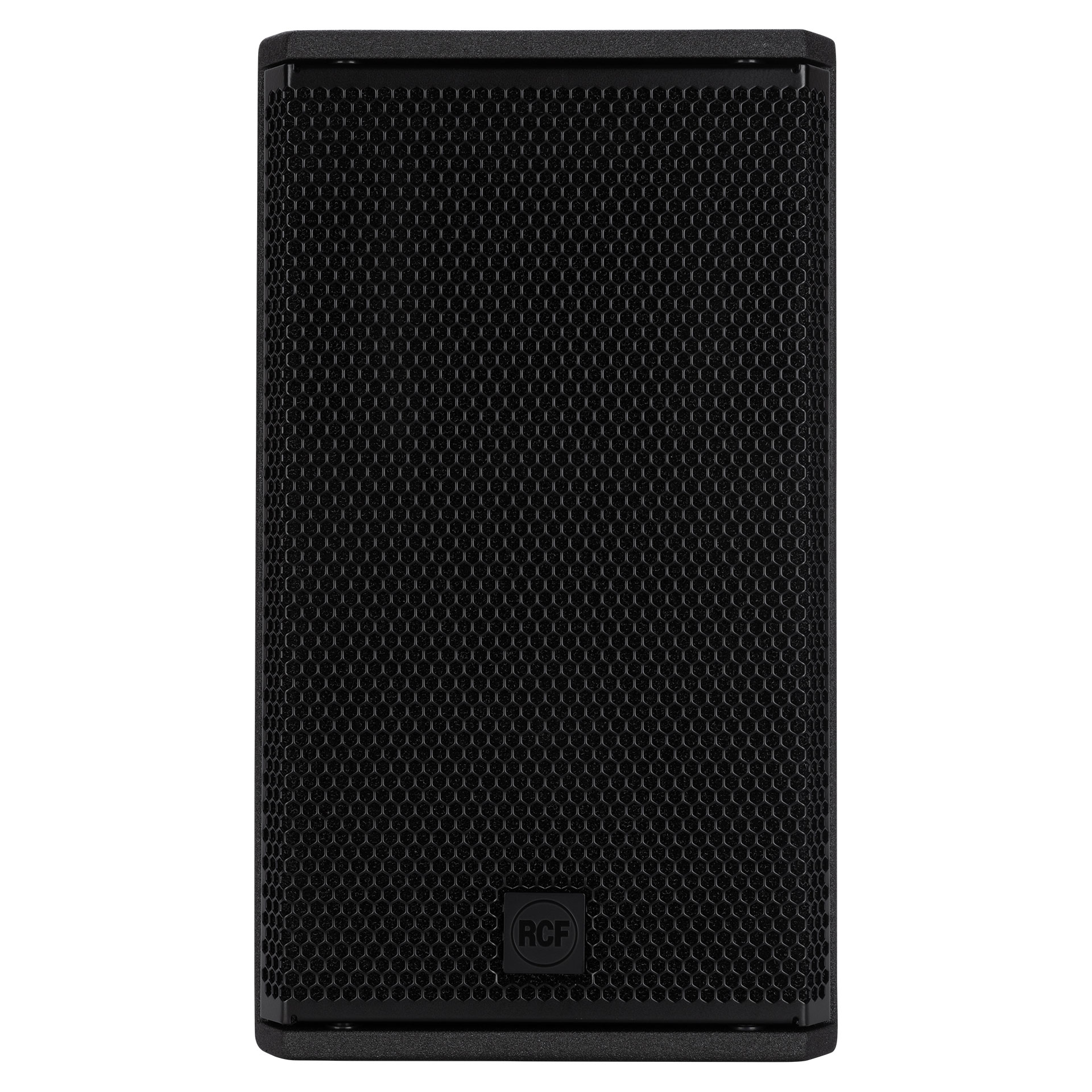

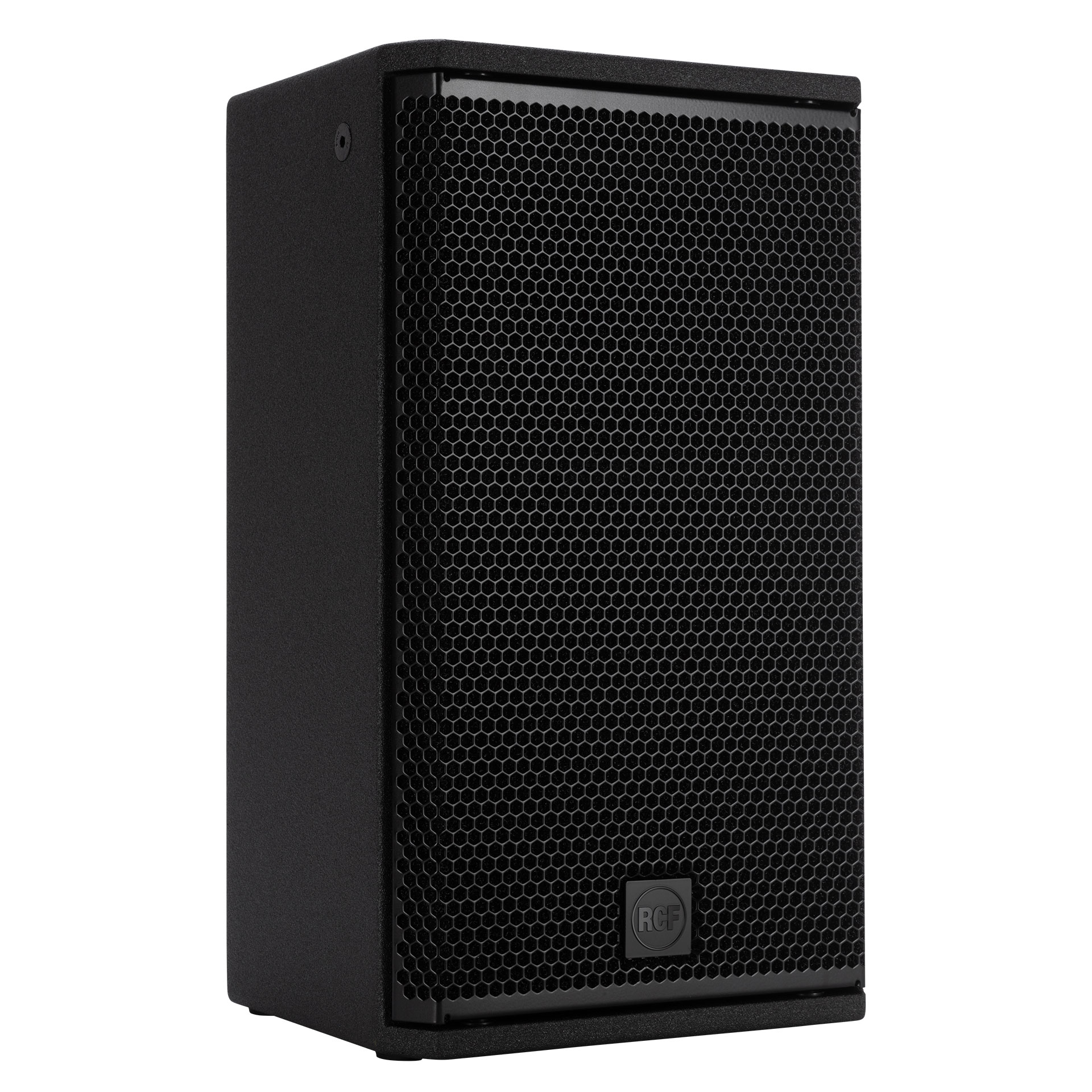

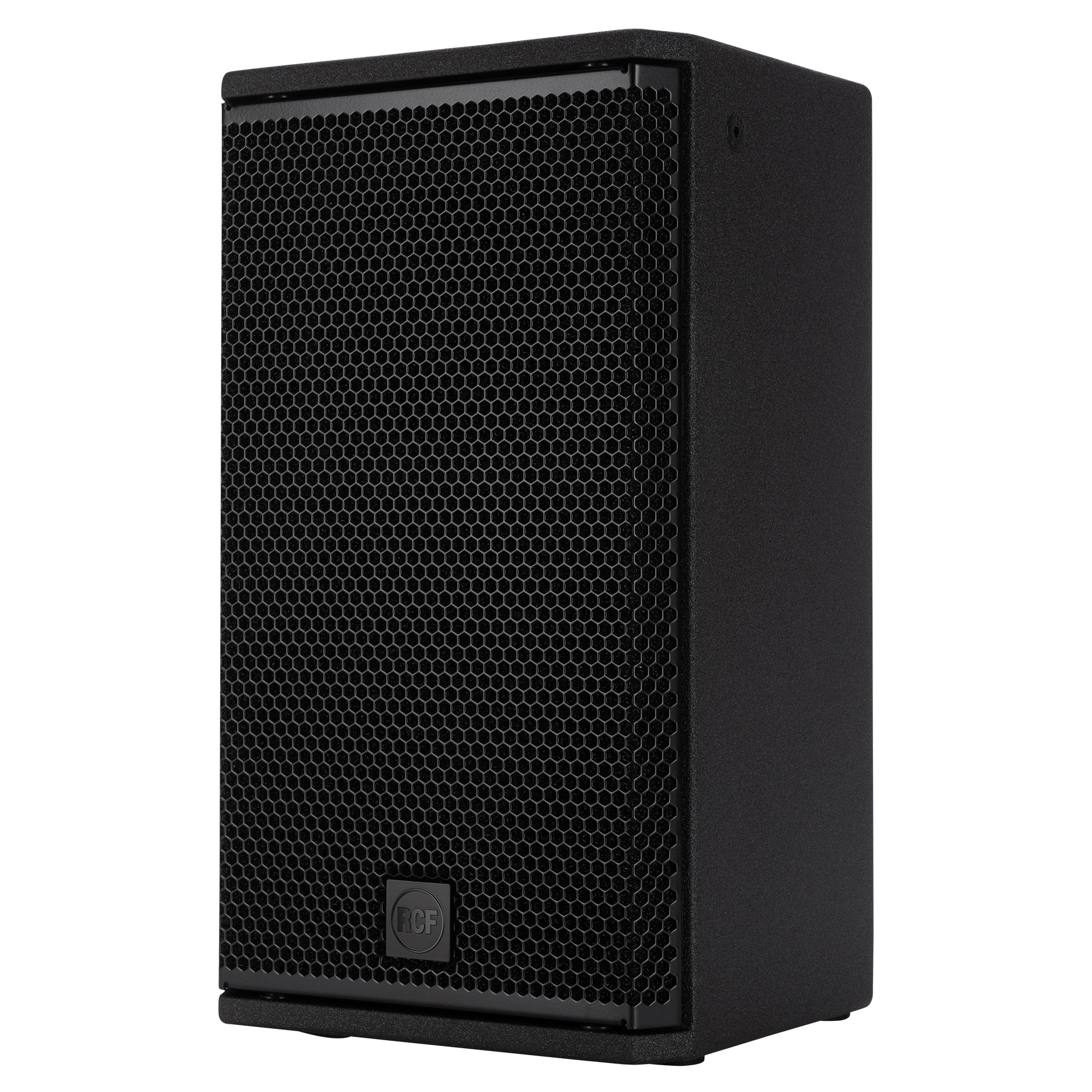

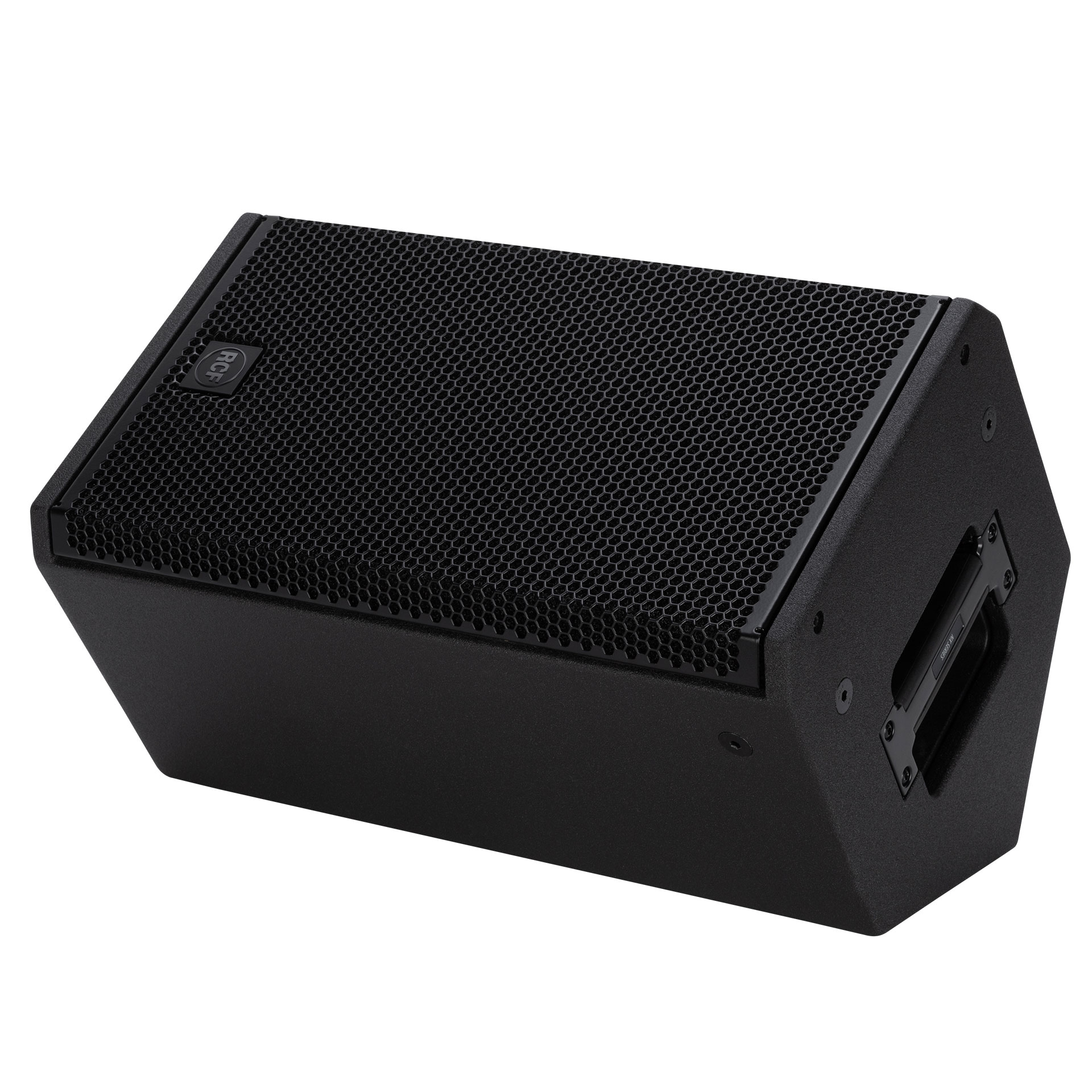

NX 910-A RCF

RM6,250.00

PROFESSIONAL ACTIVE SPEAKER

  • Up to 130 dB Sound Pressure Level
  • 2100W Class-D Bi-Amplification
  • 50-20000 Hz linear frequency response
  • 1.75″ Compression Driver
  • 10″ Woofer
  • FiRPHASE zero degrees phase technology
  • Bass Motion Control woofer excursion management
SKU: NX 910-A Categories: , , Tag: Brand:

Description

Product description

NX 910-A is masterfully engineered from the ground up to deliver stellar audio performance for solo musicians, bands, and DJs. The combination of 1.75″ compression driver, 10″ woofer, two-channel 2100W amplifier, and a constant directivity waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL of distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 910-A blends high-performance and reliability in a compact package. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 9 Series speakers are perfectly tuned for each model, delivering absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.

Specifications

Acoustical specifications
Frequency Response
Max SPL @ 1m
130 dB
Horizontal coverage angle
100°
Vertical coverage angle
60°

Specification Notes

Line 01
50 Hz - 20000 Hz
Line 02
Input/Output section
Line 03
Protections
Line 04
Thermal, RMS
Line 05
Limiter
Line 06
Soft Limiter
Line 07
Controls
Line 08
Cooling
Line 09
Convection
Line 10
Connections
Line 11
VDE
Line 12
Standard compliance
Line 13
Safety agency
Line 14
CE compliant
Line 15
Physical specifications
Line 16
Grille
Line 17
Steel
Line 18
Color

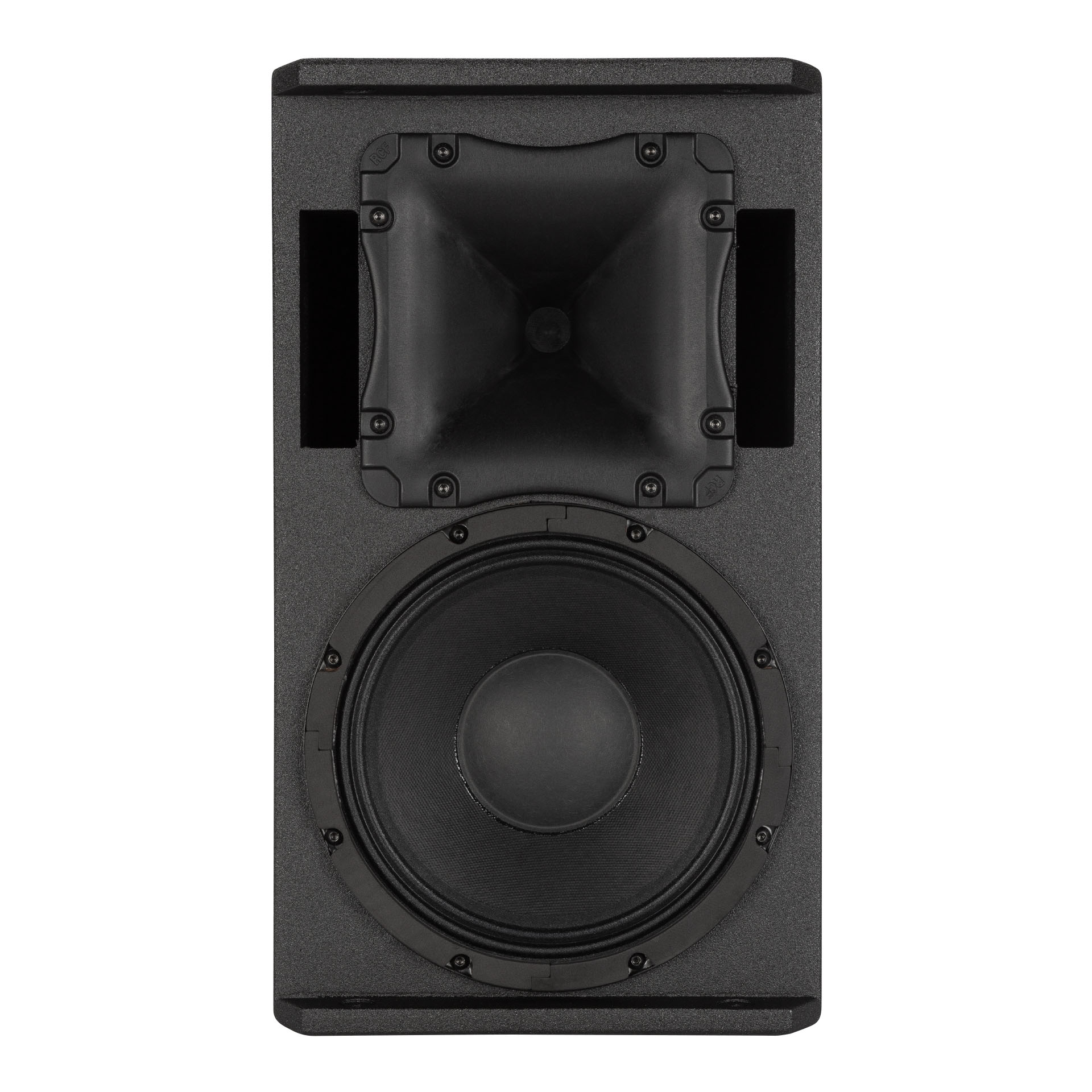

Transducers

Compression Driver
1 x 1.0'', 1.75'' v.c
Woofer
1 x 1.0'', 1.75'' v.c
Input signal
bal/unbal
Input connectors
XLR, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu

Processor section

Crossover Frequencies
1600 Hz
Linear, Boost, Stage, Volume
Power section
Total Power
2100 W Peak
High frequencies
700 W Peak
Low frequencies
1400 W Peak
Cabinet/Case Material
Plywood
Hardware
2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear

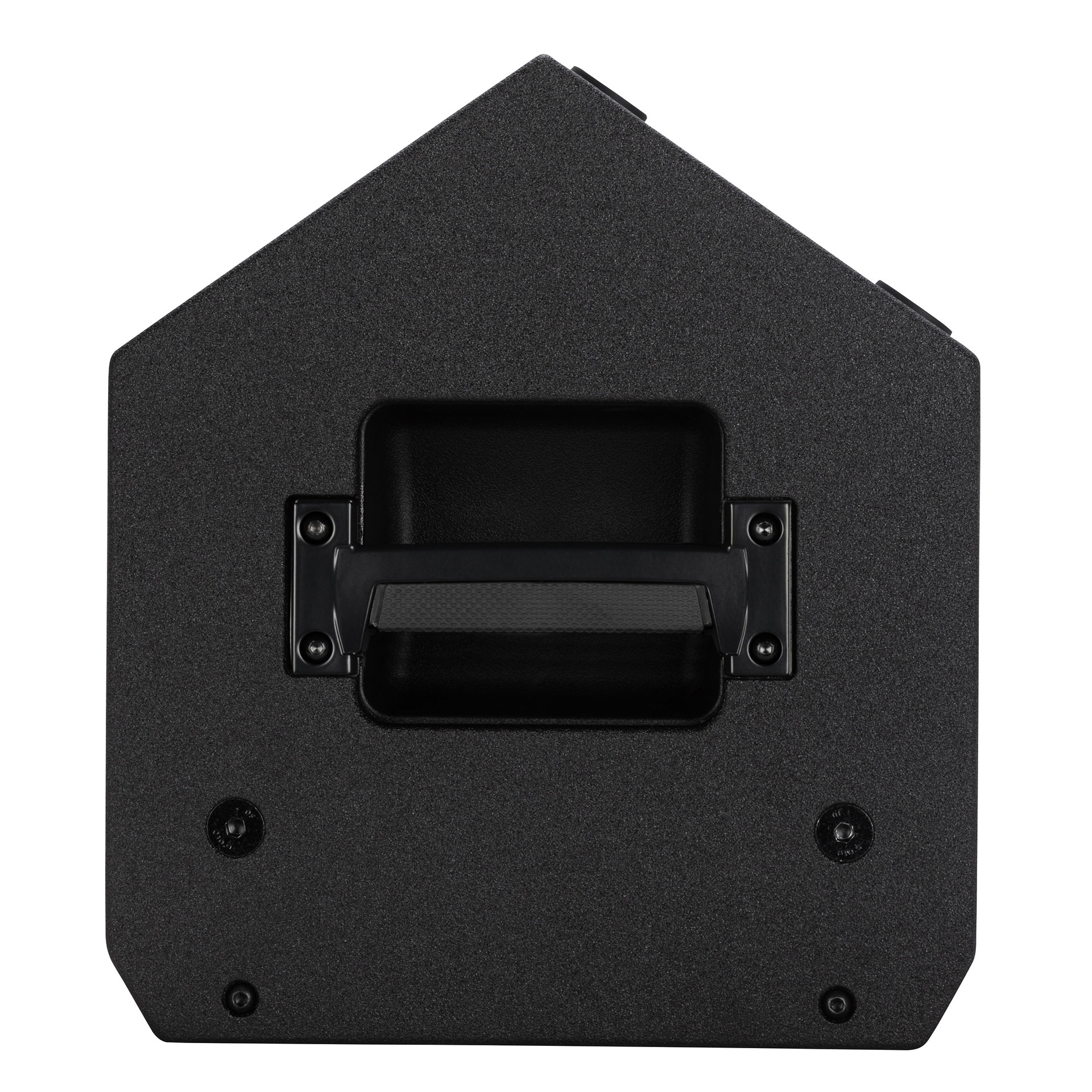

Handles
1 Top
Pole mount/Cap
35 mm insert
Black
Size / Weight
Height
510 mm / 20.08 inches
Width
295 mm / 11.61 inches
Depth
333 mm / 13.11 inches
Weight
16.4 kg / 36.16 lbs

Shipping information

Package Height
556 mm / 21.89 inches
Package Width
388 mm / 15.28 inches
Package Depth
348 mm / 13.7 inches
Package Weight
18.1 kg / 39.9 lbs
