LVW06-48T Brateck

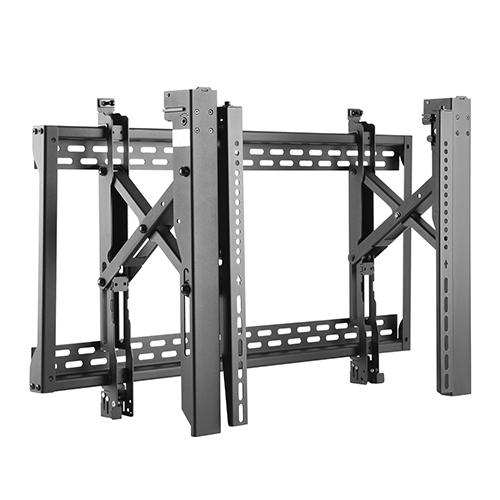

LVW06-48T Brateck - Image 2

LVW06-48T Brateck

RM475.00

Pop-Out Video Wall Mount

  • Pop-Out Extension: provides quick access for installation and maintenance
  • Precise Display Alignment: height/depth adjustment for seamless digital signage
  • Quick-Release Latch: locks/unlocks the display in place
  • Pop-Out Lock System: ensures safety by reducing the possibility of accidental pop-outs
  • Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
SKU: LVW06-48T Category: Tag: Brand:

Description

Product description

LVW06-48T provides a professional video wall solution while offering universal compatibility with load capacity of 70kg/154lbs and max. VESA 800×400 hole pattern. Multi-dimensional micro adjustment enables precision alignment of the video wall configuration including depth, height and tilt. This video wall mount features a quick-release pop-out mechanism for easy installation and maintenance. Quick-release latch keeps displays in place via activating lock & unlock mode. It is the perfect solution for public and commercial displays with anti-theft design (require for a padlock).

Specifications

Material
Steel
Metal Sheet Thickness
Wall Plate THK=2mm cold-rolled sheet, Bracket Arm THK=2mm cold-rolled sheet
Color
Fine Texture Black
Dimensions
870 x 95 ~ 285 x 524mm (34.3 x 3.7 inch ~ 11.2 x 20.6 inch)
Fit Screen Size
45 inch – 80 inch
VESA Compatible
200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, 800x400
Max. Mounting Hole
800 x 400
Weight Capacity (Per Screen)
70kg (154lbs)
Screen Quantity
1
Strength Tested
4 Times Approved
Profile
95 ~ 285mm (3.7 inch ~ 11.2 inch)
Fine Adjustment (Depth/Height)
20mm/25mm (0.79 inch / 0.98 inch)
Tilt Range
+4°~-2°
Screen Level
+3°~-3°

Specification Notes

Line 01
Installation
Line 02
Solid Wall
Line 03
Direction Indicator
Line 04
Yes
