i8 Wharfedale Pro

RM1,850.00

IP54 Certified Installation Loudspeakers

  • 8.0″ LF driver
  • 1.0″ HF dome tweeter
  • ABS plastic construction
  • Wall brackets included
  • 8 Ω or 70v/100v versions available
  • Available in black or white

Description

Product description

i8 is an 8″ installation loudspeaker from our i Series, engineered for distributed audio systems that require higher output, extended low-end response, and all-weather reliability.

Equipped with an 8.0″ LF driver and 1.0″ HF dome tweeter, i8 delivers powerful, balanced sound ideal for restaurants, bars, retail spaces, and commercial installations. Its IP54 certification protects against dust and water spray, ensuring consistent performance in both indoor and semi-outdoor environments.

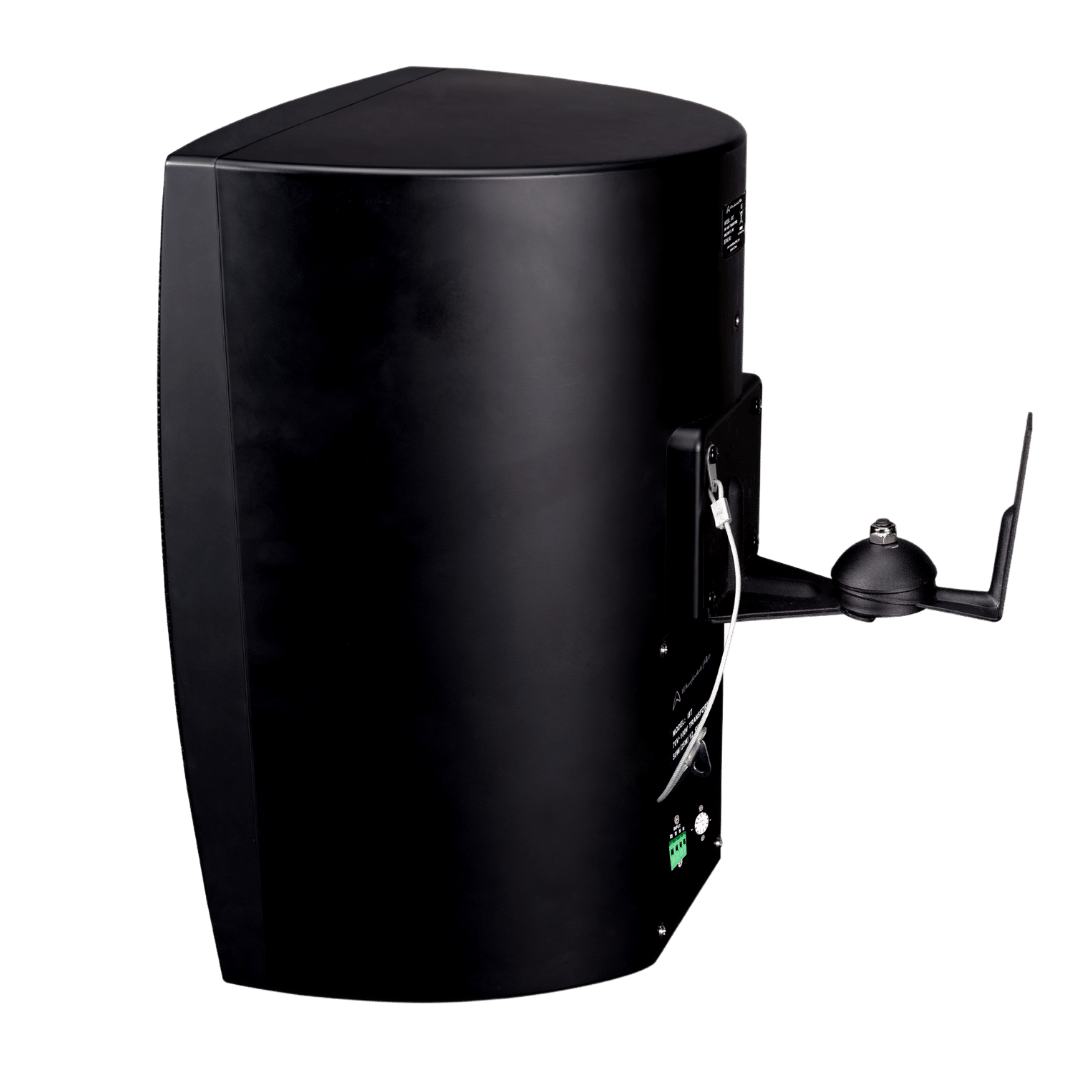

Constructed from robust ABS plastic with a full frontal steel grille, i8 offers durability and a clean, professional appearance. Each pair includes fully adjustable mounting brackets featuring a semi-circular “ball and socket” design for precise aiming and secure installation, along with a seismic restraint tether attachment point for added safety.

Finished in black or white, i8 integrates seamlessly into any décor. Designed for 8 Ω operation, it features Phoenix connectors for secure, straightforward wiring and quick installation.

Specifications

Active or Passive
Passive
System Type
Full-Range
Configuration
2-way
System Continuous Power
50 W
System Programme Power
100 W
System Peak Power
200 W
Max SPL @ 1m
110 dB
Freq Response (+/-3 dB)
70 Hz - 20 kHz
Freq Range (-10 dB)
50 Hz - 20 kHz
Bi-amp Mode Switch
No
IP Certification
IP54
Driver Brand
Wharfedale Pro
LF Driver Size
8"
LF Voice Coil Size
1"
LF Rated Impedance
8 Ω
LF Power (RE:AES2-2012)
50 W
HF Driver Type
Soft Dome Tweeter
HF Voice Coil Size
1"
HF Diaphragm Material
Silk
HF Power (RE:AES2-2012)
10 W
HF Rated Impedance
8 Ω
Preset Library
Yes
Input Connector
Phoenix Terminal
Enclosure Material
ABS
Grille Material and Finish
Aluminium
Finish
Black or White
Handles
No
Deployment
Wall Mount
Pole Mount
None
Brackets Included
Yes
Rigging
No
Nominal Coverage (H x V)
130° x 180°
Sensitivity 2.83 V / 1 m
87 dB
System Rated Impedance
8 Ω
Crossover Frequency
2.0 kHz
Recommended HPF = BW 18 dB/OCT.
50 Hz
Transformer (T)
No
Included Accessory
Wall Bracket, User Manual
Unpacked - Height (mm)
405
Unpacked - Width Front (mm)
270
Unpacked - Width Rear (mm)
270
Unpacked - Depth (mm)
234
Packed - Height (mm)
560
Packed - Width Front (mm)
360
Packed - Width Rear (mm)
360
Packed - Depth (mm)
600
Weight - Nett (kg)
9.36
Weight - Gross (kg)
12.9
